HUBA Control Differential Pressure Transmitter 692.916007141

Price 35000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HUBA Control Differential Pressure Transmitter 692.916007141 Specification

Thread size
6 MM

Max Pressure
0-2.5 BAR

Product Type
HUBA Control Differential Pressure Transmitter 692.916007141

Power Rating
11-33 VDC

Max. Current
11-33 VDC

Max. Power
11-33 VDC

Max. Voltage
11-33 VDC

Pressure Range
0-2.5 BAR

Application
Process Medium; Gas

Output Signal
0 ... 5 V, 0 ... 10 V, 4 ... 20 mA

Color
RAD

Rated Voltage
11-33 VDC Volt (V)

Usage & Applications
Process Medium; Gas

Weight
430 Grams (g)

Warranty
1 YERS

Material
Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Rated Current
11-33 VDC

HUBA Control Differential Pressure Transmitter 692.916007141 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
EXTRA

About HUBA Control Differential Pressure Transmitter 692.916007141

This image has an empty alt attribute; its file name is 22-9871034100-IMART-AN-1024x799.jpg

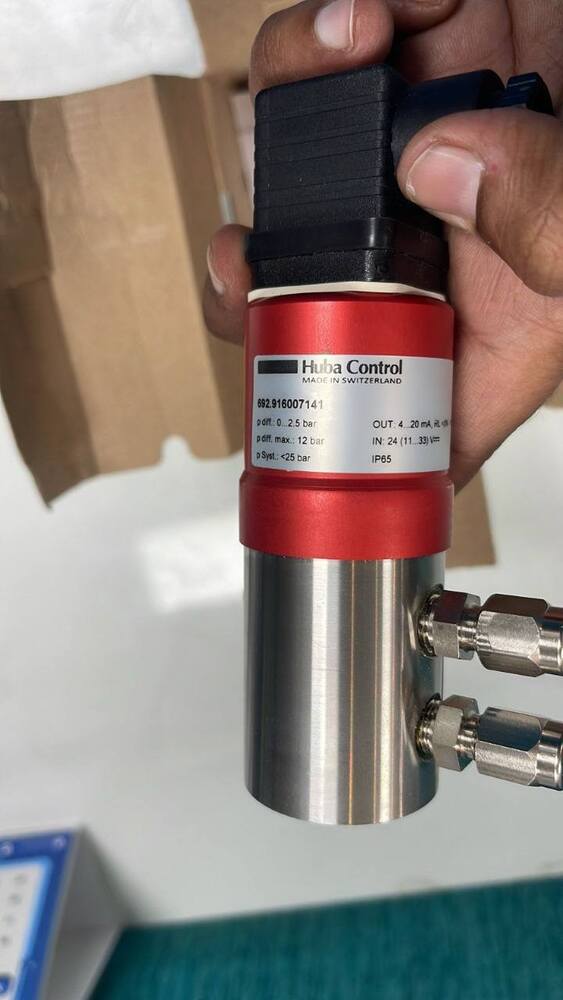

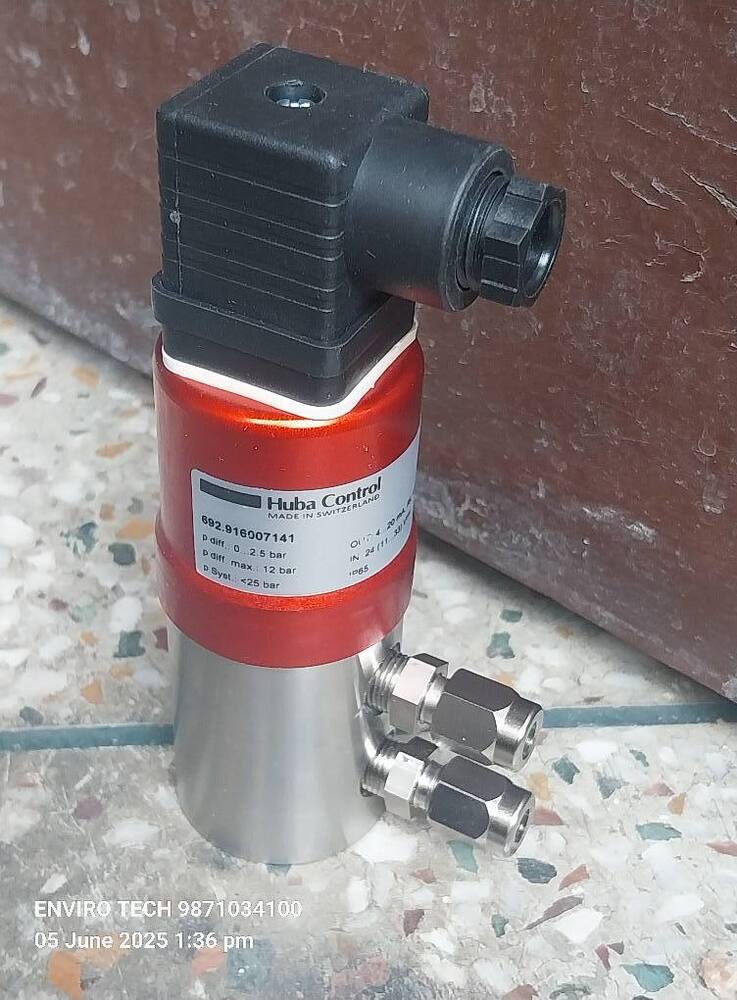

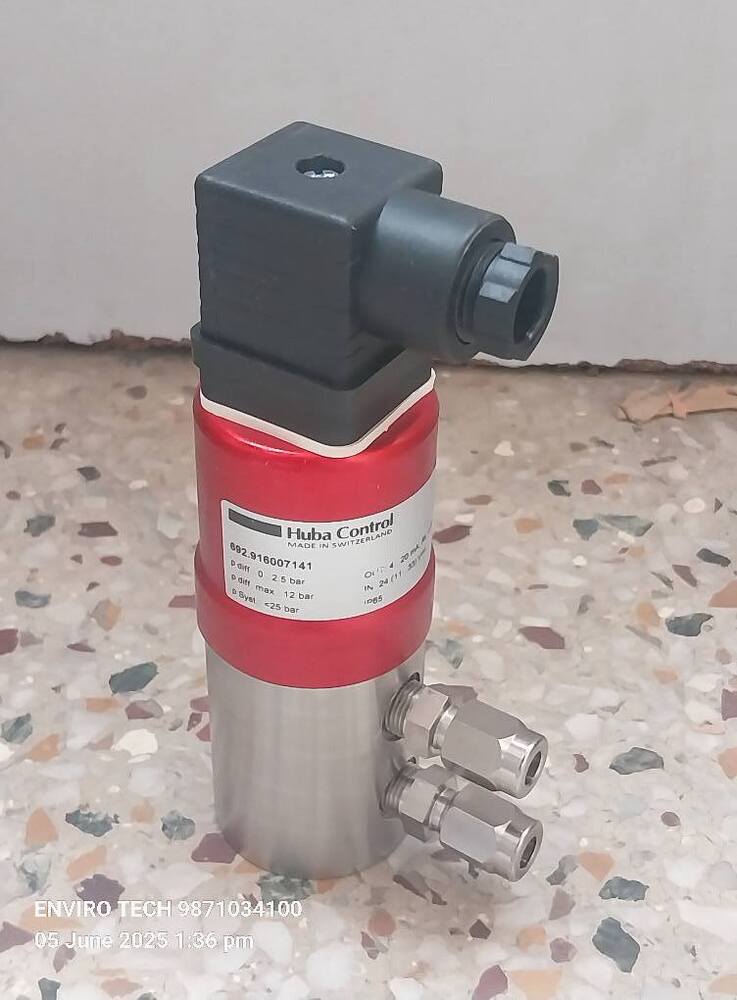

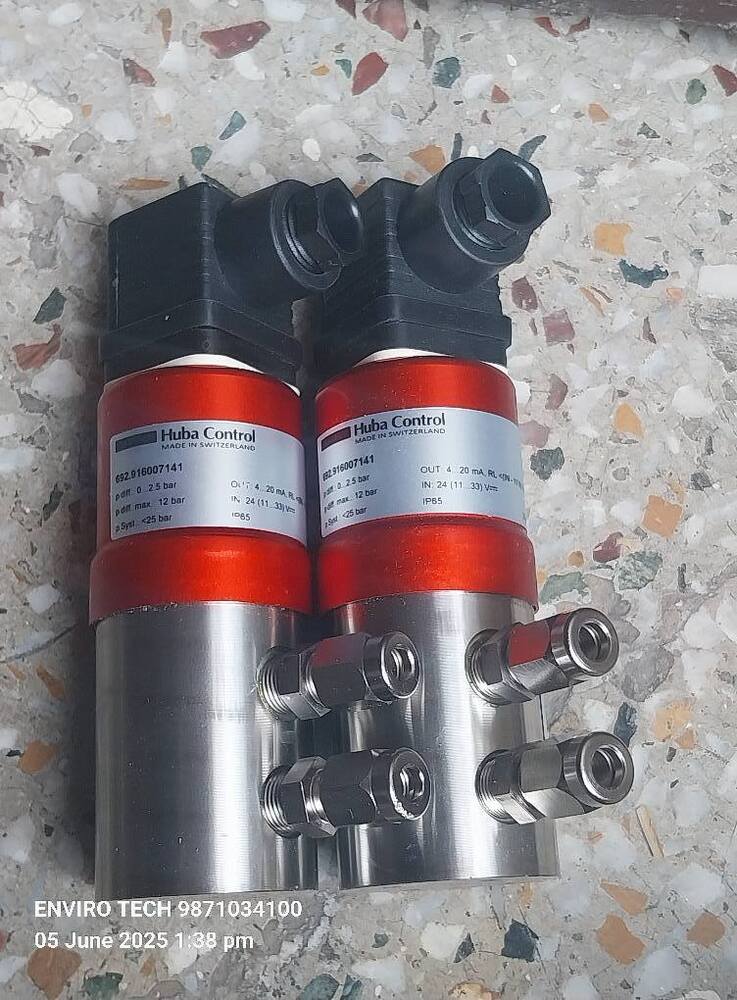

HUBA Control Differential Pressure Transmitter 692.916007141

Brand : HUBA Control
Model : 692.916007141
Range : 0-2.5 Bar
Type : 692 0-2.5 Bar
Current Out : 4-20mA
Voltage : 24 ( 11-33V DC )
MAX : P1-P2 12BAR
MAX : P2-P1 12BAR
Made In Switzerland

Huba Control Differential Pressure Transmitter
Product Information

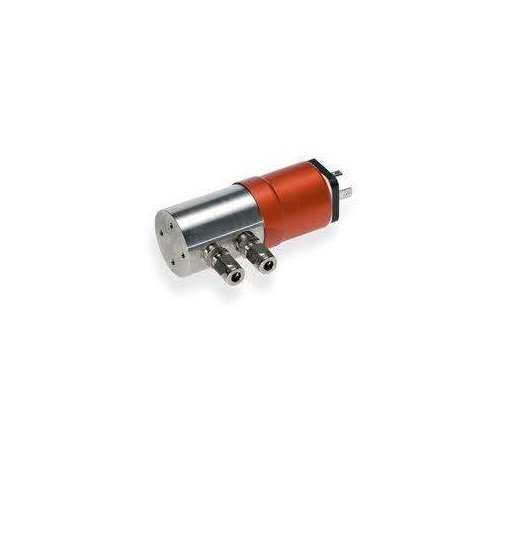

Differential Pressure Transmitter 692

The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical Data
Product Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 C

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 C

Storage Temperature : -40 ... 85 C

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval

EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3

Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

Additional Information:

Item Code: HUBA Control Differential Pressure Transmitter 692.916007141

WhatsApp No.9871034100,9868958924,9650264867,9716640145,8368866030,8368801023

www.envirotechindia.net

www.envirotechdelhi.info

www.envirotechindia.info

Precision Measurement for Process Gases

The HUBA 692.916007141 Differential Pressure Transmitter ensures accurate monitoring of process gas pressures with impressive stability. Engineered for demanding industrial environments, it delivers readings in the 0-2.5 BAR range, making it a reliable solution for critical gas control applications. Its tailored compatibility and robust output options support integration into complex automation and monitoring systems.

Versatile and Durable Construction

Built with high-quality stainless steel (AISI 303) and PVDF, this transmitter withstands harsh environments and corrosive gases encountered in industrial settings. The compact form factor and lightweight design (430 grams) enhance installation flexibility, while thread size and electrical connections support convenience and safety in set-up and operation.

FAQ's of HUBA Control Differential Pressure Transmitter 692.916007141:

Q: How does the HUBA Control Differential Pressure Transmitter 692.916007141 improve gas process monitoring?
A: It provides precise differential pressure readings in the 0-2.5 BAR range, crucial for accurate gas process control, ensuring safety and operational efficiency by delivering reliable data to automation systems.

Q: What output signals are available on this transmitter?
A: The device supports analog output signals of 0-5 V, 0-10 V, and 4-20 mA, allowing flexible connectivity to a wide range of industrial control and monitoring devices.

Q: When should this transmitter be used in industrial settings?
A: It is best employed when accurate, real-time monitoring of differential pressure is essential for gas process mediums, such as in HVAC, industrial gas distribution, or manufacturing applications.

Q: Where can the HUBA Differential Pressure Transmitter be installed?
A: Its rugged build and compact size make it suitable for installation at gas pipelines, process control panels, or any application point requiring durable pressure measurement in industrial environments.

Q: What are the benefits of using stainless steel and PVDF as construction materials?
A: These materials offer excellent resistance to corrosion and mechanical stress, ensuring the transmitter maintains performance and reliability even in harsh or chemically aggressive gas process environments.

Q: How is the transmitter powered and what is the current rating?
A: The transmitter operates with a rated voltage of 11-33 VDC and has a matching current range. This offers broad compatibility with standard industrial power supplies, enhancing ease of integration.
