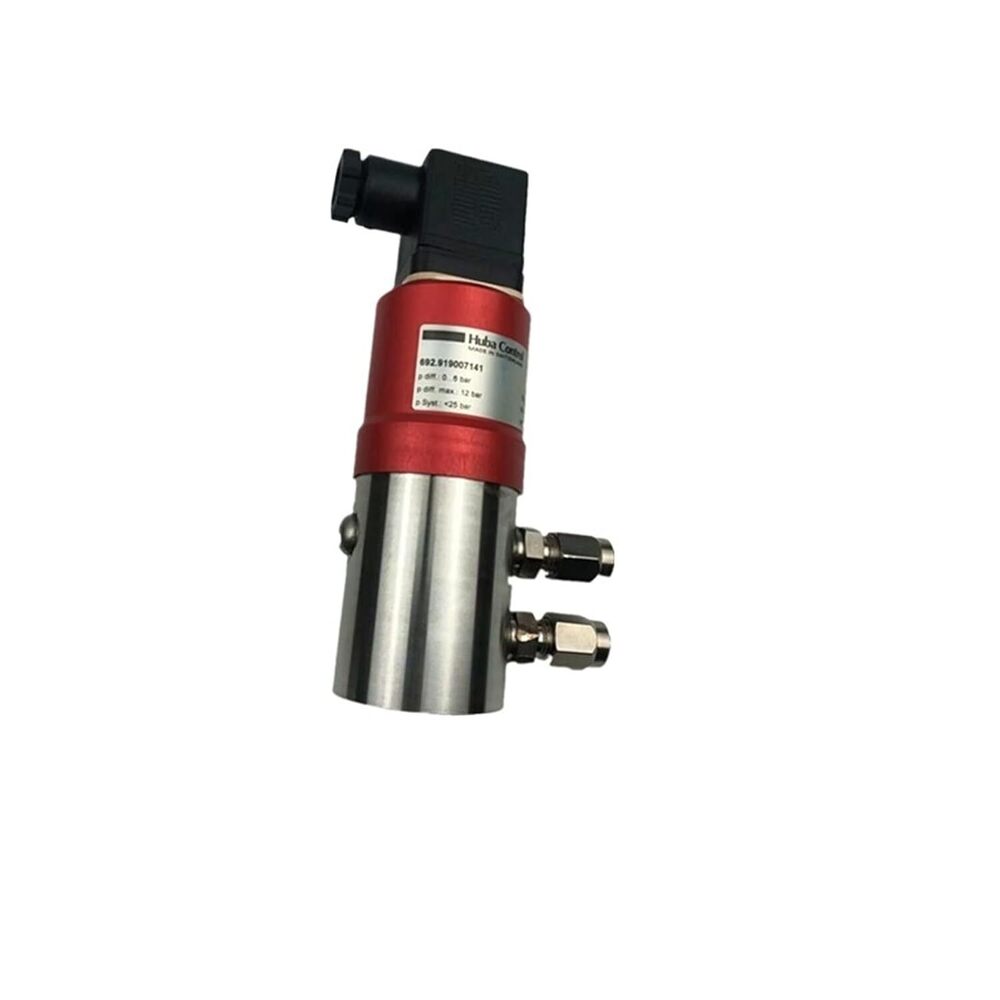

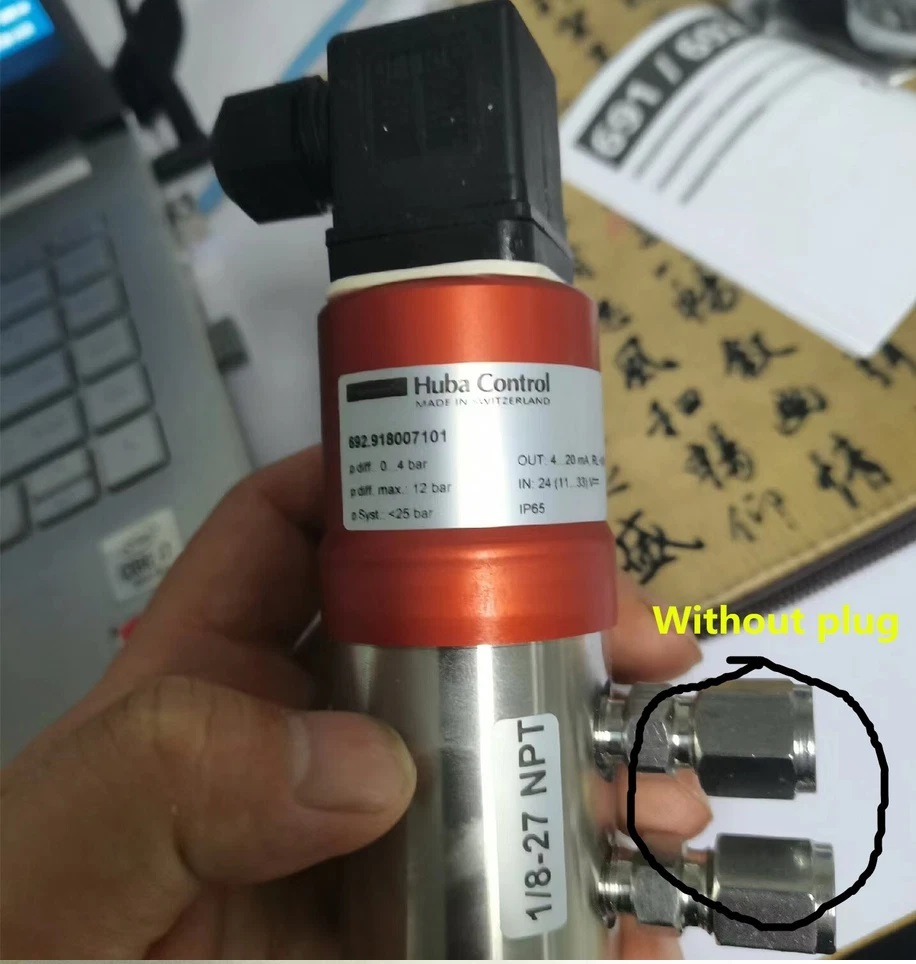

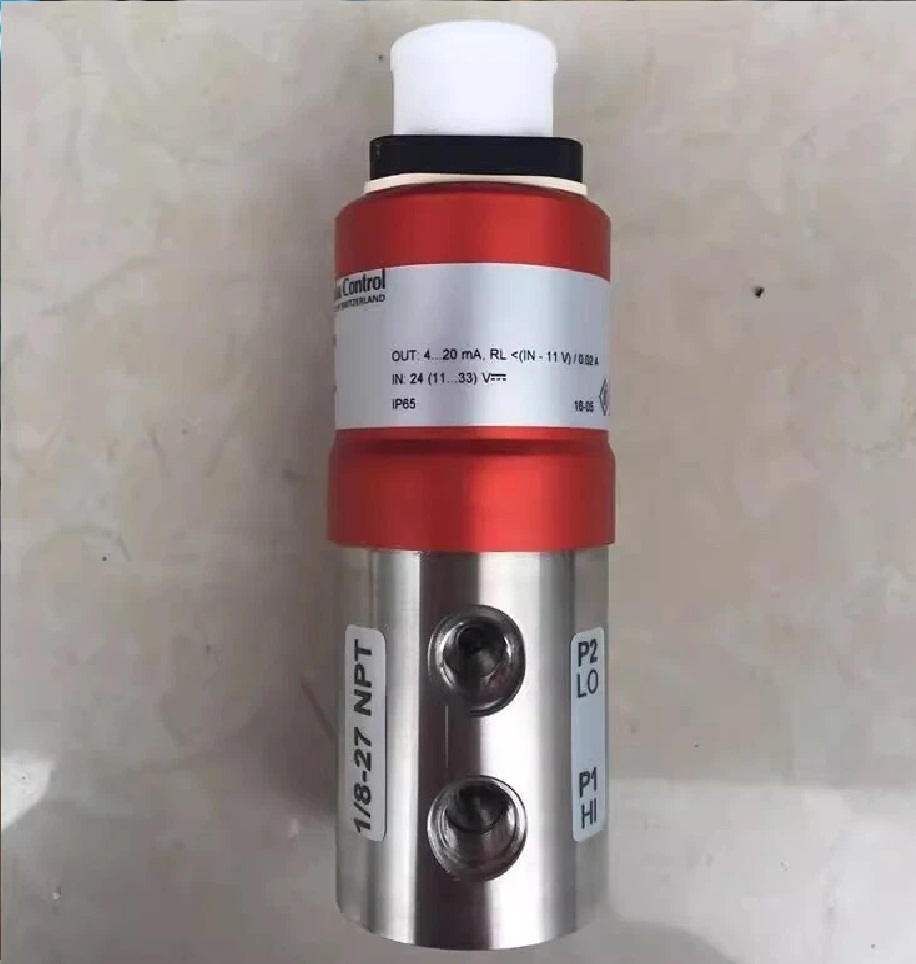

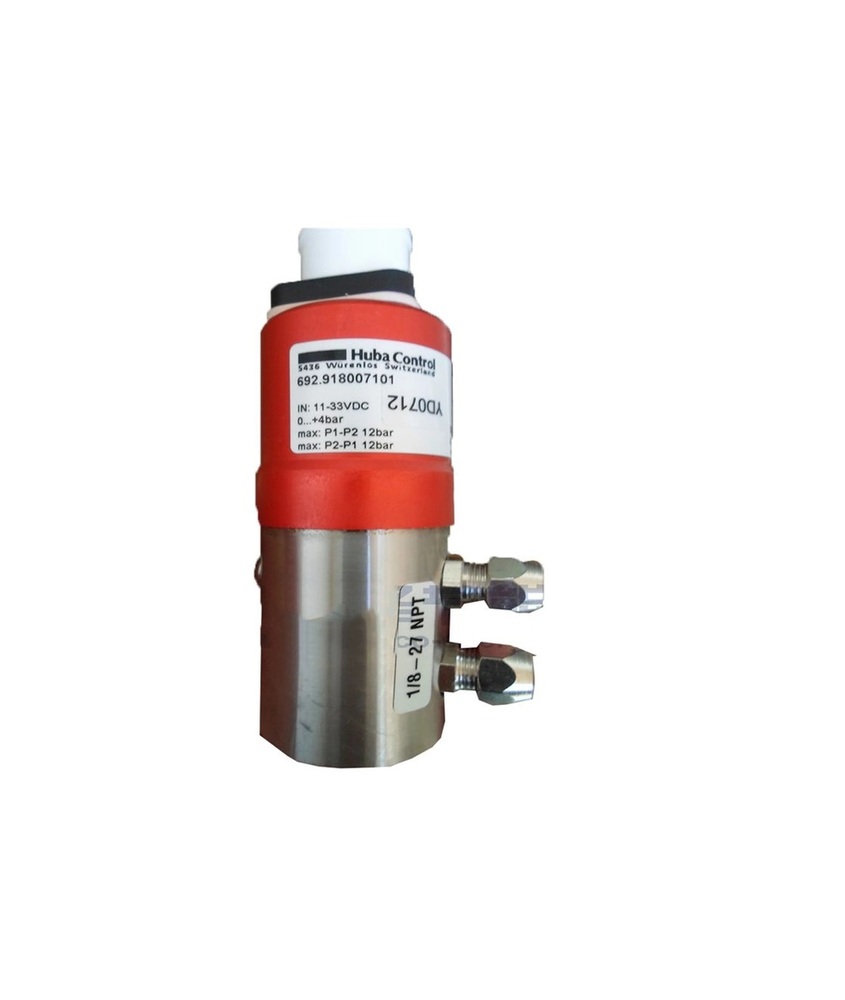

Huba Control Differential Pressure Transmitter 692.918007101

Price 35000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Huba Control Differential Pressure Transmitter 692.918007101 Specification

Thread size
6 MM

Max Pressure
Huba Control Differential Pressure Transmitter 692.918007101

Product Type
Huba Control Differential Pressure Transmitter 692.918007101

Power Rating
11-33 VDC

Max. Current
11-33 VDC

Max. Power
11-33 VDC

Max. Voltage
11-33 VDC

Pressure Range
Huba Control Differential Pressure Transmitter 692.918007101

Application
Process Medium; Gas

Output Signal
0 ... 5 V, 0 ... 10 V, 4 ... 20 mA

Size
(H) 95 x () 44

Color
RAD

Usage & Applications
Process Medium; Gas

Rated Voltage
11-33 VDC Volt (V)

Weight
430 Grams (g)

Warranty
1 YERS

Material
Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Rated Current
11-33 VDC Volt (v)

Huba Control Differential Pressure Transmitter 692.918007101 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
EXTRA

About Huba Control Differential Pressure Transmitter 692.918007101

Huba Control Differential Pressure Transmitter 692.918007101
Huba Control Differential Pressure Transmitter
Product Information
Differential Pressure Transmitter 692

Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical Data
Product Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 C

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 C

Storage Temperature : -40 ... 85 C

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval

EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3

Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

Additional Information:

Item Code: Huba Control Differential Pressure Transmitter 692.918007101

WhatsApp No.9871034100,9868958924,9650264867,9716640145,8368866030,8368801023

www.envirotechdelhi.com

www.envirotechindia.co.in

www.envirotechindustrialproducts.info

Reliable Gas Differential Pressure Measurement

Engineered for process environments, the Huba Control Differential Pressure Transmitter 692.918007101 offers precise monitoring of pressure differences, enhancing efficiency and safety in industrial gas applications. Its stainless steel and PVDF construction ensures both resilience and longevity under demanding conditions, making it a dependable choice for process engineers.

Flexible Signal Output Options

With support for 0-5 V, 0-10 V, and 4-20 mA output signals, this pressure transmitter seamlessly integrates into modern process control and monitoring systems. This adaptability allows users to connect the device with a broad variety of control and data acquisition systems, ensuring compatibility and optimum performance.

Easy Installation and Maintenance

Weighing just 430 grams and featuring a compact design, the transmitter is easily installed even in space-constrained locations. Minimal maintenance is required due to its robust construction and high-quality materials, ensuring trouble-free operation and reduced downtime throughout its service life.

FAQ's of Huba Control Differential Pressure Transmitter 692.918007101:

Q: How is the Huba Control Differential Pressure Transmitter 692.918007101 installed and connected?
A: The transmitter is designed for straightforward installation, typically mounted via its 6 mm threaded connections. Electrical connections are made through the voltage range (11-33 VDC), with selectable output signals (0-5 V, 0-10 V, or 4-20 mA) that can be wired directly to your control system.

Q: What types of applications are suitable for this differential pressure transmitter?
A: The Huba Control transmitter is ideal for process medium applications involving gases, including monitoring airflow, HVAC systems, and industrial process control. Its durable construction allows it to perform reliably in demanding processing environments.

Q: When should this transmitter be used over other pressure sensors?
A: This model is best chosen when precise differential pressure measurements within gas processing systems are required, particularly where robust material construction, flexible output options, and a compact form factor are crucial.

Q: Where can this transmitter be sourced in India?
A: You can obtain this Huba Control Differential Pressure Transmitter from various distributors, exporters, importers, manufacturers, suppliers, traders, and wholesalers across India. Many companies specializing in industrial automation and instrumentation stock this model.

Q: What benefits does the Huba Control 692.918007101 offer to process engineers?
A: The transmitter provides accurate and reliable differential pressure readings, robust tolerance to harsh environments, and seamless integration into control systems. This increases process efficiency, safety, and minimizes maintenance requirements.

Q: How does the warranty process work for this transmitter?
A: The product is covered by a one-year manufacturer warranty. For any issue within this period, you can contact your supplier or distributor for support, repair, or replacement as per warranty terms.
