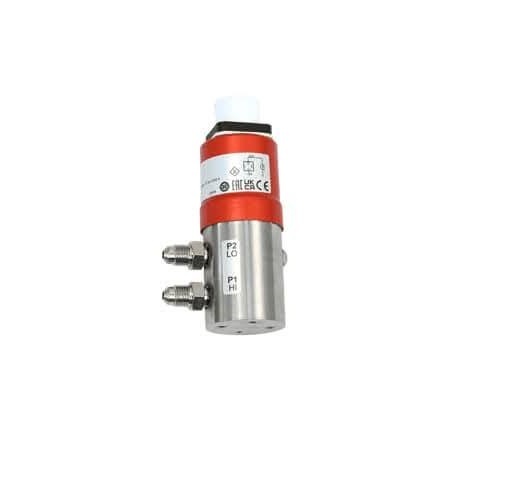

Huba ! Control 692 Differential Pressure Transmitter

Price 40000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Huba ! Control 692 Differential Pressure Transmitter Specification

Power Rating
24 ( 18-33V DC )

Product Type
Huba ! Control 692 Differential Pressure Transmitter

Max. Current
24 ( 18-33V DC )

Max. Power
24 ( 18-33V DC )

Max. Voltage
24 ( 18-33V DC )

Pressure Range
Huba ! Control 692 Differential Pressure Transmitter

Application
POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Warranty
1 yers

Output Signal
0 ... 5 V, 0 ... 10 V, 4 ... 20 mA

Usage & Applications
POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Color
RAD

Rated Voltage
24 ( 18-33V DC )

Weight
550 Grams (g)

Display Type
Analog

Material
SS316L

Rated Current
11-33 VDC

Huba ! Control 692 Differential Pressure Transmitter Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
EXTRA

About Huba ! Control 692 Differential Pressure Transmitter

www.envirotechindustrialproduct.info

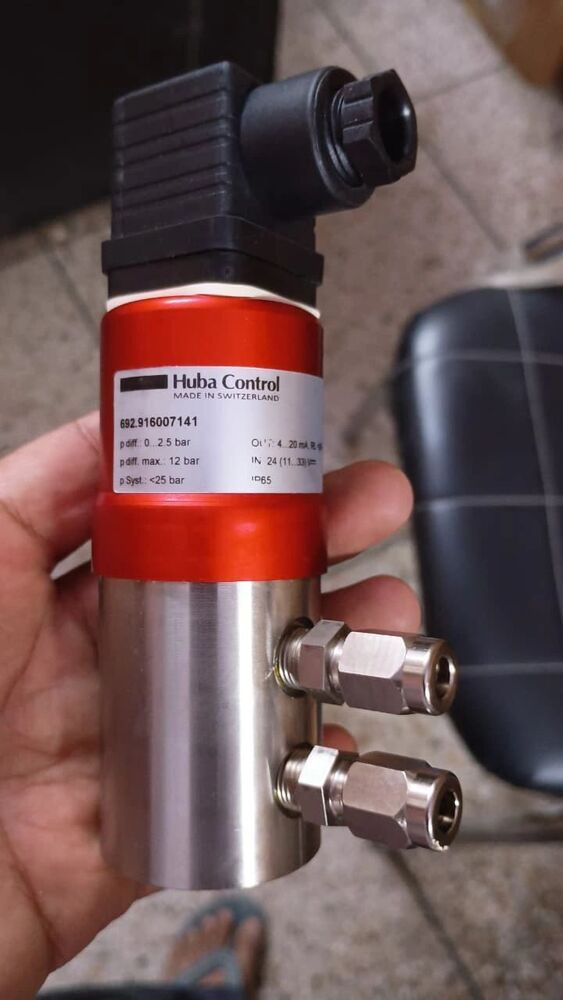

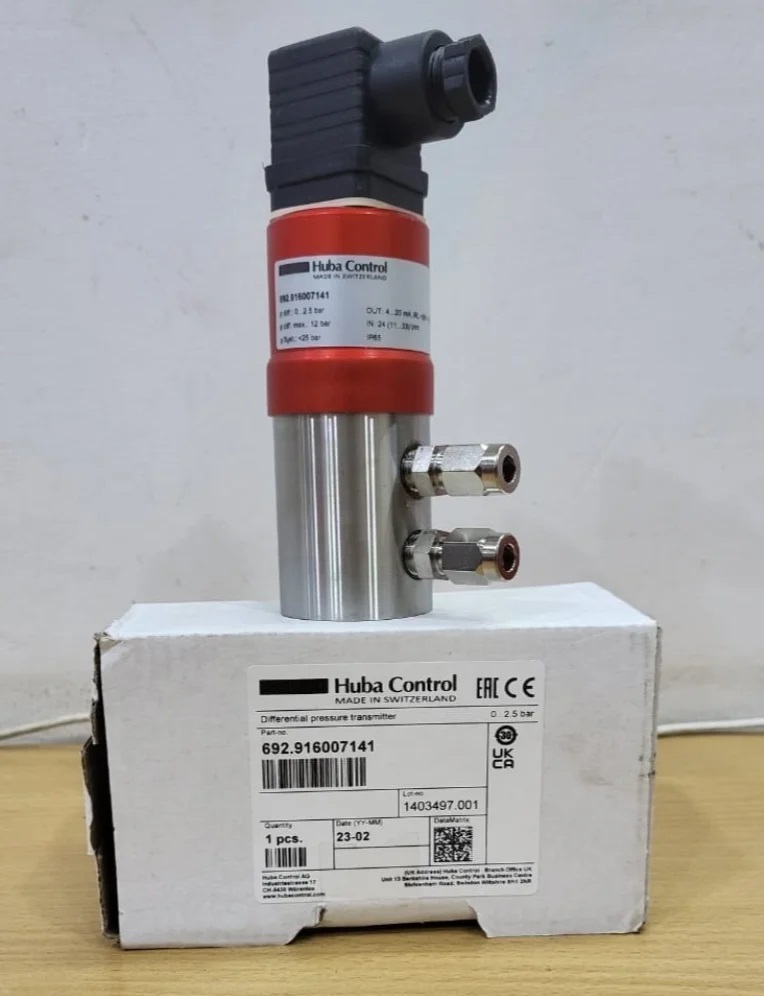

Huba ! Control 692 Differential Pressure Transmitter

Brand : Huba Control

Model : 692.918107041

Range : 0-4 Bar

Type : 692 0-4 Bar

Current Out : 4-20 MA / 24 VAC Â±15 %

IN - 11-33 VDC

WIRE - 2 WIRE, 1.5M CABLE

Made In Switzerland

Huba Control Differential Pressure Transmitter 692

Product Information

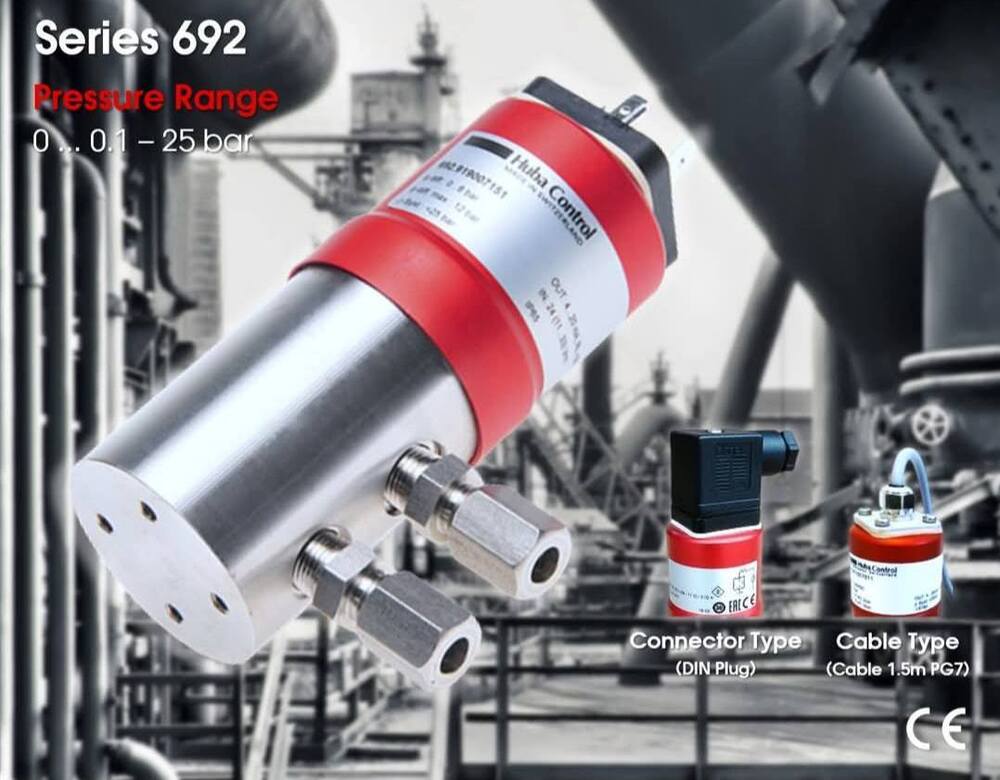

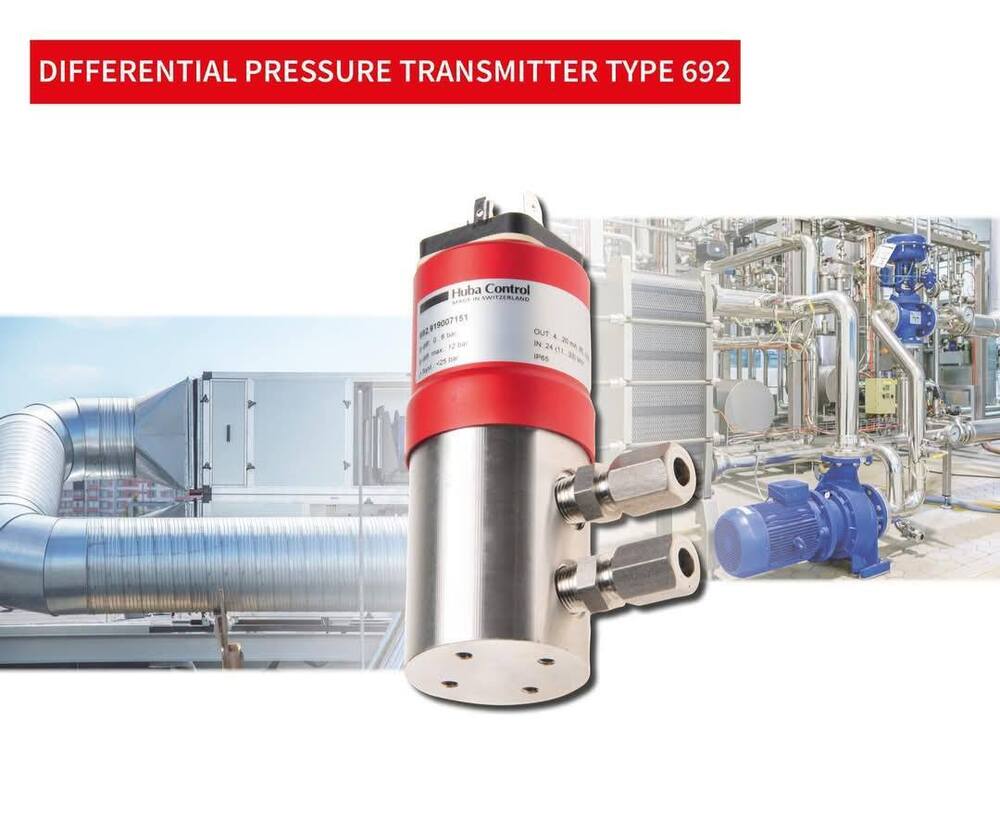

Differential pressure transmitter 692

The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical Data
Product Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 Â°C

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 Â°C

Storage Temperature : -40 ... 85 Â°C

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval

EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3

Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate
