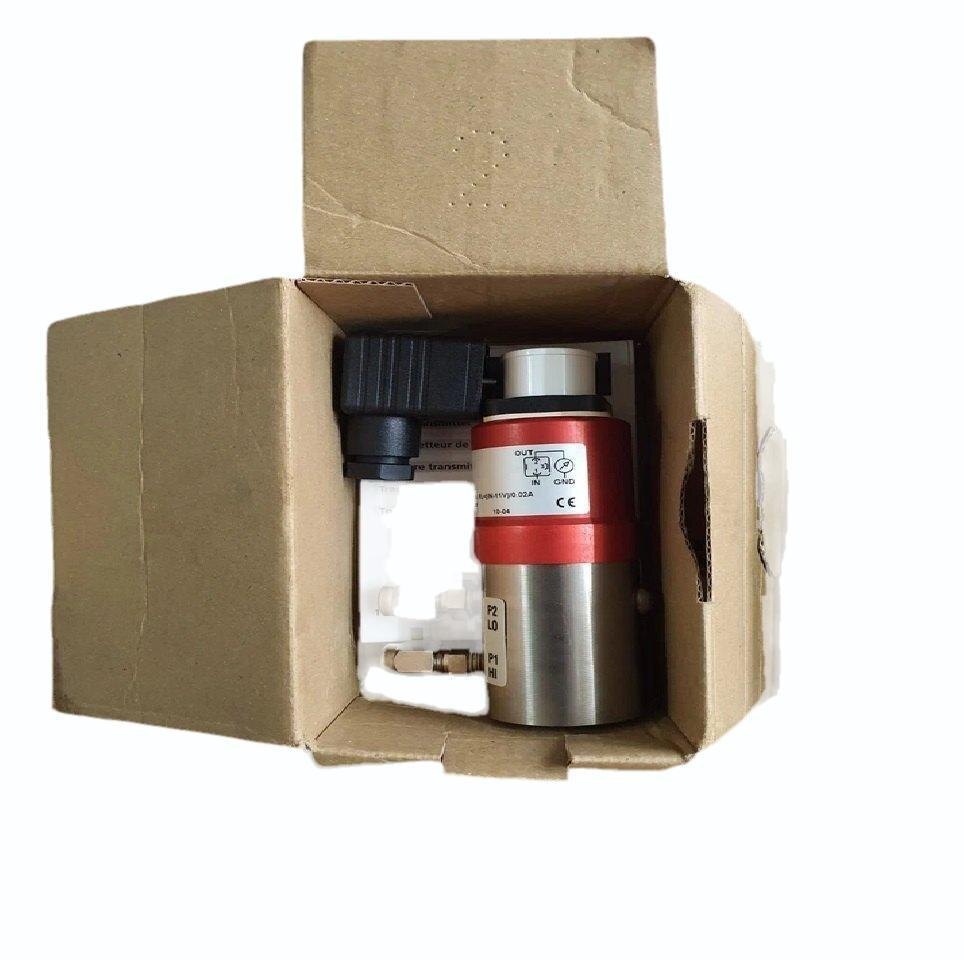

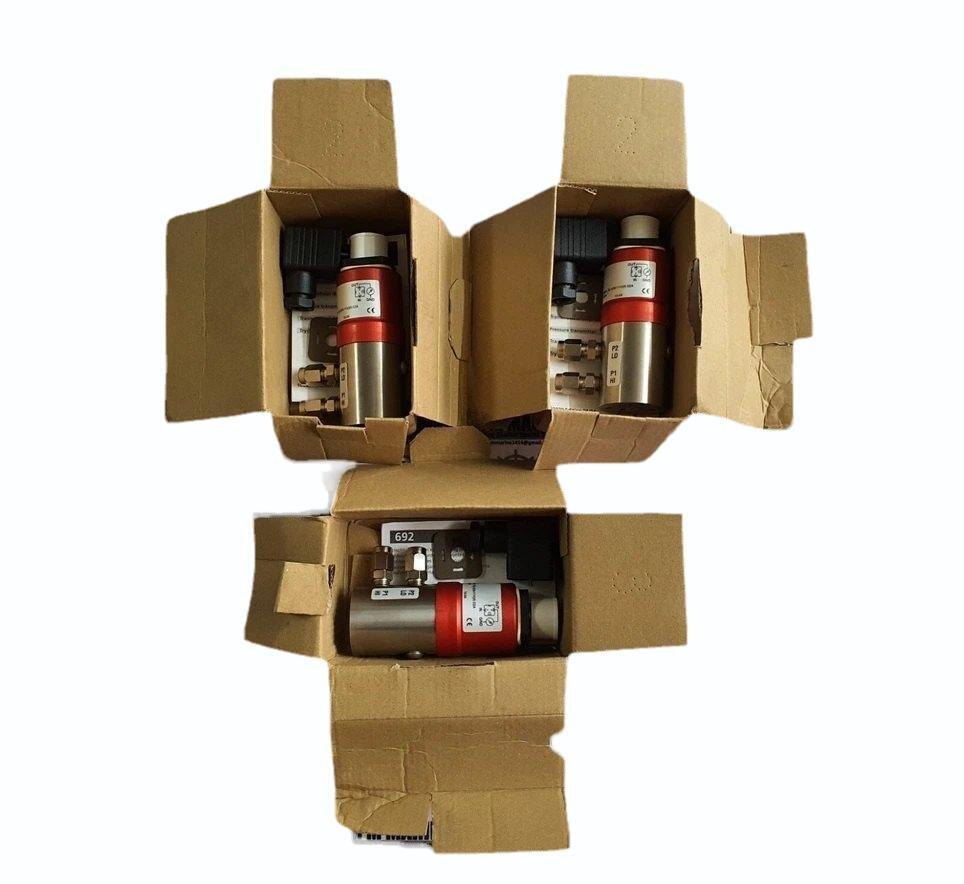

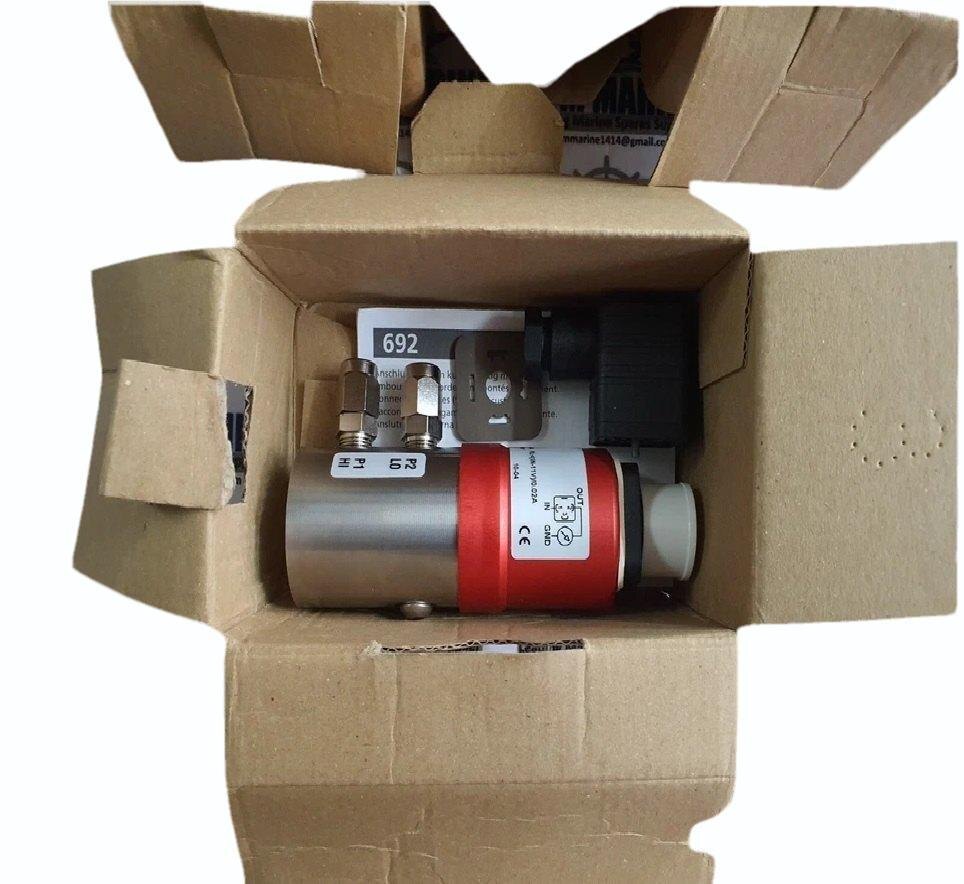

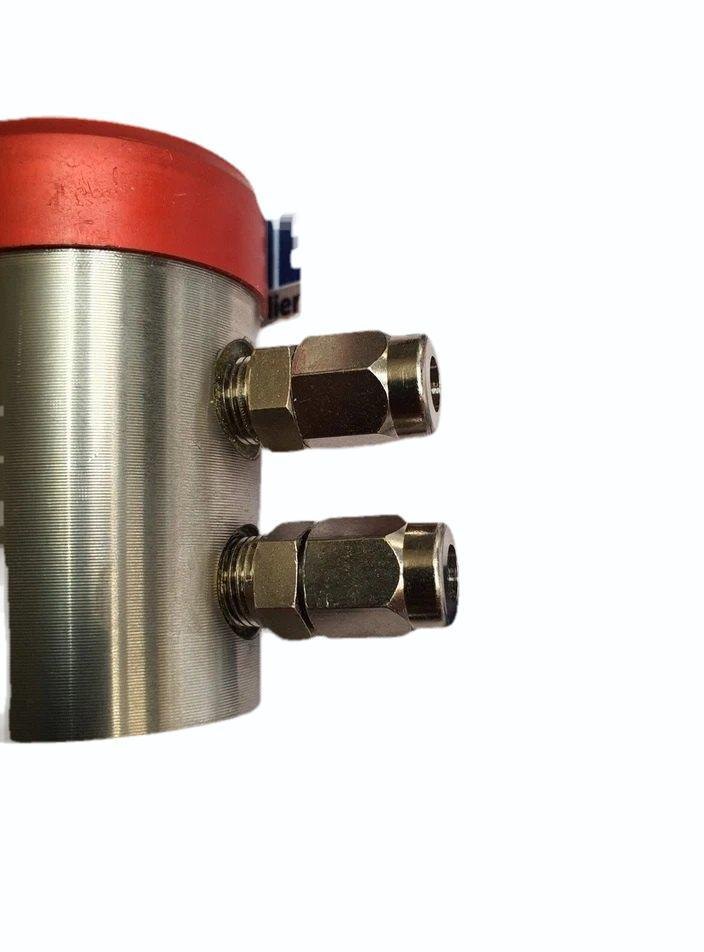

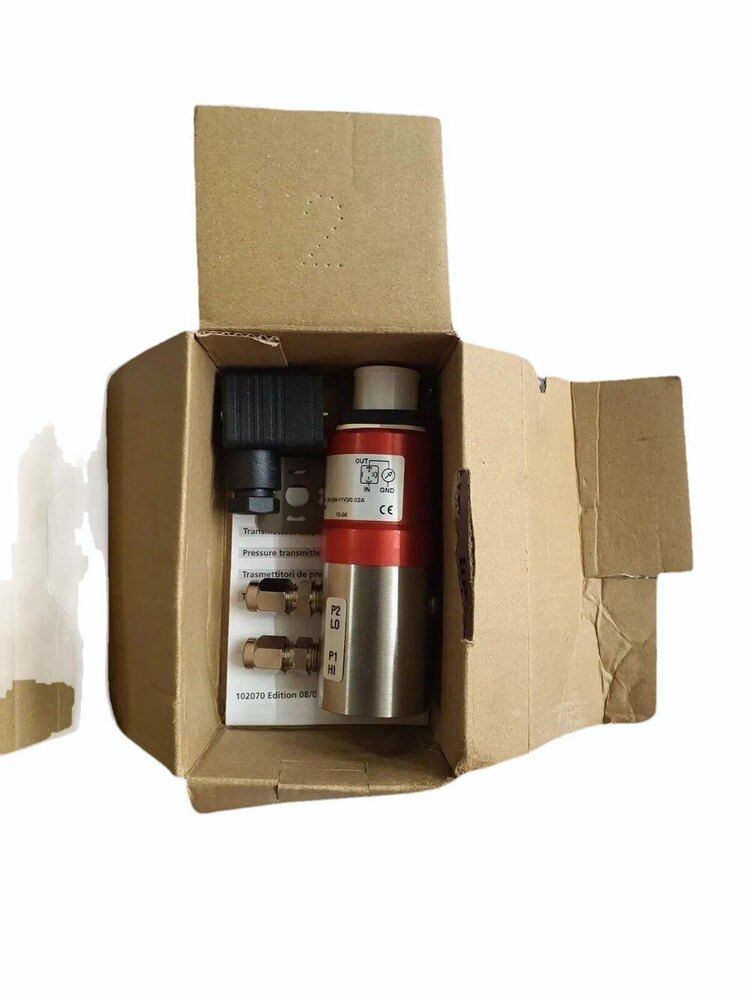

Huba Control Differential Pressure Transmitter 692.914007141

Price 39500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Huba Control Differential Pressure Transmitter 692.914007141 Specification

Max Pressure
0...+1.6 BAR

Thread size
6 MM

Power Rating
11-33 VDC

Product Type
Huba Control Differential Pressure Transmitter 692.914007141

Max. Power
11-33 VDC

Max. Voltage
11-33 VDC Volt (V)

Pressure Range
0...+1.6 BAR

Application
Process Medium; Gas

Output Signal
0 ... 5 V, 0 ... 10 V, 4 ... 20 mA

Size
(H) 95 x () 44

Rated Voltage
11-33 VDC

Usage & Applications
Process Medium; Gas

Color
RAD

Weight
430 Grams (g)

Warranty
1 YERS

Material
Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Huba Control Differential Pressure Transmitter 692.914007141 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
EXTRA

About Huba Control Differential Pressure Transmitter 692.914007141

www.envirotechdelhi.info

Huba Control Differential Pressure Transmitter 692.914007141

Brand : Huba Control
Model : 692.914007141
Range : 0...+1.6 BAR
Type : 692 0...+1.6 BAR
Current Out : 4-20mA
Voltage : 11-33V DC
MAX : P1-P2 12BAR
MAX : P2-P1 12BAR
Made In Switzerland

Huba Control Differential Pressure Transmitter 692

Product Information
Differential Pressure Transmitter 692

The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical Data
Product Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 C

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 C

Storage Temperature : -40 ... 85 C

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval

EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3

Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

Additional Information:

Item Code: Huba Control Differential Pressure Transmitter 692.914007141

WhatsApp No.9871034100,9868958924,9650264867,9716640145,8368866030,8368801023

www.envirotechdelhi.com

www.envirotechindia.co.in

www.envirotechdelhi.in

www.envirotechdelhi.net

Robust & Versatile Pressure Measurement

The Huba Control Differential Pressure Transmitter 692.914007141 offers exceptional reliability for monitoring low-pressure differentials in gas and process media. Its stainless steel and PVDF construction ensures both chemical and mechanical resistance, making it suitable for harsh industrial environments. The compact design and multiple output signal options enable seamless integration into new systems or retrofitting into existing equipment, delivering accurate and stable performance for a variety of critical measuring tasks.

Designed for Industrial Applications

This transmitter is tailored for robust use in industrial settings where accurate, continuous differential pressure measurement is required. Capable of handling pressures up to 1.6 BAR and offering a broad voltage supply range (11-33 VDC), it supports a wide spectrum of control and monitoring systems. Its easy-to-install 6 mm thread size ensures quick maintenance and operational efficiency, making it a preferred choice for professionals seeking reliability and durability.

FAQ's of Huba Control Differential Pressure Transmitter 692.914007141:

Q: How does the Huba Control Differential Pressure Transmitter 692.914007141 operate?
A: This transmitter detects and converts the difference in pressure between two points into a corresponding electrical output signal (0-5V, 0-10V, or 4-20mA), which can be monitored or recorded by control systems.

Q: What are the main usage and application areas for this transmitter?
A: The device is primarily used in process medium and gas applications, frequently found in industrial automation, HVAC, and process control environments where precise differential pressure monitoring is crucial.

Q: When should I consider choosing this model for my system?
A: Select this model when you require accurate low-pressure measurement in applications with a pressure range up to 1.6 BAR, versatile output signals, and durability against aggressive mediums, particularly in harsh industrial settings.

Q: Where can I purchase or source the Huba Control Transmitter in India?
A: You can obtain this transmitter from a wide network of distributors, exporters, importers, manufacturers, suppliers, traders, and wholesalers throughout India.

Q: What is the installation process for the transmitter?
A: Installation involves connecting the transmitter to your process medium via its 6 mm threaded port, wiring it to your power supply (11-33 VDC), and configuring the required output signal for your monitoring or control system.

Q: What benefits does the stainless steel and PVDF construction provide?
A: These materials offer high resistance to corrosion and wear, making the transmitter ideal for use in chemically aggressive or demanding environments, thus extending product lifespan and reliability.

Q: How is the warranty for the Huba Control Differential Pressure Transmitter handled?
A: The product comes with a one-year warranty, covering manufacturing defects and performance issues, ensuring peace of mind and reliable technical support during the initial period of use.
