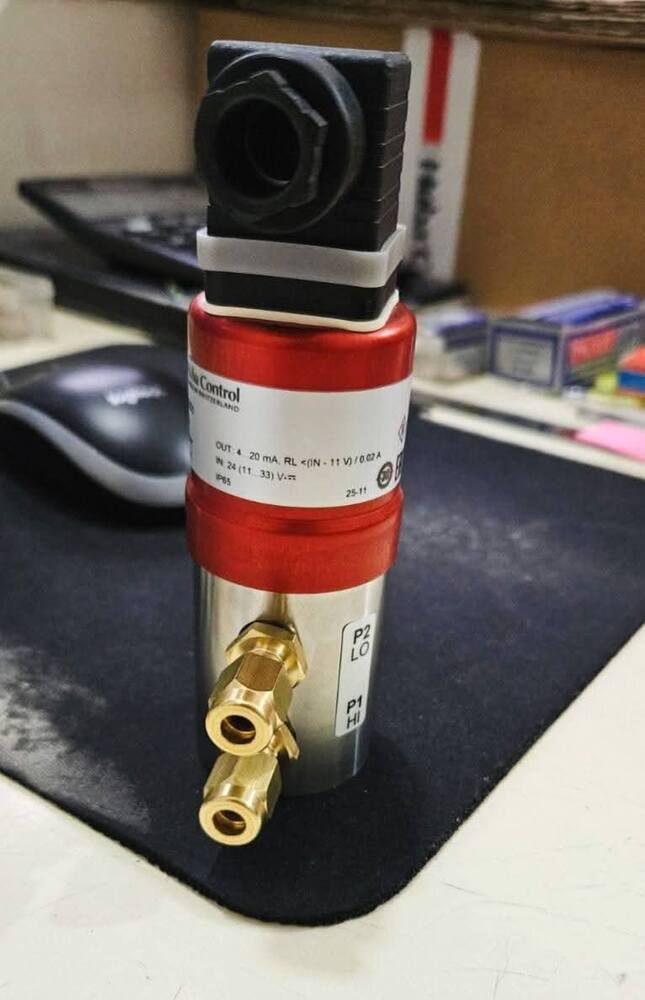

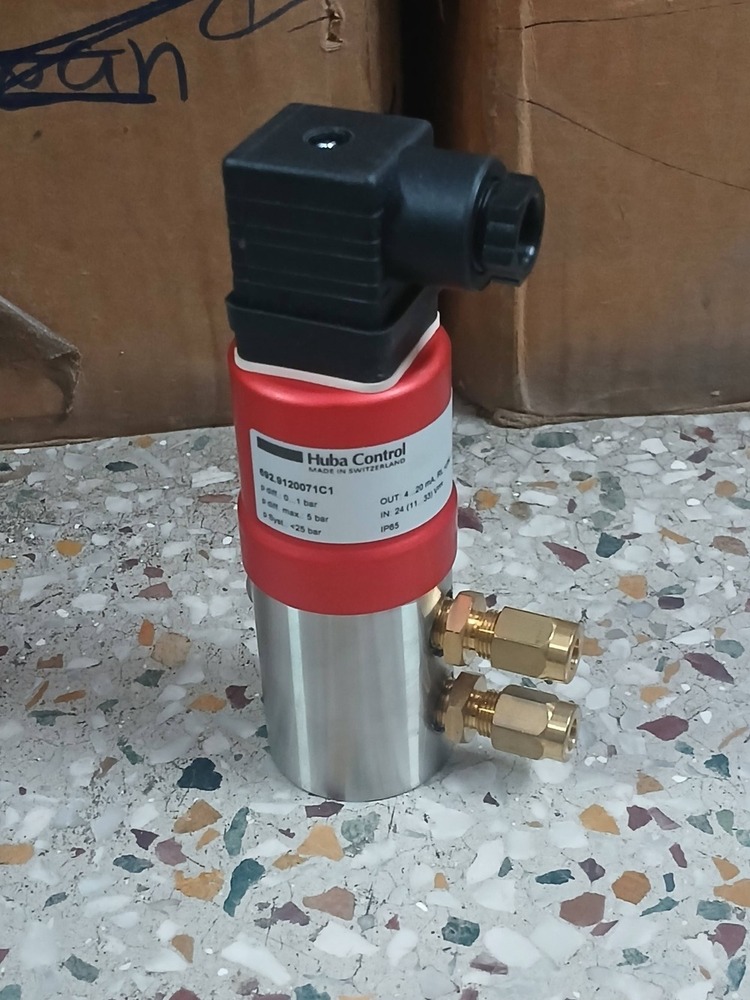

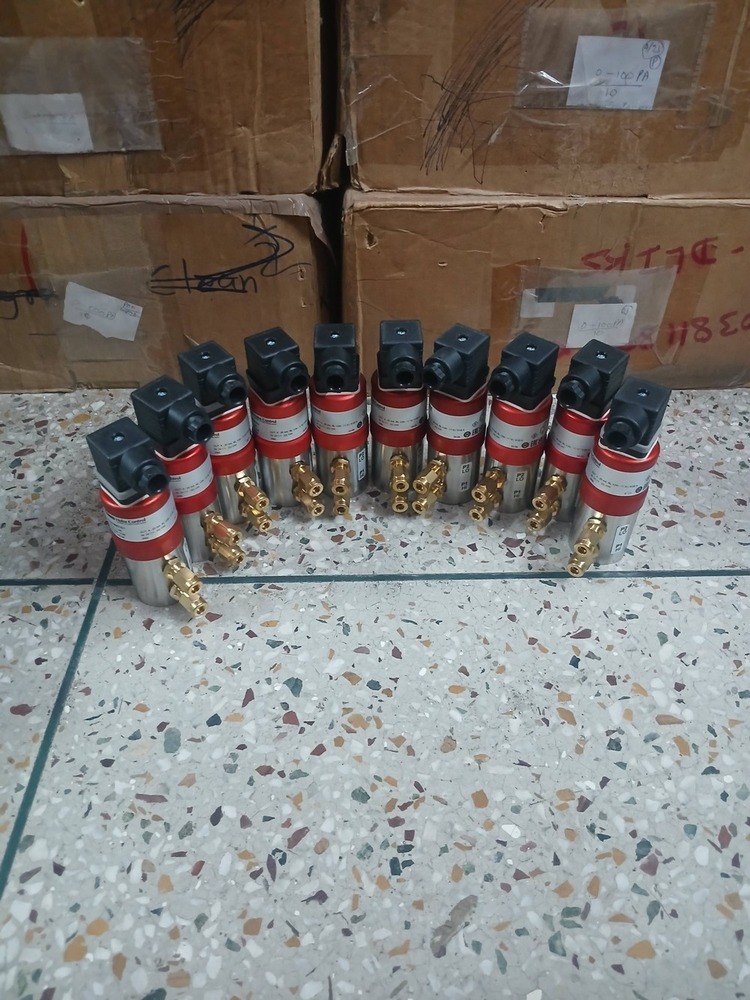

HUBA_CONTROL Differential Pressure Transmitter MODAL 692.9120071C1 RANGE 0 TO 1 BAR

Price 35000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HUBA_CONTROL Differential Pressure Transmitter MODAL 692.9120071C1 RANGE 0 TO 1 BAR Specification

Product Type
HUBA_CONTROL Differential Pressure Transmitter MODAL 692.9120071C1 RANGE 0 TO 1 BAR

Max. Power
11-33 VDC

Max. Voltage
11-33 VDC

Application
POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Output Signal
0 ... 5 V, 0 ... 10 V, 4 ... 20 mA

Usage & Applications
POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Color
RAD

Rated Voltage
11-33 VDC

Weight
550 Kilograms (kg)

Warranty
1 YERS

Display Type
Analog

Material
SS316L

HUBA_CONTROL Differential Pressure Transmitter MODAL 692.9120071C1 RANGE 0 TO 1 BAR Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
EXTRA

About HUBA_CONTROL Differential Pressure Transmitter MODAL 692.9120071C1 RANGE 0 TO 1 BAR

HUBA_CONTROL Differential Pressure Transmitter MODAL 692.9120071C1 RANGE 0 TO 1 BAR

HUBA_CONTROL Differential Pressure Transmitter MODAL 692.9120071C1 RANGE 0 TO 1 BAR

Brand : Huba Control
Model : 692.9120071C1
Range : 0-1 Bar
Type : 692 0-1 Bar
Current Out : 4-20mA
Voltage : 24 ( 11-33V DC )
P Diff MAX : 5 BAR
P Syst : <25 Bar
Made In Switzerland

Huba Control Differential Pressure Transmitter
Product Information
Differential Pressure Transmitter 692

Pressure Transmitters of Type 692Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical Data
Product Feature

Pressure Measuring Range : 0 ... 1 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 Â°C

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 Â°C

Storage Temperature : -40 ... 85 Â°C

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval

EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3

Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate
