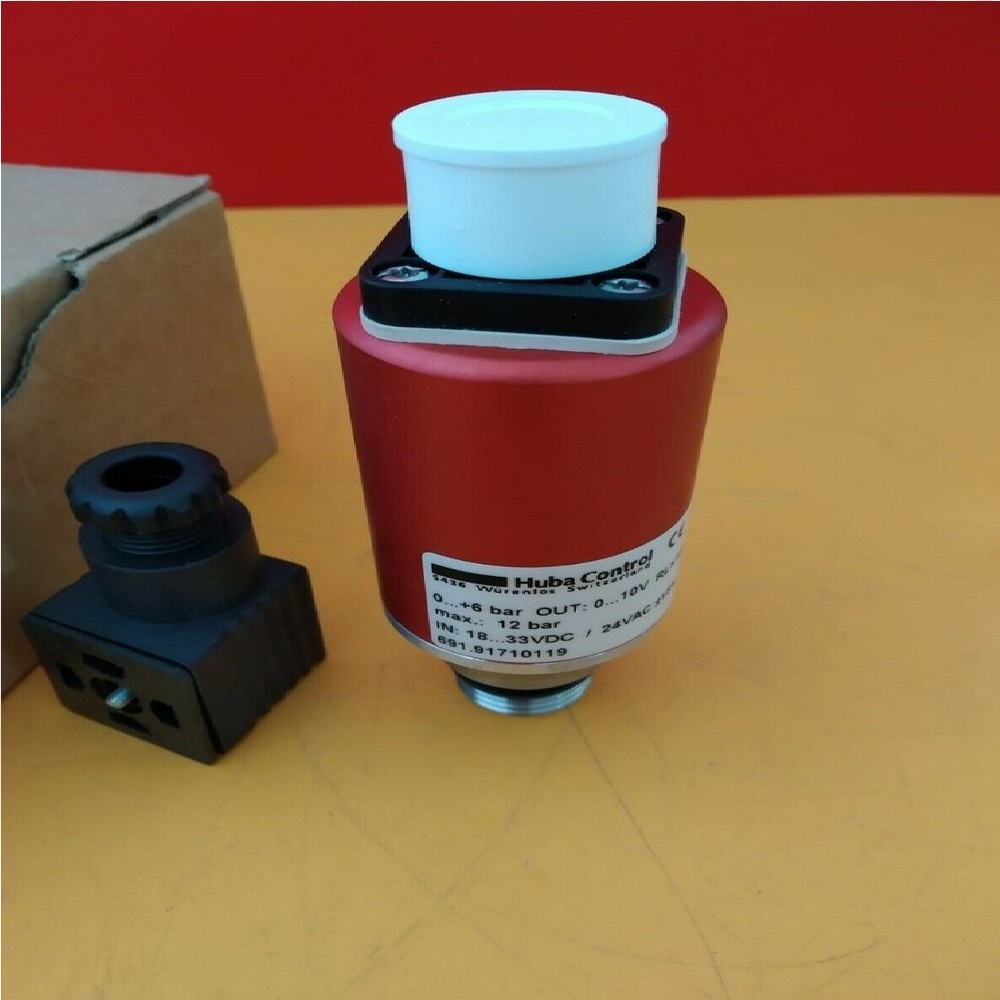

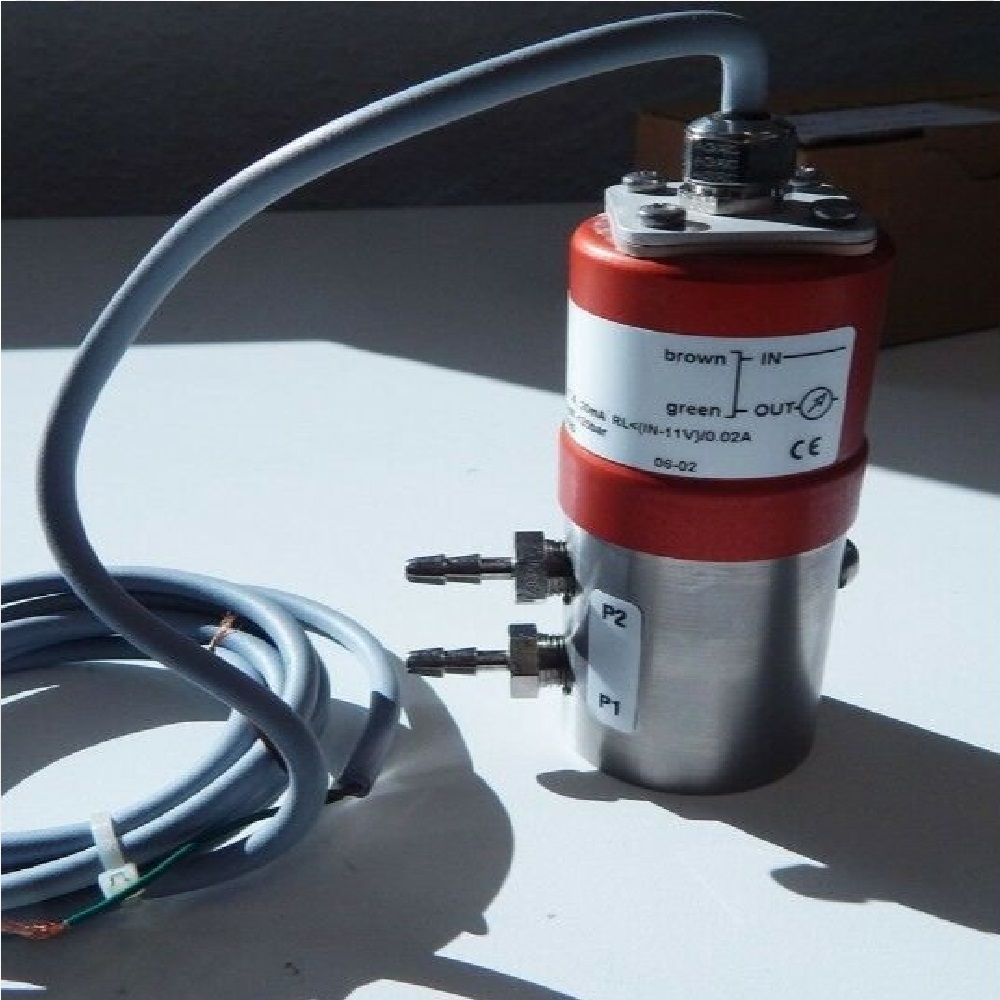

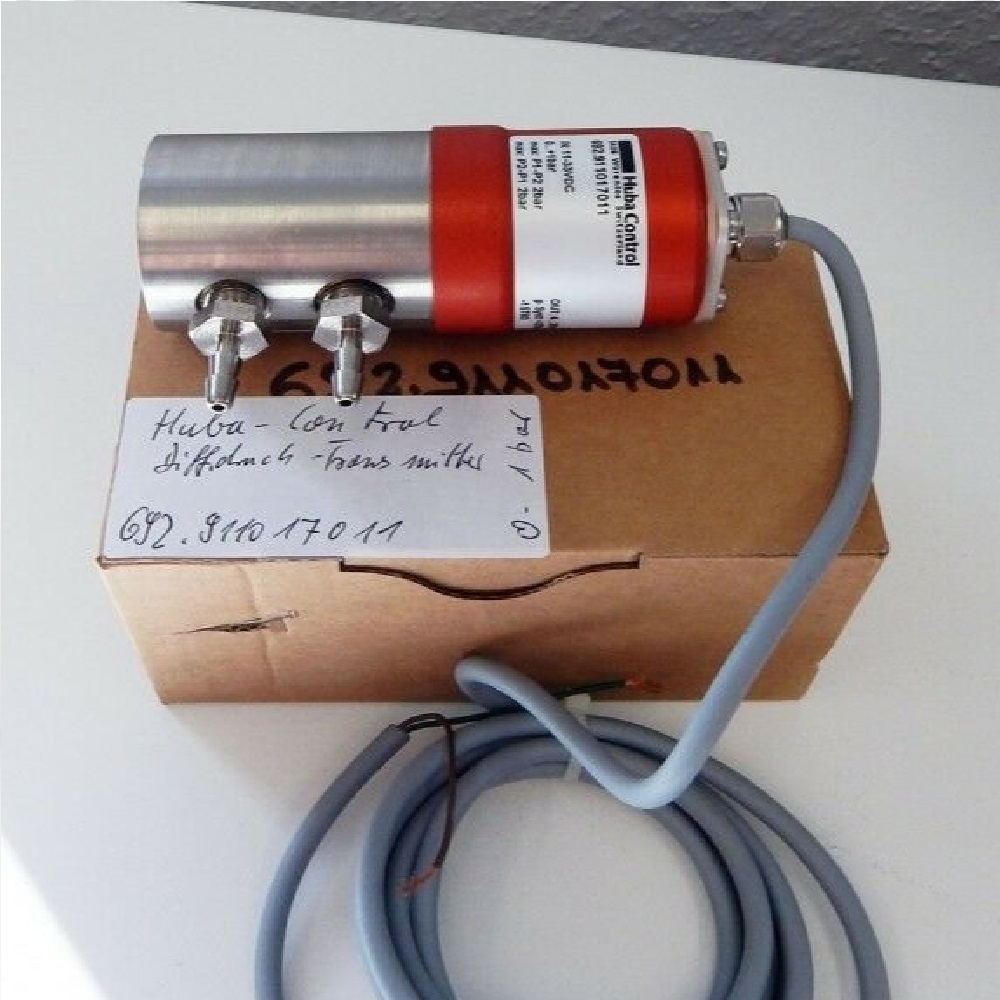

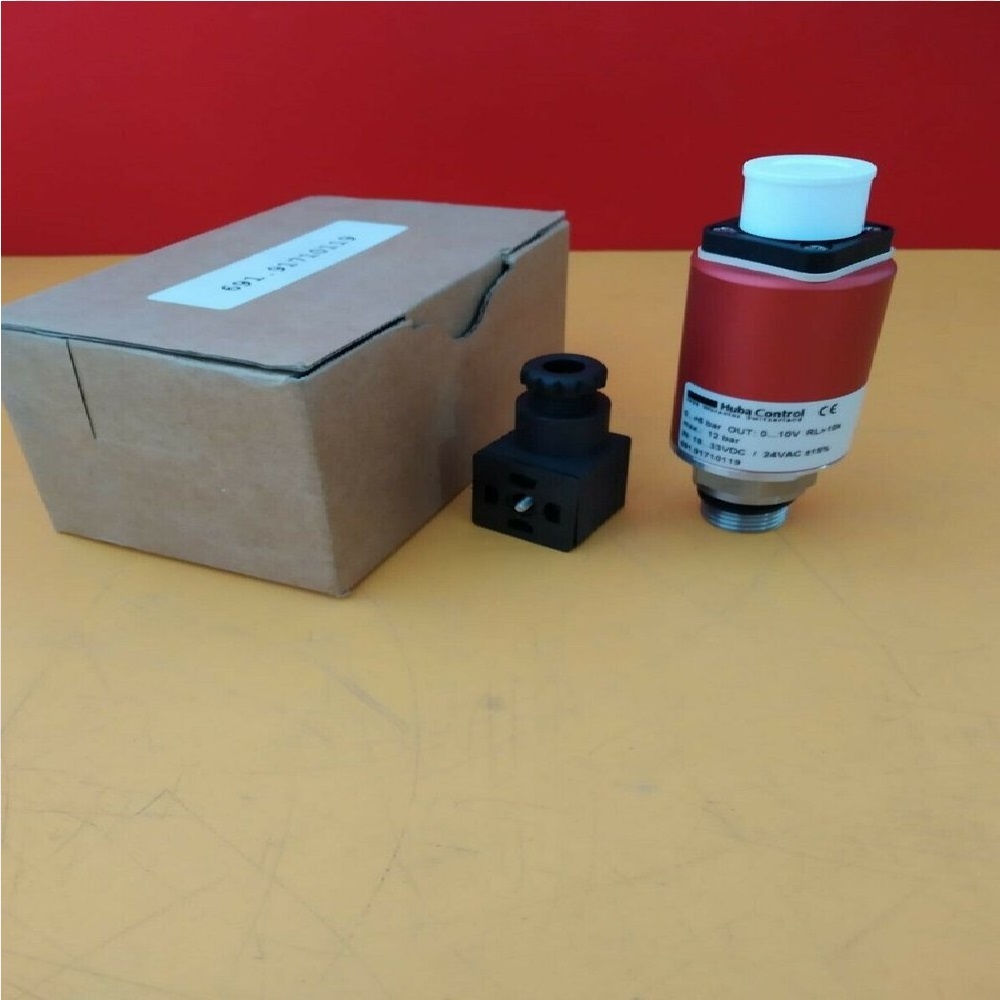

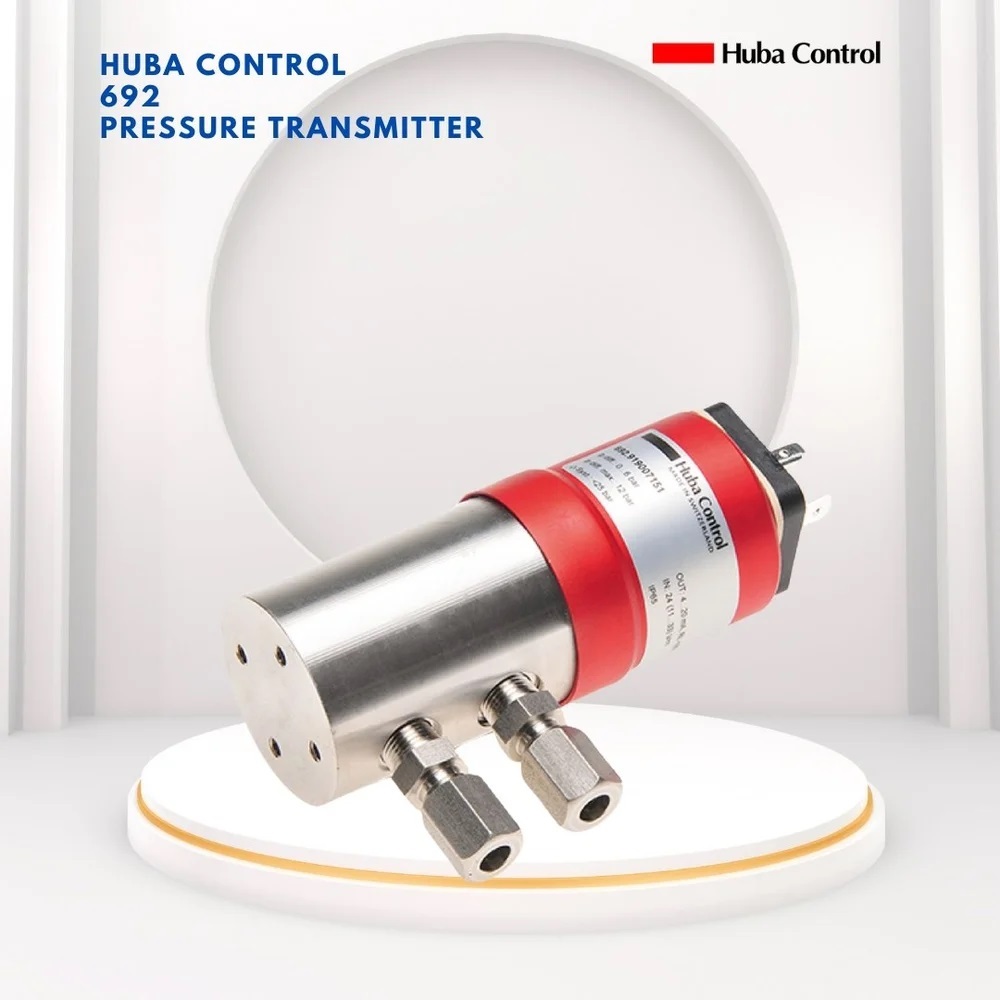

Huba Control Differential Pressure Transmitter 692.916101141

Send Inquiry

Request To Call Back

Huba Control Differential Pressure Transmitter 692.916101141

Price 35000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Huba Control Differential Pressure Transmitter 692.916101141 Specification

Max Pressure
Huba Control Differential Pressure Transmitter 692.916101141

Product Type
Huba Control Differential Pressure Transmitter 692.916101141

Max. Current
18-33 VDC

Max. Power
18-33 VDC

Max. Voltage
18-33 VDC

Pressure Range
Huba Control Differential Pressure Transmitter 692.916101141

Application
Process Medium; Gas

Output Signal
0 ... 5 V, 0 ... 10 V, 4 ... 20 mA

Rated Voltage
0-10 VDC / 24 VAC 15 % Volt (V)

Usage & Applications
Process Medium; Gas

Weight
430 Grams (g)

Warranty
1 YERS

Material
Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Huba Control Differential Pressure Transmitter 692.916101141 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
EXTRA

About Huba Control Differential Pressure Transmitter 692.916101141

Huba Control Differential Pressure Transmitter 692.916101141

Brand : Huba Control

Model : 692.916101141

Range : 0-2.5 Bar

Type : 692 0-2.5 Bar

Current Out : 0-10 VDC / 24 VAC 15 %

IN - 18-33 VDC

Made In Switzerland

Huba Control Differential Pressure Transmitter 692

Product Information
Differential pressure transmitter 692

The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical Data
Product Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 C

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 C

Storage Temperature : -40 ... 85 C

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval

EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3

Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

Additional Information:

Item Code: Huba Control Differential Pressure Transmitter 692.916101141
WhatsApp No.9871034100,9868958924,9650264867,9716640145,8368866030,8368801023
www.envirotechindustrialproduct.com
www.envirotechindustrialproducts.in
www.envirotechindustrialproduct.in

Advanced Monitoring for Process Gases

The Huba Control Differential Pressure Transmitter 692.916101141 is engineered for applications involving gas process media. With a robust stainless steel and PVDF construction, it can withstand challenging conditions while delivering accurate and consistent differential pressure measurements across a wide range of industrial uses.

Flexible Output and Integration Options

This transmitter offers a choice of output signals including 0...5 V, 0...10 V, and 4...20 mA, allowing seamless integration into a variety of process control systems. Its adaptable voltage capabilities (18-33 VDC and 24 VAC 15%) ensure compatibility with most industry-standard control environments, maximizing utility and convenience.

Trusted Performance and Warranty

The Huba Control Differential Pressure Transmitter is supported by a 1-year manufacturer's warranty, reflecting confidence in its build quality and reliability. Its precise sensing and durable materials result in minimized maintenance and optimal performance throughout its service life.

FAQ's of Huba Control Differential Pressure Transmitter 692.916101141:

Q: How does the Huba Control Differential Pressure Transmitter 692.916101141 operate in gas process applications?

A: This transmitter measures the differential pressure between two points in a gas process medium, converting the pressure difference into an electrical signal (0...5 V, 0...10 V, or 4...20 mA) suitable for process monitoring and control.

Q: What materials are used in the construction of the Huba Control Differential Pressure Transmitter?

A: The device is manufactured using stainless steel 1.4305 (AISI 303), PVDF, and CuZn Vni, offering excellent resistance to corrosion and extending its durability in demanding environments.

Q: When should I choose this transmitter for my industrial application?

A: Select this transmitter when you need accurate differential pressure measurement for gas process media within a targeted pressure range and require flexibility in output signals and voltage options.

Q: Where can the Huba Control Differential Pressure Transmitter 692.916101141 be installed?

A: It can be installed in process lines and control panels within gas processing plants, HVAC systems, and other industrial sectors where precise pressure monitoring is essential.

Q: What is the typical process for integrating this transmitter into an existing system?

A: Install the transmitter at the required measurement point, connect it to the process medium, and interface its output (0...5 V, 0...10 V, or 4...20 mA) to your monitoring or control system. Ensure supply voltage of 18-33 VDC or 24 VAC 15% is provided.

Q: How does using this transmitter benefit process operations?

A: It enables precise monitoring and control of gas flow, contributing to enhanced process efficiency, improved safety, and reduced downtime in industrial applications.
