Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0...+1.6 BAR

Send Inquiry

Request To Call Back

Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0...+1.6 BAR

Price 39500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0...+1.6 BAR Specification

Thread size
6 MM

Max Pressure
Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0...+1.6 BAR

Product Type
Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0...+1.6 BAR

Power Rating
11-33 VDC

Max. Current
11-33 VDC

Max. Power
11-33 VDC

Max. Voltage
11-33 VDC Volt (V)

Pressure Range
Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0...+1.6 BAR

Application
Process Medium; Gas

Output Signal
0 ... 5 V, 0 ... 10 V, 4 ... 20 mA

Size
(H) 95 x () 44

Rated Voltage
11-33 VDC Volt (V)

Usage & Applications
Process Medium; Gas

Color
RAD

Weight
430 Grams (g)

Warranty
1 YERS

Material
Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0...+1.6 BAR Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
EXTRA

About Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0...+1.6 BAR

www.envirotechdelhi.info

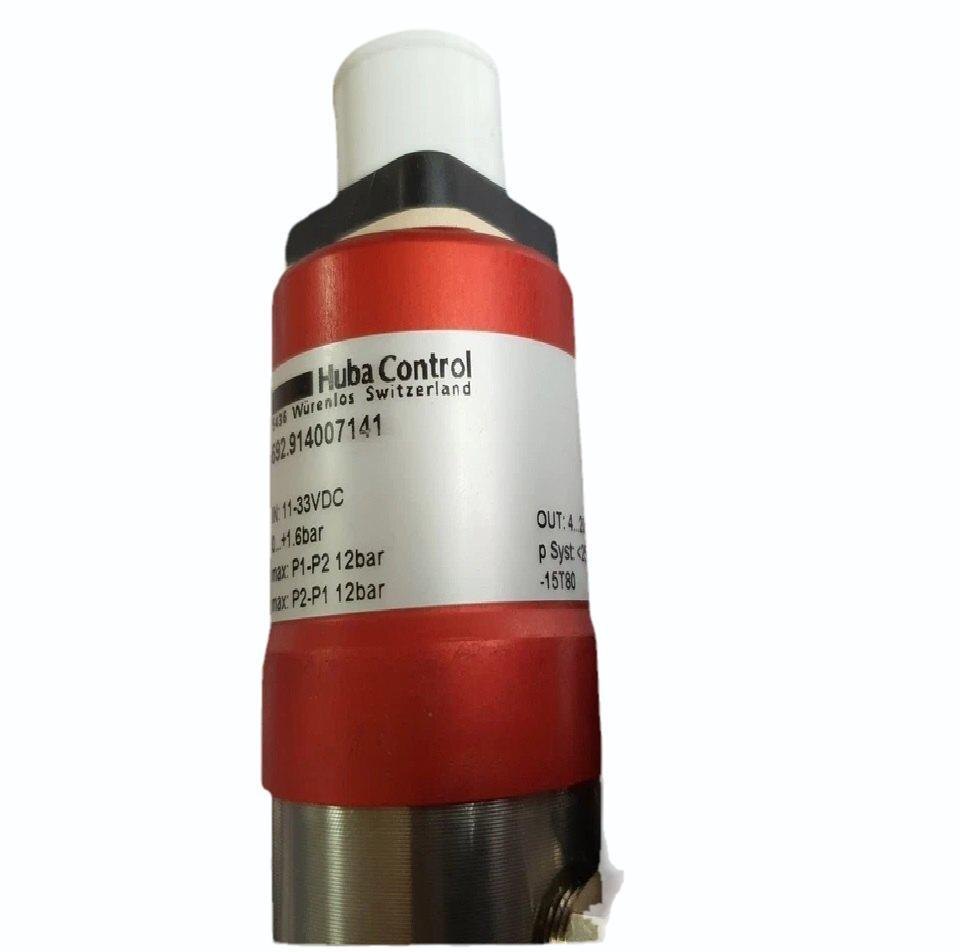

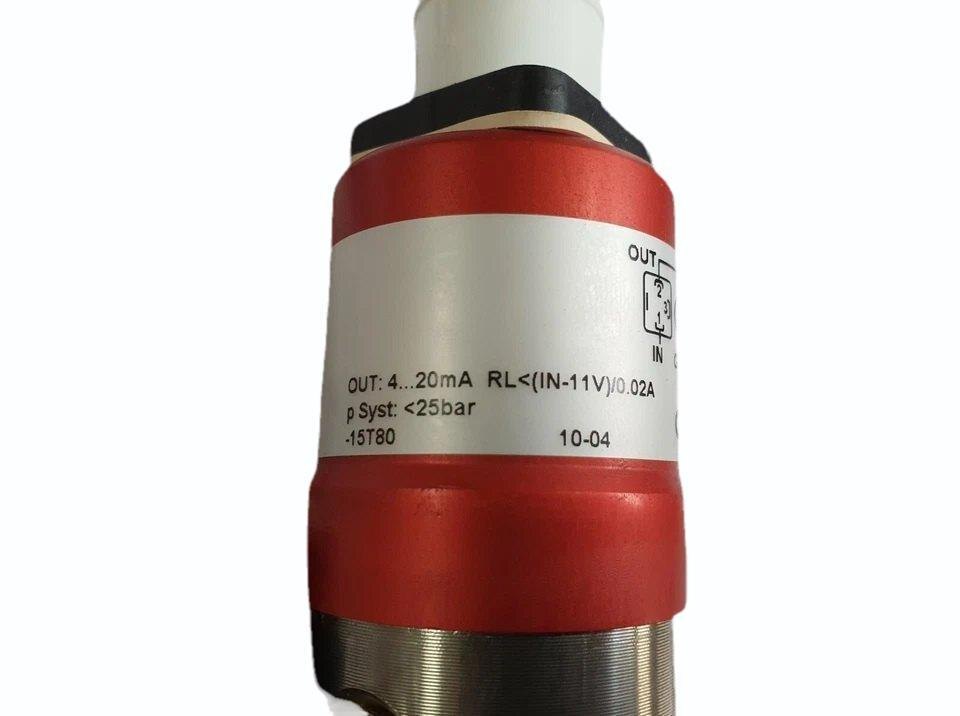

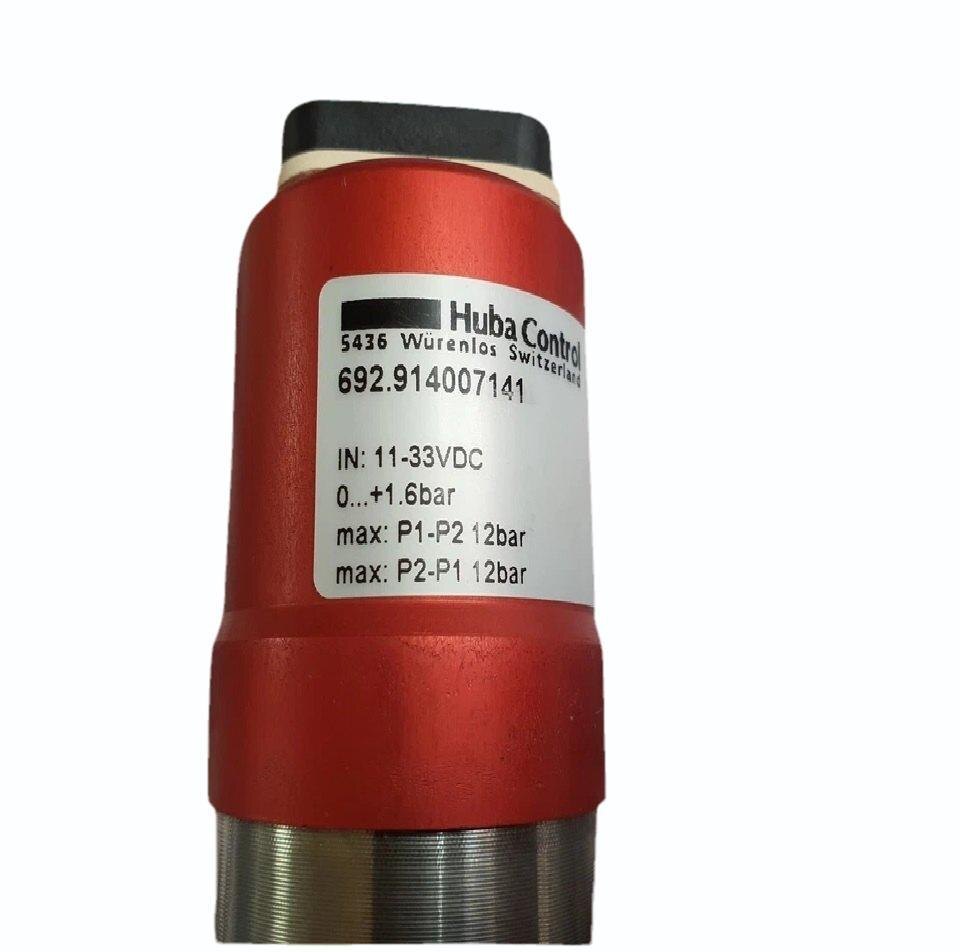

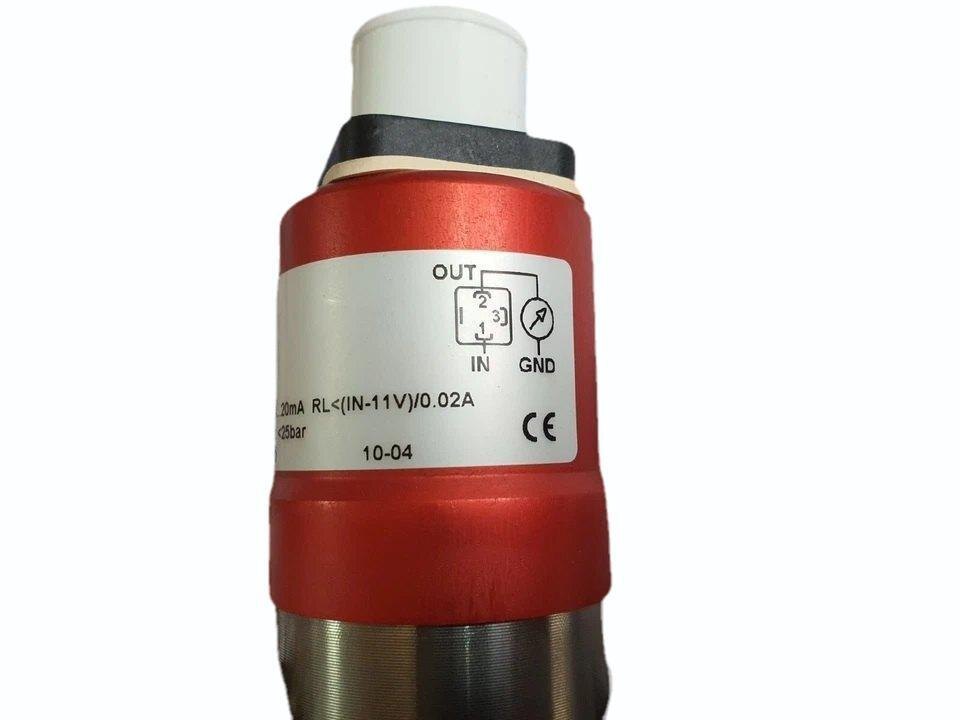

Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0...+1.6 BAR

Brand : Huba Control

Model : 692.914007141

Range : 0...+1.6 BAR

Type : 692 0...+1.6 BAR

Current Out : 4-20mA

Voltage : 11-33V DC

MAX : P1-P2 12BAR

MAX : P2-P1 12BAR

Made In Switzerland

Huba Control Differential Pressure Transmitter
Product Information
Differential Pressure Transmitter 692

The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical Data
Product Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 C

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 C

Storage Temperature : -40 ... 85 C

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval

EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3

Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

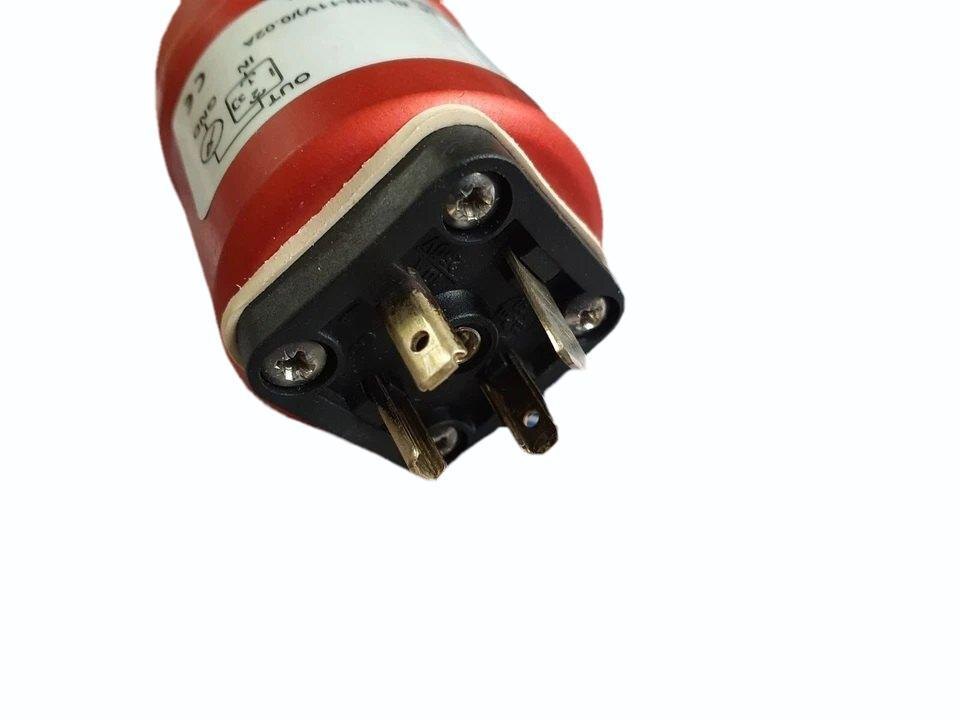

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

Additional Information:

Item Code: Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0...+1.6 BAR
WhatsApp No.9871034100,9868958924,9650264867,9716640145,8368866030,8368801023
www.envirotechindustrialproduct.com
www.envirotechindustrialproducts.com
www.envirotechindustrialproducts.net
www.envirotechindustrialproduct.net

Versatile Pressure Measurement

The Huba Control Model 692.914007141 differential pressure transmitter delivers precision measurements within a 0 to +1.6 BAR range. Its adaptability to various output signals-0-5 V, 0-10 V, and 4-20 mA-makes it compatible for a wide array of process medium and gas monitoring applications.

Durable Construction for Industrial Demands

Built with top-quality materials such as stainless steel (1.4305/AISI 303), PVDF, and CuZn Vni, this transmitter offers long-term performance and resistance to harsh environments. The robust construction ensures stable operation in demanding industrial settings with gaseous media.

Simple Installation and Reliable Operation

With its compact dimensions and a convenient 6 mm thread size, the transmitter is easy to install even in constrained spaces. Rated for a broad 11-33 VDC voltage range, it ensures dependable operation and is backed by a 1-year warranty for peace of mind.

FAQ's of Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0...+1.6 BAR:

Q: How is the Huba Control Differential Pressure Transmitter Model 692.914007141 typically used?

A: This transmitter is specifically designed for precise differential pressure monitoring in industrial gas process applications. Common uses include HVAC systems, industrial automation, and process control where accurate pressure measurement is essential.

Q: What are the key benefits of using this differential pressure transmitter?

A: The transmitter offers exceptional measurement accuracy, durable construction with stainless steel and PVDF, multiple flexible output signal options (0-5 V, 0-10 V, 4-20 mA), and easy installation, making it highly reliable for industrial uses.

Q: What is the maximum pressure range this model can handle?

A: The Huba Control Model 692.914007141 is designed to measure differential pressures from 0 up to +1.6 BAR, ensuring precise monitoring within this range for your applications.

Q: When should I consider installing this pressure transmitter?

A: Install this transmitter whenever accurate and reliable differential pressure readings are required in your process medium or gas application, especially where durability and multiple output signals are essential.

Q: What is the process for wiring and operating the device?

A: Connect the transmitter using its 6 mm thread to the process line, and supply with 11-33 VDC power. Select the preferred output signal based on your monitoring or control system, and calibrate according to your operational requirements.

Q: Where can I use this model in industrial environments?

A: It is suitable for various process lines, gas distribution systems, and automation setups across industries in India, especially where high-accuracy differential pressure measurement is needed.

Q: What warranty coverage does the transmitter include?

A: This model comes with a 1-year warranty, providing assurance against manufacturing defects and ensuring reliable performance during the initial operational period.
