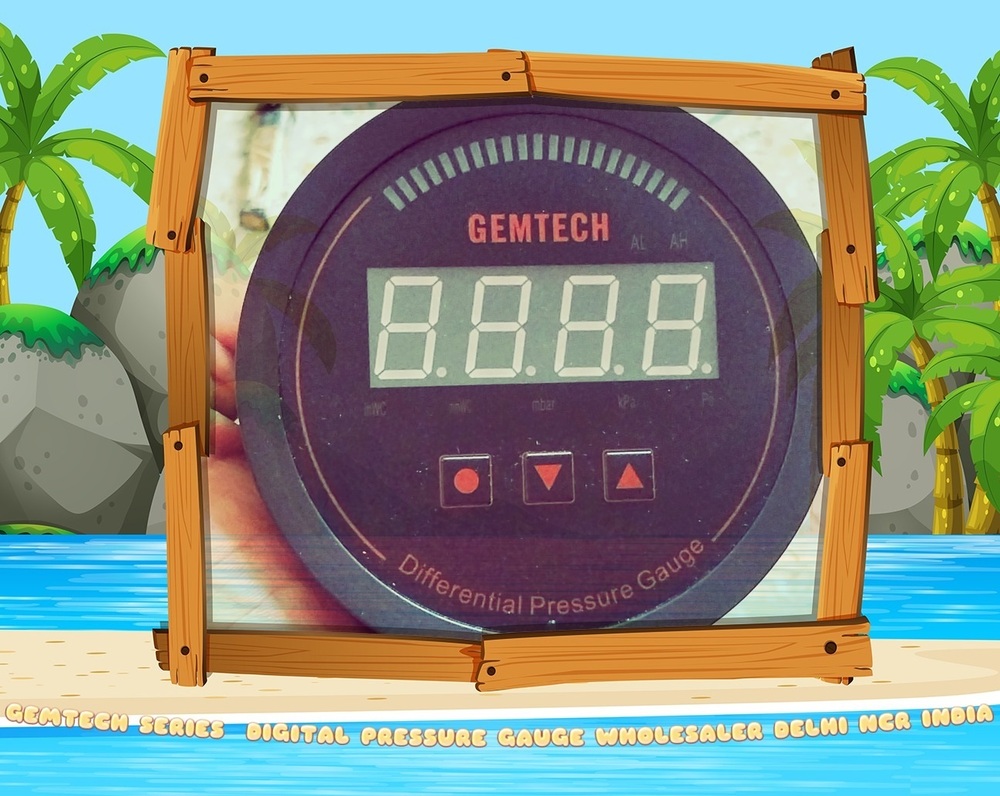

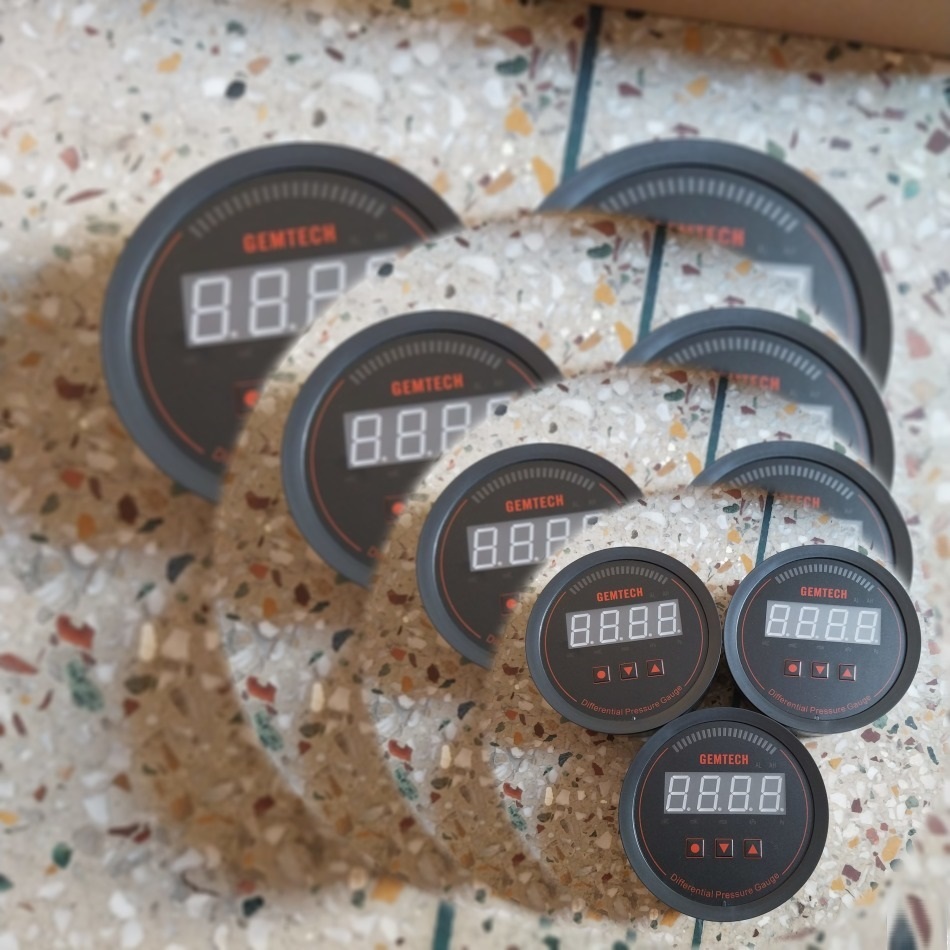

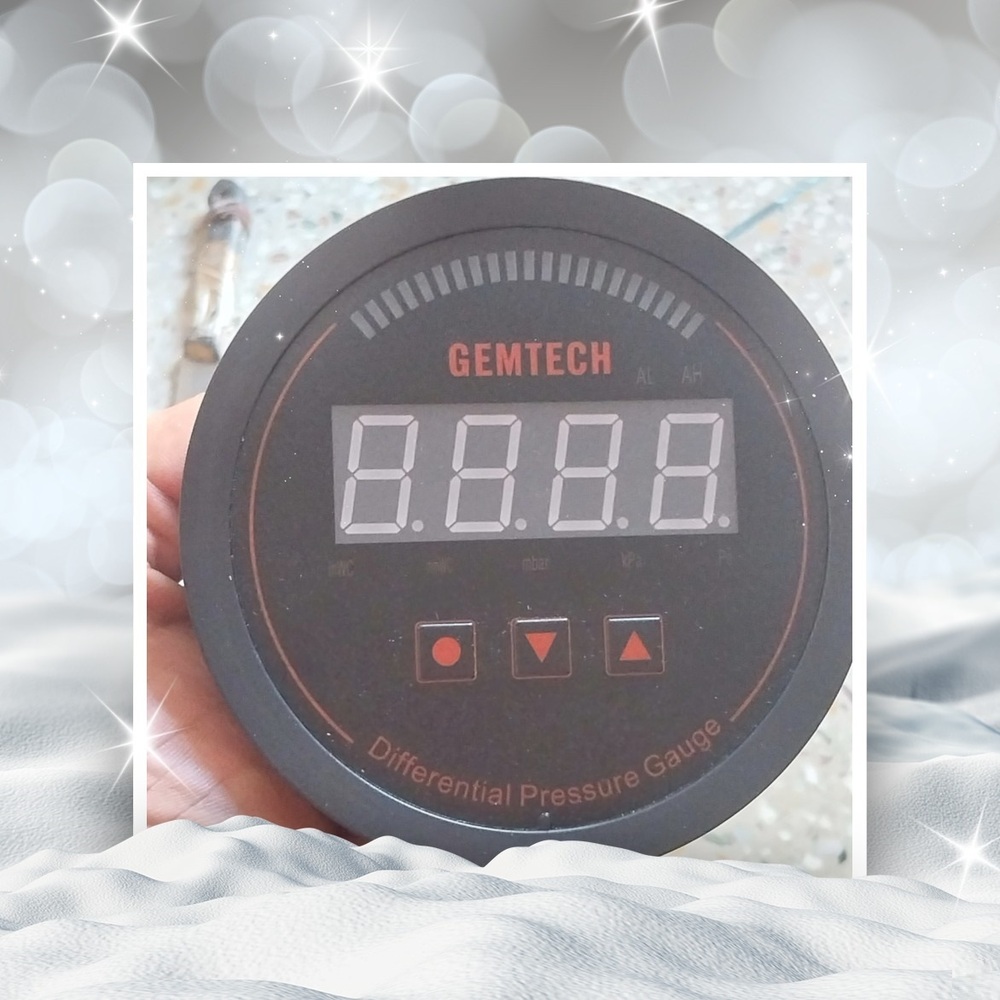

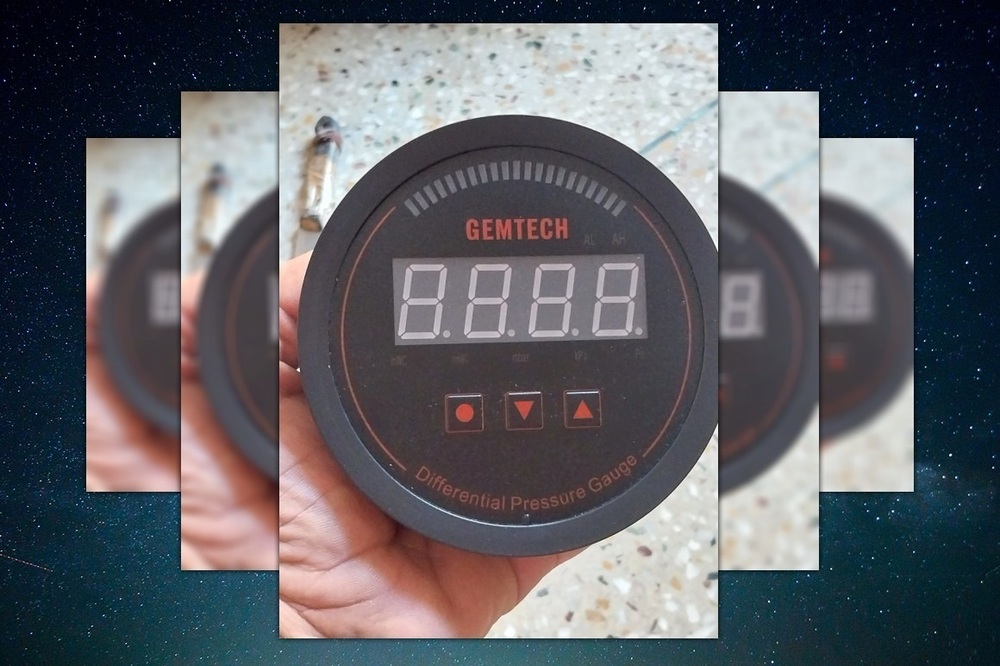

GEMTECH* Series 3000 Digital Pressure Gauge Range 0 to 0.750 KPA

Send Inquiry

Request To Call Back

GEMTECH* Series 3000 Digital Pressure Gauge Range 0 to 0.750 KPA

Price 19500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GEMTECH* Series 3000 Digital Pressure Gauge Range 0 to 0.750 KPA Specification

Thread
1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

Sensor Type
GEMTECH* Series 3000 Digital Pressure Gauge Range 0 to 0.750 KPA

Display
LCD

Outer Size
4" (101.6 MM) Diameter Dial Face.

Material
Metal Alloy

Usage
POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Dial Material
Plastic

Pointer Material
Plastic

Size
4" (101.6 MM) Diameter Dial Face.

Processing Type
Standard

Diameter
4 inch / 100 MM

Product Type
GEMTECH* Series 3000 Digital Pressure Gauge Range 0 to 0.750 KPA

Weight
550 Grams (g)

Mount Type
Back

Color
WHITE / BLACK

Scale Range
GEMTECH* Series 3000 Digital Pressure Gauge Range 0 to 0.750 KPA

Accuracy
0.5%

Measure Pressure Of
Gas

Smart TV Features
Built-in WiFi, Screen Mirroring

Refresh Rate
60 Hz

Sleep Timer
Yes

Remote Battery Type
AAA

Operating System
Android

Viewing Angle
178

USB Ports
2

GEMTECH* Series 3000 Digital Pressure Gauge Range 0 to 0.750 KPA Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
EXTRA CHARGES

About GEMTECH* Series 3000 Digital Pressure Gauge Range 0 to 0.750 KPA

GEMTECH Series 3000 Digital Pressure Gauge Range 0 to 0.750 KPA.

GEMTECH* Series 3000 Digital Pressure Gauge Range 0 to 0.750 KPA

Choosing Our Digital Differential Pressure Gauge.Please Read This Manual Before Using If You Have Any Doubt About The Use,Please Feel Free To Contact Our Company,We Are Quite Willing To Serve You MATTERS NEEDING ATTENTION Please Do Not Modify The Internal Wiring And Lines Of The Digital Differential Pressure Gauge By Your Self Please Choose a Safe Area To Install The Digital Differential Pressure Gauge To Prevent High Temperature And Avoid Splashing Of Moisture And Water Droplets When The Battery Voltage Is Low,Please Replace The Battery In Time RELEVANT MATTERS BEFORE USE DELIVERY INSPECTION Each Differential Pressure Transmitter is Subject to Strict Quality Control Before Delivery.Product Packaging Adopts Enhanced Anti-Collision Treatment. After Opening The Box,Please Check Whether The Product Caused Damage During The Transportation APPLICATIONS AND FEATURES

Using High-Precision Sensors And Digital Technology,Can Detect Positive Pressure,Negative Pressure Or Differential Pressure
Can Be Widely Used To Measure The Pressure Of Fans And Blowers Filter Resistance Wind Speed Furnace Ventilation Pressure Drop Caused By Orifice Plates,Liquid Level In Foaming Systems And Pressure In Booster Or Hydraulic Systems
Can Be Used On Medical Equipment To Monitor Blood And Respiratory Pressure
Suitable For Embedded Installation,Flat Installation And Other Installation Methods

PRODUCTS SHEET

Various Measuring Ranges
No Moving Parts,Anti-Vibration
Accuracy Up To 1%FS, 3%FS(0-60Pa),2%FS(0-125Pa)
Button Function:Zero Calibration,Unit Switching

STORAGE AND INSTALLATION

The Product Should Be Kept In a Dry And Grime Free Place
Storage Temperature:-10+40
Storage Humidity:0%90%
Vibration:20Hz: 9.8 m/s2 (1G) max;20Hz50Hz:5.88 m/s2 (0. 6G) Max
Avoid Storing in Corrosive Gas And Liquid Environment
It is Best to Store It Properly Packaged On a Shelf Or Table
If it is used in an open package and it exceeds 3 months,The ambient temperature of the storage environment should not be higher than 30 .This is because when the electrolytic capacitor is stored without electricity,its characteristics are easily deteriorated when the ambient temperature is too high.Do not leave it for more than a year without electricity
Ambient Temperature:-10+50 (14104)
Ambient Relative Humidity:<90%,no frost
Installation Height:<1000m

On a circle with a diameter of 105mm,drill 3 holes with an average angle of 120 degrees.The hole diameter is between 3-3.2 (as shown in the picture above). Mounted on The Surface With Accessory Screws M3X8.Choose one Pair of Pressure ports to connect to the Air Tube,Pay attention to the Difference Between High and Low Pressure Ports,And Make Sure to Seal the other pair of pressure ports with On the plate that needs to be embedded,punch a hole, the diameter of the hole is between 114 and 3-114.8mm.Embed the product and install the accessory feet on the back.Then fix it on the plate with M3.5X50 self-tapping screws.Choose one of the pair of pressure ports to connect to the Airway Note the Difference Between High/Low Pressure Ports And Make Sure To Seal The Other PRODUCT PARAMETERS

Medium:Air And Non-Flammable,Non-Corrosive Gas
Medium Temperature: 0-60C
Shell:ABS Engineering Plastic
Working Environment:-20Ci+85C
Differential Pressure Range:a variety of Ranges.Overload 3xFS,Breaking pressure 10FS
Long-Term Stability:0.1% FS/Year
Temperature Drift Coefficient: <0.03% FS/C
Power Supply:4 AA Batteries / 24 VDC

Item Code: GEMTECH* Series 3000 Digital Pressure Gauge Range 0 to 0.750 KPA
WhatsApp No.9871034100,9868958924,9650264867,9716640145,8368866030,8368801023
www.envirotechdelhi.com
www.envirotechindia.co.in
www.envirotechdelhi.in
www.envirotechdelhi.net
www.envirotechindia.info
www.envirotechdelhi.info
www.envirotechindia.net
www.envirotechdelhi.co.in

GEMTECH Series 3000 Digital Pressure Gauge Range 0 to 0.750 KPA.

Precision and Performance for Industrial Applications

Designed for demanding environments, the GEMTECH* Series 3000 Digital Pressure Gauge delivers reliable and accurate pressure readings for gases. Its wide range of use extends from power generation to manufacturing, supported by a sturdy build and refined detection capabilities.

User-Friendly Features and Robust Construction

With a 4-inch diameter dial and LCD display, users can quickly monitor pressure levels at a glance. The metal alloy body and plastic dial ensure longevity, while the back mount and duplicate NPT taps make installation adaptable for various setups.

FAQ's of GEMTECH* Series 3000 Digital Pressure Gauge Range 0 to 0.750 KPA:

**Q: How do I install the GEMTECH* Series 3000 Digital Pressure Gauge?**

A: Installation is straightforward thanks to its back mount configuration and dual 1/8" female NPT pressure taps (one pair on each side and back). Simply select the appropriate position and connect the device securely to your system's pressure lines.

Q: What gases can be measured with this digital pressure gauge?

A: The gauge is specifically engineered to precisely measure air and gas pressures within the range of 0 to 0.750 KPA, primarily utilized in industrial applications such as power, steel, cement, fertilizer, and textile plants.

Q: When should I use this gauge instead of a traditional mechanical gauge?

A: Opt for the GEMTECH* Series 3000 when digital readouts, higher accuracy (0.5%), and easy data interpretation are needed. It's ideal for critical monitoring in industrial environments requiring reliable digital measurements.

**Q: Where can the GEMTECH* Series 3000 be used?**

A: This gauge is tailored for industrial settings, suitable for integration into power stations, manufacturing plants, and other facilities across sectors like cement, steel, fertilizer, and textiles where pressure monitoring of gases is essential.

Q: What is the process for reading pressure on this gauge?

A: Pressure readings are displayed digitally on the built-in LCD screen. Once installed and powered, the sensor measures gas pressure and the reading appears instantly and clearly on the dial for quick reference.

Q: How does using this digital pressure gauge benefit operations?

A: It enhances operational efficiency through accurate measurements, reducing the risk of errors. The easy-to-read LCD, high reliability, and robust construction help maintain optimal safety and equipment performance across production processes.
