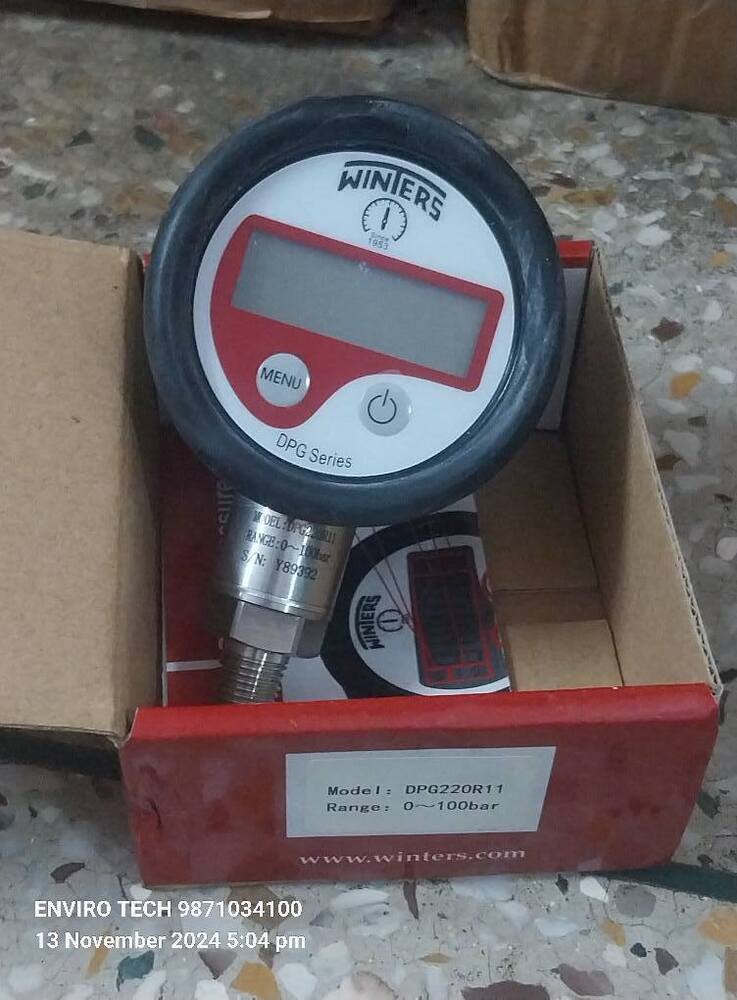

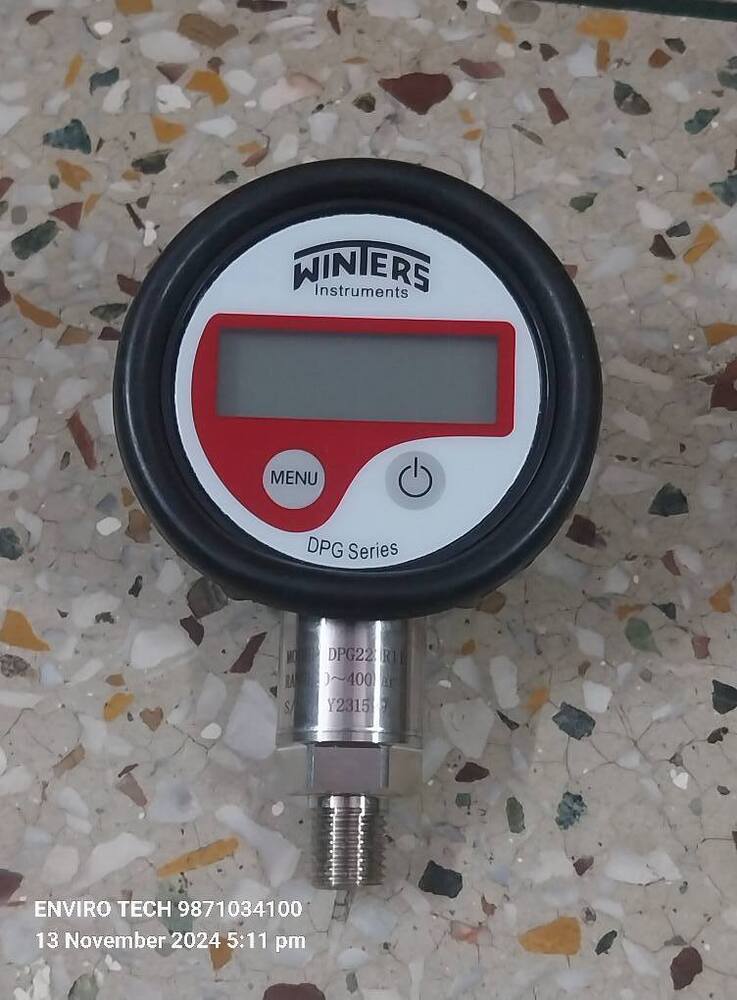

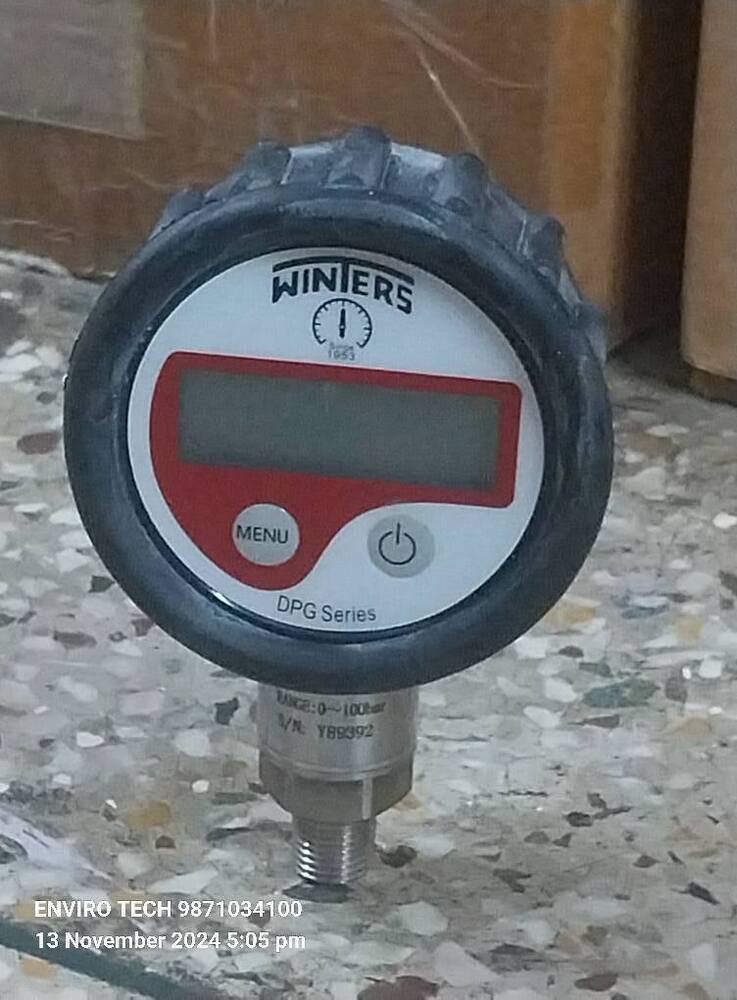

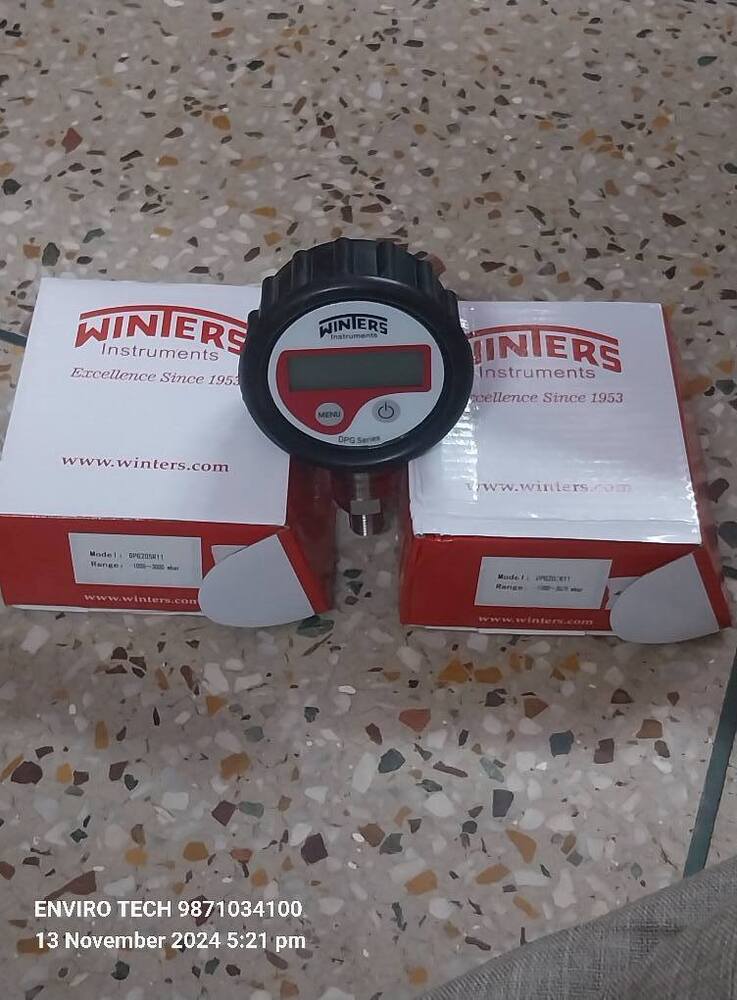

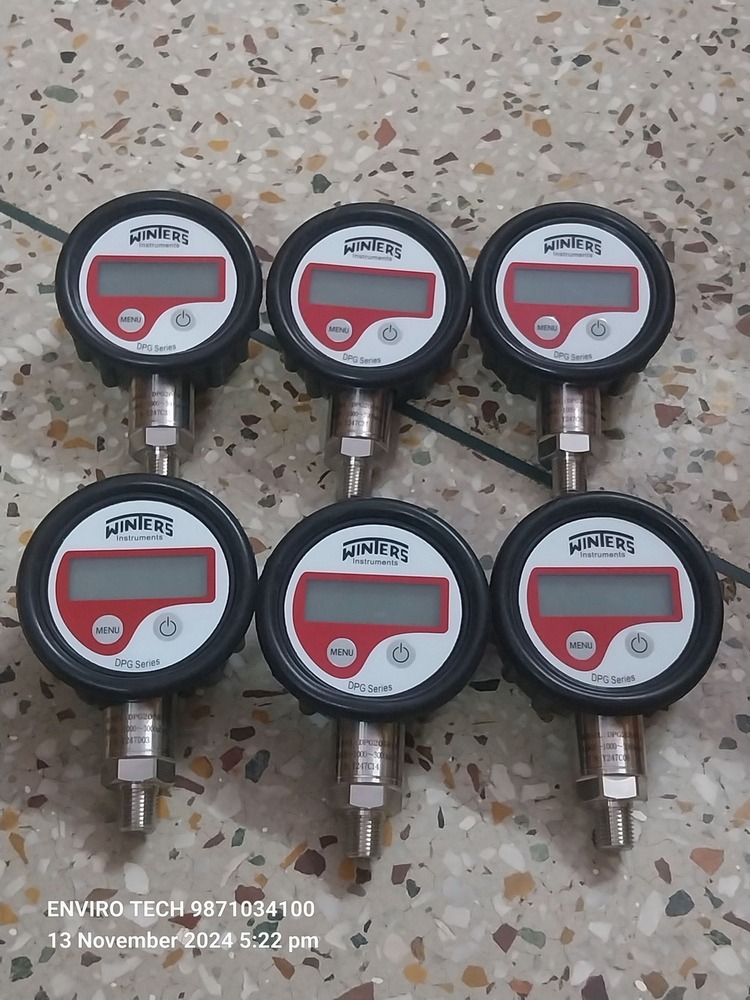

Winters Digital Pressure Gauge 0 To 700 Bar

Send Inquiry

Request To Call Back

Winters Digital Pressure Gauge 0 To 700 Bar

Price 12500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Winters Digital Pressure Gauge 0 To 700 Bar Specification

Thread
1/4 NPT 304SS

Outer Size
2.5" (63MM)

Display
4 digits to 5000 psi,5 digits for 10000 psi

Material
Stainless Steel

Usage
Pharmaceutical,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Size
2.5 (63MM)

Processing Type
Standard

Diameter
2.5 (63MM)

Product Type
Winters D.P.Gauge Model No DPG224R11 Range 0 To 700 Bar

Weight
250 G Grams (g)

Mount Type
Surface

Color
WHITE / BLACK

Scale Range
Winters D.P.Gauge Model No DPG224R11 Range 0 To 700 Bar

Accuracy
0.5%

Measure Pressure Of
Gas

Winters Digital Pressure Gauge 0 To 700 Bar Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
YAS

About Winters Digital Pressure Gauge 0 To 700 Bar

www.envirotechdelhi.info

Winters Digital Pressure Gauge 0 To 700 Bar

MODEL - DPG224
RANGE - 0 TO 700 Bar

Description & Features

Simple 2 Button Operation
Reset To Zero Feature
Backlight Turns On When On/Off Button Is Pressed
Option For Display To Remain Continuously On
Continuous Peak Pressure Indication Option
316L Welded Diaphragm Seal
Rubber Boot Is Standard
ASME B40.100 Compliant
RoHS Compliant
+/-1% Accuracy (+-/ 0.5% Optional For Gauges Up to 5000 PSI)
1 Year Warranty

Applications

Ideal For Commercial And Industrial Applications In Both Test Measurement And General Purpose Installations

Specifications
Case Size	2.5" (63MM)
Case Material	ABS (IP64)
Rubber Boot	Silicone Rubber (IP65)
LCD Display	2"X3/4" (48MMX16MM)
Connection	1/4" NPT 304SS
Sensor	316L Welded,Piezo
Operation Life	1 Million Cycles
Power Supply	2 x AAA Battery (1.5V)
Battery Life	2 Yrs (Auto Shut-Off Mode)
Power Mode	Auto or Manual Shut-Off
Display Digits	4 digits to 5000 psi,5 digits for 10000 psi
Resolution	psi,mmHO,mmHg,mbar,kPa 100 psi
	psi, bar, kg/cm2,mPa,atm ranges 160 psi
Operation Mode	Continuously Reading or Peak Pressure Reading
Response Time	3 Hz Display Refresh Rate
Proof/Burst Pressure	200%/300% FS
Operating/Storage Temperature	14F to 122F (-10C to 50C)
	-4F to 167F (-20C to 75C)
Accuracy	0.5%
Dial Size	2.5" (63mm
Connection	1/4" Bottom
Socket	SS

Additional Information:

Item Code: Winters Digital Pressure Gauge 0 To 700 Bar
www.envirotechdelhi.co.in
www.envirotechindia.net
www.envirotechdelhi.info

Precise Pressure Measurement for Varied Applications

The Winters Digital Pressure Gauge offers reliable performance for numerous industries, including power, steel, pharmaceutical, and fertilizer plants. With a scale range from 0 to 700 bar, this durable gauge is built for both accuracy and longevity, handling diverse gas pressures with ease.

Robust Stainless Steel Construction

Engineered with high-quality 304 stainless steel and a surface-mounted design, this gauge provides excellent resistance to corrosion and harsh industrial conditions. Its compact 2.5-inch form factor and user-friendly interface ensure maintenance and setup are straightforward.

FAQ's of Winters Digital Pressure Gauge 0 To 700 Bar:

Q: How do I install the Winters Digital Pressure Gauge in my facility?

A: The Winters Digital Pressure Gauge comes with a 1/4-inch NPT 304SS thread and is designed for surface mounting, making installation quick and compatible with standard equipment connections commonly found in industrial settings.

Q: What types of gases can be measured with this digital pressure gauge?

A: This gauge is engineered to accurately measure the pressure of various gases, making it ideal for applications in pharmaceutical, power, cement, steel, fertilizer, and textile industries.

Q: When should I use a digital gauge instead of an analog one?

A: A digital gauge is particularly advantageous when high accuracy, clear readings, or integration with digital systems is required. It provides precise measurement up to 0.5% accuracy, suitable for critical applications where slight deviations matter.

Q: Where can this pressure gauge be used?

A: The gauge is versatile and suitable for use in India's pharmaceutical, power, cement, steel, fertilizer, and textile plants, among others. Its durability and accuracy make it ideal for rigorous industrial environments.

Q: What are the key benefits of using the Winters Digital Pressure Gauge?

A: Key benefits include its precision, user-friendly digital display, corrosion-resistant stainless steel construction, and wide applicability across different gases and industrial processes.

Q: How does the display scale work on the gauge?

A: The digital display shows pressure readings with 4 digits up to 5000 psi and with 5 digits up to 10000 psi, ensuring clear, accurate monitoring even for high-pressure applications.
