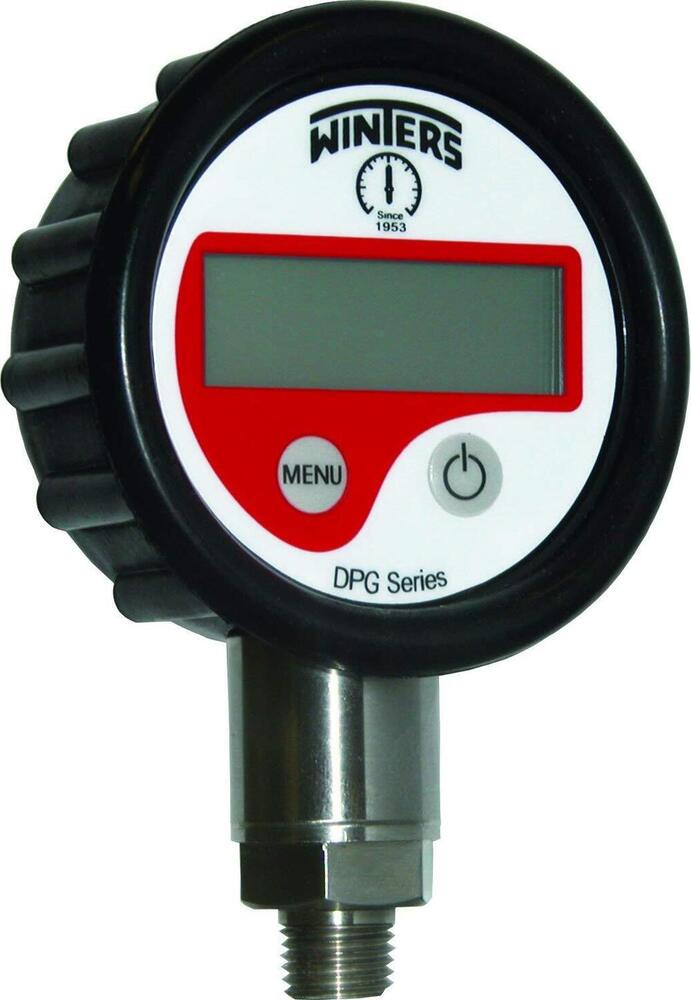

Winters Instruments Canada Digital Pressure Gauge MODEL DPG218 RANGE 0 To 600 PSI

About Winters Instruments Canada Digital Pressure Gauge MODEL DPG218 RANGE 0 To 600 PSI

Winters Instruments Canada Digital Pressure Gauge MODEL DPG218 RANGE 0 To 600 PSI

• MODEL - DPG218
• RANGE - 0 To 600 PSI

Description & Features

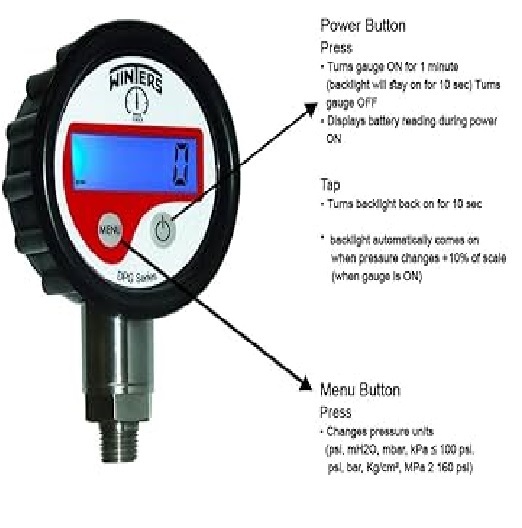

• Simple 2 Button Operation
• Reset To Zero Feature
• Backlight Turns On When On/Off Button Is Pressed
• Option For Display To Remain Continuously On
• Continuous Peak Pressure Indication Option
• 316L Welded Diaphragm Seal

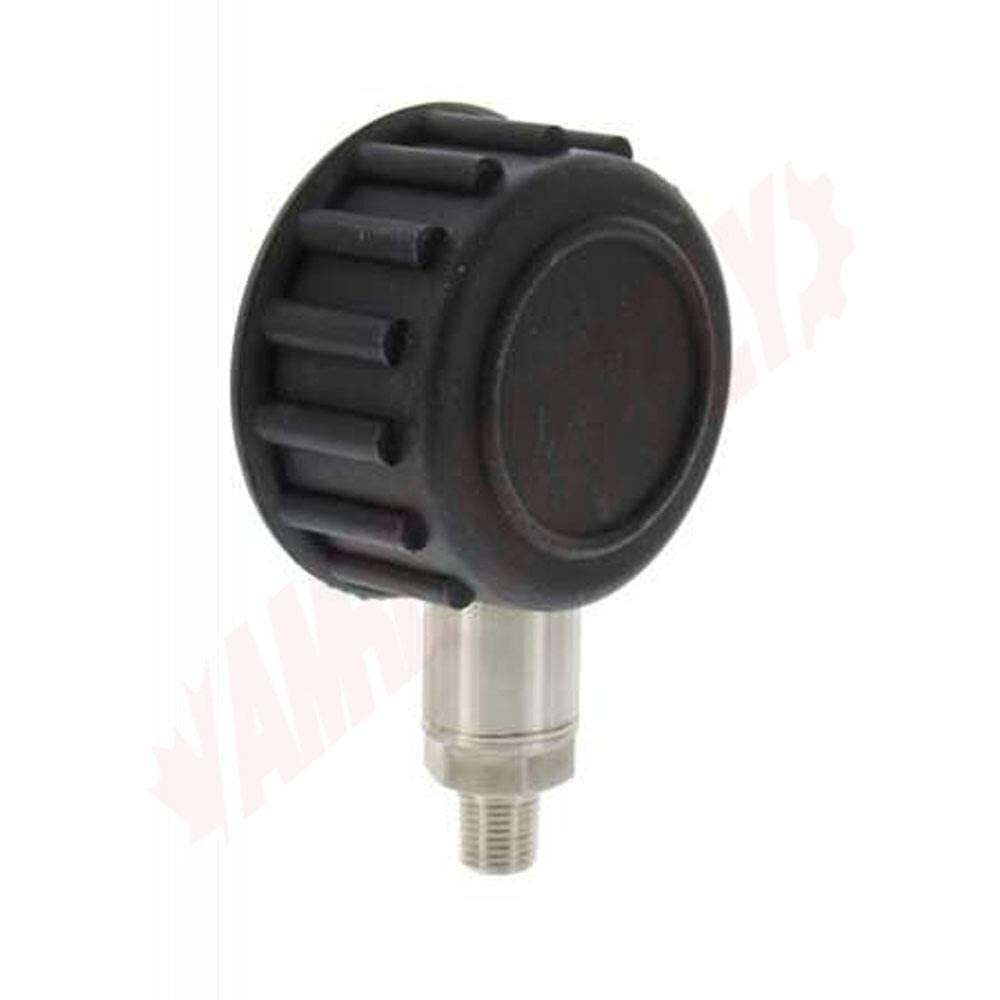

• Rubber Boot Is Standard
• ASME B40.100 Compliant
• RoHS Compliant
• +/- 1% Accuracy +-/ 0.5% Optional For Gauges Up to 5000 PSI
• 1 Year Warranty


Applications



• Ideal For Commercial And Industrial Applications In Both Test Measurement And General Purpose Installations



Specifications
Case Size	2.5" 63MM
Case Material	ABS IP64
Rubber Boot	Silicone Rubber IP65
LCD Display	2"X3/4" 48MMX16MM

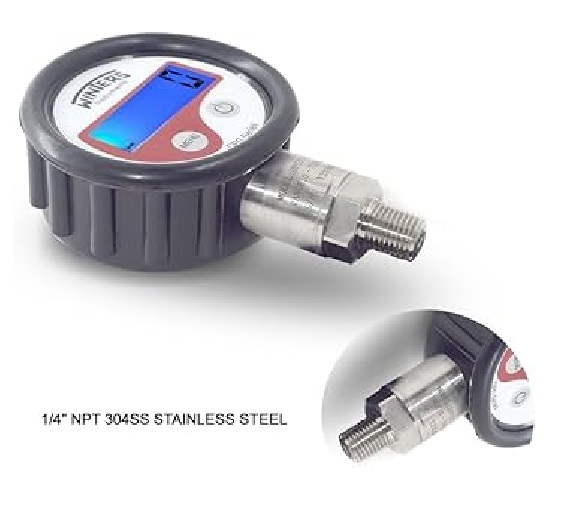

Connection	1/4" NPT 304SS
Sensor	316L Welded,Piezo
Operation Life	1 Million Cycles
Power Supply	2XAAA Battery 1.5V
Battery Life	2 Yrs Auto Shut-Off Mode
Power Mode	Auto or Manual Shut-Off
Display Digits	4 digits to 5000 psi,5 digits for 10000 psi
Resolution	psi,mmHO,mmHg,mbar,kPa 100 psi
	psi,bar,kg/cm2,mPa,atm ranges 160 psi
Operation Mode	Continuously Reading or Peak Pressure Reading
Response Time	3 Hz Display Refresh Rate
Proof/Burst Pressure	200%/300% FS
Operating/Storage Temperature	14F to 122F (-10C to 50C
	-4F to 167F (-20C to 75C
Accuracy	0.5%
Dial Size	2.5" 63MM
Connection	1/4" Bottom
Socket	SS

Additional Information:

• Item Code: Winters Instruments Canada Digital Pressure Gauge MODEL DPG218 RANGE 0 To 600 PSI
• www.envirotechdelhi.in
• www.envirotechdelhi.com
• www.envirotechindia.co.in

Precision and Durability for Industrial Demands

Designed with 0.5% accuracy and a sturdy 304SS thread, the DPG218 ensures consistent, high-fidelity pressure readings under rigorous operating conditions. Its metal alloy body enhances durability, while the compact size facilitates effortless integration into existing systems across multiple sectors.


Versatile Applications Across Key Industries

The DPG218 model serves a diverse set of industries including pharmaceuticals, power plants, cement, steel, fertilizer, and textiles. Its gas measurement capabilities, combined with robust build quality, make it a reliable choice for both critical and routine monitoring needs.


User-Friendly Digital Display

With a digital screen capable of showing 4 digits up to 5000 PSI and 5 digits for pressures up to 10,000 PSI, users can read measurements with optimum clarity. The back mounting design ensures ease of installation and maintenance.
