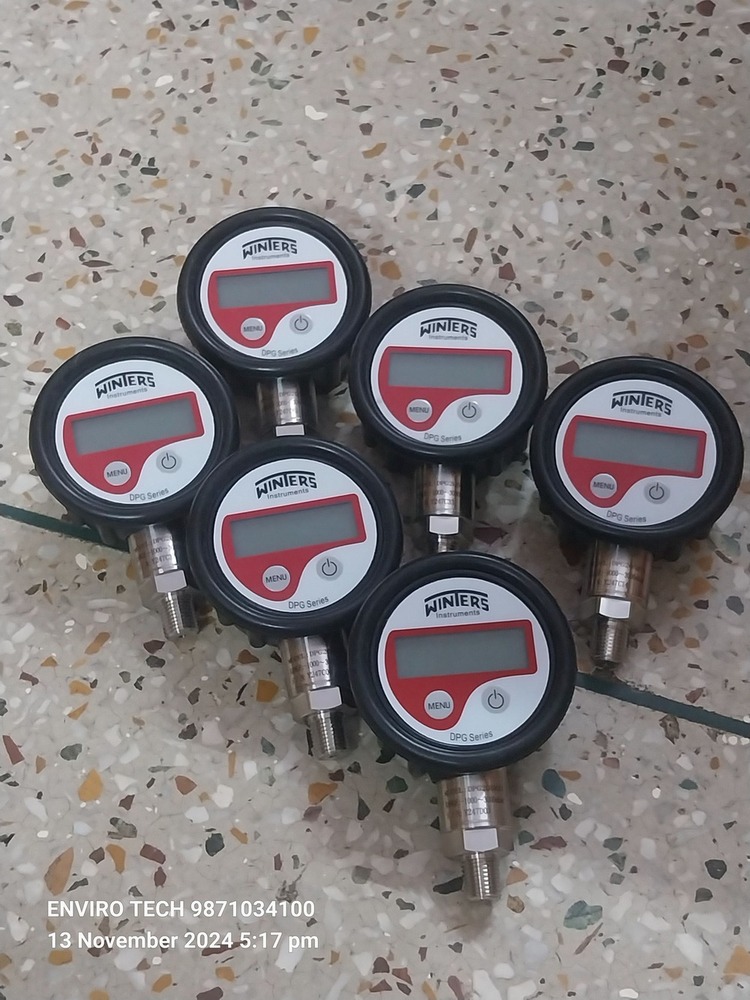

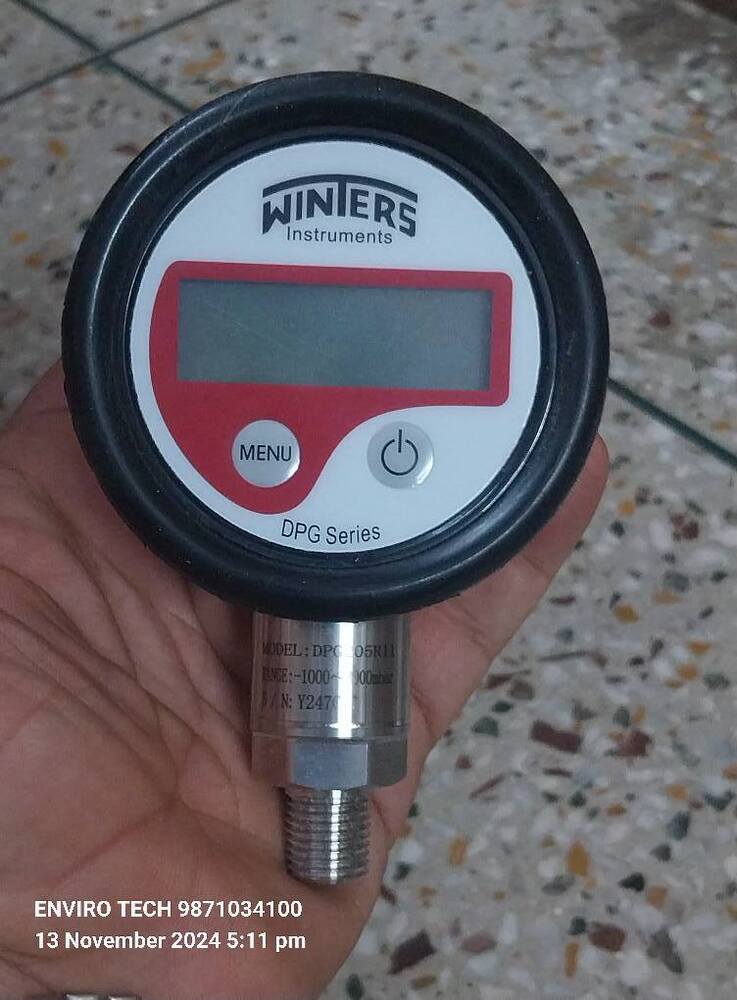

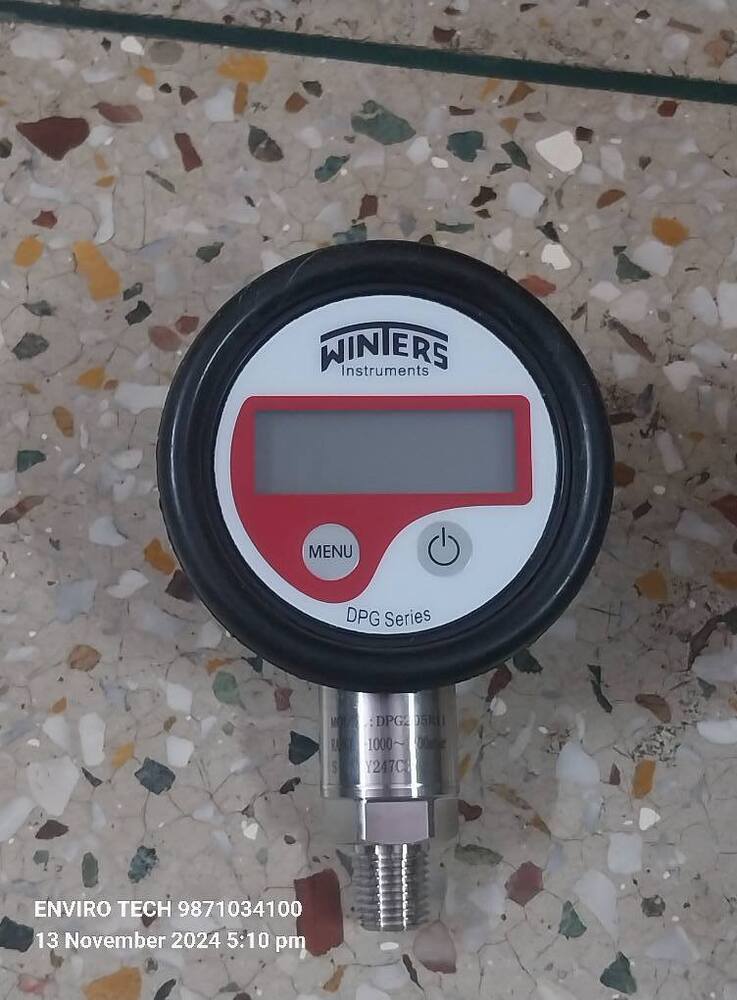

Winters Canada Digital Pressure Gauge MODEL - DPG210 RANGE - 30 INCH HG VAC

Send Inquiry

Request To Call Back

Winters Canada Digital Pressure Gauge MODEL - DPG210 RANGE - 30 INCH HG VAC

Price 12500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Winters Canada Digital Pressure Gauge MODEL - DPG210 RANGE - 30 INCH HG VAC Specification

Sensor Type
Micro-Electromechanical (MEMS) Sensor

Outer Size
Approx. 105 mm (Diameter)

Bourdon Tube
Not Applicable (Digital Sensor)

Display
4-digit LCD Display with Backlighting

Grade
Industrial Grade

Seal Material
Viton O-ring

Thread
1/4 NPT

Material
Stainless Steel and ABS

Dial Material
Polycarbonate LCD Panel

Pointer Material
Not Applicable (Digital Gauge)

Processing Type
Digital Processing

Diameter
2.5 inch (60 mm approx.)

Glass Size
Full View LCD Screen (55 mm approx.)

Mount Type
Bottom Connection

Scale Range
-30 inHg Vacuum

Accuracy
0.25% Full Scale

Finishing
Anodized Aluminium Casing

Measure Pressure Of
Vacuum (Negative Gauge Pressure)

Accessories
Protective Rubber Boot, Batteries

Protection Rating
IP67 (Water & Dust Resistant)

Response Time
200 ms

Overpressure Limit
150% of Full Scale

Operating Temperature Range
-10C to 50C

Sampling Rate
4 times per second

Zero Reset and Peak Hold
Available

Pressure Units
Selectable (inHg, psi, bar, kPa, MPa, etc.)

Model
DPG210

Power Supply
2 x AA Batteries

Winters Canada Digital Pressure Gauge MODEL - DPG210 RANGE - 30 INCH HG VAC Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
YAS

About Winters Canada Digital Pressure Gauge MODEL - DPG210 RANGE - 30 INCH HG VAC

www.envirotechindustrialproducts.in

Winters Canada Digital Pressure Gauge MODEL - DPG210 RANGE - 30'' HG VAC

MODEL - DPG210

RANGE - 30'' HG VAC

Description & Features

Simple 2 Button Operation
Reset To Zero Feature
Backlight Turns On When On/Off Button Is Pressed
Option For Display To Remain Continuously On
Continuous Peak Pressure Indication Option
316L Welded Diaphragm Seal
Rubber Boot Is Standard
ASME B40.100 Compliant
RoHS Compliant
+/- 1% Accuracy (+-/ 0.5% Optional For Gauges Up to 5000 PSI)
1 Year Warranty

Applications

Ideal For Commercial And Industrial Applications In Both Test Measurement And General Purpose Installations

Specifications
Case Size	2.5" (63MM)
Case Material	ABS (IP64)
Rubber Boot	Silicone Rubber (IP65)
LCD Display	2" x 3/4" (48MM x 16MM)
Connection	1/4" NPT 304SS
Sensor	316L Welded,Piezo
Operation Life	1 Million Cycles
Power Supply	2 x AAA Battery (1.5V)
Battery Life	2 Yrs (Auto Shut-Off Mode)
Power Mode	Auto or Manual Shut-Off
Display Digits	4 digits to 5000 psi,5 digits for 10000 psi
Resolution	psi,mmHO,mmHg,mbar,kPa 100 psi
	psi, bar, kg/cm2,mPa,atm ranges 160 psi
Operation Mode	Continuously Reading or Peak Pressure Reading
Response Time	3 Hz Display Refresh Rate
Proof/Burst Pressure	200%/300% FS
Operating/Storage Temperature	14F to 122F (-10C to 50C)
	-4F to 167F (-20C to 75C)
Accuracy	0.5%
Dial Size	2.5" (63mm
Connection	1/4" Bottom
Socket	SS

Additional Information:

Item Code: Winters Canada Digital Pressure Gauge MODEL - DPG210 RANGE - 30'' HG VAC
Pay Mode Terms: NEFT / CASH / IMPS
www.envirotechindustrialproducts.com
www.envirotechindustrialproduct.com
www.envirotechindustrialproducts.in

www.envirotechindustrialproducts.in

Highly Versatile Pressure Measurement

Adapt the Winters DPG210 gauge to any application with selectable units, including inHg, psi, bar, kPa, and MPa. Its compatibility with 1/4 NPT bottom connections and robust stainless steel and ABS build makes it suitable for a wide range of industrial uses, such as laboratory, HVAC, and process control.

Durable Design for Industrial Environments

Built with an anodized aluminium casing and equipped with a Viton O-ring seal, the DPG210 withstands harsh conditions. With IP67 rating, it resists both water and dust infiltration. The provided protective rubber boot adds further defense, while the full-view 55 mm LCD ensures clear, continuous data display.

FAQ's of Winters Canada Digital Pressure Gauge MODEL - DPG210 RANGE - 30 INCH HG VAC:

Q: How do I switch between different pressure units on the DPG210 digital gauge?

A: The DPG210 features selectable pressure units including inHg, psi, bar, kPa, and MPa. To change the unit, use the dedicated unit selection button on the front panel. The selected unit will be shown on the large backlit LCD display.

Q: What is the recommended process for resetting the zero point on this gauge?

A: To reset the zero, ensure the gauge is disconnected from any pressure source. Press the zero reset function key; the display will show '0' to confirm that calibration has been completed and the device is ready for accurate vacuum measurements.

Q: Where can I safely use the Winters DPG210 digital vacuum gauge?

A: With an IP67 water and dust resistance rating, the DPG210 can be used safely in challenging environments such as industrial plants, outdoor installations, and laboratories in India or worldwide. Its robust design enables it to operate in temperatures ranging from -10C to 50C.

Q: What are the main benefits of using the DPG210 over traditional mechanical gauges?

A: The DPG210 offers enhanced accuracy (0.25% full scale), a fast 200 ms response, peak hold, zero reset, and a large backlit LCD for easy reading-features not typically found in analog gauges. It also supports multiple units and provides superior durability thanks to its anodized aluminium casing.

Q: Is there a specific procedure for replacing the batteries in this digital gauge?

A: Yes. To replace the two AA batteries, turn off the gauge and remove the protective rubber boot. Open the battery compartment at the rear, replace the batteries, and securely close the compartment before reattaching the boot. No recalibration is needed after battery replacement.

Q: What kind of pressures can the DPG210 accurately measure?

A: This digital gauge is designed for vacuum measurements, specifically from 0 to -30 inch Hg (negative gauge pressure). Its micro-electromechanical sensor precisely measures vacuum conditions and is not intended for positive pressures above zero within this model's range.
