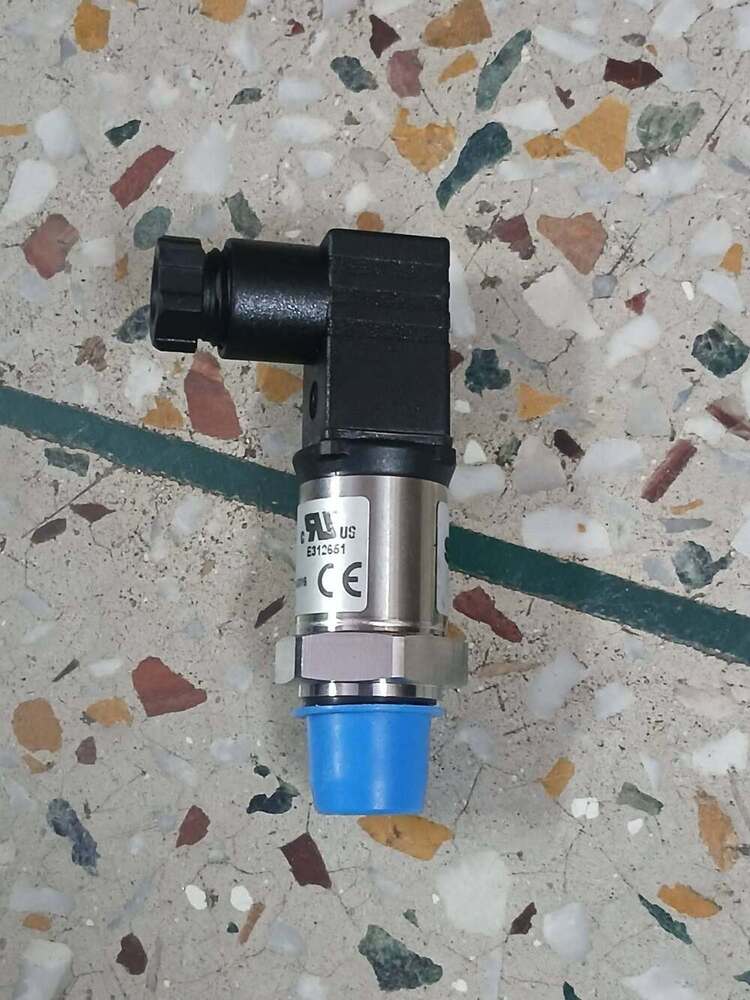

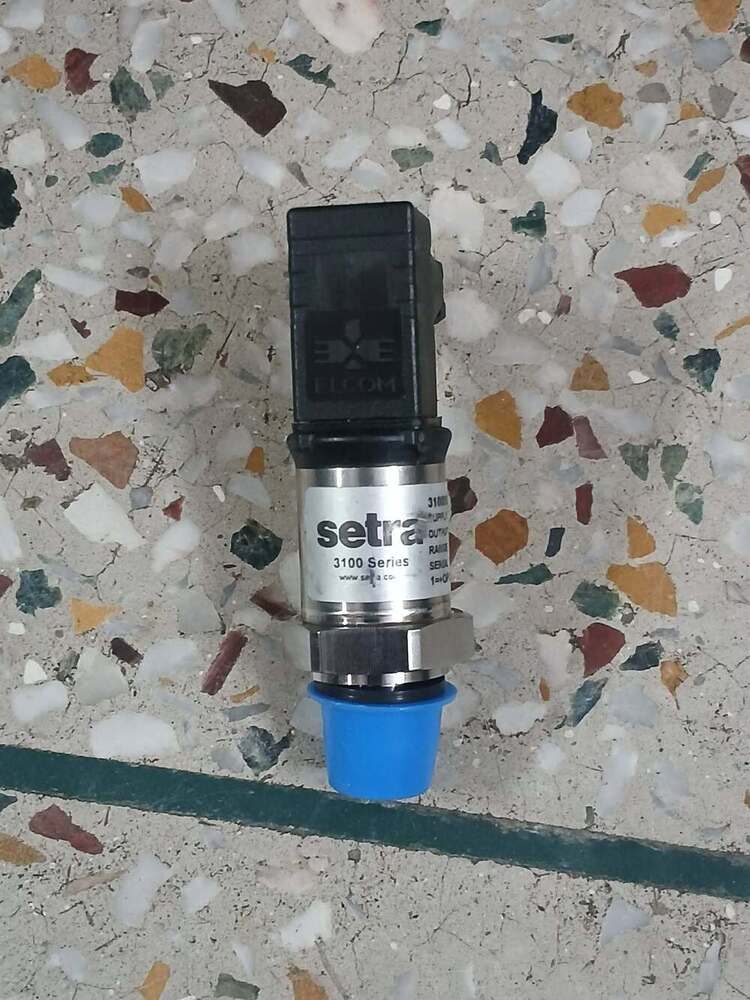

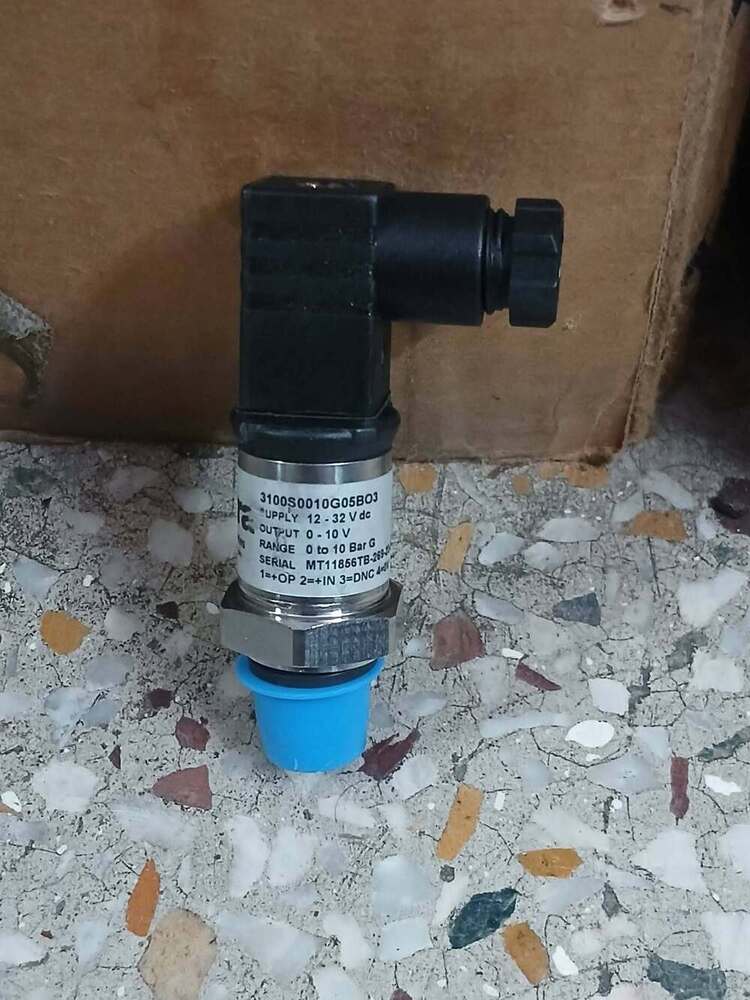

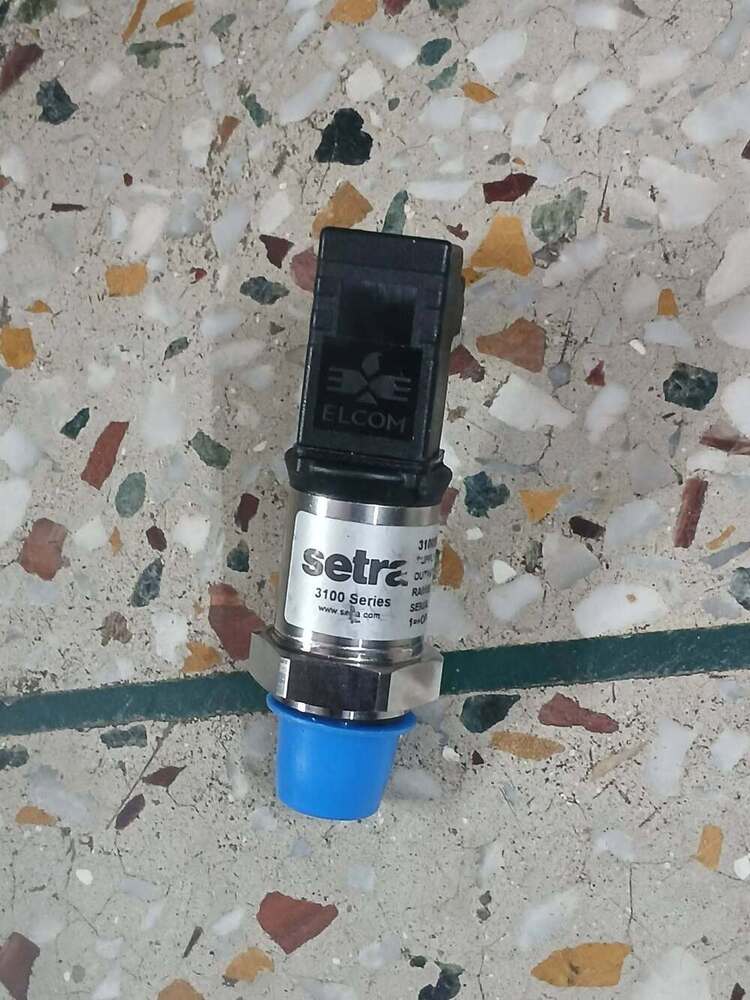

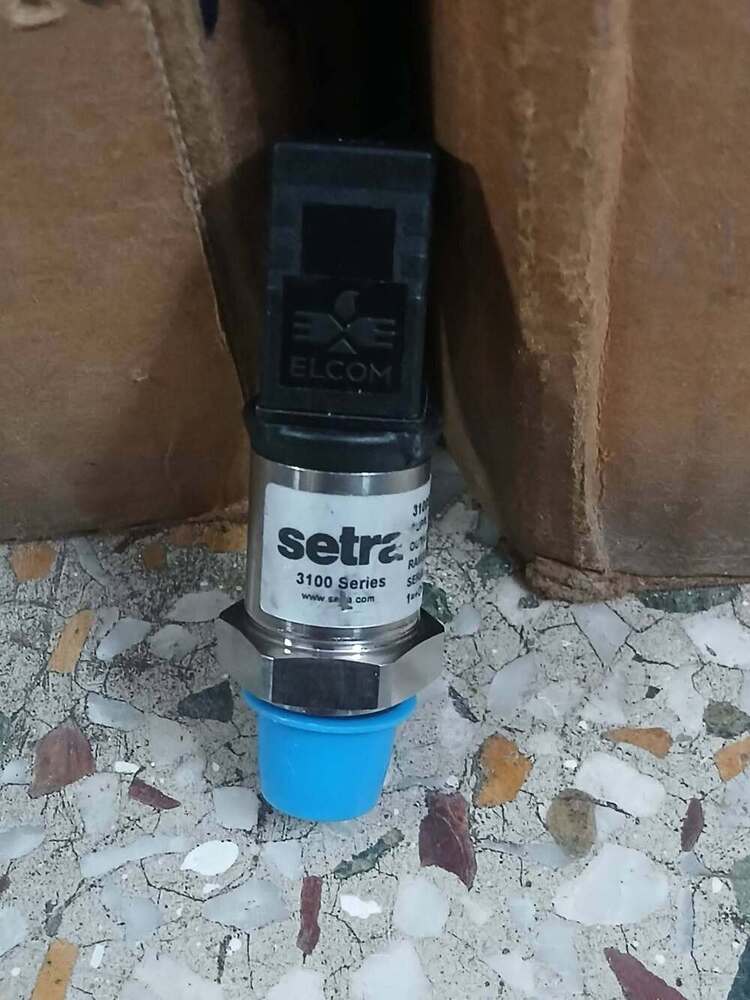

SETRA Pressure Transmitter Part No 3100S0010G05BO3 Range 0 TO 10 Bar

Send Inquiry

Request To Call Back

SETRA Pressure Transmitter Part No 3100S0010G05BO3 Range 0 TO 10 Bar

Price 12500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SETRA Pressure Transmitter Part No 3100S0010G05BO3 Range 0 TO 10 Bar Specification

Thread
1/4 NPT 316L SS.

Sensor Type
SETRA Pressure Transmitter Part No 3100S0010G05BO3 Range 0 TO 10 Bar

Outer Size
0-5, 0-10, 2-10, 1-5 VDC,4-20 mA

Display
Analog

Material
Metal Alloy

Usage
POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Dial Material
Plastic

Size
1/4 NPT 316L SS.

Pointer Material
Steel

Processing Type
Standard

Product Type
SETRA Pressure Transmitter Part No 3100S0010G05BO3 Range 0 TO 10 Bar

Weight
35 Grams (g)

Mount Type
Surface

Color
WHITE / BLACK

Scale Range
SETRA Pressure Transmitter Part No 3100S0010G05BO3 Range 0 TO 10 Bar

Accuracy
0.25%,0.5%,1%

Measure Pressure Of
Steam, Oil, Gas, Water

SETRA Pressure Transmitter Part No 3100S0010G05BO3 Range 0 TO 10 Bar Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
West Bengal, All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand

Certifications
EXTRA

SETRA Pressure Transmitter Part No 3100S0010G05BO3 Range 0 TO 10 Bar About

SETRA Pressure Transmitter Part No 3100S0010G05BO3 Range 0 TO 10 Bar

SETRA Pressure Transmitter Part No 3100S0010G05BO3 Range 0 TO 10 Bar

Product Information

SETRA Model 3100S0010G05BO3 is a compact industrial OEM Pressure Transmitter for reliable 0“10 Bar gauge pressure measurement.It uses sputtered thin-film sensing technology and rugged welded stainless-steel construction for demanding applications

Technical Data

Brand: SETRA
Part No:3100S0010G05BO3
Pressure Range:0 TO 10 Bar
OUTPUT:0...10 V
Supply:12-32 VDC
CONNECTION:1/4" NPT 304 SS
Pressure Type: Gauge
Accuracy:±0.25% FS
Diaphragm:17-4 PH Stainless Steel
Fittings:304 Stainless Steel
Operating/Storage Temperature: -40C to +125C
Response Time: Approx. 1 ms
Long-Term Stability: ±0.2% FS for ranges below 60 Bar

Product Features

High accuracy and repeatability
Rugged stainless-steel construction
Excellent long-term stability
No oil-filled sensor design
Reverse wiring protection
High vibration resistance
IP67 environmental protection
Compact OEM design
Suitable for space-limited installations

Field Of Application

Hydraulic & Pneumatic Systems
HVAC & Refrigeration
Compressors & Pumps
Industrial Machinery
Process Equipment
Booster Pump Systems
Irrigation Systems
Power Generation
OEM Machinery
Pressure Monitoring & Control

Ambient Condition

Operating and storage temperature is -40C to +125C. The transmitter is designed for industrial environments involving vibration and moisture exposure.Application pressure must remain within the rated range.

Material

Sensor Diaphragm:17-4 PH Stainless Steel
Fittings:304 Stainless Steel
Construction:Welded Stainless Steel
Enclosure:IP67-rated design

Electrical Data

The SETRA 3100 family is available with different electrical configurations, including voltage Current and ratiometric outputs.Supply voltage,Output signal and connector configuration depend on the specific ordering code. Verify the exact electrical configuration of Part No 3100S0010G05BO3 with the applicable manufacturer documentation before installation.

Installation Guide

Confirm the pressure range is suitable
Install using the correct pressure connection
Tighten fittings without excessive force
Connect wiring according to the applicable diagram
Protect electrical connections from moisture
Apply power after completing pressure and electrical connections.
Check for leakage and verify the output signal

Approval

Model 3100 documentation indicates RoHS compliance and IP67 protection Applicable approvals may vary by configuration verify the exact approval for Part No 3100S0010G05BO3 before purchase or installation

Accessories

Mating Electrical Connector
Sealing Washer
Pressure Fittings
Mounting Hardware
Pressure Tubing/Fittings
Shielded Electrical Cable
Signal/Power Wiring Accessories

Summary

SETRA 3100S0010G05BO3 0 TO 10 Bar Pressure Transmitter is suitable for industrial OEM pressure measurement,Hydraulic,Pneumatic,HVAC, compressor,Pump and process-control applications
