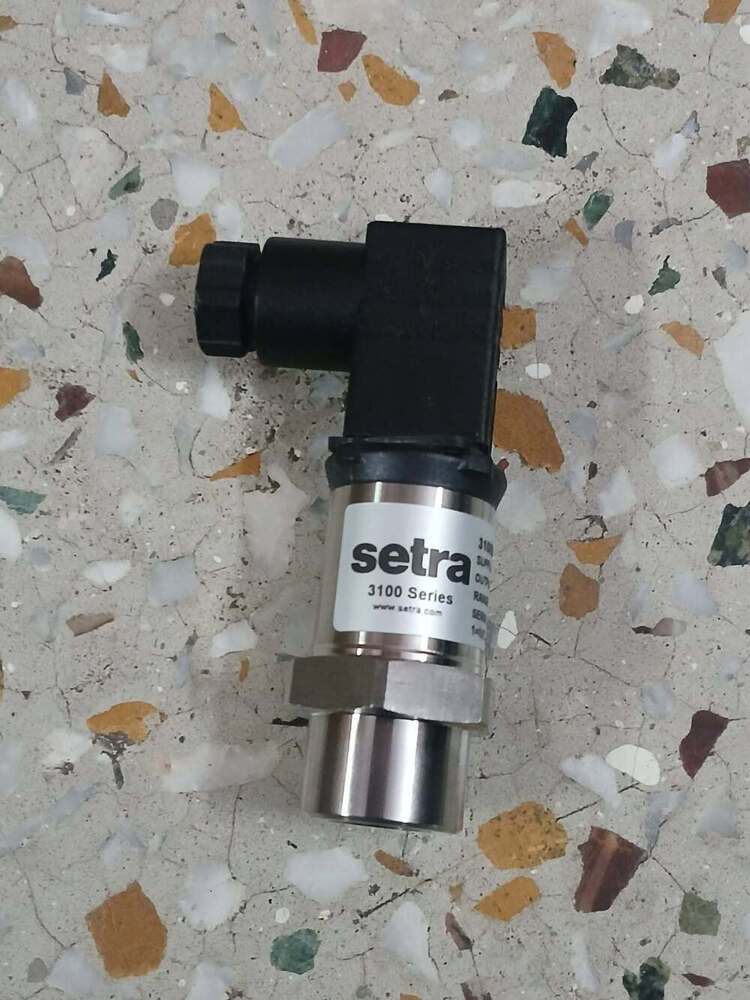

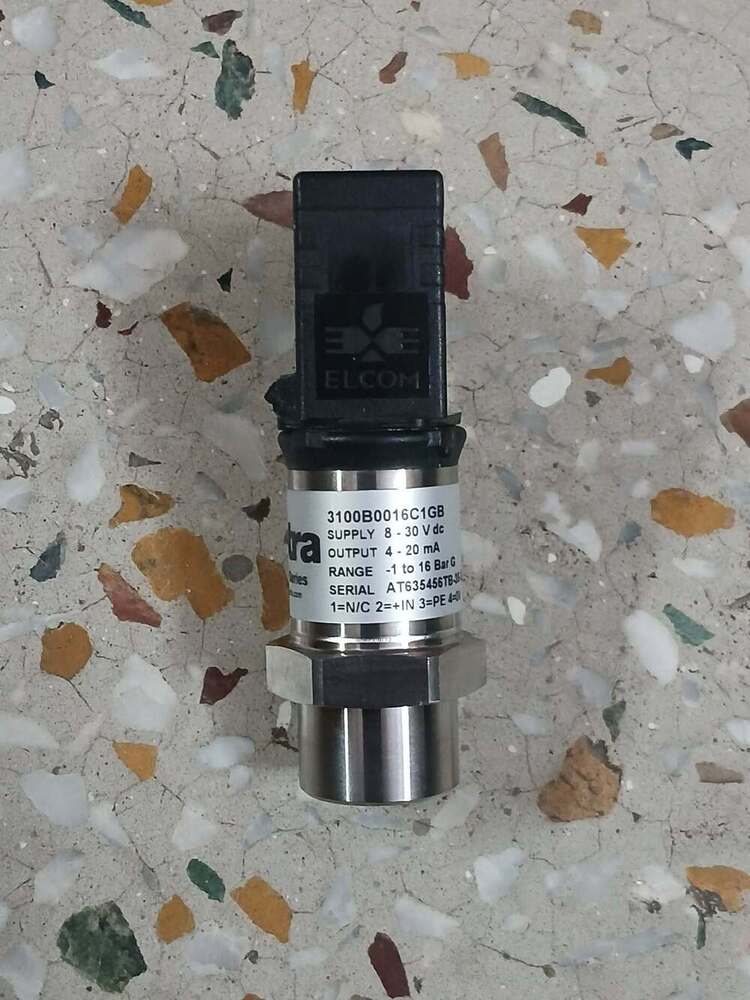

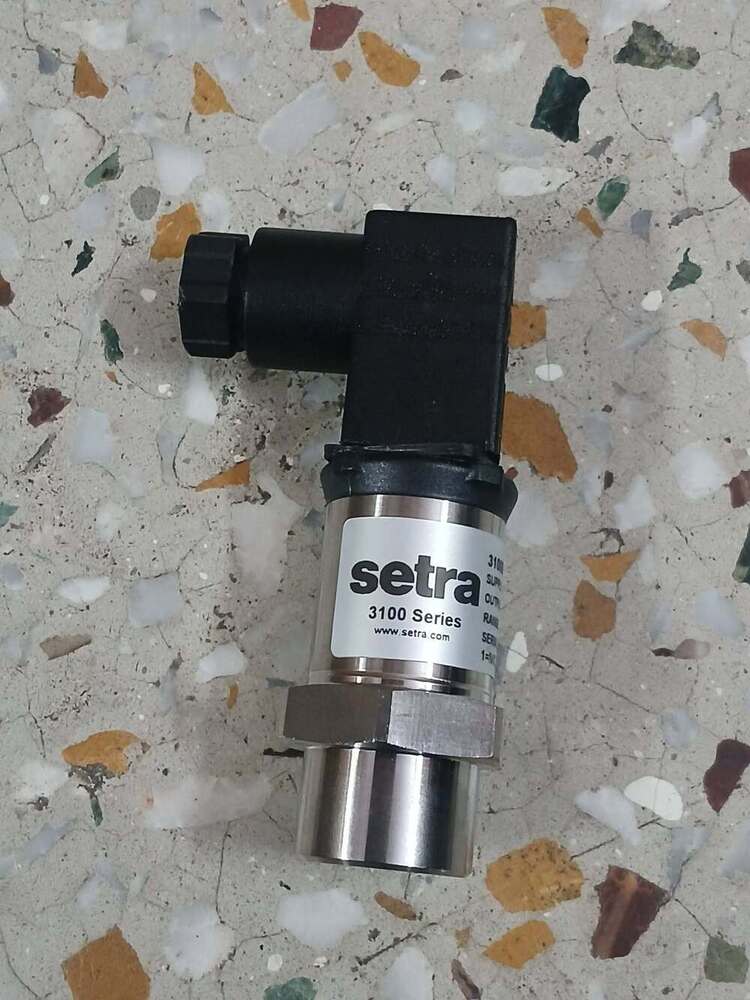

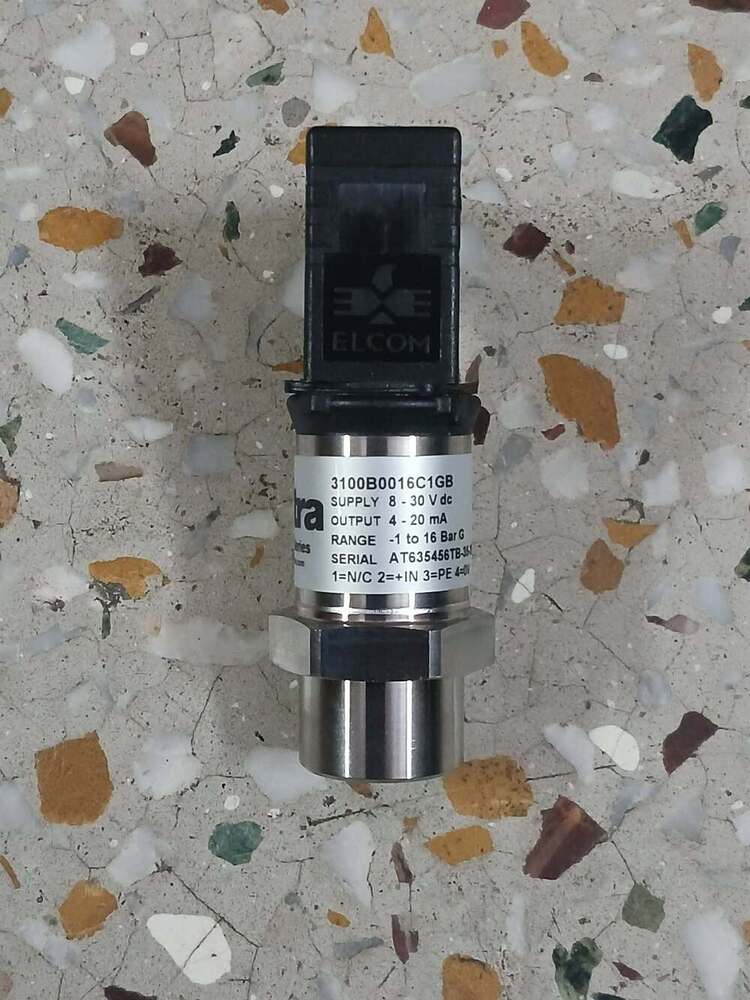

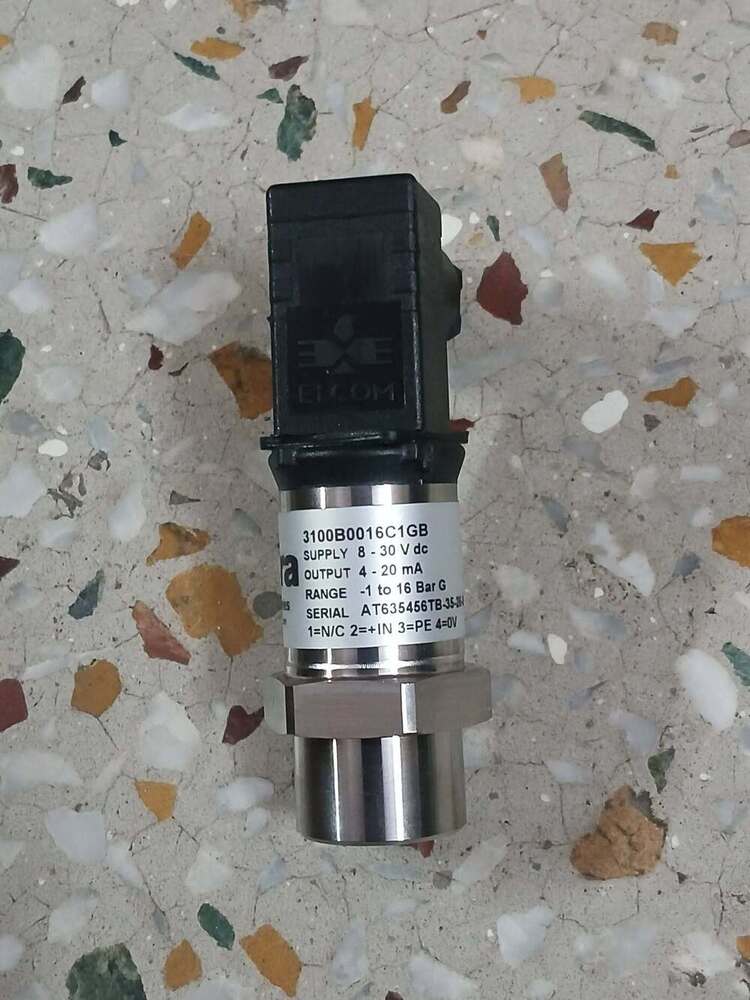

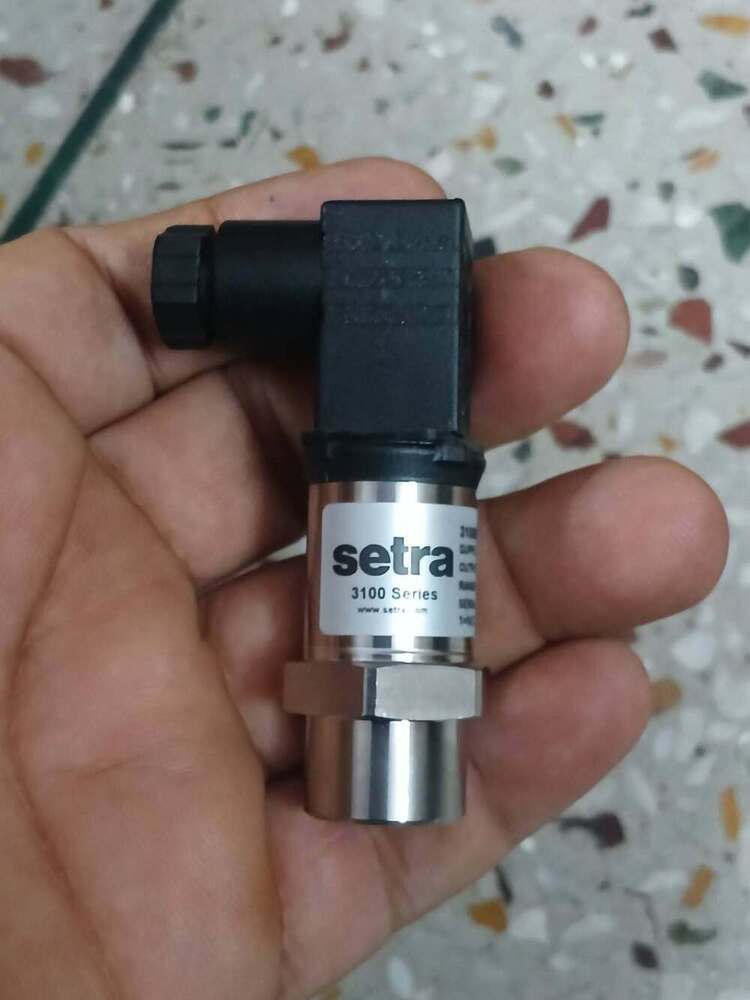

SETRA Pressure Transmitter Part No 3100B0016C1GB Range -1 TO -16 Bar

SETRA Pressure Transmitter Part No 3100B0016C1GB Range -1 TO -16 Bar About

Note: Setra™s Model 3100 documentation confirms the 4“20 mA version, stainless-steel construction, ±0.25% FS accuracy, IP67 protection and wide temperature capability. The exact part-number configuration should be matched with the original factory ordering code before publishing an exact pressure range/specification.

Product Information

The SETRA Model 3100 Pressure Transmitter is an industrial OEM pressure transducer designed for reliable pressure measurement in demanding applications. It uses a sputtered thin-film sensing element and provides a proportional electrical output signal. The transmitter is compact, rugged and suitable for industrial pressure monitoring and control systems.

Technical Data

These specifications are based on Setra's Model 3100 documentation.

Product Features

• High accuracy: ±0.25% FS
• 4“20 mA industrial output
• Compact OEM design
• Sputtered thin-film sensing technology
• All-welded stainless-steel construction
• IP67 protection
• Reverse-wiring protection
• Excellent vibration resistance
• Fast response
• No oil-filled sensing system
• Long-term stability
• CE and RoHS compliant

Field of Application

• Hydraulic systems
• Industrial machinery
• Hydraulic power units
• Booster pump systems
• Water and wastewater equipment
• Irrigation systems
• Industrial automation
• Process control
• OEM equipment
• Compressor and pressure-control systems
• Power-generation equipment

Ambient Condition

The Model 3100 is designed for demanding industrial environments. The documented operating and compensated temperature range is -40C to +125C. The transmitter has IP67 environmental protection in the standard configuration.

Material

• Diaphragm: 17-4 PH Stainless Steel
• Fittings: 304 Stainless Steel
• Housing/Construction: Welded stainless-steel construction
• Protection: IP67 enclosure

Electrical Data

For the 4“20 mA configuration:

• Output: 4“20 mA
• Circuit: 2-wire
• Excitation: 8“30 VDC
• Maximum loop resistance: (Supply Voltage ˆ 8) — 50 Î
• Reverse wiring protection is provided.

Installation Guide

1. Confirm that the pressure range and process connection are suitable for the application.
2. Install the transmitter using the correct pressure fitting.
3. Do not exceed the specified pressure rating.
4. Connect the 2-wire 4“20 mA circuit according to the wiring configuration.
5. Use a suitable DC power supply within the specified range.
6. Ensure proper electrical shielding/grounding where required.
7. Check for leakage after mechanical installation.
8. Start the system and verify that the 4“20 mA signal changes proportionally with pressure.

Setra states that Model 3100 units are tested and calibrated before shipment.

Approval & Compliance

• CE compliant
• RoHS compliant
• IP67 protection
• Designed to meet applicable industrial EMC requirements.

Accessories

Compatible accessories may include:

• Pressure connection/fittings
• Electrical mating connectors
• Connection cables
• Industrial power supply
• 4“20 mA display/indicator
• PLC/automation interface
• Pressure calibration equipment
• Mounting and sealing accessories
