Series 616KX Differential Pressure Transmitters Range -0.4 to 0.4 INCH WC

Price 15000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Series 616KX Differential Pressure Transmitters Range -0.4 to 0.4 INCH WC Specification

Display
Analog

Usage
POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE,Pharmaceutical,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Product Type
Series 616KX Differential Pressure Transmitters Range -0.4 to 0.4 INCH WC

Weight
250 G

Color
WHITE

Scale Range
Series 616KX Differential Pressure Transmitters Range -0.4 to 0.4 INCH WC

Accuracy
616KX-025 0.25 % FSO

Measure Pressure Of
Gas

Series 616KX Differential Pressure Transmitters Range -0.4 to 0.4 INCH WC Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
EXTRA

About Series 616KX Differential Pressure Transmitters Range -0.4 to 0.4 INCH WC

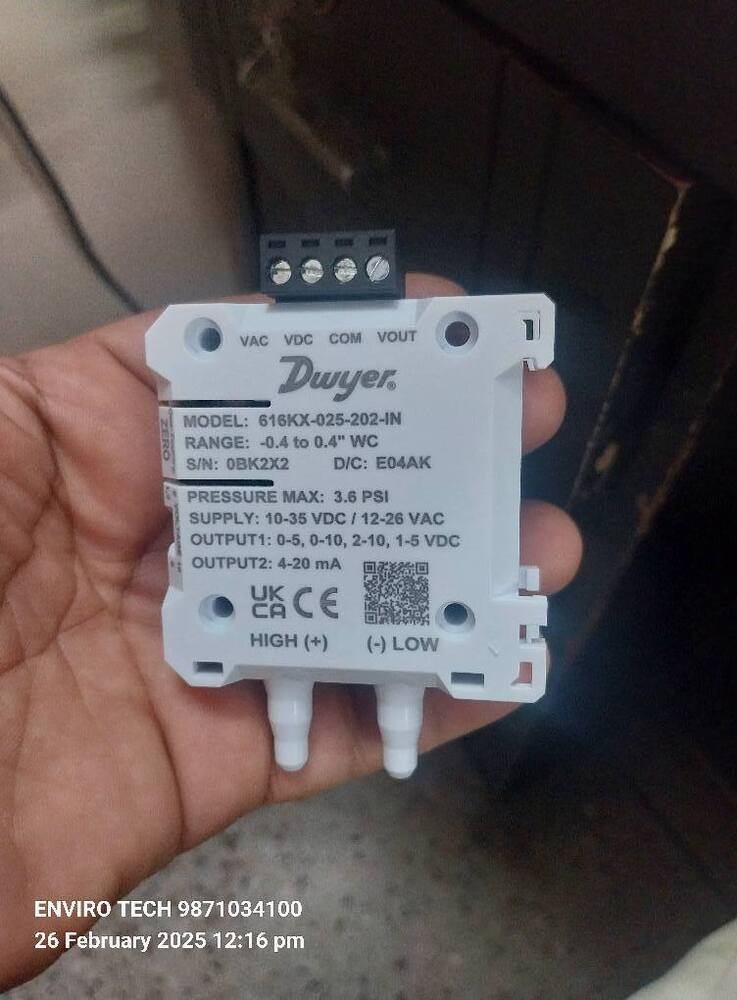

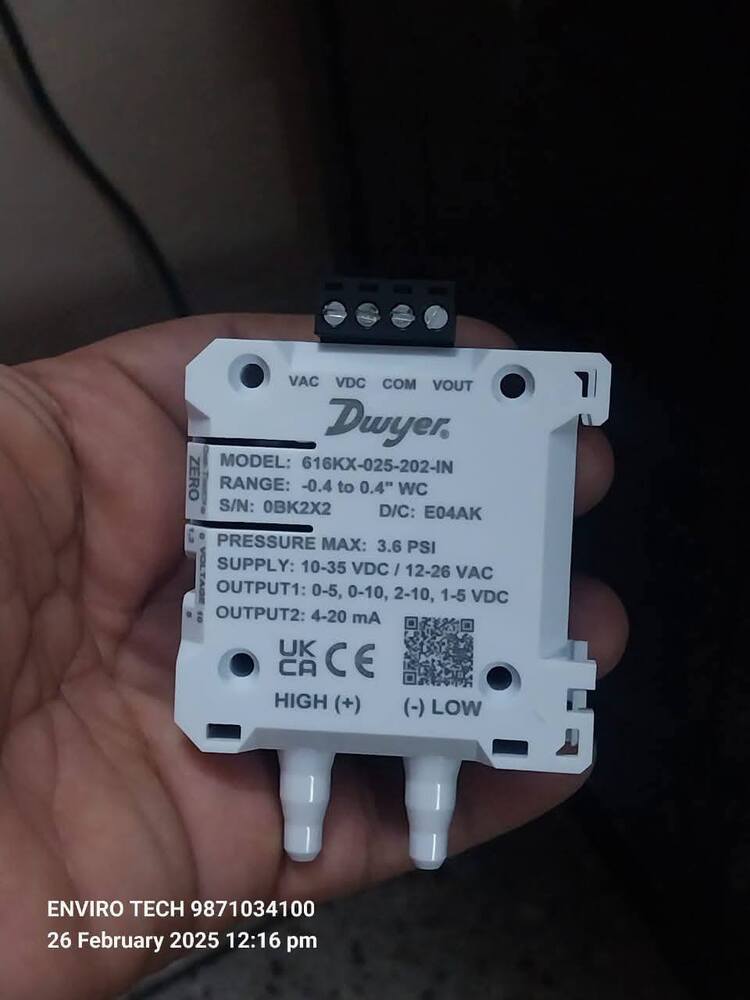

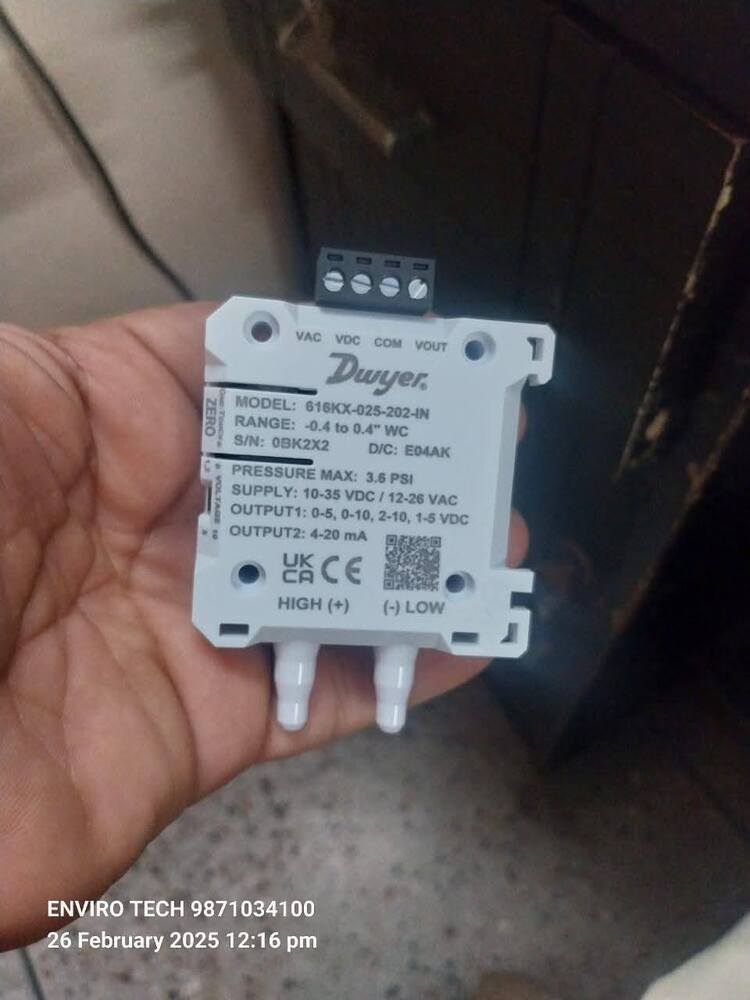

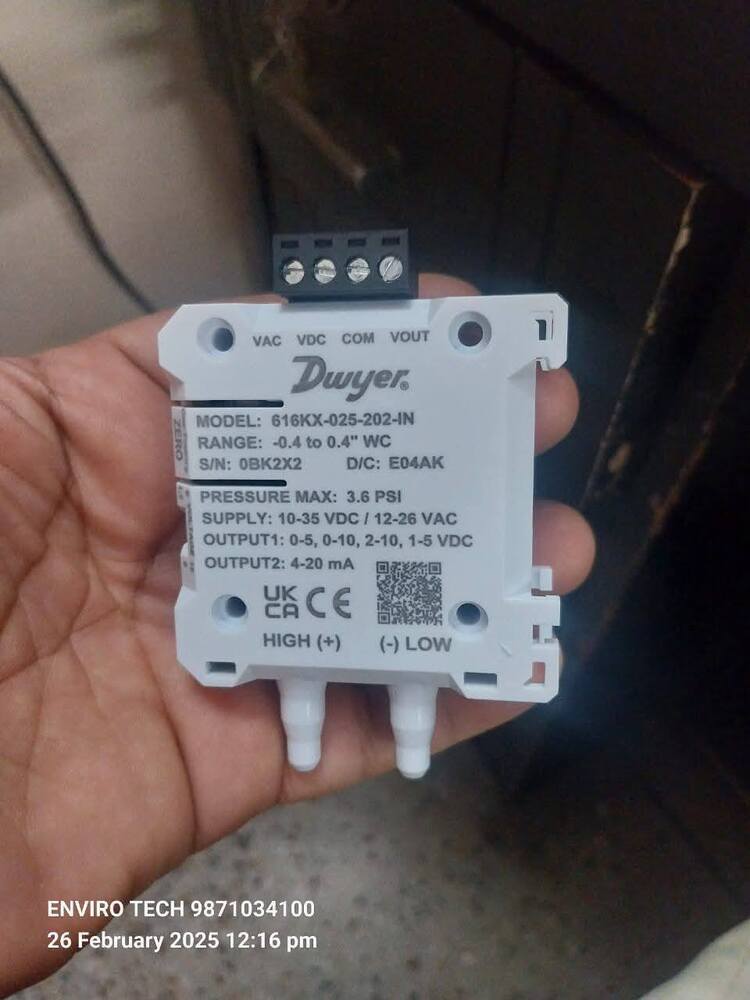

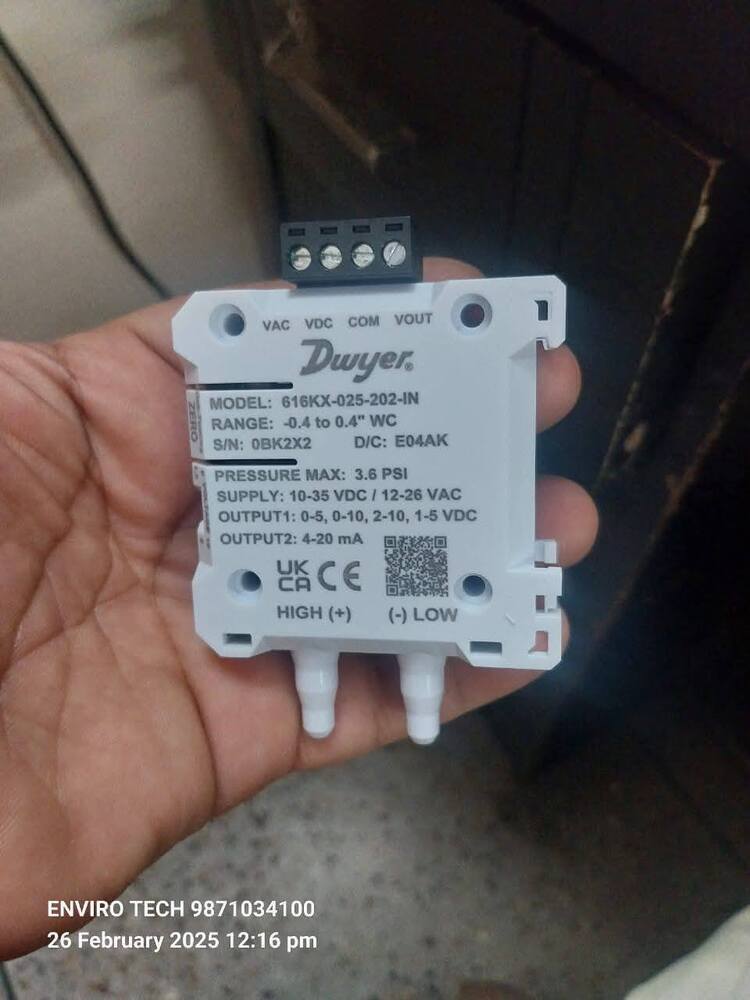

Series 616KX Differential Pressure Transmitters Range -0.4 to 0.4'' WC

Series 616KX Differential Pressure Transmitters Range -0.4 to 0.4 INCH WC

Type - 616KX
Manufacturer - DWYER OMEGA
Model - 616KX-025-202-PA
RANGE - 0.4' to 0.4' WC
PRESSURE MAX. - 3.6 PSI
Supply - 10-35 VDC / 12-26 VAC
OUTPUT 1 - 0-5, 0-10, 2-10, 1-5 VDC
OUTPUT 2 - 4-20 mA
COUNTRY OF ORIGIN - INDIA

Series 616KX Differential Pressure Transmitters: High-Precision Monitoring for Critical Applications

The 616KX Series Differential Pressure Transmitters offer installers and maintenance professional's Maximum Flexibility in Pressure Ranges within a compact design.As Dwyer's smallest differential pressure transmitter,it ensures simplicity with an edge-mounted push-button zero for easy access in any mounting configuration and features field-selectable output signals.The molded housing supports three sizes of both imperial and metric process connections, with optional 1/8³ NPT or BSPT Threaded models, ensuring easy and flexible process connections.

The 616KX Series ensures exceptional stability and repeatability,minimizing drift and enhancing long-term reliability.The robust construction enables operation in demanding conditions,while the user-friendly interface allows for easy installation and calibration. Available in multiple ranges and outputs,These transmitters seamlessly integrate into existing systems, providing real-time monitoring and control.

Product Applications:

Duct Pressure
Air Handlers
Variable Air Volume
Filter Monitoring.

Product Range:

00: 0 in w.c to 0.1 in w.c (25 Pa,2.5 mm w.c.
01: 0 in w.c to 0.25 in w.c (60 Pa,5 mm w.c.
02: 0 in w.c to 0.4 in w.c (100 Pa,10 mm w.c.
03: 0 in w.c to 0.5 in w.c (125 Pa,12 mm w.c.
04: 0 in w.c to 1 in w.c (250 Pa,25 mm w.c.
05: 0 in w.c to 2 in w.c (500 Pa,50 mm w.c.
06: 0 in w.c to 3 in w.c (750 Pa,100 mm w.c.
07: 0 in w.c to 5 in w.c (1250 Pa,125 mm w.c.
08: 0 in w.c to 10 in w.c (2500 Pa,250 mm w.c.
09: 0 in w.c to 15 in w.c (3750 Pa,400 mm w.c.
10: 0 in w.c to 20 in w.c (5000 Pa,450 mm w.c.
11: 0 in w.c to 25 in w.c (6250 Pa,500 mm w.c.
12: 0 in w.c to 40 in w.c (10000 Pa,1000 mm w.c.

Specifications :

Service : Air And Non-Combustible,Compatible Gases
Wetted : Materials Consult factory
Accuracy :616KX-025 ±0.25 % FSO
616KX-050 ±0.50 % FSO
616KX-100 ±1.0 % FSO
616KX-200 ±2.0 % FSO
Stability :< ±1 % / year FSO
Temperature Limits :-4 F to 159 F (-20 C to 70 C
Pressure Limits :3.6 psig for ranges 0 in w.c. to 1 in w.c (25 Pa to 250 Pa
2.5 mm w.c. to 25 mm w.c) 6 psig for ranges 0 in w.c to 40 in w.c.(500 Pa to 10000 Pa;50 mm w.c. to 1000 mm w.c
Thermal Effect :0.02 % FS / F (0.036 % FS / C
Power Requirements :10 Vdc to 36 Vdc (2-wire),17 Vdc to 36 Vdc or isolated 21.6 Vac to 33 Vac (3-wire)
Output Signal :4 mA to 20 mA or option with field selectable 0 V to 10 V,0 V to 5 V,2 V to 10 V,1 V to 5 V
Zero Adjustment :Push Button
Loop Resistance :0 Ohms to 1250 Ohms
Current Consumption :21 mA max
Electrical Connections :Screw-Type Terminal Block
Process Connections :Barbed,Male Ports for 1/8 in,3/16 in, 1/4 in,5 mm,6 mm ID Flexible Tubing
Enclosure Rating :NEMA 1 (IP20)
Mounting Orientation :Not Sensitive to Position.35 mm DIN Rail side and back.Mounting holes for Wall mount with #6 Screws
Weight :1.8 oz (51g)
Compliance :CE,RoHS 3,Plenum Rated (UL 2043),UL94 V-0

Additional Information:

Item Code: Series 616KX Differential Pressure Transmitters Range -0.4 to 0.4 INCH WC
