DWYER Pressure Transmitter MODEL 616KX-025-104-PA Range 0 to 250 Pascal

Get a Price/Quote

MOQ : 1 Piece

DWYER Pressure Transmitter MODEL 616KX-025-104-PA Range 0 to 250 Pascal Specification

Outer Size
420 mA, 0-5, 0-10, 2-10, 1-5 VDC

Sensor Type
DWYER Pressure Transmitter MODEL 616KX-025-104-PA Range 0 to 250 Pascal

Display
Analog

Usage
POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE,Pharmaceutical,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Dial Material
Plastic

Size
DWYER Pressure Transmitter MODEL 616KX-025-104-PA Range 0 to 250 Pascal

Pointer Material
Plastic

Processing Type
Standard

Product Type
DWYER Pressure Transmitter MODEL 616KX-025-104-PA Range 0 to 250 Pascal

Weight
250 G

Mount Type
Surface

Color
WHITE

Scale Range
DWYER Pressure Transmitter MODEL 616KX-025-104-PA Range 0 to 250 Pascal

Accuracy
0.25%,0.5%,1%

Measure Pressure Of
Gas

DWYER Pressure Transmitter MODEL 616KX-025-104-PA Range 0 to 250 Pascal Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal, All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan

Certifications
EXTRA

About DWYER Pressure Transmitter MODEL 616KX-025-104-PA Range 0 to 250 Pascal

DWYER Pressure Transmitter MODEL 616KX-025-104-PA Range 0 to 250 Pascal

DWYER Pressure Transmitter MODEL 616KX-025-104-PA Range 0 to 250 Pascal

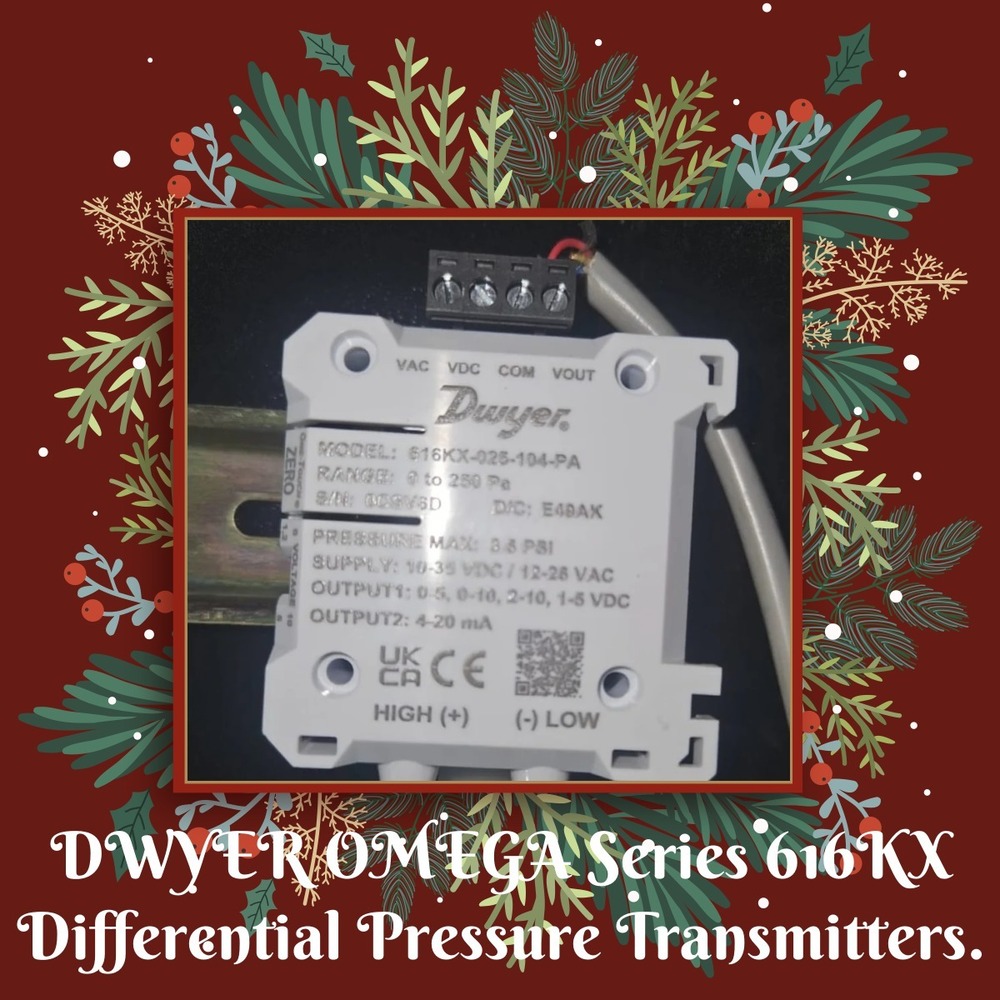

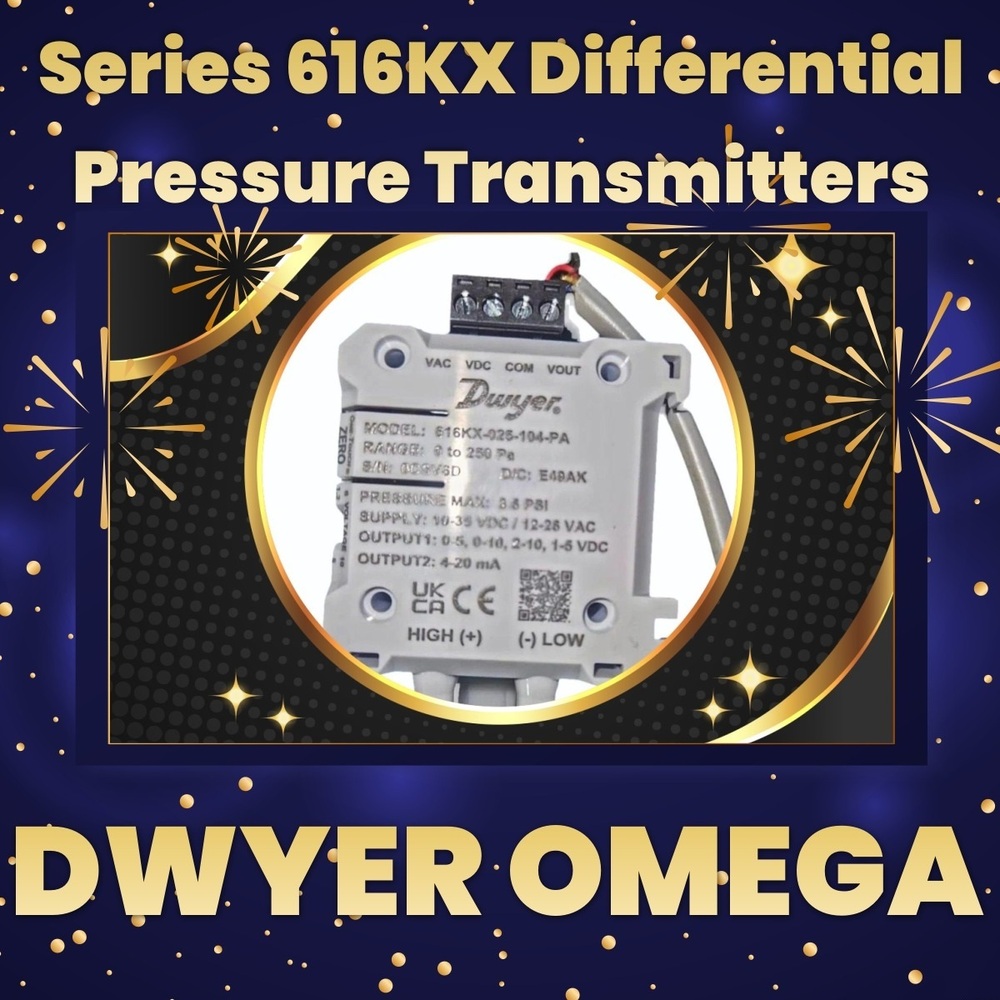

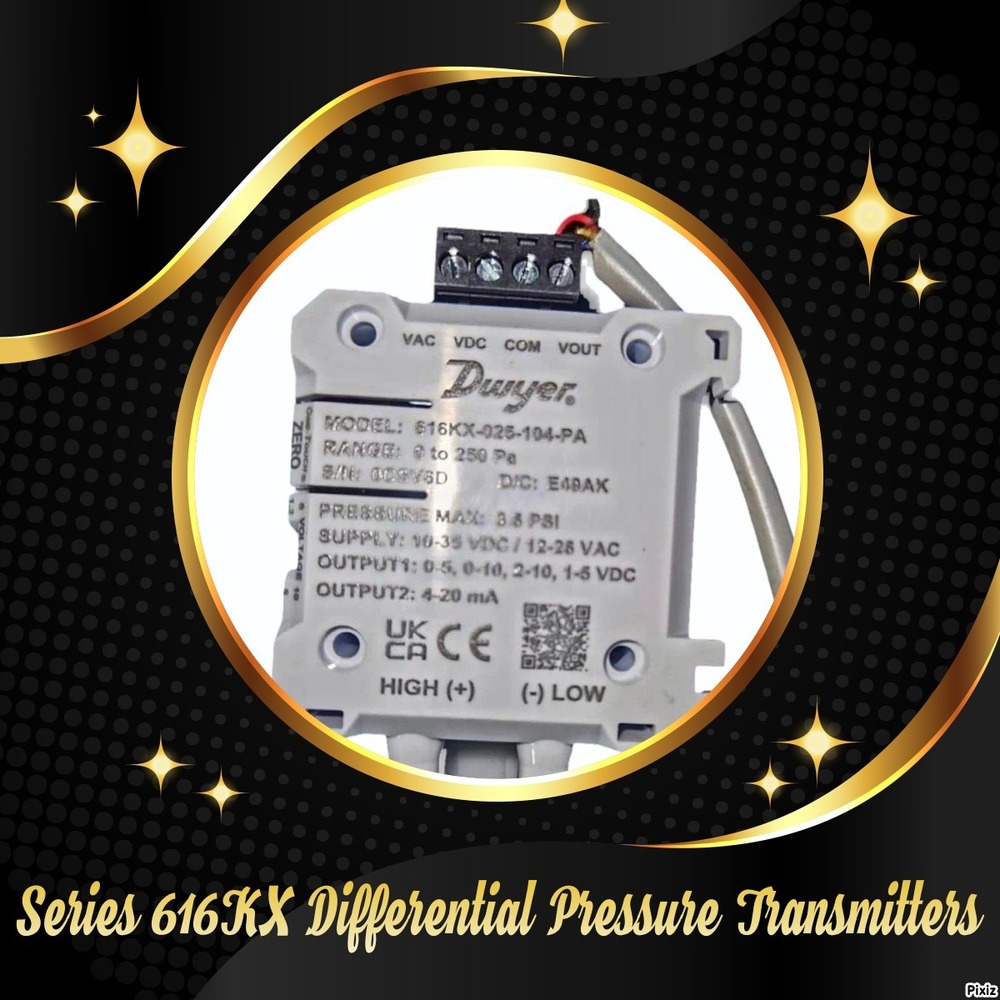

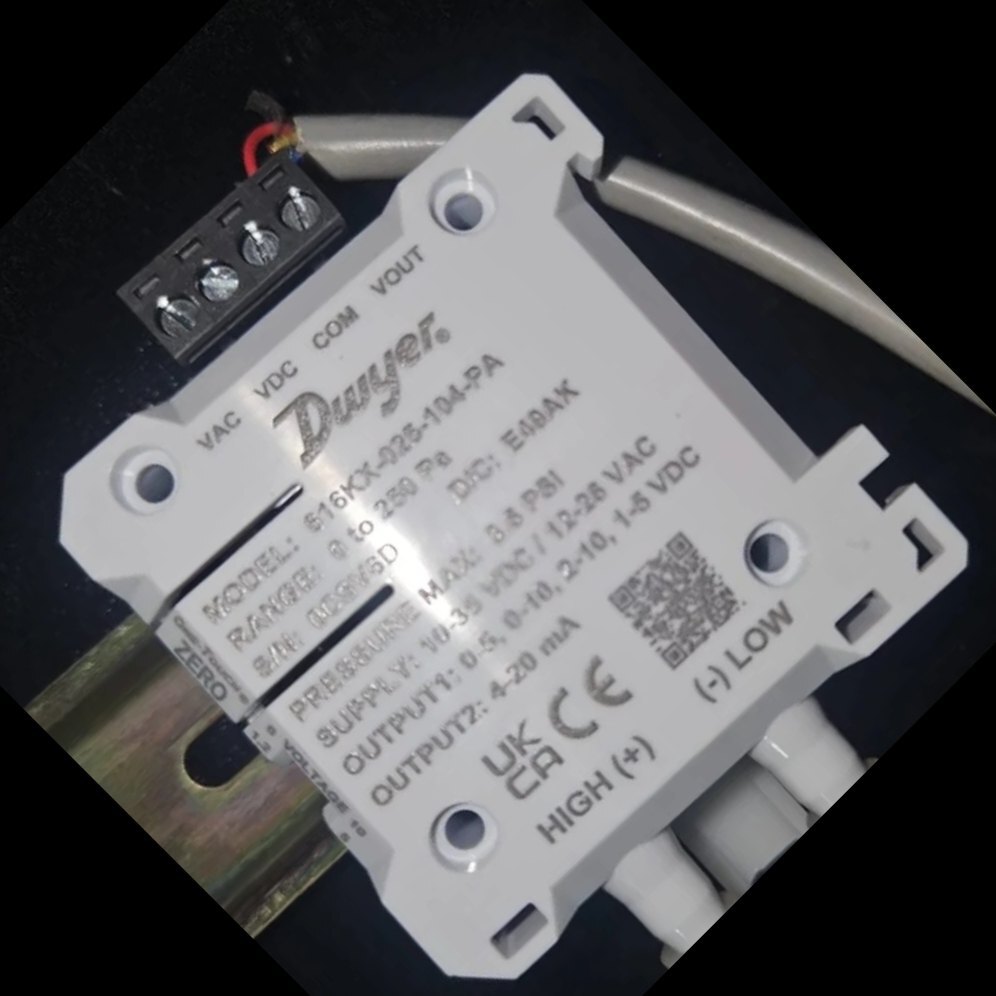

DIFFERENTIAL PRESSURE TRANSMITTER
Type - 616KX
Manufacturer - DWYER OMEGA
Model - 616KX-025-104-PA
RANGE - 0 to 250 Pascal
OUTPUT - 0-5, 0-10, 2-10, 1-5 VDC
Supply - 10-35 VDC / 12-26 VAC
CONNECTION - Barbed sizes to fit 1/8 in , 3/16 in, ï in, 5 mm, and 6 mm ID rubber or vinyl tubing. Optional 1/8 in female NPT or 1/8 in female BSPT threads.
Weight - 5.0 oz (142 g)
COUNTRY OF ORIGIN - INDIA

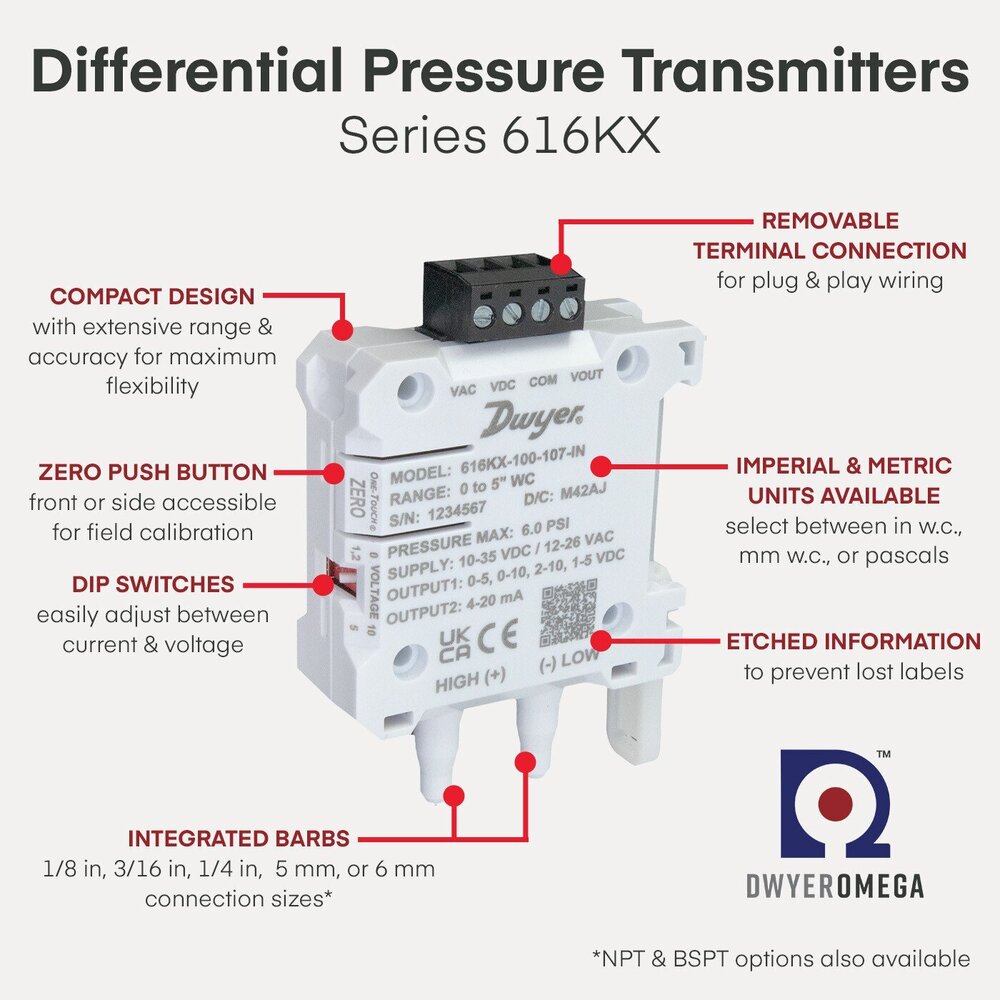

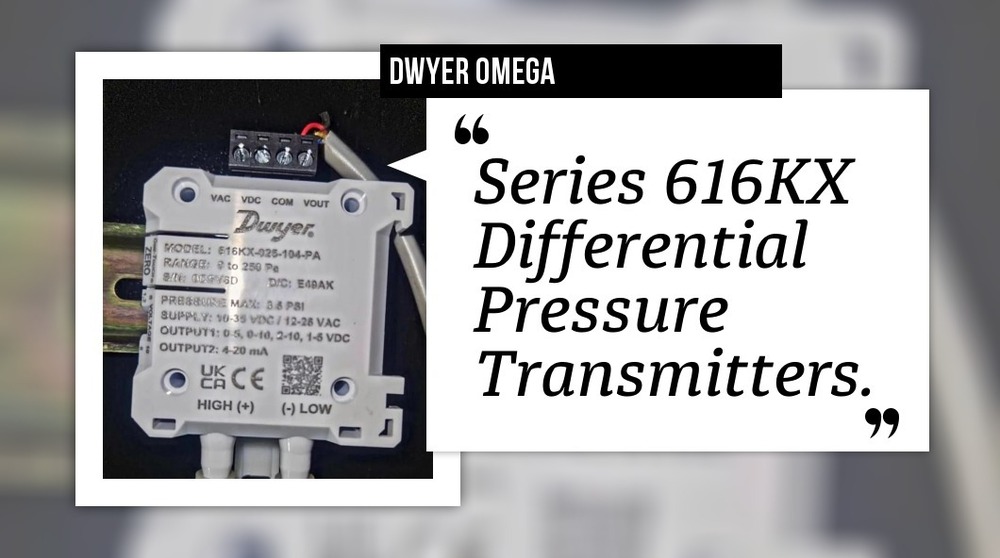

Series 616KX Differential Pressure Transmitters: High-Precision Monitoring for Critical Applications

The 616KX Series Differential Pressure Transmitters offer installers and maintenance professional's Maximum Flexibility in Pressure Ranges within a compact design.As Dwyer's smallest differential pressure transmitter,it ensures simplicity with an edge-mounted push-button zero for easy access in any mounting configuration and features field-selectable output signals.The molded housing supports three sizes of both imperial and metric process connections, with optional 1/8ï NPT or BSPT Threaded models, ensuring easy and flexible process connections.

The 616KX Series ensures exceptional stability and repeatability,minimizing drift and enhancing long-term reliability.The robust construction enables operation in demanding conditions,while the user-friendly interface allows for easy installation and calibration. Available in multiple ranges and outputs,These transmitters seamlessly integrate into existing systems, providing real-time monitoring and control.

Product Applications:

Duct Pressure
Air Handlers
Variable Air Volume
Filter Monitoring.

Product Range:

00: 0 in w.c to 0.1 in w.c (25 Pa,2.5 mm w.c.
01: 0 in w.c to 0.25 in w.c (60 Pa,5 mm w.c.
02: 0 in w.c to 0.4 in w.c (100 Pa,10 mm w.c.
03: 0 in w.c to 0.5 in w.c (125 Pa,12 mm w.c.
04: 0 in w.c to 1 in w.c (250 Pa,25 mm w.c.
05: 0 in w.c to 2 in w.c (500 Pa,50 mm w.c.
06: 0 in w.c to 3 in w.c (750 Pa,100 mm w.c.
07: 0 in w.c to 5 in w.c (1250 Pa,125 mm w.c.
08: 0 in w.c to 10 in w.c (2500 Pa,250 mm w.c.
09: 0 in w.c to 15 in w.c (3750 Pa,400 mm w.c.
10: 0 in w.c to 20 in w.c (5000 Pa,450 mm w.c.
11: 0 in w.c to 25 in w.c (6250 Pa,500 mm w.c.
12: 0 in w.c to 40 in w.c (10000 Pa,1000 mm w.c.

Specifications :

Service : Air And Non-Combustible,Compatible Gases

Wetted : Materials Consult factory

Accuracy :616KX-025 ï0.25 % FSO

616KX-050 ï0.50 % FSO

616KX-100 ï1.0 % FSO

616KX-200 ï2.0 % FSO

Stability :< ï1 % / year FSO

Temperature Limits :-4 F to 159 F (-20 C to 70 C

Pressure Limits :3.6 psig for ranges 0 in w.c. to 1 in w.c (25 Pa to 250 Pa

2.5 mm w.c. to 25 mm w.c) 6 psig for ranges 0 in w.c to 40 in w.c.(500 Pa to 10000 Pa;50 mm w.c. to 1000 mm w.c

Thermal Effect :0.02 % FS / F (0.036 % FS / C

Power Requirements :10 Vdc to 36 Vdc (2-wire),17 Vdc to 36 Vdc or isolated 21.6 Vac to 33 Vac (3-wire)

Output Signal :4 mA to 20 mA or option with field selectable 0 V to 10 V,0 V to 5 V,2 V to 10 V,1 V to 5 V

Zero Adjustment :Push Button

Loop Resistance :0 Ohms to 1250 Ohms

Current Consumption :21 mA max

Electrical Connections :Screw-Type Terminal Block

Process Connections :Barbed,Male Ports for 1/8 in,3/16 in, 1/4 in,5 mm,6 mm ID Flexible Tubing

Enclosure Rating :NEMA 1 (IP20)

Mounting Orientation :Not Sensitive to Position.35 mm DIN Rail side and back.Mounting holes for Wall mount with #6 Screws

Weight :1.8 oz (51g)

Compliance :CE,RoHS 3,Plenum Rated (UL 2043),UL94 V-0

Additional Information:

Item Code: DWYER Pressure Transmitter MODEL 616KX-025-104-PA Range 0 to 250 Pascal
