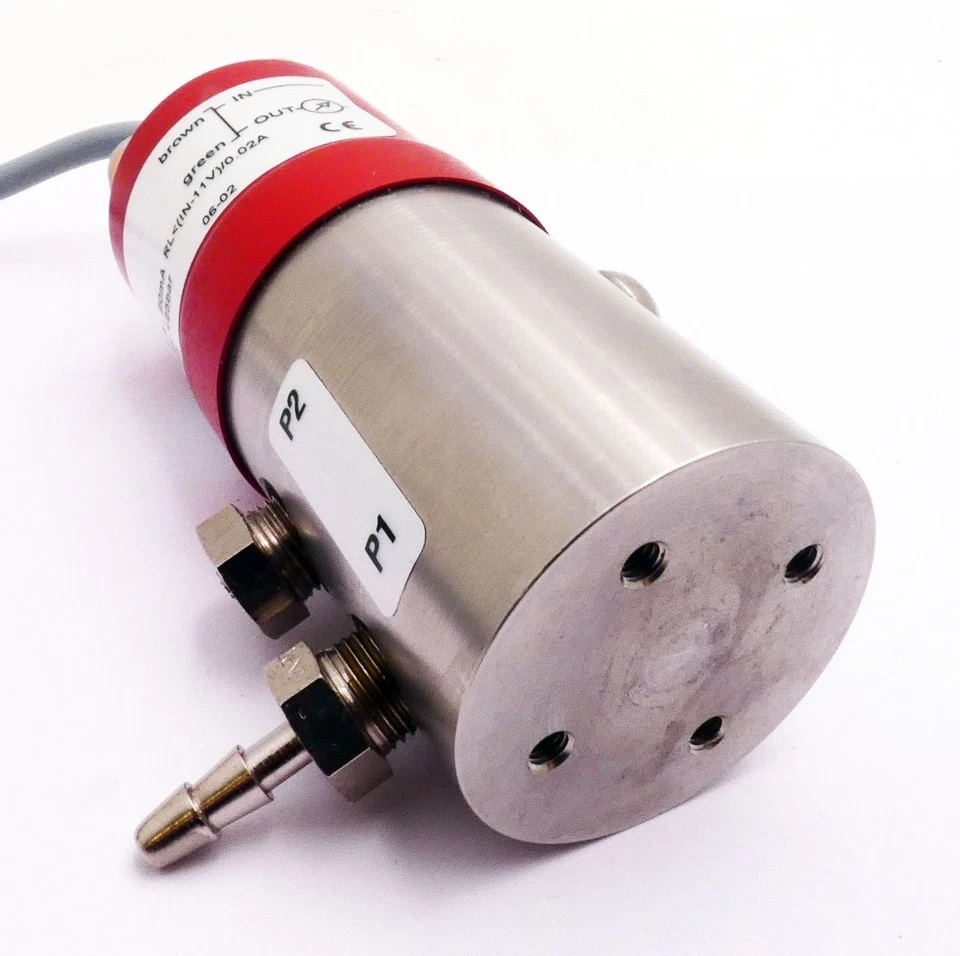

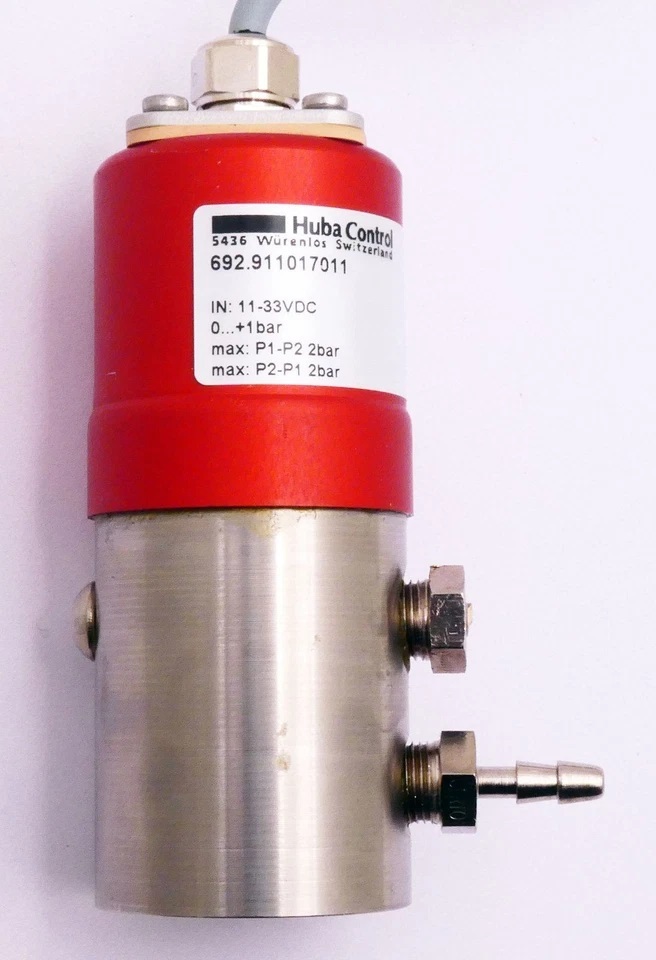

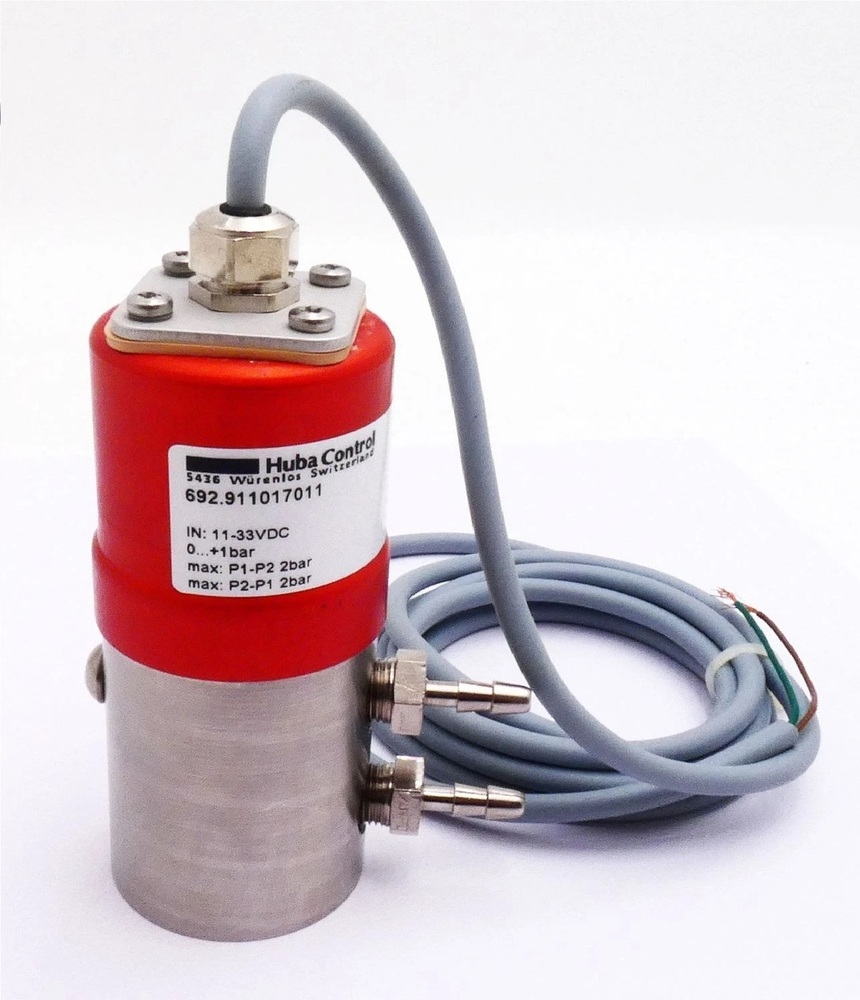

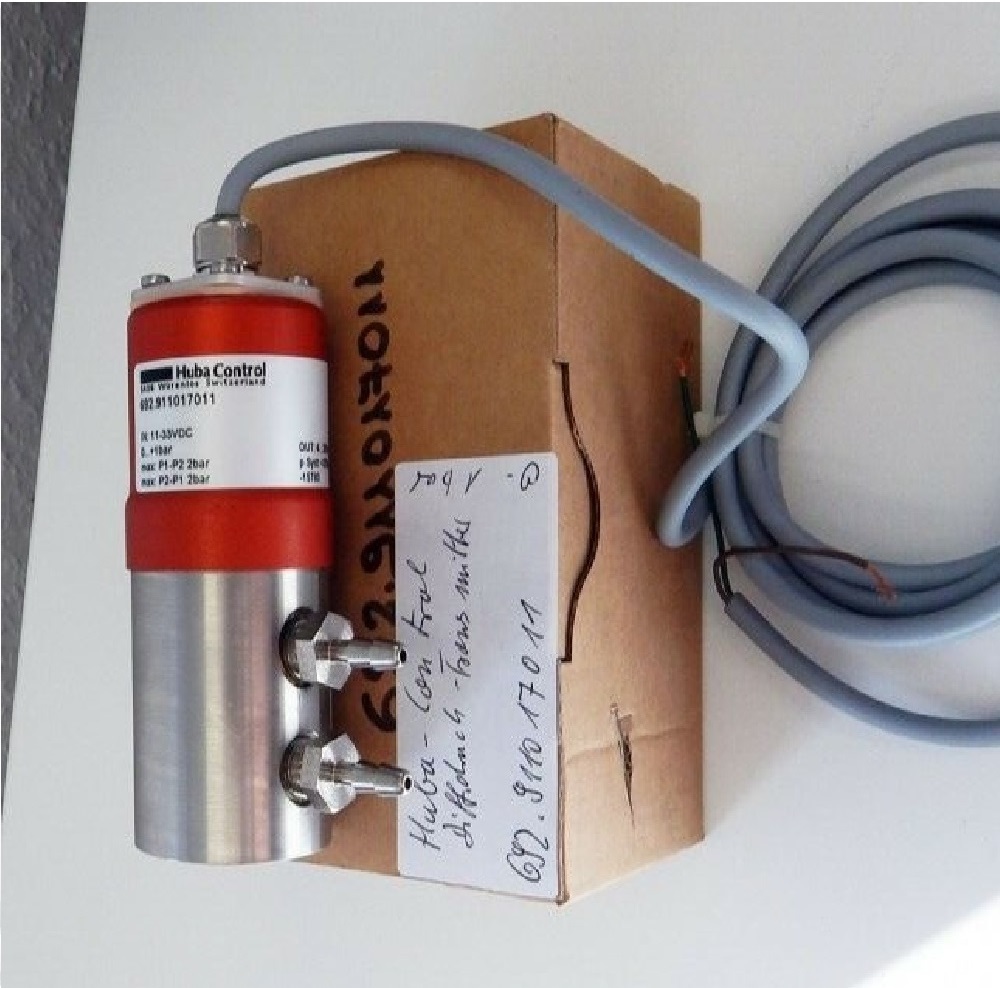

HUBA Control Differential Pressure Transmitter 692.911017011

Send Inquiry

Request To Call Back

HUBA Control Differential Pressure Transmitter 692.911017011

Price 35000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HUBA Control Differential Pressure Transmitter 692.911017011 Specification

Max Pressure
0...+1 BAR

Thread size
6 MM

Product Type
HUBA Control Differential Pressure Transmitter 692.911017011

Power Rating
11-33 VDC

Max. Current
11-33 VDC

Max. Power
11-33 VDC

Max. Voltage
11-33 VDC

Pressure Range
0...+1 BAR

Application
Process Medium; Gas

Output Signal
0 ... 5 V, 0 ... 10 V, 4 ... 20 mA

Size
(H) 95 x () 44

Color
RAD

Rated Voltage
11-33 VDC

Usage & Applications
Process Medium; Gas

Weight
430 Grams (g)

Warranty
1 YERS

Rated Current
11-33 VDC

Material
Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

HUBA Control Differential Pressure Transmitter 692.911017011 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
West India, North India, East India, Gujarat, Karnataka, Kerala, All India, South India, Central India, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
EXTRA

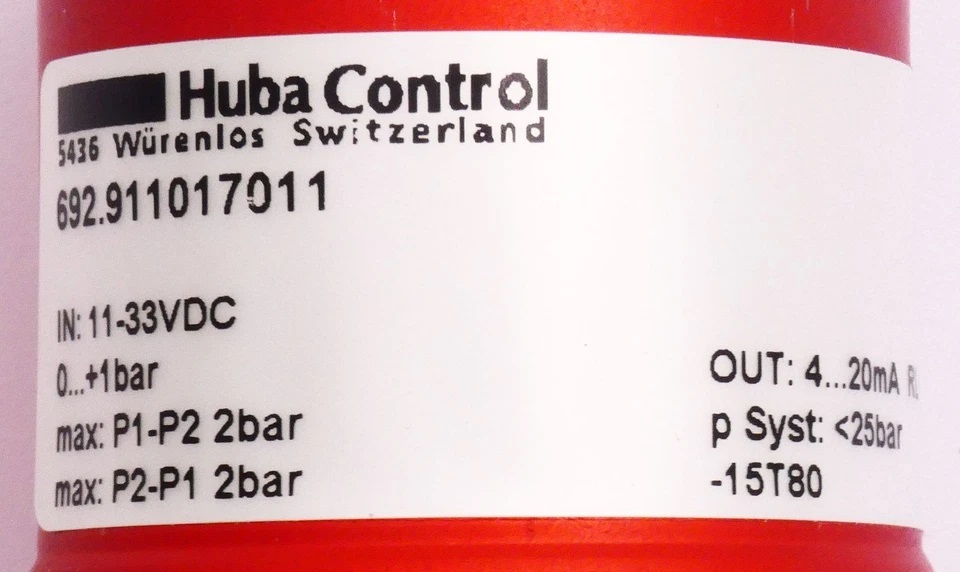

About HUBA Control Differential Pressure Transmitter 692.911017011

HUBA Control Differential Pressure Transmitter 692.911017011

Brand : Huba Control

Model : 692.911017011

Range : 0...+1 BAR

Type : 692 0...+1 BAR

Current Out : 4-20mA

Voltage : 11-33V DC

MAX : P1-P2 2BAR

MAX : P2-P1 2BAR

Made In Switzerland

Huba Control Differential Pressure Transmitter
Product Information
Differential Pressure Transmitter 692

The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical Data
Product Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 C

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 C

Storage Temperature : -40 ... 85 C

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval

EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3

Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

Additional Information:

Item Code: HUBA Control Differential Pressure Transmitter 692.911017011
WhatsApp No.9871034100,9868958924,9650264867,9716640145,8368866030,8368801023
www.envirotechdelhi.com
www.envirotechindia.co.in
www.envirotechdelhi.in
www.envirotechdelhi.net

Precision in Differential Pressure Measurement

Designed for accuracy and stability, the HUBA Control Differential Pressure Transmitter 692.911017011 supports a wide voltage range (11-33 VDC) and delivers dependable performance for gas and process medium monitoring. Its stainless steel and PVDF construction guarantee robust operation and resistance to harsh industrial conditions.

Versatile Output and Easy Integration

Supporting output signals of 0-5 V, 0-10 V, and 4-20 mA, this transmitter adapts easily to various control and monitoring systems. Its compact size and standard thread size (6 mm) facilitate straightforward installation in limited spaces, making it suitable for both system upgrades and new projects.

FAQ's of HUBA Control Differential Pressure Transmitter 692.911017011:

Q: How does the HUBA Control Differential Pressure Transmitter 692.911017011 function in a process medium application?

A: This transmitter measures the pressure difference between two points in process gas applications, converting the pressure reading into a standardized electrical output (0-5 V, 0-10 V, or 4-20 mA) for process control or data monitoring systems.

Q: What are the main benefits of selecting the 692.911017011 model for industrial use?

A: The main benefits include high accuracy in low differential pressure ranges (0...+1 BAR), robust construction with stainless steel and PVDF for enhanced durability, multiple output options, and compatibility with a wide input voltage (11-33 VDC), ensuring flexibility for various industrial settings.

Q: When should I use this transmitter in my system?

A: It is ideal to use this transmitter whenever precise monitoring of gas pressure differences in industrial processes is required, particularly where robust build quality and multiple signal outputs are essential for integration with process controllers or safety systems.

Q: Where can I install the HUBA Control Differential Pressure Transmitter, and what is the recommended mounting process?

A: The device can be installed in any suitable position within your process line, thanks to its compact dimensions. Ensure proper connection to process pipes or tanks using its 6 mm thread and follow manufacturer guidelines for wiring the 11-33 VDC supply and output signals.

Q: What applications are best suited for the HUBA Control Differential Pressure Transmitter 692.911017011?

A: It is particularly suited for industrial gas processing, HVAC systems, filter monitoring, and any scenario where precise and dependable differential pressure measurements are crucial. Its versatility makes it popular among exporters, distributors, and process industries in India.

Q: How do the different output signals benefit process integration?

A: The selectable outputs (0-5 V, 0-10 V, and 4-20 mA) permit seamless connectivity with a range of controllers, PLCs, and monitoring devices, allowing customization for either analog or digital system requirements and promoting straightforward integration into existing plants.
