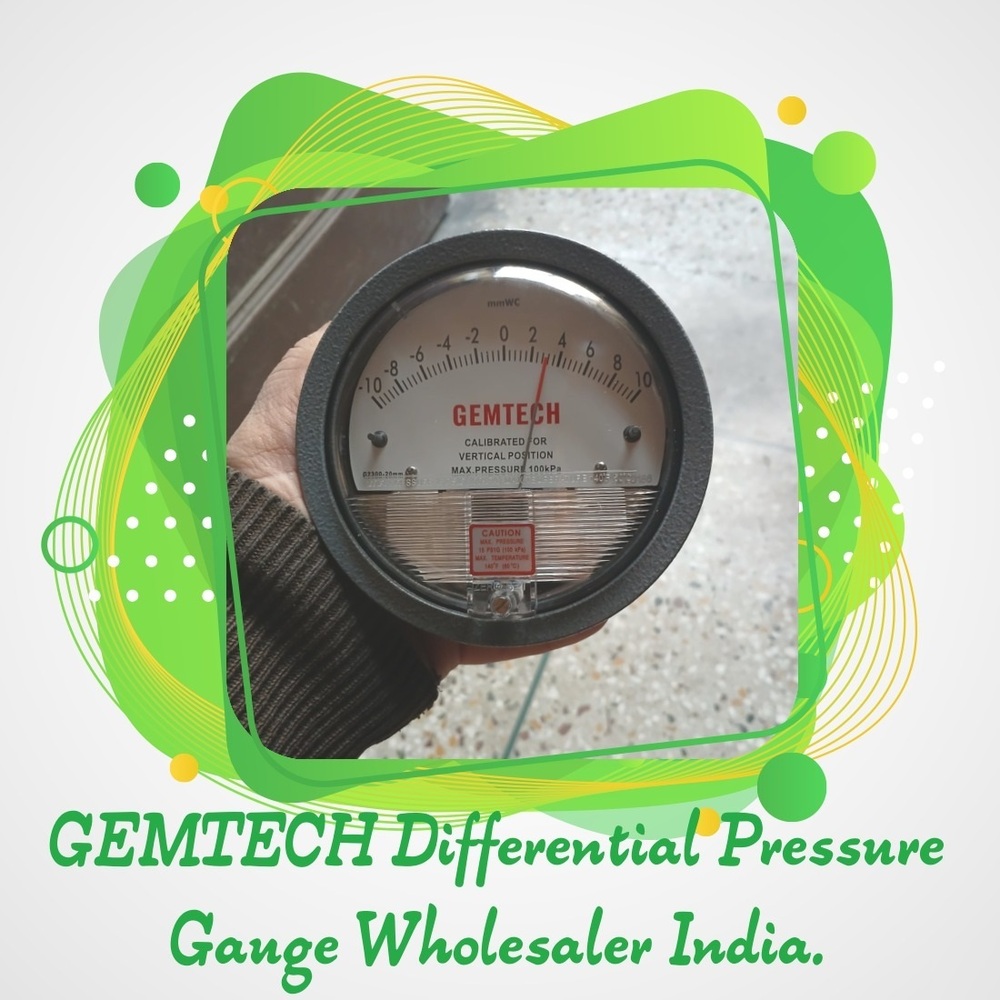

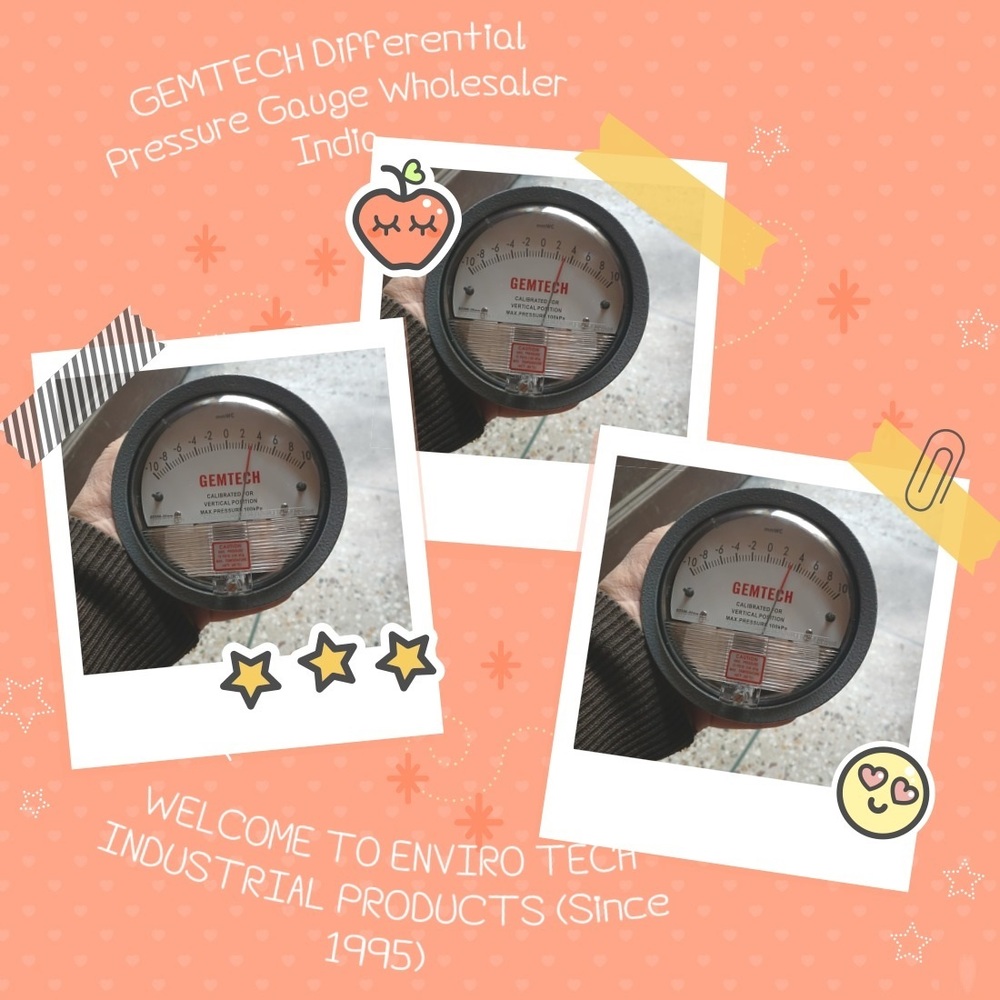

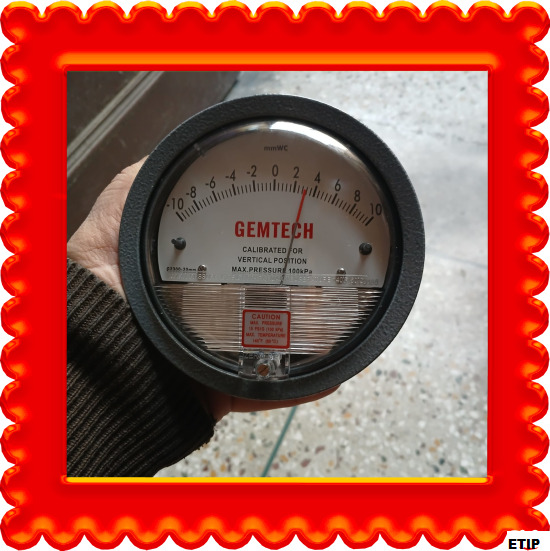

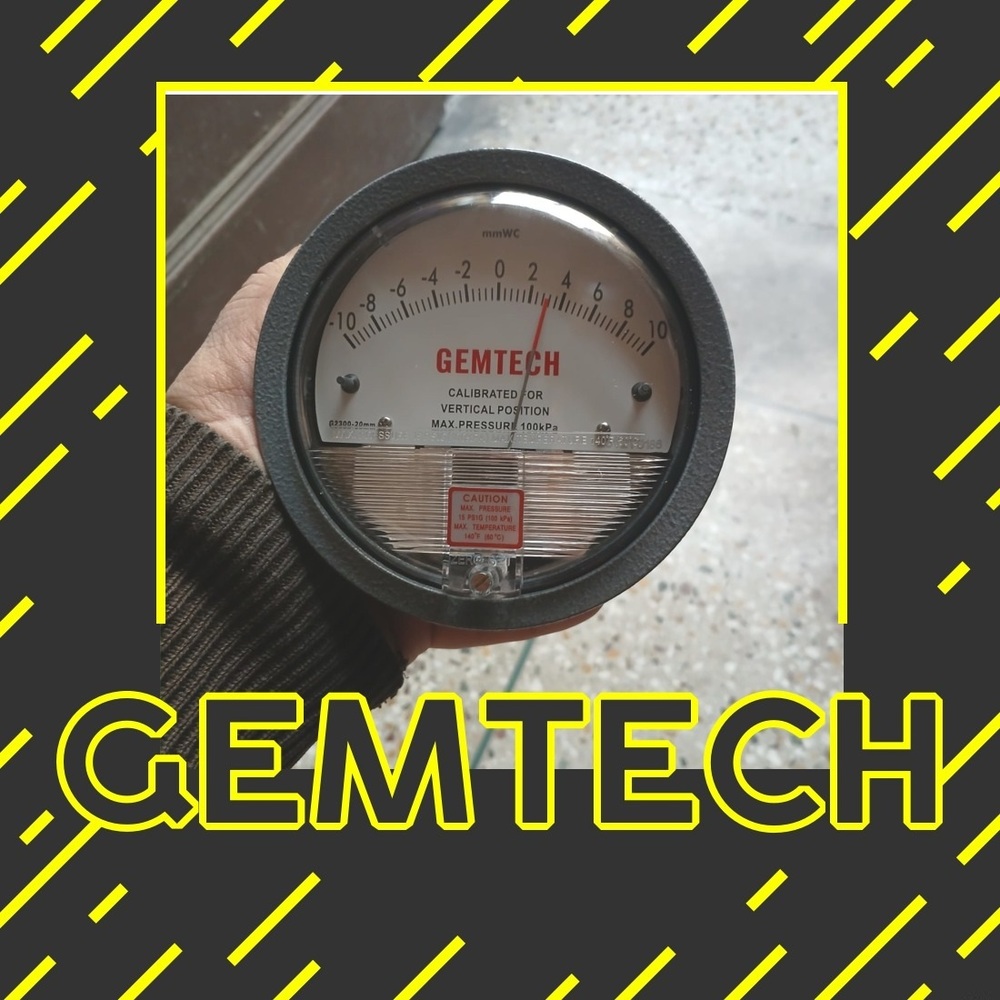

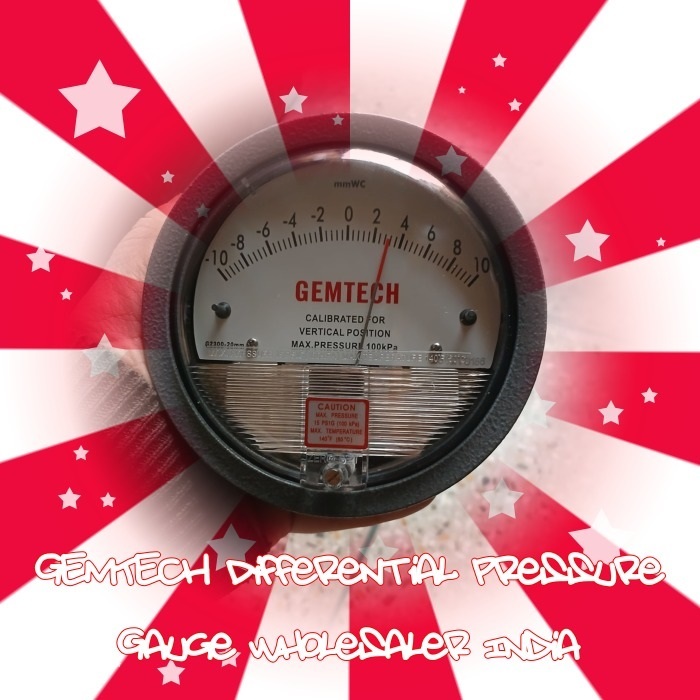

GEMTECH Model G2302 Differential Pressure Gauge Range 1-0-1 INCH

Price 7500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GEMTECH Model G2302 Differential Pressure Gauge Range 1-0-1 INCH Specification

Display
Analog

Thread
1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

Usage
Pharmaceutical,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Material
Metal Alloy

Dial Material
Plastic

Size
4" (101.6 MM) Diameter Dial Face.

Pointer Material
Alloy

Processing Type
Standard

Diameter
4 inch / 100 MM Millimeter (mm)

Product Type
Series G2000 GEMTECH Differential Pressure Gauges

Weight
550 Grams (g)

Mount Type
Back

Color
WHITE / BLACK

Scale Range
MM WC/ CM / PAC / KPA / INCH / PSI

Accuracy
2% (-HA model 1) of FS (3% (-HA 1.5%) on -0, -100PA, -125PA, -10MM and 4% (-HA 2%) on -00, -60PA, -6MM Ranges), Throughout Range at 70F (21.1C).

Measure Pressure Of
Gas

GEMTECH Model G2302 Differential Pressure Gauge Range 1-0-1 INCH Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
YAS

About GEMTECH Model G2302 Differential Pressure Gauge Range 1-0-1 INCH

G2000-10MM GEMTECH Differential Pressure Gauge Range 10 mm Minor Divisions .20

GEMTECH Model G2302 Differential Pressure Gauge Range 1-0-1 INCH

Series G2000, GEMTECH Differential Pressure Gauges are Widely Utilized For Measuring Pressure of Fan And Blowing Machine, resistance of filter, wind speed, furnace pressure, differential pressure of pore plate, the pressure of drum water level, Liquid Amplifier And Hydraulic Pressure System. Meantime, They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment. There Are More Than 81 Models To Suit Your Needs Precisely. The Key Components Adopt Import Materi

SPECIFICATION

Ambient Temperature - -21 140 -6 60

Rated Pressure -20 inHg30 inHg (-68103KPa)

Overpressure - Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa).

Process Connections - 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

Housing - Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

Accuracy - 2% of full span at 70 21 3% on -0, and 4% on -00)

Range -20 inHg38 inHg (-68KPa130KPa)(Special Specification also can be ordered.)

FEATURES

OEM/ODM

There Is No Need To Fill Liquid To Gauge.

The Gauge Can Measure Positive Pressure, Negative Pressure And Differential Pressure.

It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure.

To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed.

Exact And Stable Fixed Position Of Needle.

The Gauge Has Great Antiknock Characteristics.

There Are 81 Types Of Ranges. Minimum is 0-60 Pa And Maximum is 0-21-KPa.

PRODUCT APPLICATIONS

Filter Monitoring

Air Velocity With Pitot Tube

Blower Vacuum Monitoring

Fan Pressure Indication

Duct, Room or Building Pressures

Clean Room Positive Pressure Indication

GEMTECH By Model Number Popularity

FILTER BY

Range - Inches of Water - Zero Center

Sort by Model Number Popularity

Model Description

G2000-0 Differential pressure gage, range 0-0.50" w.c., minor divisions .01, calibrated for vertical scale position.

G2000-00 Differential pressure gage, range 0-0.25" w.c., minor divisions .005, calibrated for vertical scale position.

G2000-00N Differential pressure gage, range .05-0-.2" w.c., minor divisions .005, calibrated for vertical scale position.

G2001 Differential pressure gage, range 0-1.0" w.c., minor divisions .02.

G2002 Differential pressure gage, range 0-2.0" w.c., minor divisions .05.

G2003 Differential pressure gage, range 0-3.0" w.c., minor divisions .10.

G2004 Differential pressure gage, range 0-4.0" w.c., minor divisions .10.

G2005 Differential pressure gage, range 0-5.0" w.c., minor divisions .10.

G2006 Differential pressure gage, range 0-6.0" w.c., minor divisions .20.

G2008 Differential pressure gage, range 0-8.0" w.c., minor divisions .20.

G2010 Differential pressure gage, range 0-10" w.c., minor divisions .20.

G2015 Differential pressure gage, range 0-15" w.c., minor divisions .50.

G2020 Differential pressure gage, range 0-20" w.c., minor divisions .50.

G2025 Differential pressure gage, range 0-25" w.c., minor divisions .50.

G2030 Differential pressure gage, range 0-30" w.c., minor divisions 1.0.

G2040 Differential pressure gage, range 0-40" w.c., minor divisions 1.0.

G2050 Differential pressure gage, range 0-50" w.c., minor divisions 1.0.

G2060 Differential pressure gage, range 0-60" w.c., minor divisions 2.0.

G2080 Differential pressure gage, range 0-80" w.c., minor divisions 2.0.

G2100 Differential pressure gage, range 0-100" w.c., minor divisions 2.0.

G2150 Differential pressure gage, range 0-150" w.c., minor divisions 5.0.

G2300-0 Differential pressure gage, range 0.25-0-0.25" w.c., minor divisions .01, calibrated for vertical scale position.

G2301 Differential pressure gage, range 0.5-0-0.5" w.c., minor divisions .02.

G2302 Differential pressure gage, range 1-0-1" w.c., minor divisions .05.

G2304 Differential pressure gage, range 2-0-2" w.c., minor divisions .10.

G2310 Differential pressure gage, range 5-0-5" w.c., minor divisions .20.

G2320 Differential pressure gage, range 10-0-10" w.c., minor divisions .50.

G2330 Differential pressure gage, range 15-0-15" w.c., minor divisions 1.0.

Additional Information:

Item Code: GEMTECH Model G2302 Differential Pressure Gauge Range 1-0-1 INCH

www.envirotechindustrialproductsindia.in

www.envirotechindustrialproductsdelhi.com

www.envirotechindustrialproduct.info

Versatile Pressure Measurement

Engineered for accuracy, the GEMTECH Model G2302 is suitable for measuring differential gas pressure in environments such as pharmaceutical plants, steel factories, and textile mills. Its analog display, broad scale range, and standardized process design ensure adaptability and reliability in various applications.

Rugged and Reliable Construction

With a metal alloy exterior, plastic dial, and alloy pointer, the G2302 gauge withstands challenging industrial conditions. The 4-inch (101.6 mm) diameter dial offers clear visibility, while the back mount and standardized 1/8" NPT connections enable secure and flexible installation.

FAQ's of GEMTECH Model G2302 Differential Pressure Gauge Range 1-0-1 INCH:

Q: How do I install the GEMTECH G2302 Differential Pressure Gauge in my facility?
A: To install the GEMTECH G2302, select a suitable location for back mounting. Connect the paired 1/8" female NPT high and low-pressure taps to your system, using either the side or back connections provided. Ensure all fittings are secure and that the dial is positioned for easy visibility.

Q: What types of pressure measurements can this gauge provide?
A: The G2302 offers differential pressure readings across multiple units, including MM WC (water column), CM, PAC, KPA, INCH, and PSI, allowing for flexibility in different industrial applications and measurement standards.

Q: When is it appropriate to use this gauge in a plant setting?
A: This gauge is ideal for continuous monitoring wherever precise differential gas pressure readings are crucial, such as filtration systems, clean rooms, and ventilation monitoring across pharmaceutical, power, cement, steel, fertilizer, and textile plants.

Q: Where can the product be sourced and who are the available contacts?
A: The GEMTECH G2302 is available through distributors, exporters, importers, manufacturers, suppliers, traders, and wholesalers in India. Contact your preferred supplier or the manufacturer directly for purchasing and support.

Q: What is the benefit of using duplicate high and low-pressure taps?
A: Duplicate taps, both on the side and back, offer installation flexibility, enabling you to adapt to varying pipeline layouts and simplifying maintenance without disturbing the gauge's primary connections.

Q: How does the accuracy vary according to gauge range and model?
A: Accuracy rates are typically up to 2% of full scale for most standard ranges, 3% for specific low ranges (-0, -100PA, -125PA, -10MM), and 4% for the lowest ranges (-00, -60PA, -6MM). Refer to the HA model specifications for exact accuracy details within your required range.

Model	Description
G2000-0	Differential pressure gage, range 0-0.50" w.c., minor divisions .01, calibrated for vertical scale position.
G2000-00	Differential pressure gage, range 0-0.25" w.c., minor divisions .005, calibrated for vertical scale position.
G2000-00N	Differential pressure gage, range .05-0-.2" w.c., minor divisions .005, calibrated for vertical scale position.
G2001	Differential pressure gage, range 0-1.0" w.c., minor divisions .02.
G2002	Differential pressure gage, range 0-2.0" w.c., minor divisions .05.
G2003	Differential pressure gage, range 0-3.0" w.c., minor divisions .10.
G2004	Differential pressure gage, range 0-4.0" w.c., minor divisions .10.
G2005	Differential pressure gage, range 0-5.0" w.c., minor divisions .10.
G2006	Differential pressure gage, range 0-6.0" w.c., minor divisions .20.
G2008	Differential pressure gage, range 0-8.0" w.c., minor divisions .20.
G2010	Differential pressure gage, range 0-10" w.c., minor divisions .20.
G2015	Differential pressure gage, range 0-15" w.c., minor divisions .50.
G2020	Differential pressure gage, range 0-20" w.c., minor divisions .50.
G2025	Differential pressure gage, range 0-25" w.c., minor divisions .50.
G2030	Differential pressure gage, range 0-30" w.c., minor divisions 1.0.
G2040	Differential pressure gage, range 0-40" w.c., minor divisions 1.0.
G2050	Differential pressure gage, range 0-50" w.c., minor divisions 1.0.
G2060	Differential pressure gage, range 0-60" w.c., minor divisions 2.0.
G2080	Differential pressure gage, range 0-80" w.c., minor divisions 2.0.
G2100	Differential pressure gage, range 0-100" w.c., minor divisions 2.0.
G2150	Differential pressure gage, range 0-150" w.c., minor divisions 5.0.
G2300-0	Differential pressure gage, range 0.25-0-0.25" w.c., minor divisions .01, calibrated for vertical scale position.
G2301	Differential pressure gage, range 0.5-0-0.5" w.c., minor divisions .02.
G2302	Differential pressure gage, range 1-0-1" w.c., minor divisions .05.
G2304	Differential pressure gage, range 2-0-2" w.c., minor divisions .10.
G2310	Differential pressure gage, range 5-0-5" w.c., minor divisions .20.
G2320	Differential pressure gage, range 10-0-10" w.c., minor divisions .50.
G2330	Differential pressure gage, range 15-0-15" w.c., minor divisions 1.0.
