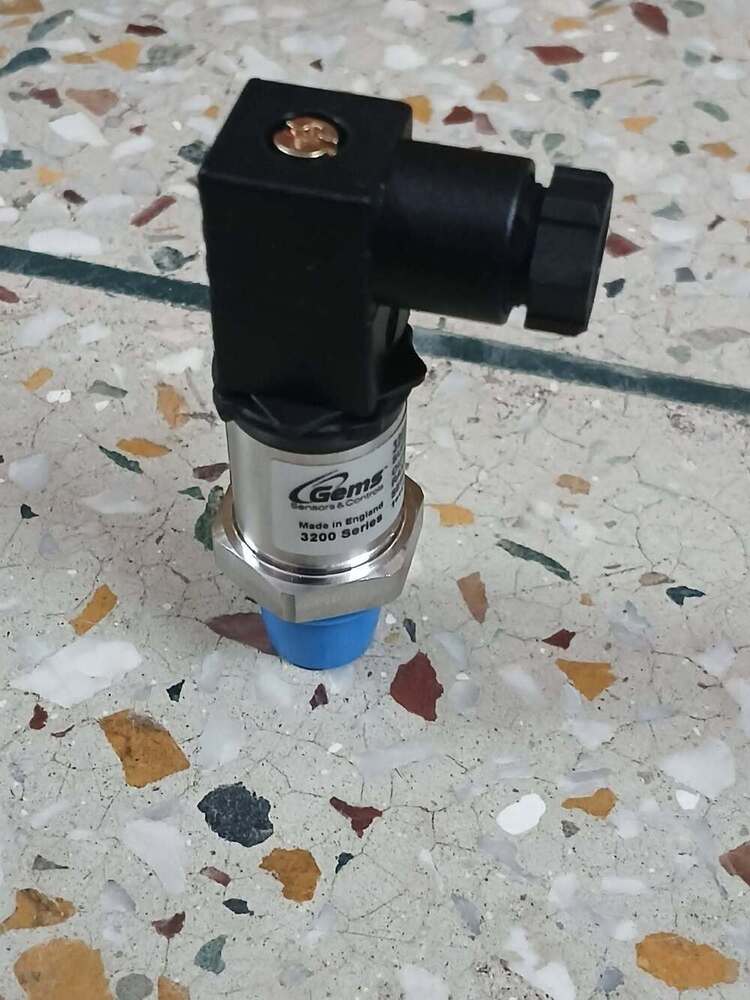

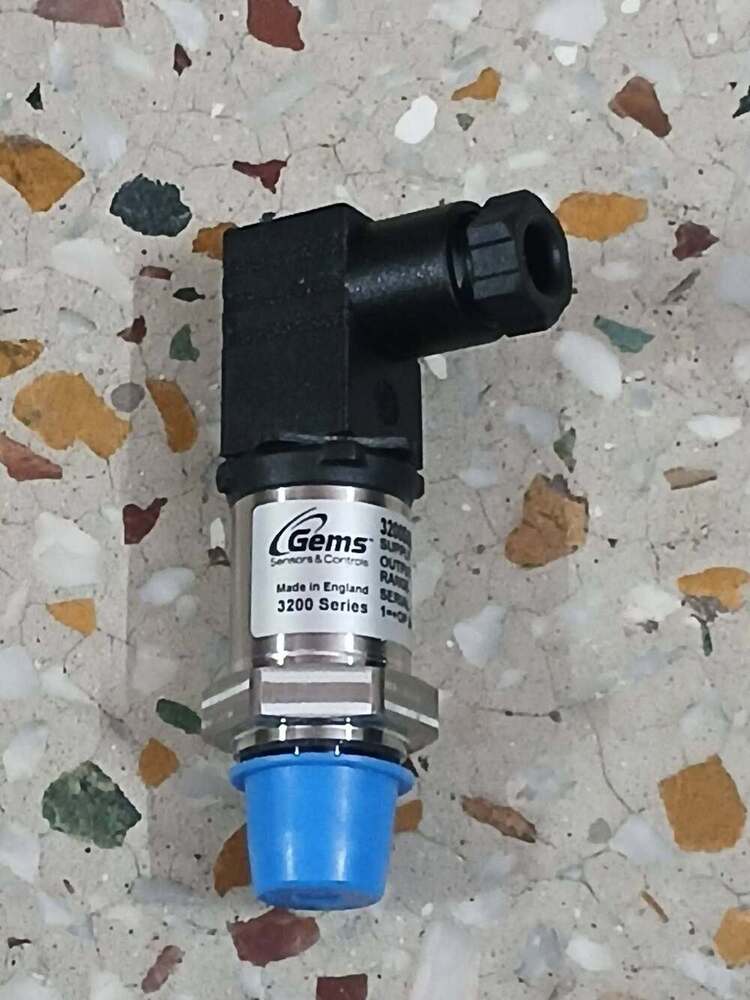

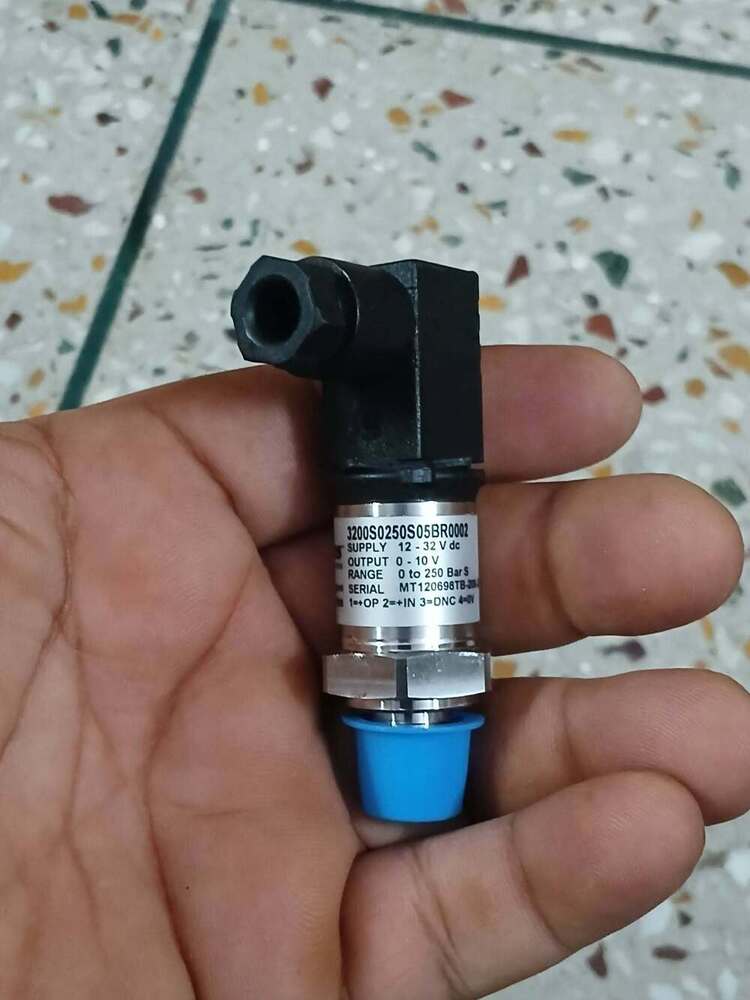

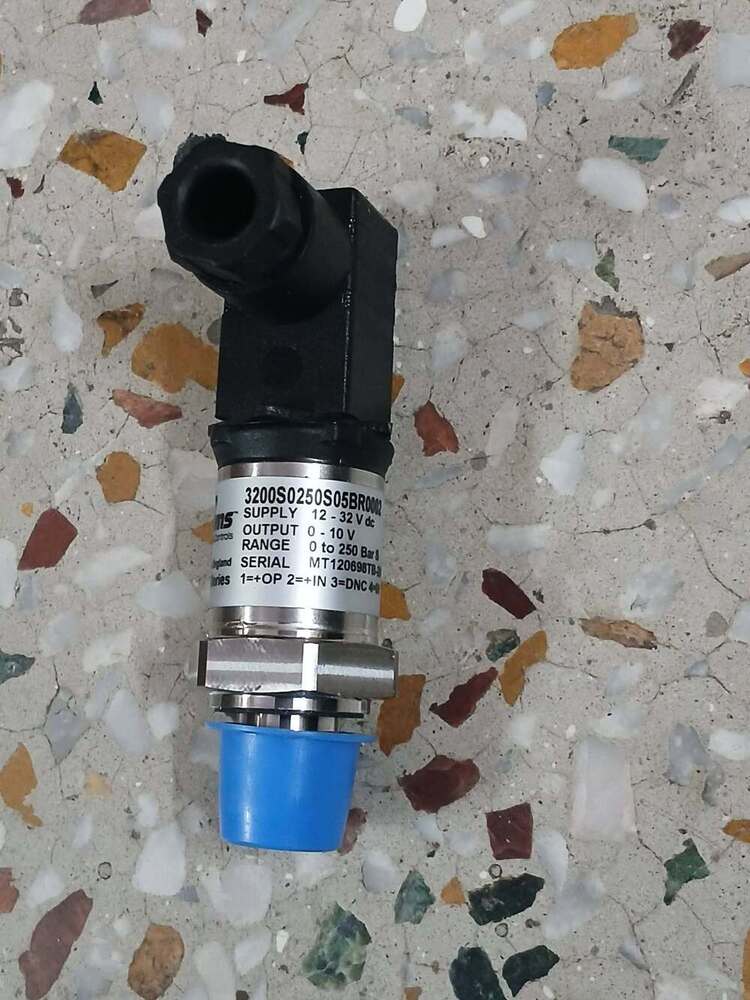

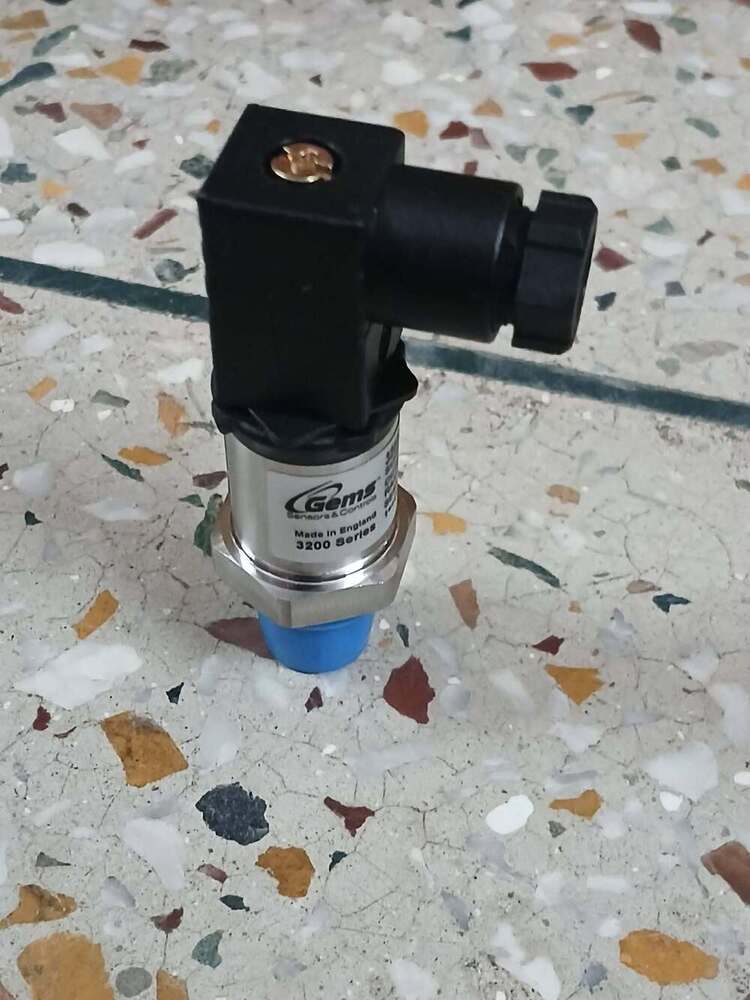

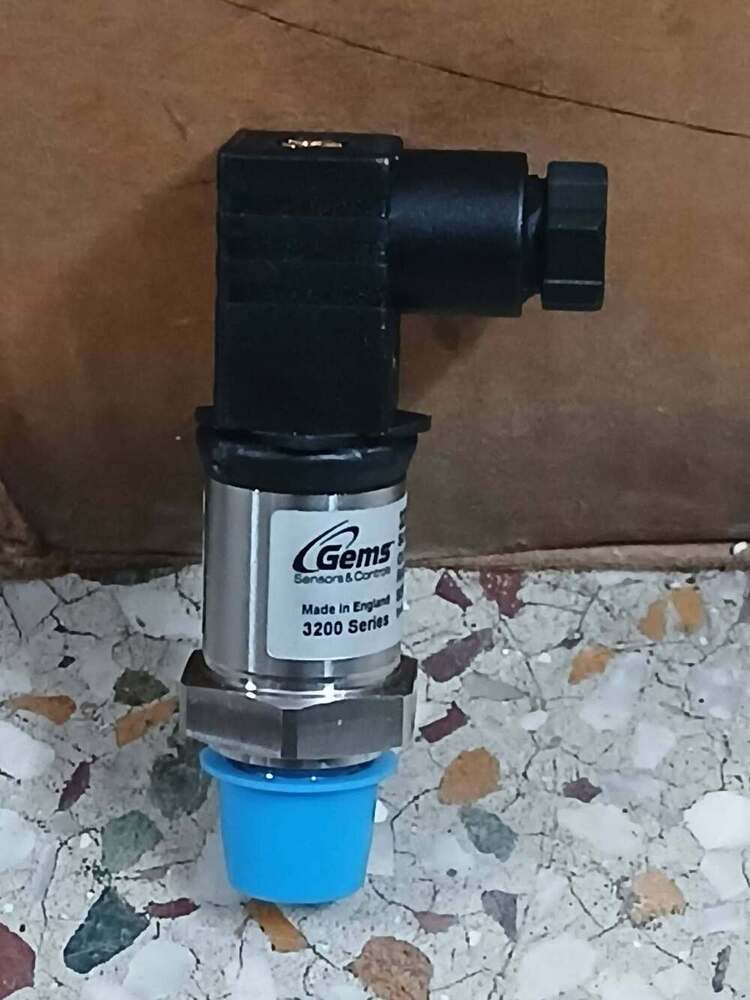

GEMS Pressure Transmitter Part No 3200S0250S05BR0002 Range 0 TO 250 Bar

GEMS Pressure Transmitter Part No 3200S0250S05BR0002 Range 0 TO 250 Bar About

Product InformationOUTPUT: 0...10 V

• CONNECTION: 1/4" NPT 304 SS.
• Pressure Type: Gauge Pressure
• Output: Verify according to the transmitter configuration/datasheet
• Electrical Connection: As per model configuration
• Process Connection: As per model configuration
• Pressure Port: As per model configuration
• Wetted Material: Stainless steel/material according to configuration
• Application: Industrial pressure measurement
• Measurement Medium: Compatible liquids and gases, subject to wetted-material compatibility

Product Features

• 0 to 250 Bar pressure range
• Compact industrial pressure transmitter
• Suitable for continuous pressure monitoring
• Electrical pressure signal transmission
• Robust construction for industrial environments
• Suitable for OEM and process-control applications
• Designed for reliable pressure measurement
• Easy integration with control and monitoring systems

Field of Application

The GEMS 3200S0250S05BR0002 Pressure Transmitter Can Be Used For:

• Industrial machinery
• Hydraulic systems
• Pneumatic systems
• Process equipment
• Compressors
• Pumps
• Water and liquid pressure systems
• HVAC and refrigeration systems
• Manufacturing plants
• Automation and control systems
• OEM equipment
• Industrial process monitoring

Ambient Condition

The transmitter should be installed and operated within the ambient temperature limits specified for the exact 3200-series configuration. Avoid installation where the transmitter is exposed to temperatures, vibration, chemicals or environmental conditions outside the manufacturer's specified limits.

Material

Typical construction for industrial pressure transmitters includes:

• Stainless-steel pressure-wetted components
• Corrosion-resistant housing/components
• Sealing materials selected according to the pressure medium
• Electrical connector suitable for industrial installation

Note: Exact wetted-part and seal materials should be confirmed from the manufacturer's configuration/datasheet before specifying them for a particular chemical or process medium.

Electrical Data

Electrical specifications depend on the exact configuration represented by the complete part number.

Before installation, confirm:

• Supply voltage
• Output signal
• Electrical connection/pin configuration
• Polarity
• Current consumption
• Protection characteristics

Do not connect the transmitter to a power supply until the exact electrical configuration has been verified.

Installation Guide

1. Confirm that the pressure range is suitable for the application.
2. Check the process connection and mounting arrangement.
3. Make sure the pressure line is clean and free from contamination.
4. Install the transmitter without applying excessive mechanical force.
5. Connect the electrical wiring according to the manufacturer's wiring diagram.
6. Verify the supply voltage and output configuration.
7. Slowly apply pressure and check the transmitter output.
8. Check all connections for leakage.
9. Protect the transmitter from excessive vibration, temperature and pressure spikes.
10. Follow the manufacturer's installation instructions for the exact configuration.

Approval

Approval/certification should be confirmed from the manufacturer's documentation for Part No. 3200S0250S05BR0002. Do not advertise a specific CE, UL, ATEX or other certification unless it is confirmed for this exact configuration.

Accessories

Possible accessories, depending on the installation, include:

• Pressure snubber
• Pressure gauge
• Process adapters
• Mounting accessories
• Electrical mating connector
• Cable assembly
• Sealing washer/O-ring
• Pressure tubing
• Calibration equipment
• Signal/display controller
• PLC/industrial control interface
