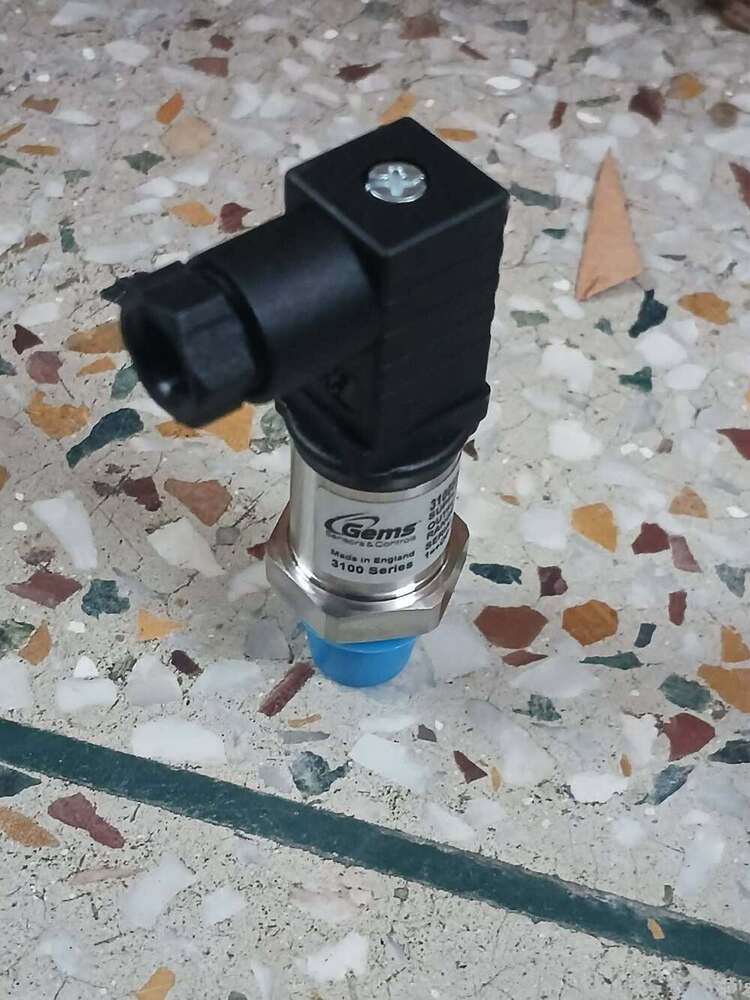

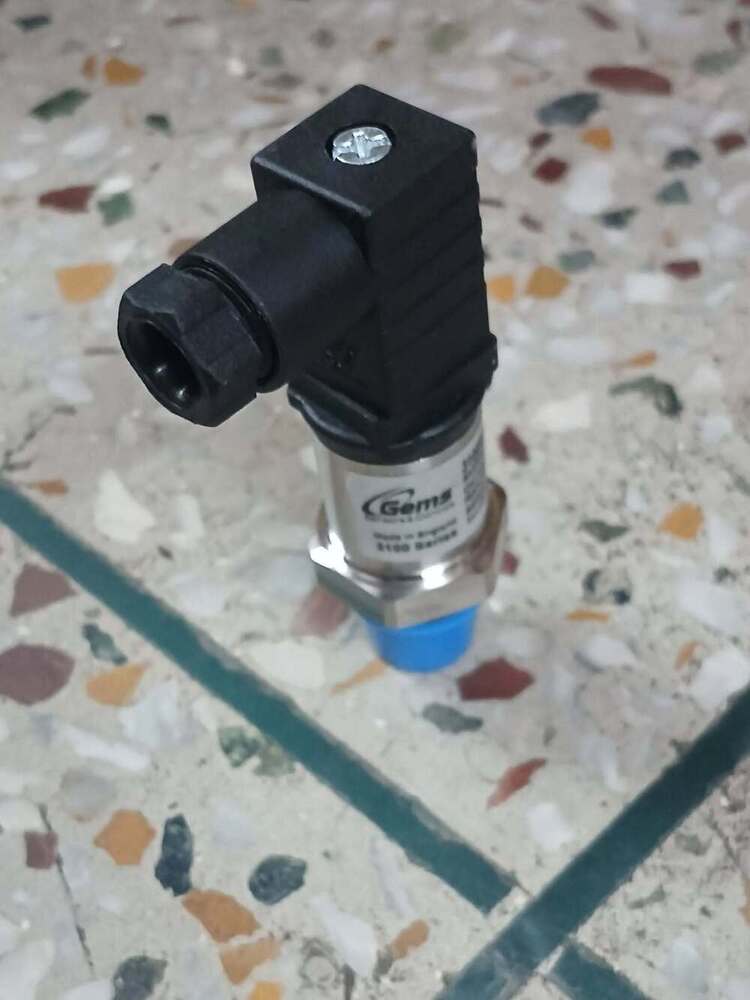

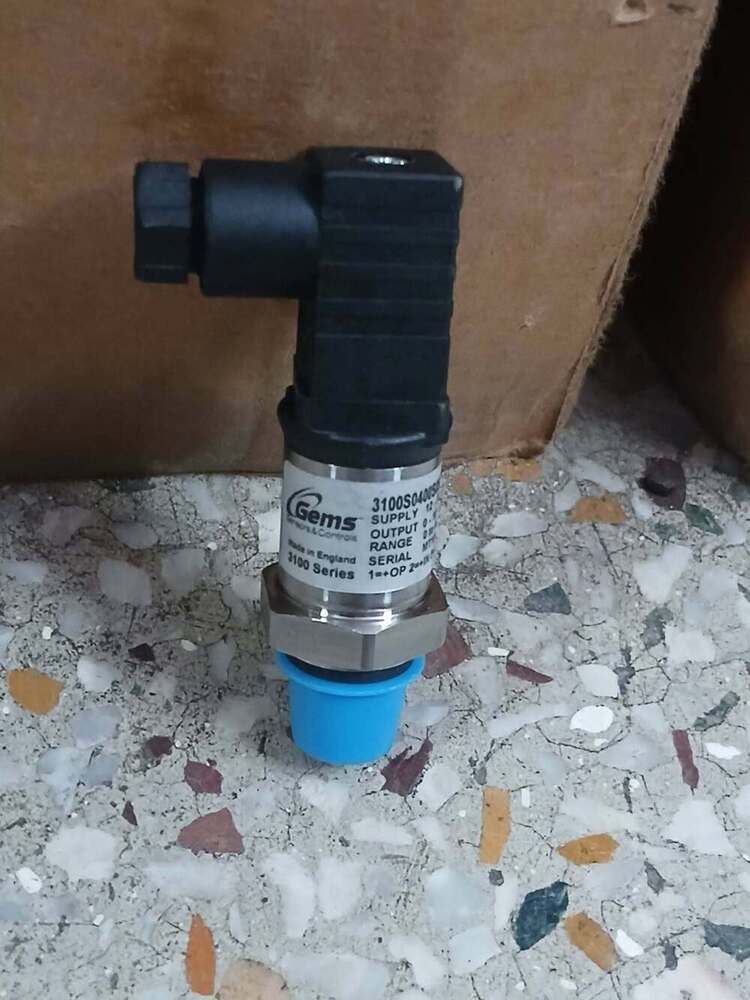

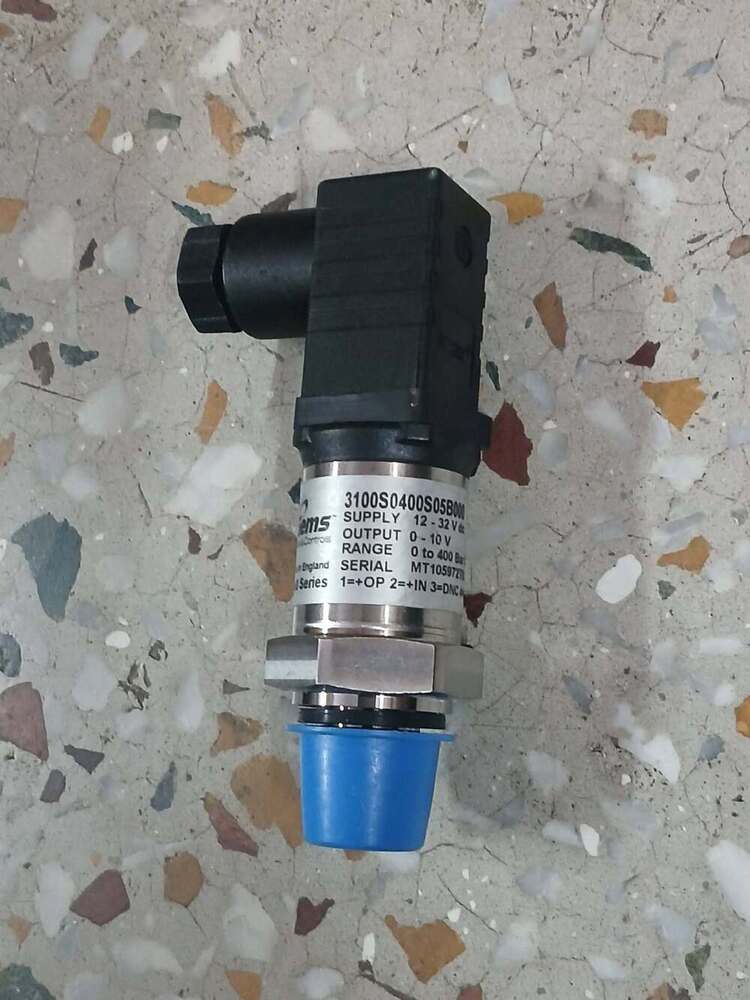

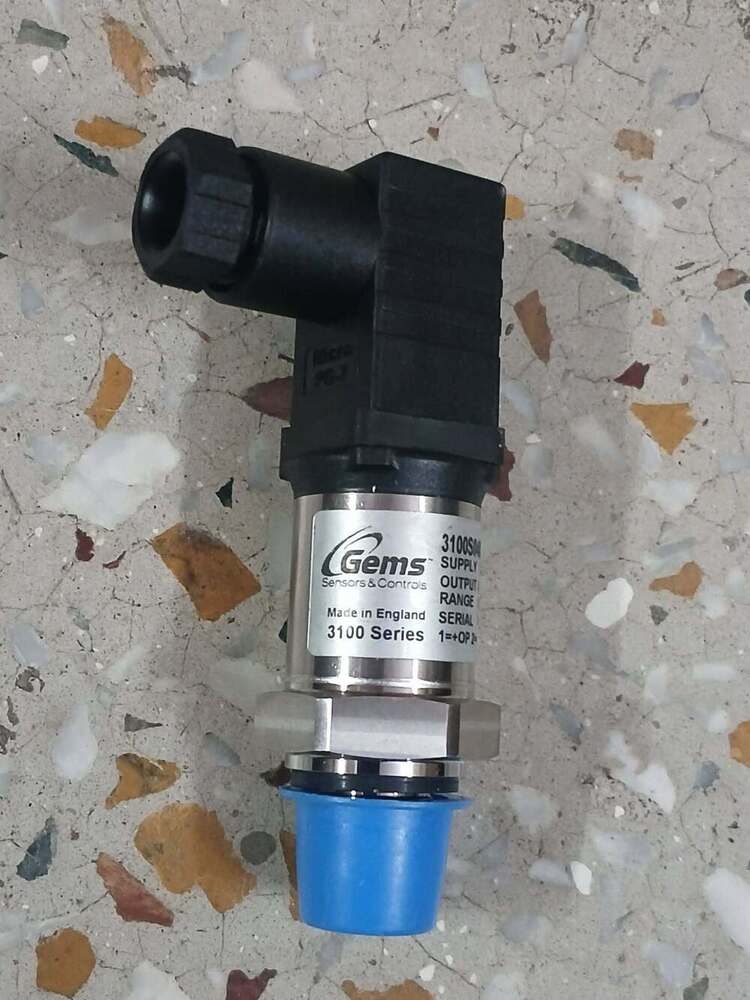

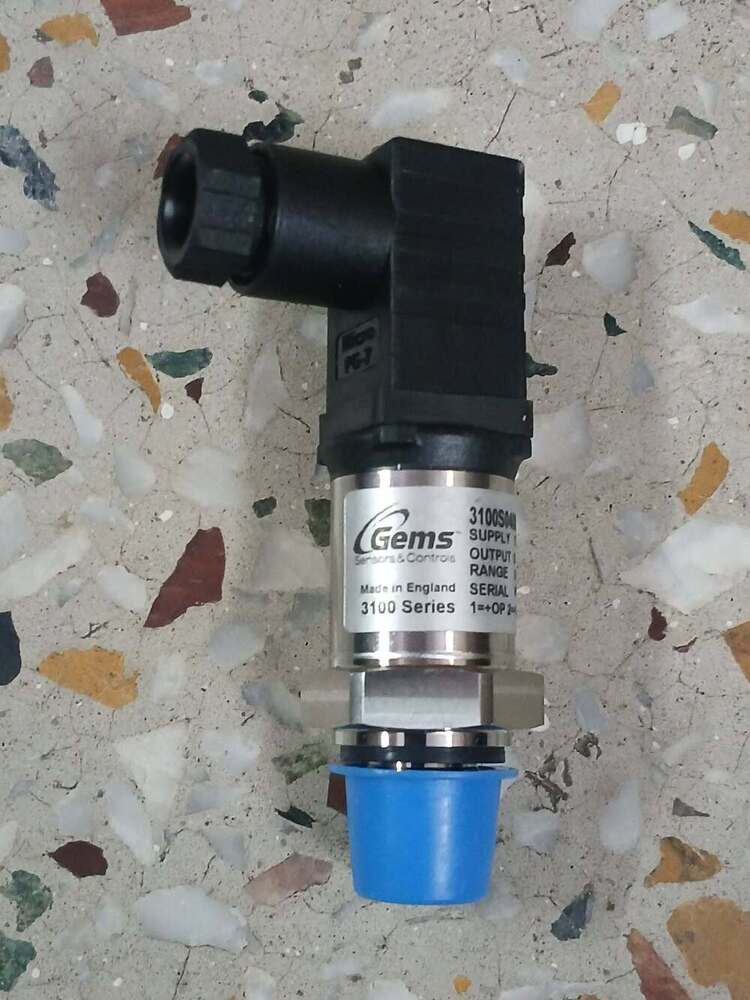

GEMS Pressure Transmitter Part No 3100S0400S05B000 Range 0 TO 400 Bar

Product Information
GEMS 3100 Series Pressure Transmitter is a compact and reliable pressure measurement device designed for industrial pressure monitoring and control applications.It uses sputtered thin-film sensing technology and stainless-steel wetted construction for stable performance in demanding environments.The Pressure Range is 0 to 400 Bar

Technical Data

• Product Series:GEMS 3100 Series
• Part No:3100S0400S05B000
• Pressure Range:0 to 400 Bar
• Supply:12-32 VDC
• OUTPUT:0...10 V
• CONNECTION:1/4" NPT 304 SS
• Pressure Type:Gauge / Sealed Gauge,Depending on Configuration
• Accuracy:Typically 0.25% Full Scale
• Operating Temperature:
• Approximately-40C to +125C Configuration Dependent
• High Proof And Burst Pressure Capability
• Stainless-Steel Wetted Parts
• Protection: Up to IP67,Configuration Dependent

Product Features

• 0“400 Bar high-pressure measurement
• Excellent long-term stability
• Sputtered thin-film sensing technology
• Stainless-steel construction
• Compact size for space-limited installations
• Reliable performance under demanding industrial conditions
• Multiple electrical and pressure connection options available within the 3100 Series

Field Of Application
Hydraulic Systems,Pneumatic Systems,Industrial Machinery,Compressors, Pumps,Process Equipment,Hydraulic Power Units,Water Systems,Oil & Gas Equipment,Chemical Processing,Industrial Automation,Refrigeration Systems and General Pressure Monitoring

Ambient Condition
Operating Temperature is Typically-40C to +125C,Depending on the Selected configuration.Proper installation should protect the transmitter from excessive vibration,Mechanical shock and temperatures outside the specified range

Material

• Wetted Parts:Stainless Steel
• Housing:Stainless Steel,Configuration Dependent
• Industrial compact construction
• Sealing and Connection materials depend on the selected configuration.

Electrical Data

The GEMS 3100 Series is Available with Different Electrical Outputs and connections.Common configurations include 4“20 mA,0“10 V and ratiometric outputs,With supply voltage depending on the selected model The exact electrical specification should be confirmed against the complete part-number configuration before installation

Installation Guide
Install the Transmitter on a Compatible pressure port using the correct thread and sealing method.Ensure the pressure line is clean and free from contamination.Connect the electrical supply and output according to the applicable wiring diagram.Do not exceed the specified pressure,Temperature or electrical limits.After installation, check for leakage and verify the output signal before putting the system into service

Approval
RoHS compliant.Additional approvals/certifications may depend on the Selected 3100 Series Configuration

Accessories
Mating Electrical Connector,Pressure Fittings,adapters,Mounting accessories,Seals and Compatible cables may be Available Depending on the selected Configuration

Note: Specifications such as output,Pressure Connection,Supply Voltage, IP rating and certification can vary by exact GEMS 3100 Configuration. Always Verify the Original Manufacturer Datasheet Before Final Installation Or Ordering
