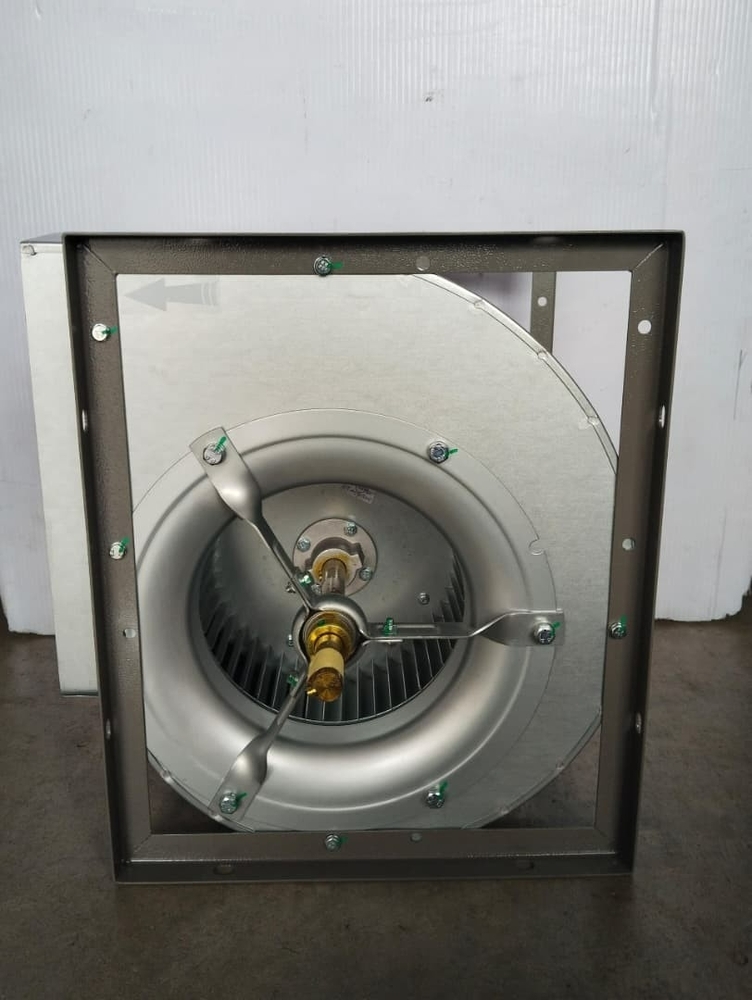

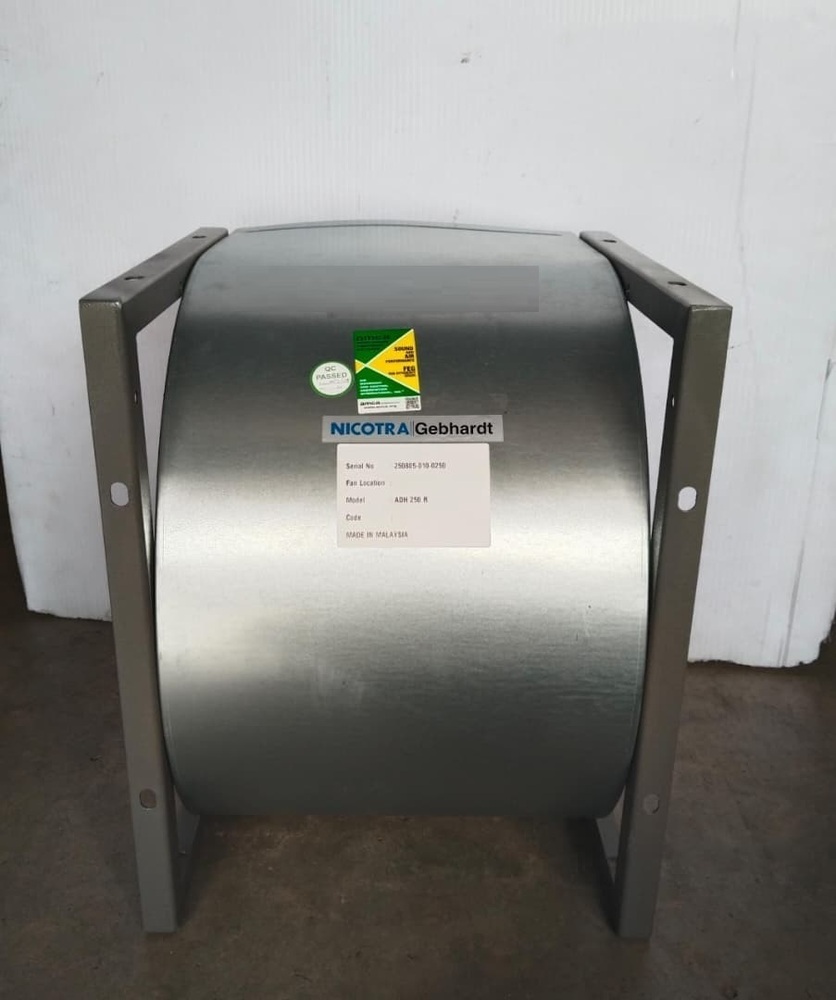

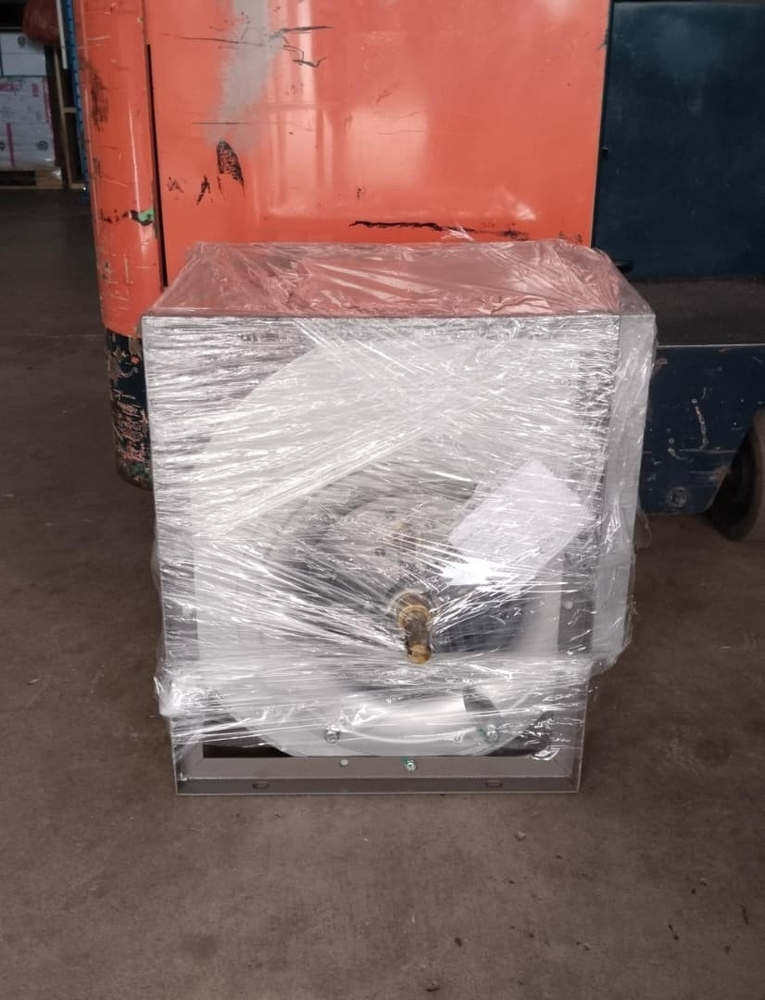

Nicotra Forward Curved Centrifugal Fan ADH 250 R

Get a Price/Quote

MOQ : 1 Piece

Nicotra Forward Curved Centrifugal Fan ADH 250 R Specification

Orientation
Direct Drive

Automation Grade
Manual

Air Flow
1200 m/h (max)

Temperature
Maximum 60C

Usage & Applications
Ventilation, Air Handling Units, HVAC, Air Exhaust Systems

Efficiency
High

Power Source
Electric

Product Type
Forward Curved Centrifugal Fan

Material
Galvanized Steel

Cooling System
Air Cooled

Noise Level
Low

Voltage
230/400 V

Weight
Approx. 18 kg

Dimension (L*W*H)
Approx. 350 x 340 x 360 mm

Surface
Powder Coated

Nicotra Forward Curved Centrifugal Fan ADH 250 R Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Paypal, Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Cheque, Cash Advance (CA)

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Australia, Central America, North America, South America, Eastern Europe, Middle East, Western Europe, Africa, Asia

Main Domestic Market
All India

About Nicotra Forward Curved Centrifugal Fan ADH 250 R

Nicotra Forward Curved Centrifugal Fan ADH 250 R

Product Benefits

Performance certified is for installation type B - free inlet, ducted outlet. Power rating (kW) does not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories)

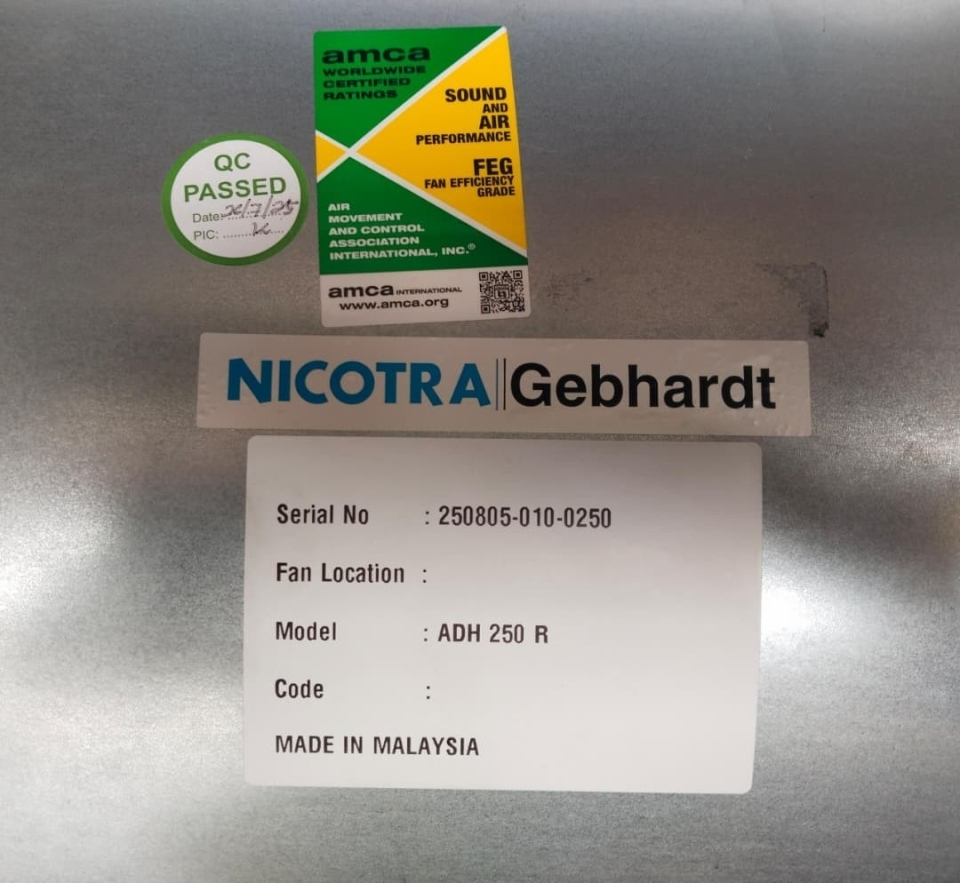

Nicotra Gebhardt S.p.A certifies that the fan shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program. The AMCA Certified Ratings Seal applies to air performance ratings only

ADH E and ADH G2E series

Sizes 0160 up to 0560
Scroll of galvanesed sheet steel with standing seam
Straight cut off

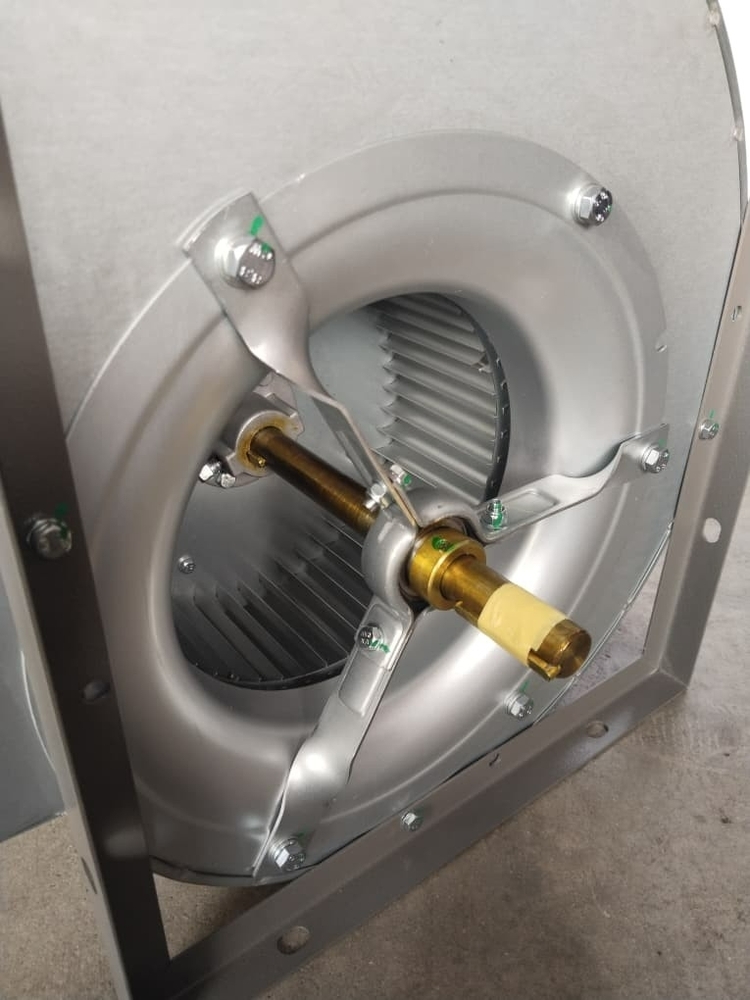

New cylindrical impeller with forward-curved blade geometry
Galvanised shaft
Pressure up to 2.200 Pa

ADH and ADH G2 Series

Sizes 0630 up to 1000
Lap jointed scroll of galvanized sheet steel with Pittsburgh-Seam and V-cut off
Pressure up to 1.800 Pa

Optimized for Reliability and Performance

The Nicotra ADH 250 R fan provides stable airflow and dependable operation for demanding air movement requirements. Its double inlet and multiple blade structure maximize ventilation efficiency while maintaining low noise, making it suitable for both comfort and process ventilation. The fans air-cooled system supports operation in environments with temperatures up to 60C, ensuring consistent performance in various industrial settings.

Quality Construction and Versatility

Crafted from durable galvanized steel and coated with a protective powder finish, the ADH 250 R maintains longevity and superior corrosion resistance. The IP 54 protection class and Class F insulation further guarantee safety and reliability. Its base-mounted design allows for easy installation in air handling units, exhaust systems, and HVAC applications, making this fan a versatile choice for manufacturers, suppliers, traders, and wholesalers.

FAQs of Nicotra Forward Curved Centrifugal Fan ADH 250 R:

Q: How do I install the Nicotra ADH 250 R centrifugal fan?

A: The fan is base-mounted for straightforward installation. Secure the fan on a stable surface near your air ventilation or air handling unit, connect the electrical wiring using the terminal box to a 230/400 V power supply, and ensure proper alignment with the ductwork for optimal airflow.

Q: What are the key benefits of choosing this forward curved centrifugal fan?

A: This model offers high efficiency, low noise operation, and reliable performance, even at high static pressure (up to 480 Pa). Its galvanized steel construction with powder coating ensures durability, while the direct drive and multiple blade design ensure steady airflow for HVAC and exhaust applications.

Q: Where can the ADH 250 R fan be used?

A: This fan is suitable for ventilation, air handling units, HVAC systems, and air exhaust systems in both commercial and industrial environments. Its robust build and protective features make it ideal for a variety of setting, including manufacturing facilities and commercial buildings.

Q: What is the maintenance process for the ADH 250 R fan?

A: Maintenance involves routine cleaning of the fan blades and housing to prevent dust buildup, periodic inspection of the electric connections in the terminal box, and checking that the motor operates at the correct speed (1300 rpm). Regular maintenance ensures efficient, trouble-free operation.

Q: How does the double inlet and multiple blades design improve performance?

A: The double inlet configuration allows air to enter from both sides, maximizing airflow while the forward curved, multiple blade setup provides higher volume at lower pressures. This combination results in efficient air movement with reduced noise and energy consumption.

Q: What is the maximum temperature the fan can handle during operation?

A: The Nicotra ADH 250 R is designed to safely operate in environments with air temperatures up to 60C, making it a dependable choice for demanding ventilation and exhaust applications.
