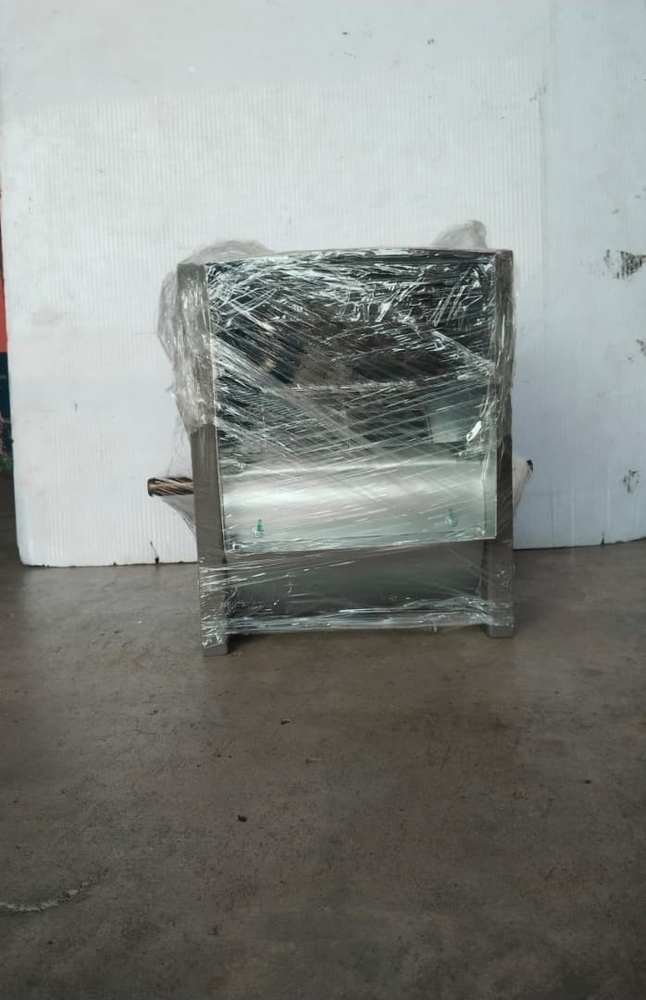

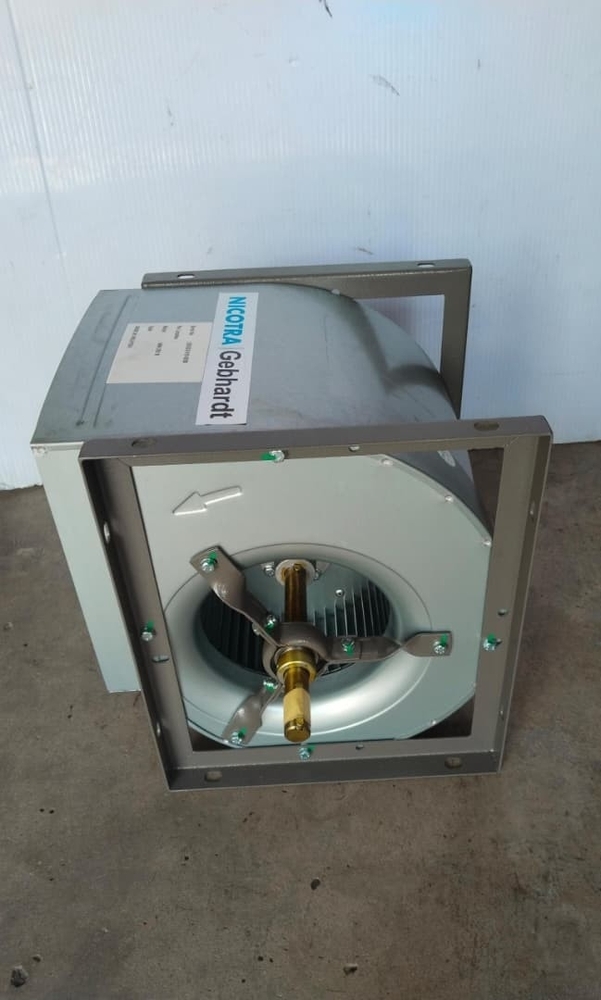

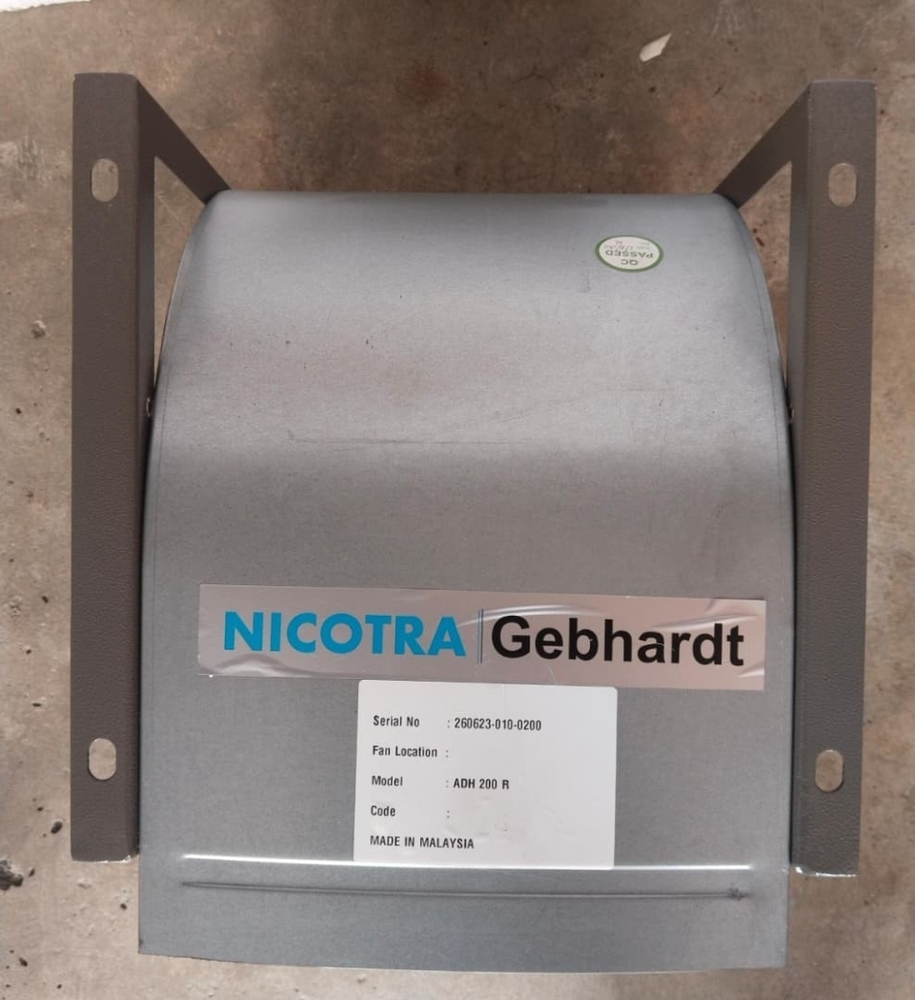

Nicotra Forward Curved Centrifugal Fan ADH 200 R

Get a Price/Quote

MOQ : 1 Piece

Nicotra Forward Curved Centrifugal Fan ADH 200 R Specification

Automation Grade
Manual

Temperature
Operating up to 60C

Efficiency
High volumetric and static efficiency

Power Source
Electric

Air Flow
730 m/h (max)

Orientation
Direct Drive, Horizontal

Usage & Applications
HVAC Systems, Air Handling Units, Ventilation, Exhaust Systems

Product Type
Forward Curved Centrifugal Fan

Material
Galvanized Steel / Mild Steel construction

Cooling System
Air Cooled

Noise Level
63 dB(A) at 1 meter

Capacity
Up to 1000 m/h

Voltage
230 V / 415 V

Weight
Approx. 18 kg

Dimension (L*W*H)
420 mm x 340 mm x 375 mm

Surface
Powder Coated / Galvanized

Nicotra Forward Curved Centrifugal Fan ADH 200 R Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cheque, Telegraphic Transfer (T/T), Paypal, Cash Against Delivery (CAD), Cash Advance (CA)

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Africa, Western Europe, Central America, South America, Asia

Main Domestic Market
All India

About Nicotra Forward Curved Centrifugal Fan ADH 200 R

Nicotra Forward Curved Centrifugal Fan ADH 200 R

Product Benefits

Performance certified is for installation type B - free inlet, ducted outlet. Power rating (kW) does not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories)

Nicotra Gebhardt S.p.A certifies that the fan shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program. The AMCA Certified Ratings Seal applies to air performance ratings only

ADH E and ADH G2E series

Sizes 0160 up to 0560
Scroll of galvanesed sheet steel with standing seam
Straight cut off
New cylindrical impeller with forward-curved blade geometry

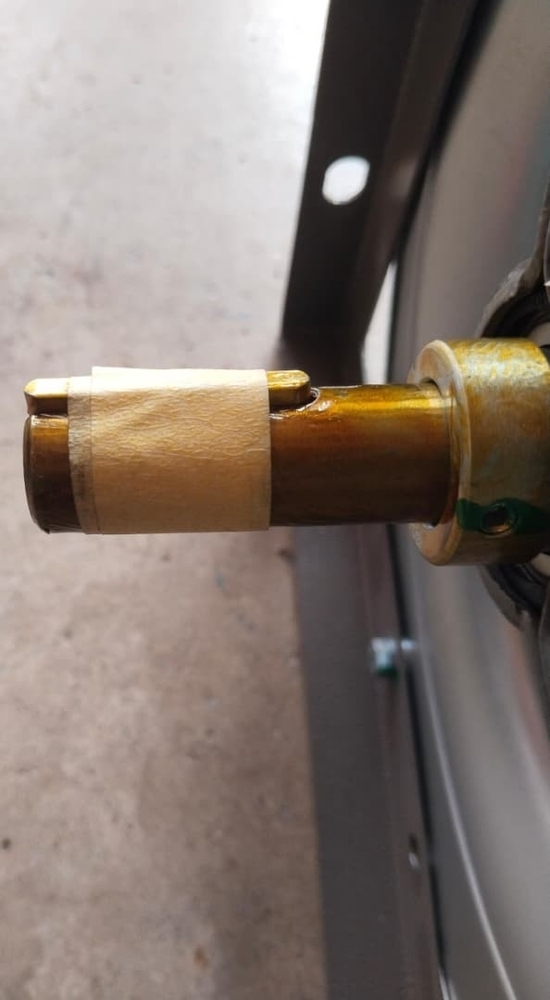

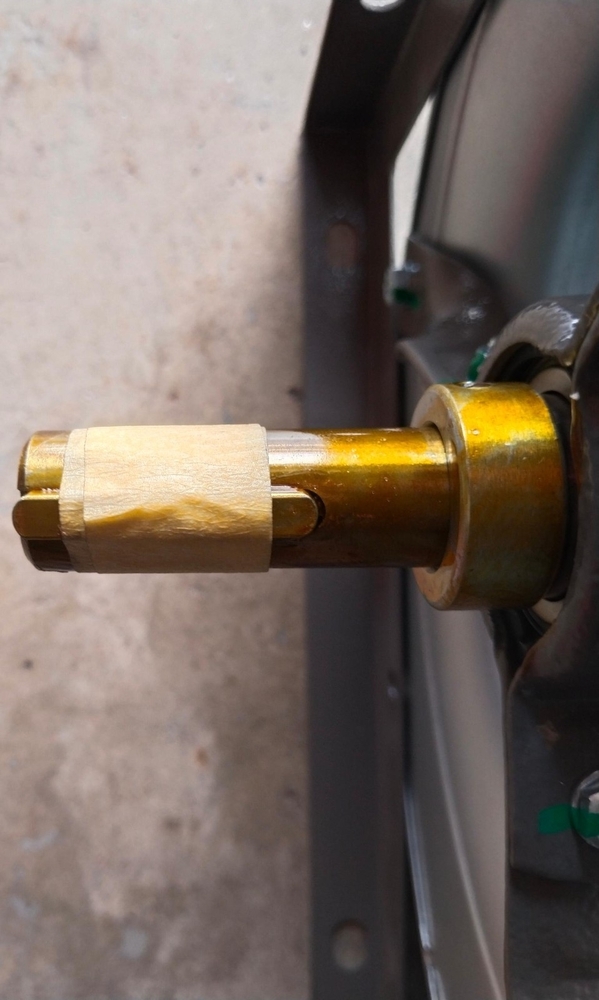

Galvanised shaft
Pressure up to 2.200 Pa

ADH and ADH G2 Series

Sizes 0630 up to 1000
Lap jointed scroll of galvanized sheet steel with Pittsburgh-Seam and V-cut off
Pressure up to 1.800 Pa

Engineered for HVAC and Ventilation Applications

The Nicotra ADH 200 R centrifugal fan is purpose-built for HVAC, air handling, ventilation, and exhaust systems. Its robust design and reliable performance make it ideal for commercial buildings, factories, and other large spaces requiring controlled airflow and efficient air circulation.

High Efficiency and Reliable Performance

With high volumetric and static efficiency, this fan easily handles substantial air volumes at moderate pressure, making it suitable for demanding environments. Its direct drive system minimizes maintenance while ensuring consistent output and energy savings.

Durable Construction and Advanced Protection

Fabricated from galvanized or mild steel and featuring powder-coated surfaces, the ADH 200 R offers long-lasting durability and resistance to corrosion. The IP54-rated motor with Class F insulation provides safe, reliable operation in diverse conditions up to 60C ambient temperature.

FAQs of Nicotra Forward Curved Centrifugal Fan ADH 200 R:

Q: How should the Nicotra Forward Curved Centrifugal Fan ADH 200 R be installed?

A: The ADH 200 R is designed for base or foot mounting on a stable, level surface. Ensure the fan is securely fastened, properly aligned, and connected to a compatible power source (230V or 415V, 50 Hz). Adequate ventilation space around the unit is recommended for optimal air flow and cooling.

Q: What are the main applications for the ADH 200 R centrifugal fan?

A: This fan is ideally suited for HVAC systems, air handling units, general ventilation, and exhaust systems in commercial, industrial, and large residential environments. Its high capacity and efficiency make it suitable for spaces that require reliable and continuous air movement.

Q: When should the fan be maintained or serviced?

A: Periodic inspection is recommended every six months or as per operational intensity. Check for dust or debris accumulation, inspect electrical connections, and verify that the impeller and motor are free from obstruction. Direct drive design minimizes maintenance requirements compared to belt-driven alternatives.

Q: Where can this centrifugal fan be sourced in India?

A: The Nicotra ADH 200 R fan is available through authorized manufacturers, suppliers, traders, and wholesalers across India. Prospective buyers can contact local HVAC equipment distributors or reach out directly to Nicotra representatives for procurement and support.

Q: What are the benefits of using a direct drive, forward curved fan design?

A: Direct drive fans offer lower maintenance, higher energy efficiency, and simpler installation compared to belt-driven models. The forward curved impeller enhances static pressure and volume output, ensuring stable airflow with reduced noise (only 63 dB(A) at 1 meter from the unit).

Q: How does the ADH 200 R ensure operational safety?

A: The fans motor is protected by an IP54 rating, safeguarding it from dust and splashing water. Class F insulation allows operation in higher temperature environments (up to 60C), and air cooling helps to prevent overheating during continuous use.
