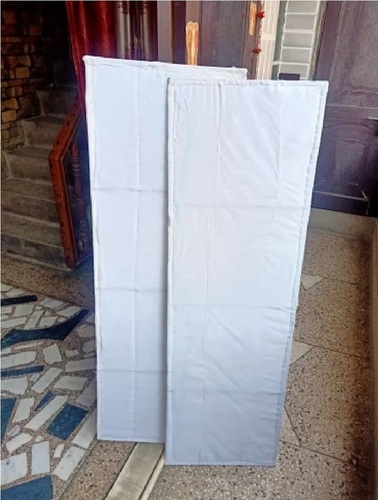

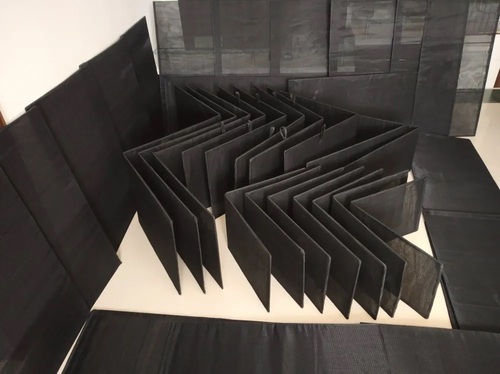

HDPE Pleated Rod Type Pre Filter In Hathrras Industrial Area Uttar Pradesh

Price 3500 INR/ Piece

Get a Price/Quote

MOQ : 12 Pieces

HDPE Pleated Rod Type Pre Filter In Hathrras Industrial Area Uttar Pradesh Specification

Condition
New

Usage
POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Material
Galvanized Steel, Aluminum Anodized,SS304

Size
Customized

Product Type
Flange or Box

Construction
Box Filter

Color
WHITE

Filtration Grade
Pre Filter

Shape
Square

HDPE Pleated Rod Type Pre Filter In Hathrras Industrial Area Uttar Pradesh Trade Information

Minimum Order Quantity
12 Pieces

FOB Port
Delhi

Payment Terms
Letter of Credit at Sight (Sight L/C), Cash on Delivery (COD), Letter of Credit (L/C), Western Union, Paypal, Delivery Point (DP), Cash Against Delivery (CAD), Cash Advance (CA), Telegraphic Transfer (T/T), Days after Acceptance (DA), Cash in Advance (CID), Cheque

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Western Europe, Central America, Asia, Australia, Middle East, Eastern Europe, South America, North America, Africa

Main Domestic Market
Dadra and Nagar Haveli, Himachal Pradesh, Andaman and Nicobar Islands, Uttarakhand, Daman and Diu, Lakshadweep, South India, North India, East India, West India, Assam, Arunachal Pradesh, Bihar, Chandigarh, Delhi, Gujarat, Goa, Haryana, Jammu and Kashmir, Jharkhand, Karnataka, Madhya Pradesh, Maharashtra, Mizoram, Meghalaya, Manipur, Punjab, Pondicherry, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, West Bengal, Nagaland, Andhra Pradesh, Kerala, Central India, Odisha, Chhattisgarh, All India

About HDPE Pleated Rod Type Pre Filter In Hathrras Industrial Area Uttar Pradesh

HDPE Pleated Rod Type Pre Filter In Hathrras Industrial Area Uttar Pradesh

Construction: Are Made From High Quality Synthetic Non-Woven Media, Supported By a Fine HDPE Media On Both Sides. Media Is Then Housed Inside An Extruded Aluminium Frame.

Specifications:

SPECIFICATION
Efficiency	Standard HDPE Pleated Type Pre Filters Have an Efficiency of 90 Percent for 10 Micron Size Particles. Pre Filters With An Efficiency Rating of 80 to 90 Percent to Capture 10 Micron to 20 Micron Size Particles Are Also Available On Order.
Filtration Class	Filter Grades G3, G4, F5 of EN779, ASHRAE 52.2 Equivalent MERV 6, 7, 8, 9, 10 and Eurovent EU3, EU4 and EU5 Are Available
Frame Type	Available in Flange Or Box Type
Frame Material	Standard Model is Constructed in Galvanized Steel. Other Models With Aluminium Anodized Stainless Steel Frame With or Without Powder Coating Are Also Available On Order.
Filter Media	HDPE And Non-Woven Synthetic.
Gasket	No Gasket is Installed in Standard Filter Model. Non-Woven Syntheti/Rubber Gasket Can Be Ordered On Request
Separators	None
Sealant	PU Based Epoxy
Face Guard	No Face Guard With Standard Model is Supplied. On Order Request Filter Can Be Protected With Expanded Mesh On Both Sides
Nominal Depth	Depth Size is Available From 1.0 Inches to 6 Inches Pre HDPE Pleated And Rod Type
Sizes	Standard Size Of The Filter is 610 x 610 x 50 MM in Box or Flange Type. Other Sizes Are Build On Order.
Pressure Drop	Initial Pressure Drop 2.5 MM WG and Recommended Final Pressure Drop is 5-10 MM WG
Operating Conditions	Filter Can Withstand Temperature Up to 80 Degree C And Relative Humidity of 100 Percent at 0 Condensation. Filter is Washable or Can Be Cleaned By Applying Air Pressure And Reused.
Application	Athlete Pre Filters Are Most Suited For:
	Air Handling Units AHUs, Air-Conditioning Systems, Power Plants, Chemical and Fertilizer Complexes, Green Houses, Automatic Drain Holes, Paint Shops, Textile Mills, Cement Factories, Laminar Air Flow Units, Biosafety Hoods, Fan Filter Units FFU, Gas Turbine Industry, Compressor, Diesel Engines, Nuclear Power Station, CD-Rom Production Industry, Picture Tube Production Industry, Semi-conductor Industry, Aeronautical Industry And Miscellaneous Industrial Ventilation.

HDPE Pleated Rod Type Pre Filter In Hathrras Industrial Area Uttar Pradesh

FAQs of HDPE Pleated Rod Type Pre Filter In Hathrras Industrial Area Uttar Pradesh:

Q: Is the HDPE Pleated Rod Type Pre Filter suitable for industrial use?

A: Yes, the pre filter is specifically designed for industrial applications such as power plants, cement plants, steel plants, fertilizer plants, and textile industries.
