HDPE Pleated Rod Type Pre Filter In Gorakhpur Uttar Pradesh

About HDPE Pleated Rod Type Pre Filter In Gorakhpur Uttar Pradesh

HDPE Pleated Rod Type Pre Filter In Gorakhpur Uttar Pradesh

HDPE Pleated Rod Type Pre Filter In Faridabad Haryana

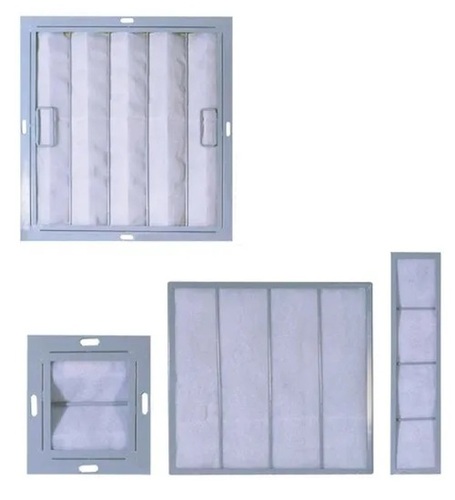

Construction: Are Made From High Quality Synthetic Non-Woven Media, Supported By a Fine HDPE Media On Both Sides. Media Is Then Housed Inside An Extruded Aluminium Frame.

Specifications:

SPECIFICATION
Efficiency	Standard HDPE Pleated Type Pre Filters Have an Efficiency of 90 Percent for 10 Micron Size Particles. Pre Filters With An Efficiency Rating of 80 to 90 Percent to Capture 10 Micron to 20 Micron Size Particles Are Also Available On Order.
Filtration Class	Filter Grades G3, G4, F5 of EN779, ASHRAE 52.2 Equivalent MERV 6, 7, 8, 9, 10 and Eurovent EU3, EU4 and EU5 Are Available
Frame Type	Available in Flange Or Box Type
Frame Material	Standard Model is Constructed in Galvanized Steel. Other Models With Aluminium Anodized Stainless Steel Frame With or Without Powder Coating Are Also Available On Order.
Filter Media	HDPE And Non-Woven Synthetic.
Gasket	No Gasket is Installed in Standard Filter Model. Non-Woven Syntheti/Rubber Gasket Can Be Ordered On Request
Separators	None
Sealant	PU Based Epoxy
Face Guard	No Face Guard With Standard Model is Supplied. On Order Request Filter Can Be Protected With Expanded Mesh On Both Sides
Nominal Depth	Depth Size is Available From 1.0 Inches to 6 Inches Pre HDPE Pleated And Rod Type
Sizes	Standard Size Of The Filter is 610 x 610 x 50 MM in Box or Flange Type. Other Sizes Are Build On Order.
Pressure Drop	Initial Pressure Drop 2.5 MM WG and Recommended Final Pressure Drop is 5-10 MM WG
Operating Conditions	Filter Can Withstand Temperature Up to 80 Degree C And Relative Humidity of 100 Percent at 0 Condensation. Filter is Washable or Can Be Cleaned By Applying Air Pressure And Reused.
Application	Athlete Pre Filters Are Most Suited For:
	Air Handling Units AHUs, Air-Conditioning Systems, Power Plants, Chemical and Fertilizer Complexes, Green Houses, Automatic Drain Holes, Paint Shops, Textile Mills, Cement Factories, Laminar Air Flow Units, Biosafety Hoods, Fan Filter Units FFU, Gas Turbine Industry, Compressor, Diesel Engines, Nuclear Power Station, CD-Rom Production Industry, Picture Tube Production Industry, Semi-conductor Industry, Aeronautical Industry And Miscellaneous Industrial Ventilation.

Additional Information:

• Item Code: HDPE-Pleated-Rod-Type-Pre-Filter-In-Gorakhpur-Uttar-Pradesh
• www.envirotechindustrialproducts.in
• www.envirotechindustrialproduct.com
• www.envirotechindustrialproducts.com

Exceptional Dust Holding and Reusable Design

Engineered with high-density polyethylene pleated mesh, this pre filter boasts a high dust holding capacity and outstanding durability. Its washable construction ensures long service life and cost savings through multiple cleaning cycles, while maintaining efficient coarse filtration in even the most demanding industrial settings.


Customizable Solutions for Industrial Needs

Available in standard lengths from 500 mm to 1000 mm, with common diameters such as 120 mm, 150 mm, and 225 mm, this filter can also be tailored to specific requirements. End caps are offered in both ABS plastic and metal, providing flexibility for installation in varied HVAC, ventilation, and dust collector applications.


Simple Installation and Versatile Application

The rod-type, cylindrical shape enables easy mounting, both vertically and horizontally. Designed for seamless integration in existing setups, it is ideal for manufacturers, suppliers, and traders seeking reliable, heavy-duty air pre filtration solutions across industries.
