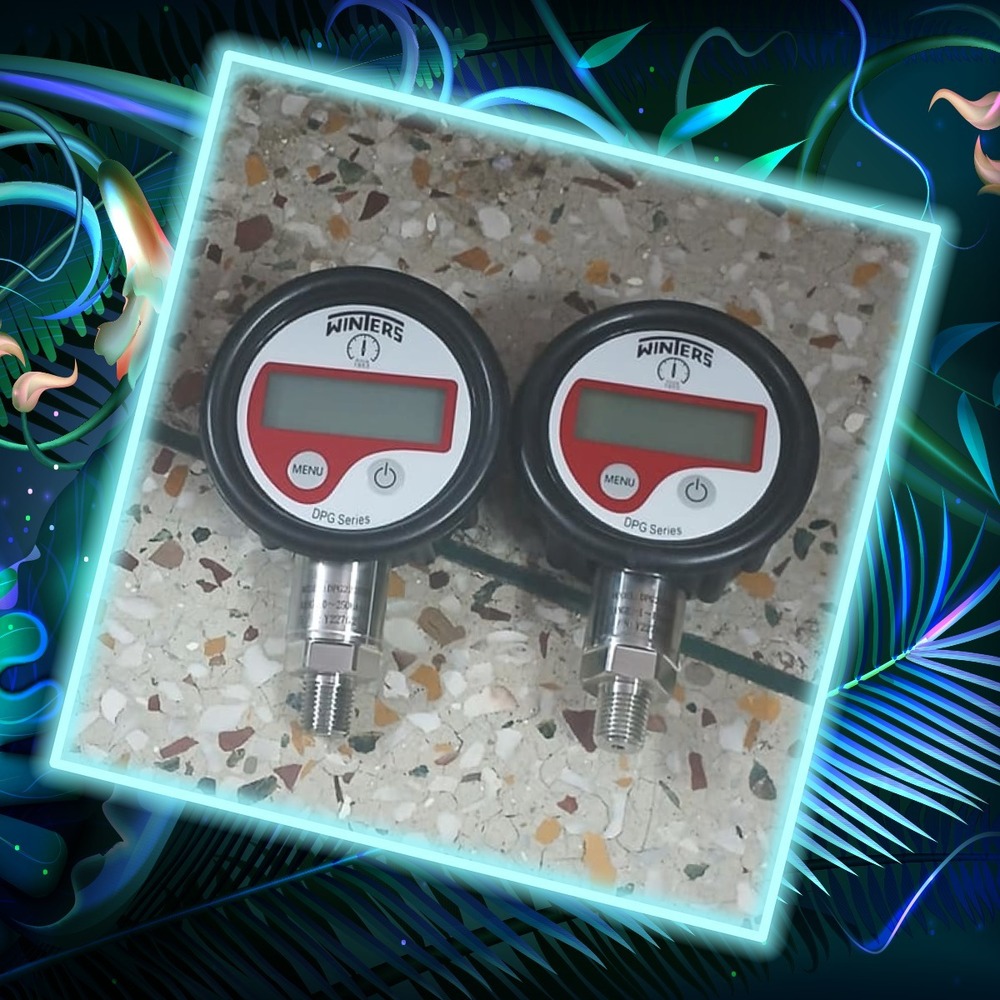

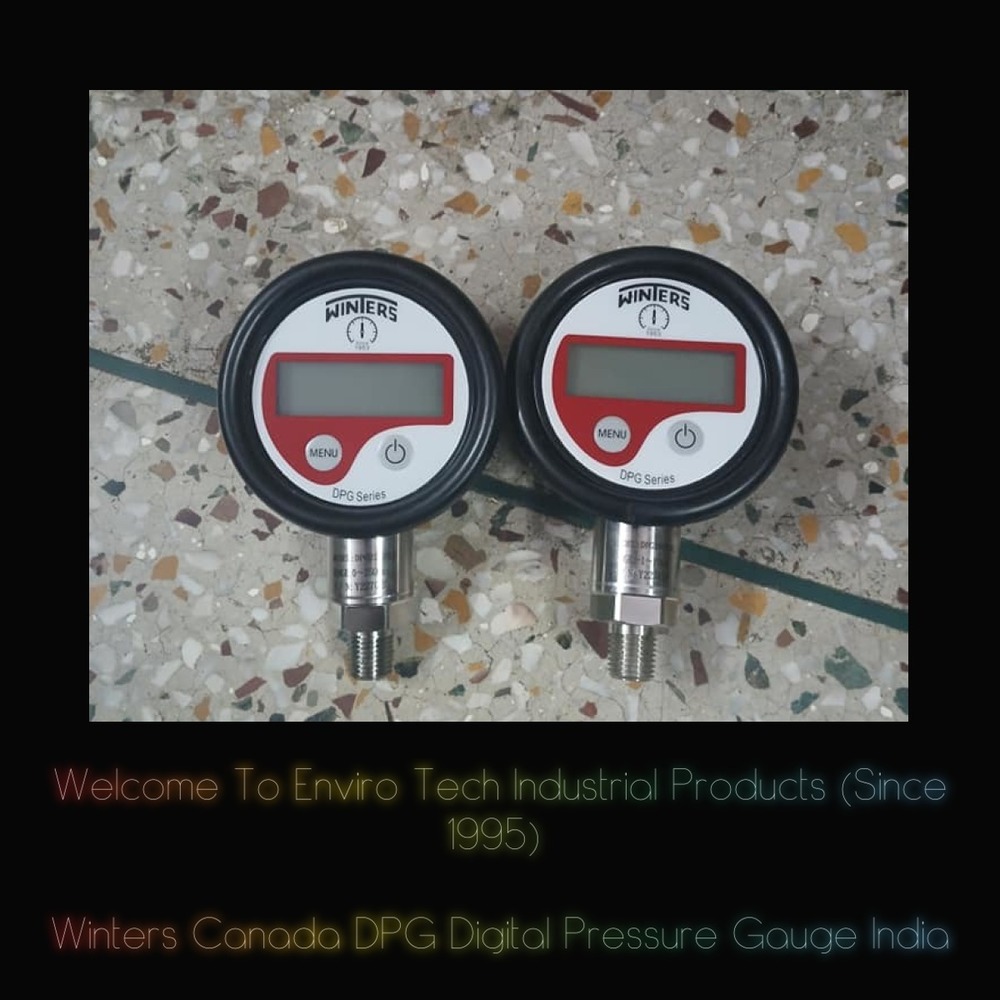

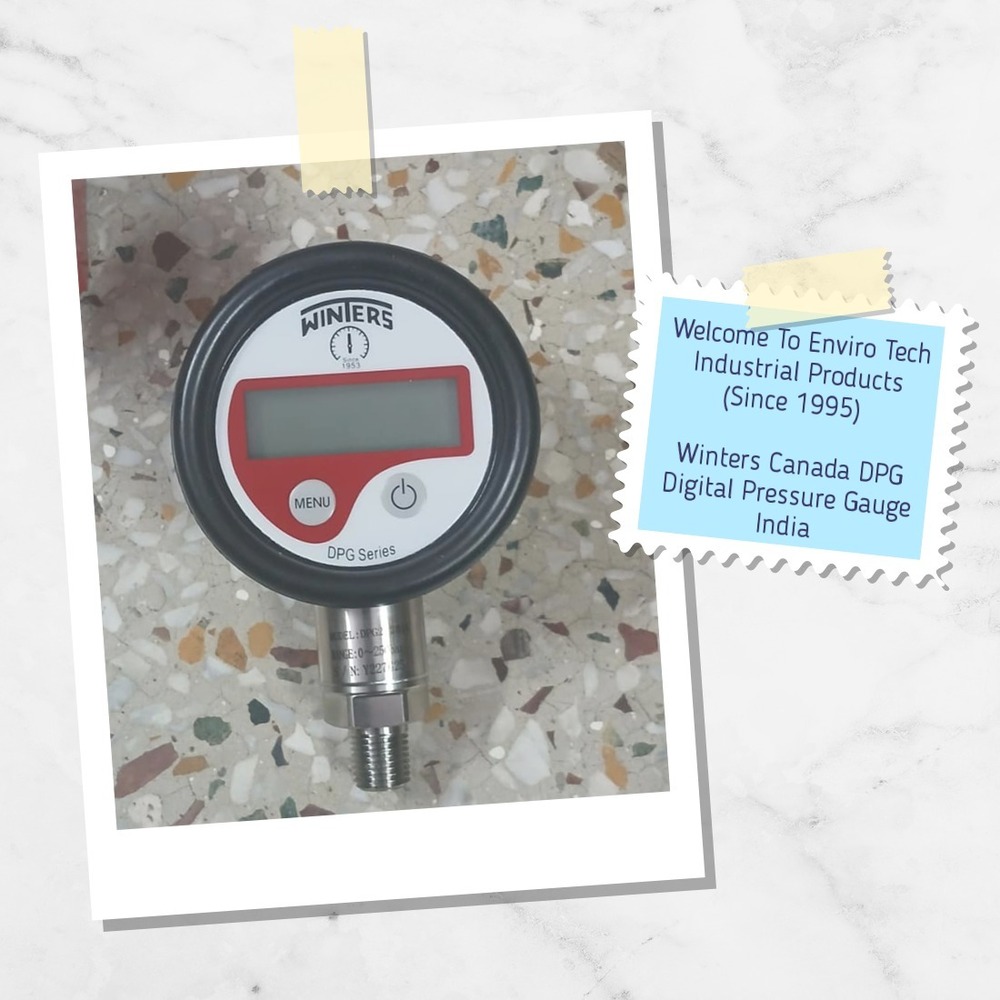

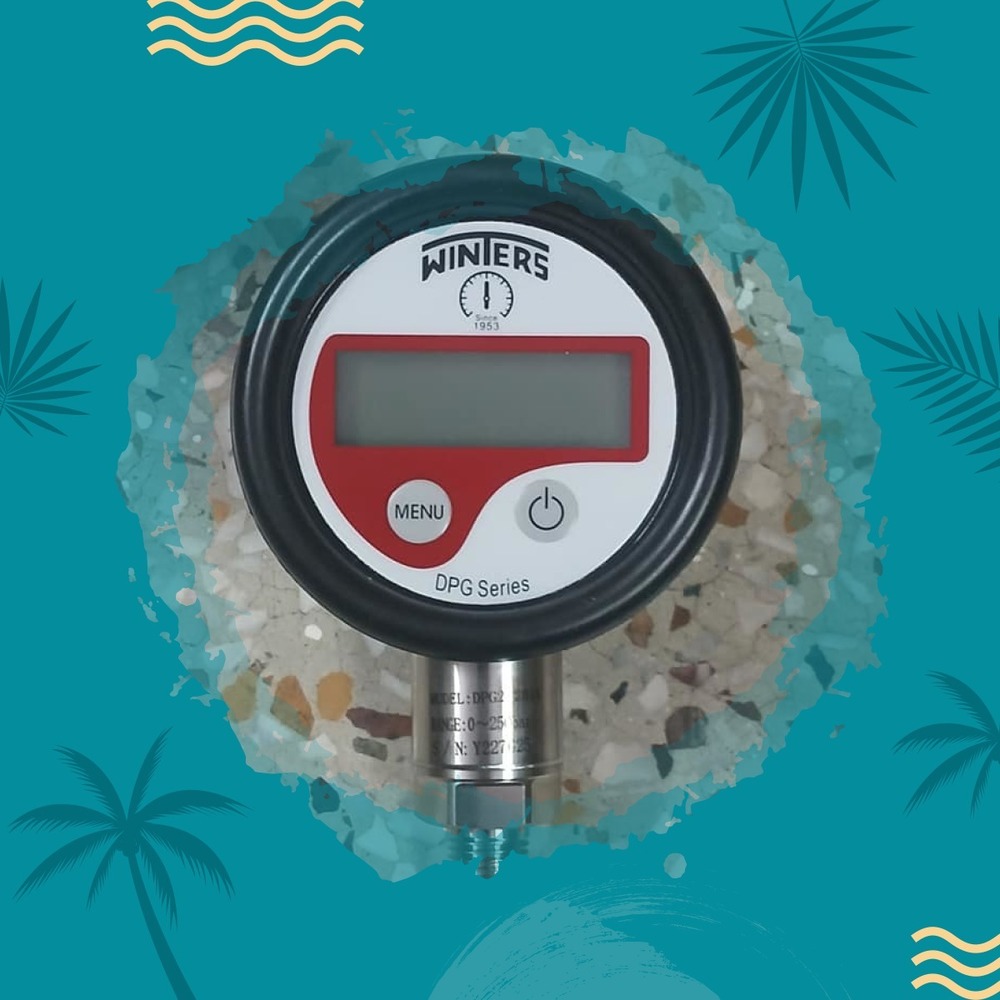

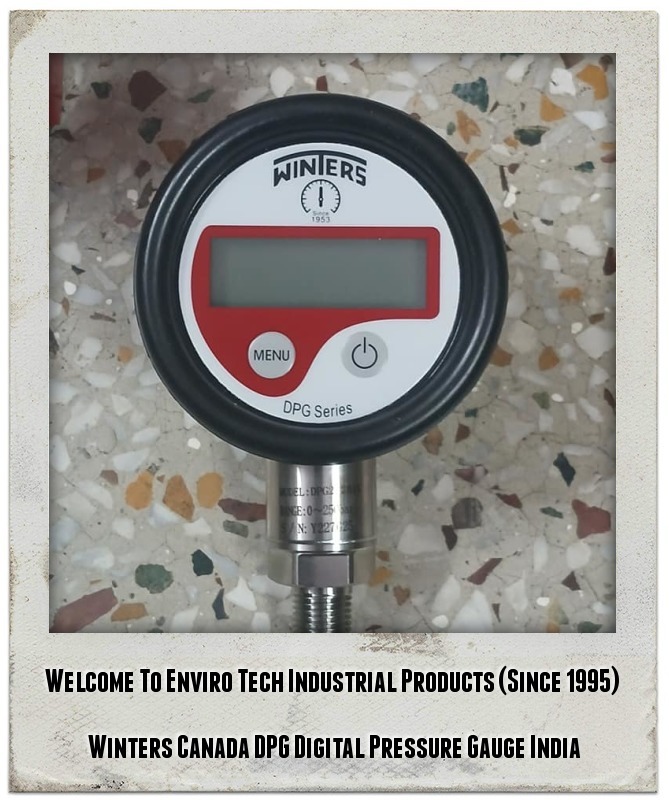

Winters Canada Digital Pressure Gauge MODEL - DPG206 RANGE - 30-0-100 PSI

About Winters Canada Digital Pressure Gauge MODEL - DPG206 RANGE - 30-0-100 PSI

Winters Canada Digital Pressure Gauge MODEL - DPG206 RANGE - 30-0-100 PSI

• MODEL - DPG203
• RANGE - 30-0-100 PSI

Description & Features

• Simple 2 Button Operation
• Reset To Zero Feature
• Backlight Turns On When On/Off Button Is Pressed
• Option For Display To Remain Continuously On
• Continuous Peak Pressure Indication Option
• 316L Welded Diaphragm Seal
• Rubber Boot Is Standard
• ASME B40.100 Compliant
• RoHS Compliant
• +/- 1% Accuracy (+-/ 0.5% Optional For Gauges Up to 5000 PSI)
• 1 Year Warranty

Applications

• Ideal For Commercial And Industrial Applications In Both Test Measurement And General Purpose Installations

Specifications
Case Size	2.5" (63MM)
Case Material	ABS (IP64)
Rubber Boot	Silicone Rubber (IP65)
LCD Display	2" x 3/4" (48MM x 16MM)
Connection	1/4" NPT 304SS
Sensor	316L Welded,Piezo
Operation Life	1 Million Cycles
Power Supply	2 x AAA Battery (1.5V)
Battery Life	2 Yrs (Auto Shut-Off Mode)
Power Mode	Auto or Manual Shut-Off
Display Digits	4 digits to 5000 psi,5 digits for 10000 psi
Resolution	psi,mmHO,mmHg,mbar,kPa 100 psi
	psi, bar, kg/cm ,mPa,atm ranges 160 psi
Operation Mode	Continuously Reading or Peak Pressure Reading
Response Time	3 Hz Display Refresh Rate
Proof/Burst Pressure	200%/300% FS
Operating/Storage Temperature	14F to 122F (-10C to 50C)
	-4F to 167F (-20C to 75C)
Accuracy	0.5%
Dial Size	2.5" (63mm
Connection	1/4" Bottom
Socket	SS

Additional Information:

• Item Code: Winters Canada Digital Pressure Gauge MODEL - DPG206 RANGE - 30-0-100 PSI
• www.envirotechindia.net
• www.envirotechindustrialproduct.net
• www.envirotechdelhi.net

High Accuracy Digital Pressure Measurement

The Winters Canada DPG206 digital pressure gauge ensures optimum performance with 0.5% accuracy. Its digital display accommodates up to 10,000 psi readings, offering clarity and precision required for critical applications in various industries.


Versatile Industrial Applications

Designed for broad industrial use, this gauge is ideal for pharmaceutical, power, cement, steel, fertilizer, and textile plants. Its durable build and accurate readings help streamline operations and ensure safety in high-demand environments.


Durable Design & Easy Installation

Featuring a rugged steel pointer, 304SS threaded connection, and polished finish, the DPG206 is engineered for demanding conditions. Its surface mount design and lightweight construction (250g) facilitate straightforward installation and flexible placement.
