SETRA Pressure Transmitter Part No 3100B0035C1GB Range -1 TO -35 Bar

SETRA Pressure Transmitter Part No 3100B0035C1GB Range -1 TO -35 Bar About

SETRA Pressure Transmitter Part No 3100B0035C1GB Range -1 TO -35 Bar

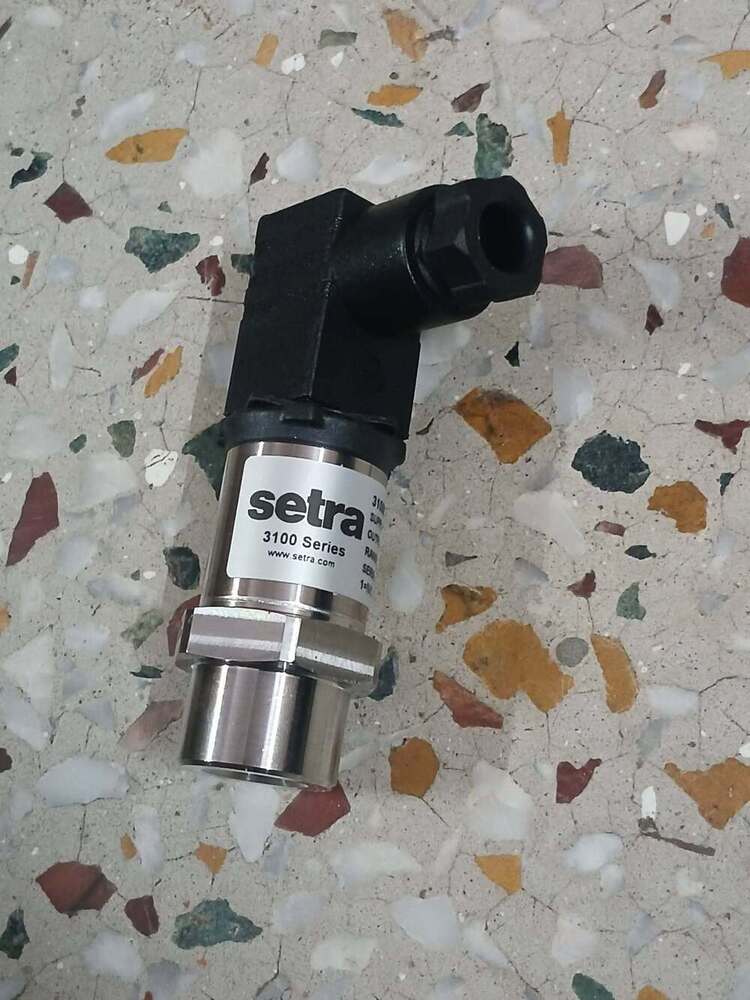

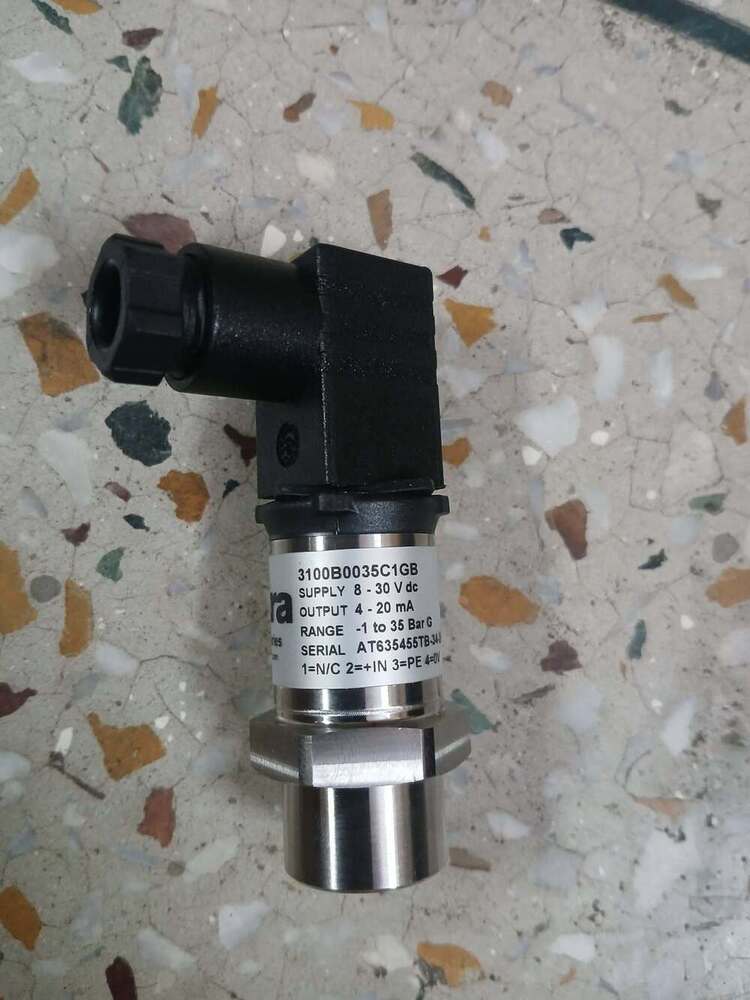

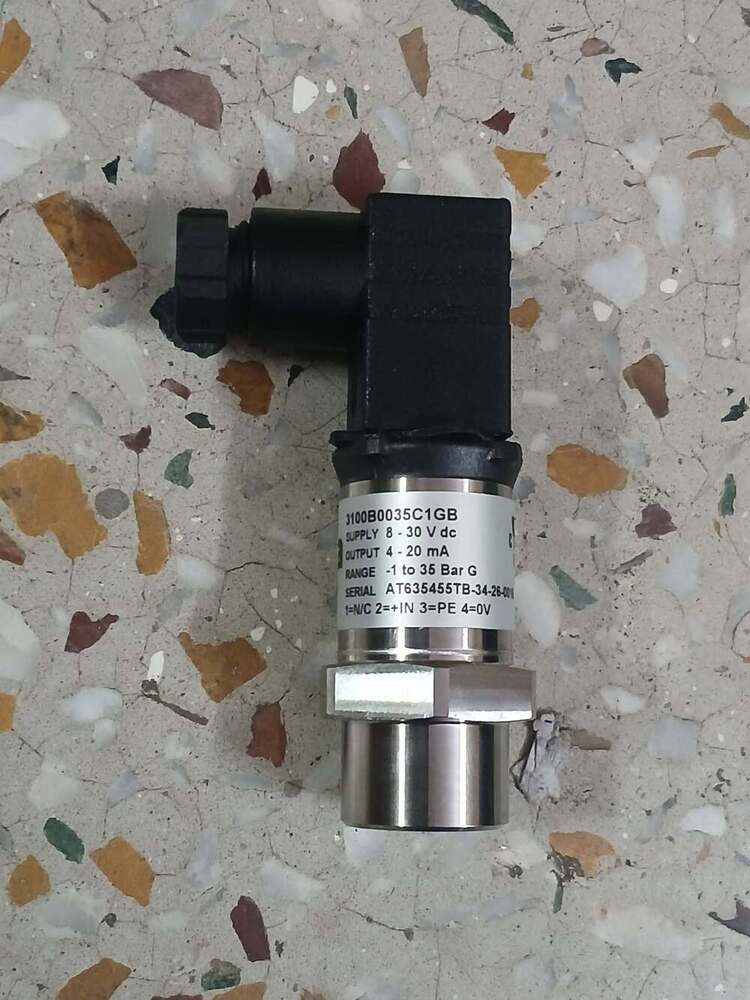

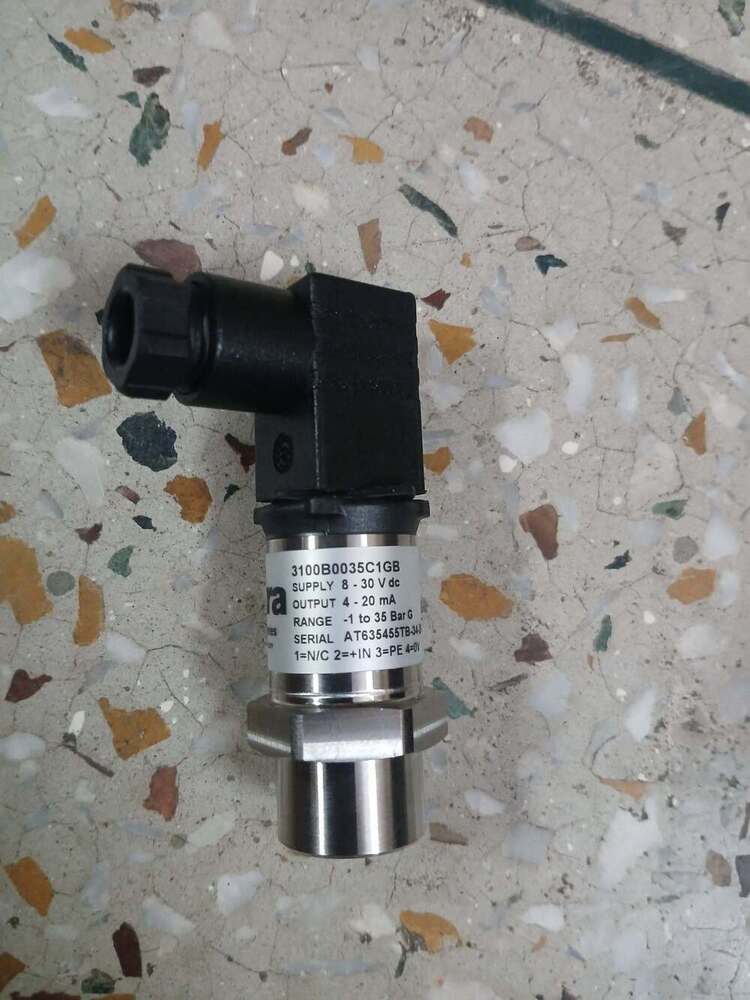

• Part No.: 3100B0035C1GB
• Model: Setra Model 3100
• Pressure Range: -1 to 35 Bar (compound/gauge range as specified)
• Output: 4“20 mA
• Pressure Connection: 1/4" SAE flare ” the available part listing describes this variant as 35BARC, 4“20 mA, 1/4 AEF, MDIN.

Product Information

The SETRA Model 3100 is an industrial OEM pressure transmitter designed for high performance, reliability and long-term stability. It uses a sputtered thin-film sensing element and an all-welded stainless-steel construction. The transmitter is available with different pressure ranges, outputs, pressure connections and electrical connections.

Technical Data

The general Model 3100 datasheet confirms the ±0.25% FS accuracy, IP67 protection, stainless-steel wetted construction, temperature range and 4“20 mA electrical configuration.

 Product Features

• ±0.25% FS accuracy
• 4“20 mA current output
• 2-wire electrical circuit
• Sputtered thin-film sensing technology
• All-welded stainless-steel construction
• IP67 environmental protection
• Reverse-wiring protection
• Excellent vibration resistance
• High EMC protection
• No oil-filled sensing element
• Compact design
• Thermally compensated sensor
• Long-term stability
• RoHS compliant
• CE and UL approved for the Model 3100 series

Field of Application

The SETRA Model 3100 Can Be Used In:

• Industrial OEM machinery
• Hydraulic systems
• Pneumatic systems
• Compressor systems
• Booster pump systems
• Irrigation systems
• HVAC/R equipment
• Industrial automation
• Industrial engines
• Off-highway vehicles
• Process pressure monitoring
• Pump and pressure-control applications

Setra specifically identifies industrial OEMs, hydraulic machinery, HVAC/building automation and other industrial applications for its pressure transmitters.

 Ambient Conditions

Operating/Storage Temperature: -40C to +125C
Compensated Temperature Range: -40C to +125C
Protection: IP67
Vibration: Designed to withstand high levels of industrial vibration.

 Material

• Diaphragm: 17-4 PH stainless steel
• Fittings: 304 stainless steel
• Construction: All-welded stainless steel
• Sensing technology: Sputtered thin-film strain gauge

The stainless-steel construction provides durability for demanding industrial OEM applications.

 Electrical Data

Output: 4“20 mA
Circuit: 2-wire
Supply: 8“30 VDC
Maximum loop resistance: (Supply Voltage ˆ 8) — 50 Î
Protection: Reverse wiring protected.



Typical 2-Wire Connection

Power Supply (+) † Transmitter (+)
Transmitter (ˆ) † PLC/Controller/Readout (+)
Readout (ˆ) † Power Supply (ˆ)

Always verify the pinout against the electrical connector supplied with the exact transmitter before wiring.

Installation Guide

• onfirm that the transmitter's pressure range is suitable for the application.
• Verify the pressure-port/thread configuration before installation.
• Install the transmitter without excessive mechanical force.
• Use the correct sealing method for the pressure connection.
• Connect the 4“20 mA loop according to the applicable wiring diagram.
• Use a suitable DC power supply within the specified voltage range.
• Keep the electrical connector protected from water and contamination.
• Avoid pressure spikes above the transmitter's permissible pressure limit.
• After installation, check the pressure connection for leakage.

• Verify the 4“20 mA signal before putting the system into service.

  Approval / Compliance



  The Model 3100 series is specified as:

  • CE Approved
  • UL Approved
  • RoHS Compliant
  • IP67 Rated

  Exact certification can depend on the selected configuration.

   Accessories



  Suitable accessories can include:

  • Mating electrical connector
  • Pressure adapters
  • Mounting accessories
  • Sealing components
  • Cable/connector assemblies
  • Pressure-port adapters



  The exact accessory must match the pressure connection and electrical termination selected for Part No. 3100B0035C1GB. The Model 3100 is offered with multiple pressure-port and electrical-connection options.
