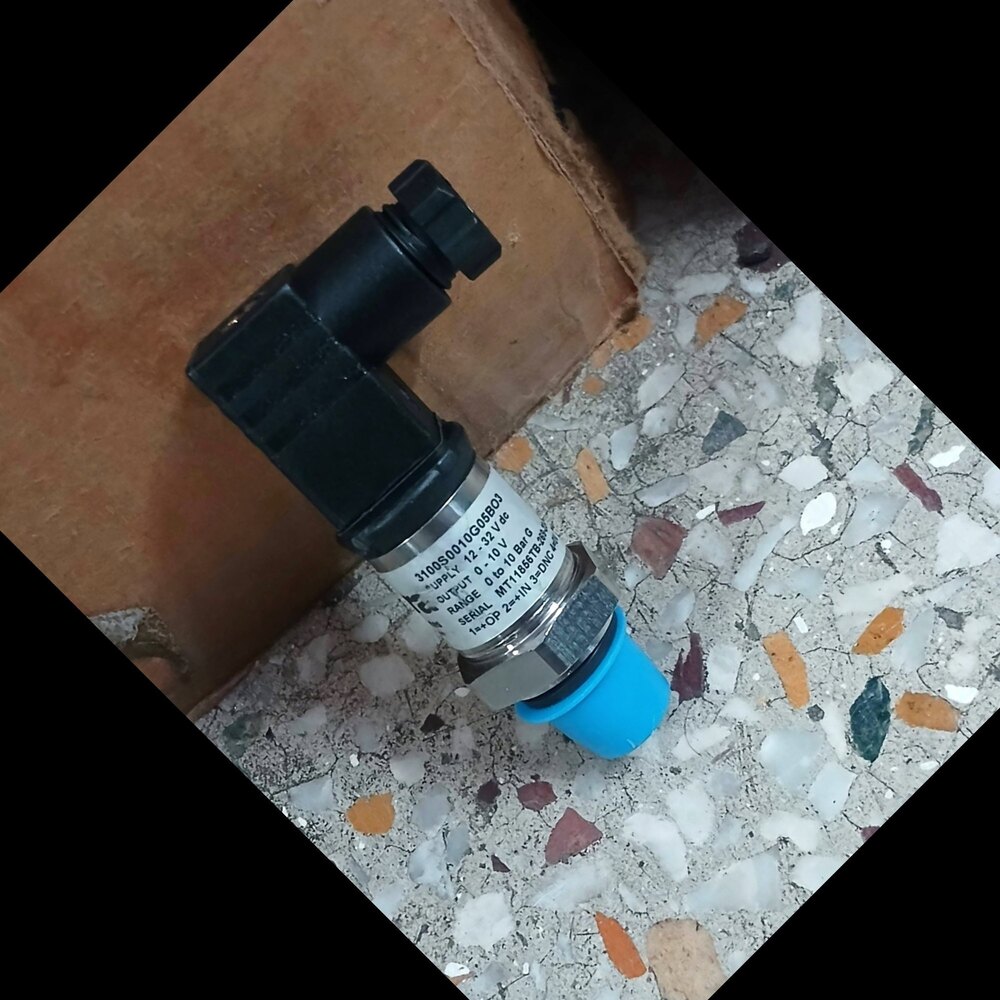

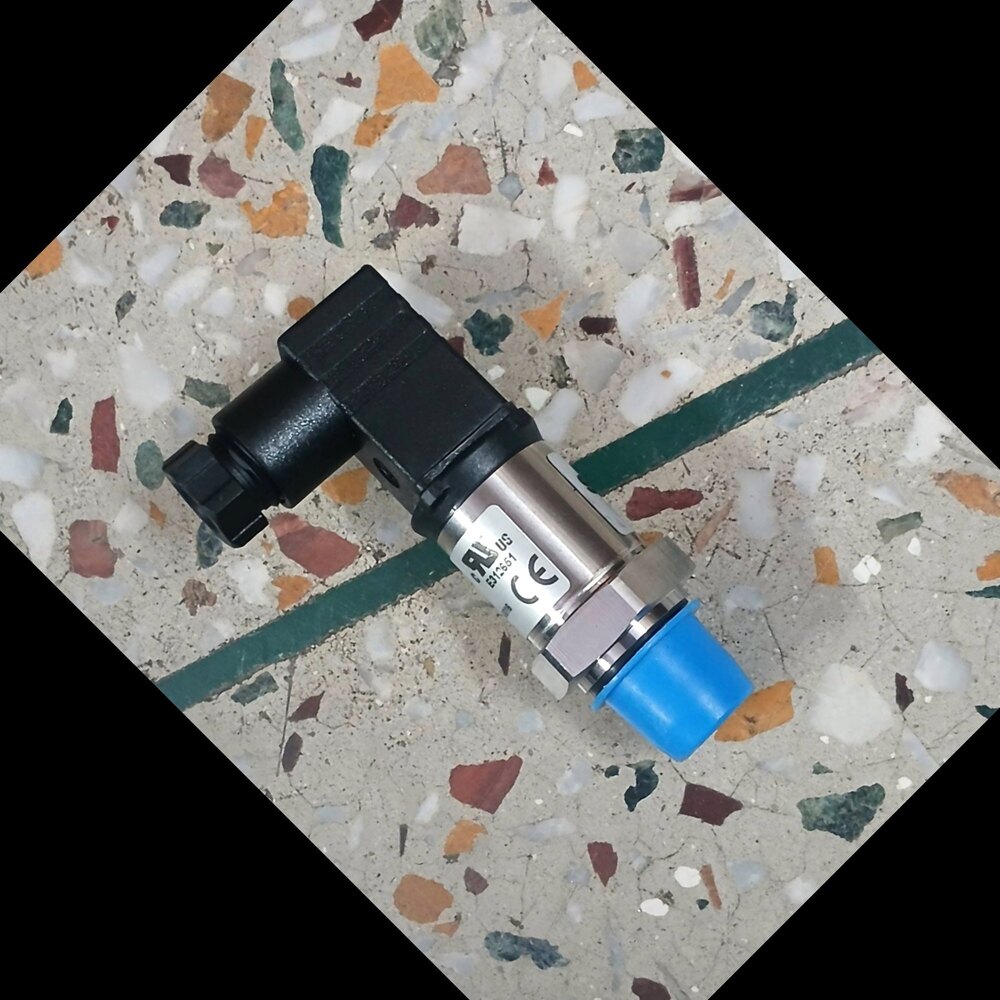

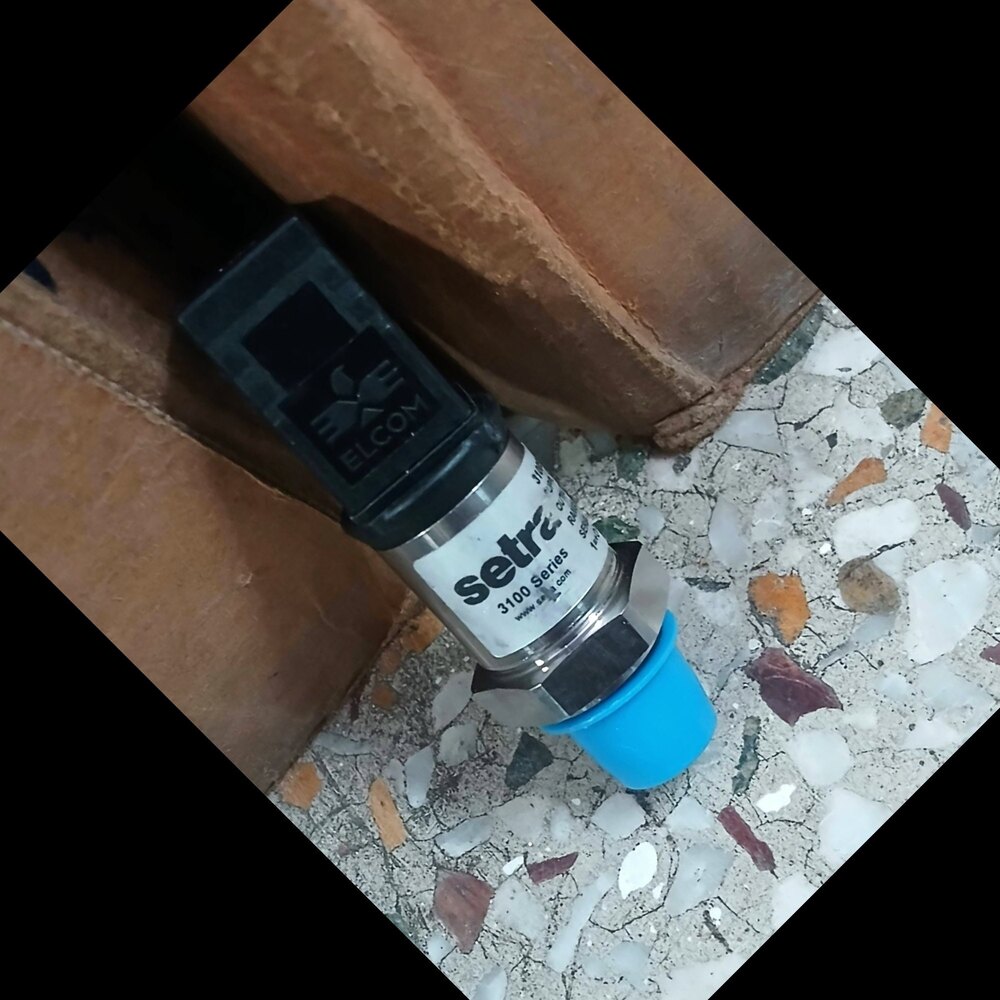

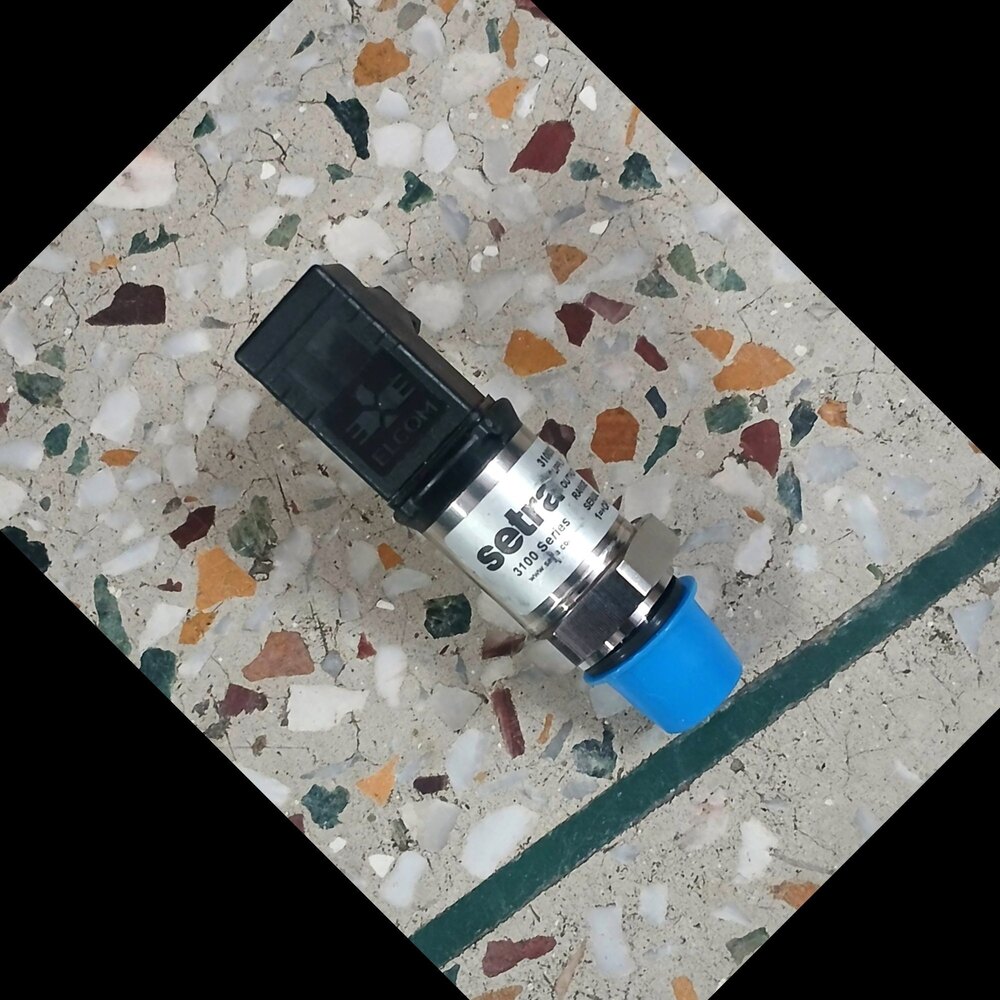

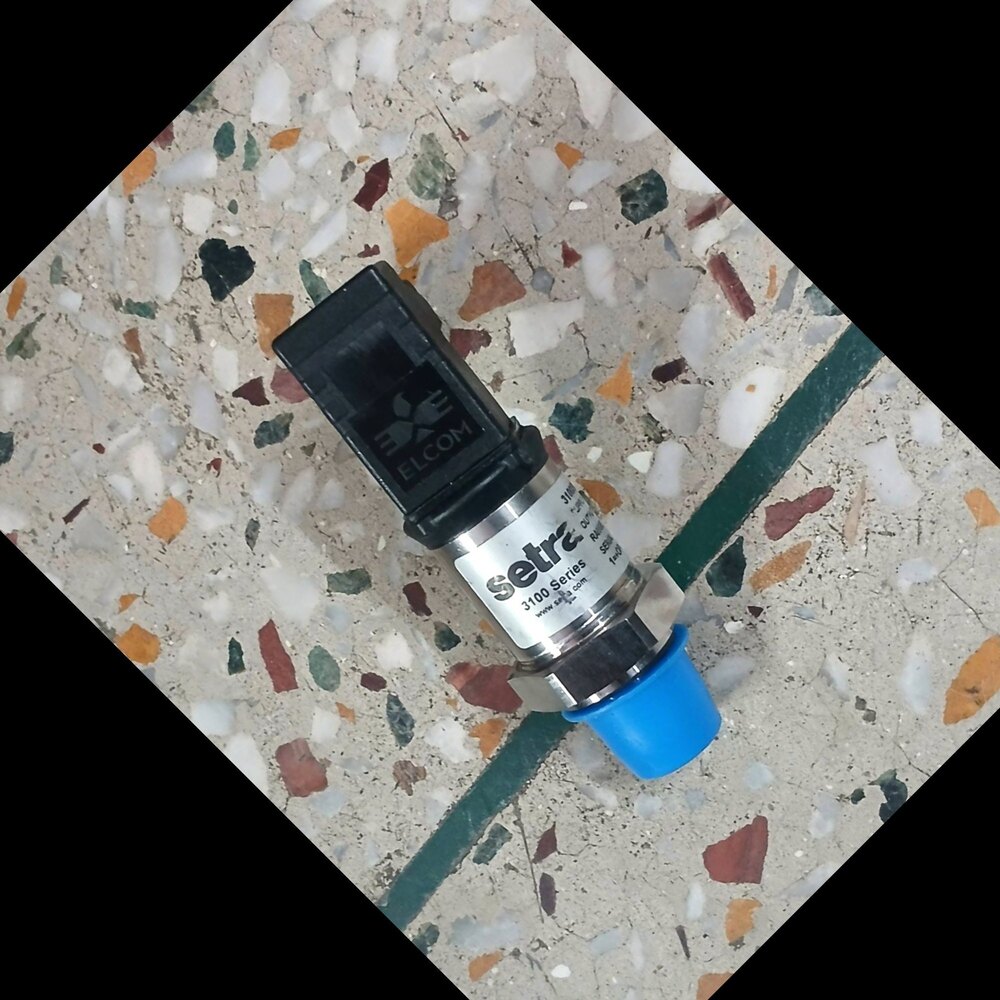

Setra 3100B0010C02B Pressure Transmitter 0-10 Bar

Price 12500 INR/ Piece

Get a Price/Quote

MOQ : 12 Pieces

Setra 3100B0010C02B Pressure Transmitter 0-10 Bar Specification

Thread
1/4 NPT 316L SS.

Display
Analog

Usage
POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Material
Metal Alloy

Dial Material
Plastic

Pointer Material
Steel

Processing Type
Standard

Product Type
Setra 3100B0010C02B Pressure Transmitter 0-10 Bar

Weight
35 Grams (g)

Color
WHITE / BLACK

Mount Type
Surface

Scale Range
Setra 3100B0010C02B Pressure Transmitter 0-10 Bar

Accuracy
0.25%,0.5%,1%

Measure Pressure Of
Steam, Gas

Setra 3100B0010C02B Pressure Transmitter 0-10 Bar Trade Information

Minimum Order Quantity
12 Pieces

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
EXTRA

About Setra 3100B0010C02B Pressure Transmitter 0-10 Bar

3100B0010C02B Setra Pressure Transmitter 0-10 Bar

Setra 3100B0010C02B Pressure Transmitter 0-10 Bar

Setra Model 3100B0040G01B is a High-Pressure OEM Pressure Transmitter Designed For Accurate And Reliable Measurement Of Hydraulic And Industrial Pressure.It Uses Sputtered Thin-Film Sensing Technology With Rugged Stainless-Steel Construction And IP67 Environmental Protection.The 0“40 Bar Range Makes It Suitable For Demanding High-Pressure Applications

Technical Data

Manufacturer: Setra Systems

Product Type: Industrial Pressure Transmitter / Pressure Transducer

Series: Model 3100

Model Number: 3100B0010C02B

Pressure Measurement Type: Gauge Pressure

Pressure Range: 0 to 10 Bar

Maximum Rated Pressure: 10 Bar

Accuracy: ±0.25% Full Scale (FS)

Output Signal: 4“20 mA DC

Power Supply: 8“30 VDC

Electrical Connection: DIN 43650 Form C

Pressure Connection: G 1/4 inch Male

Sensor Technology: Sputtered Thin-Film Strain Gauge

Wetted Material: Stainless Steel

Diaphragm Material: 17-4 PH Stainless Steel

Fitting Material: 304 Stainless Steel

Ingress Protection: IP67

Operating Temperature: ˆ40C to +125C

Compensated Temperature Range: ˆ40C to +125C

Response Time: Approximately 1 millisecond

Zero/Span Tolerance: ±0.5% of Span

Long-Term Stability: Model-series specification applies; verify the applicable range limit before stating a specific value

Pressure Medium: Compatible liquids and gases, subject to wetted-material compatibility

Construction: Compact industrial OEM design

Protection Features: Reverse-wiring protection is available according to the applicable electrical configuration

Compliance: RoHS compliant

Applications: Hydraulic systems, industrial process monitoring, compressors, pumps, refrigeration systems, irrigation equipment, pressure-control systems and OEM machinery

Installation: Mount using the correct pressure port and compatible sealing method. Connect the 4“20 mA loop with the correct supply polarity and ensure the pressure remains within the rated range.

Maintenance: Periodically inspect pressure connections, electrical wiring and sealing surfaces. Avoid pressure surges beyond the rated limits.

Product Use: Continuous pressure measurement and feedback for industrial monitoring and control systems.

Product Features

High-Pressure Measurement Up to 20 Bar

±0.25% FS Accuracy

Sputtered Thin-Film Sensing Element

Rugged Stainless-Steel Construction

IP67 Protection Against Moisture And Dust

Fast Response Time

Wide Operating Temperature Range

Reverse Wiring Protection

Suitable For OEM And Industrial Equipment

Designed For High Shock And Vibration Environments

Field Of Application

Hydraulic Pressure Systems

Hydraulic Machinery

Industrial OEM Equipment

Pumps and Variable-Speed Pumps

Compressors

Refrigeration Systems

Industrial Machinery

Irrigation Pressure Systems

Process Control Equipment

High-Pressure Fluid Systems

HVAC/R Equipment

Ambient Condition

The Transmitter is Designed For Demanding Industrial Environments. Operating And Storage Temperature is Approximately -40C to +125C. IP67 Enclosure Protection Provides Resistance Against Dust And Temporary Water Exposure

Material

The Model 3100 Uses An All-Welded Stainless-Steel Construction.Wetted Components Include Stainless-Steel Materials Suitable For Compatible Industrial Pressure Media

Electrical Data

Output: 4“20 mA

Supply: 8“30 VDC

Circuit: 2-wire

Electrical Connection: DIN 43650 Form C

Reverse Wiring Protection Is Provided

Installation Guide

Install The Transmitter On a Compatible Pressure Port Using The Correct Sealing Method And Suitable Tools.Ensure That The Pressure Applied Remains Within The Rated 0“10 Bar Range.Connect The Power Supply And Signal Wiring According To The Specified Electrical Configuration.For Outdoor Or Electrically Noisy Installations,Use Appropriate Shielded Wiring And Grounding Practices.Avoid Excessive Mechanical Stress On The Transmitter And Wiring

Approval

cURus Approved And RoHS Compliant.Always Verify The Exact Certification Requirements For The Intended Installation Before Commissioning

Accessories

Compatible Accessories May Include Pressure Fittings,Sealing Components, Electrical Connectors,Cables,Mounting Hardware and Signal/PLC Interface Equipment.Select Accessories According To The Actual Pressure Connection,Electrical Connection And Application Requirements

Additional Information:

Item Code: Setra 3100B0010C02B Pressure Transmitter 0-10 Bar
