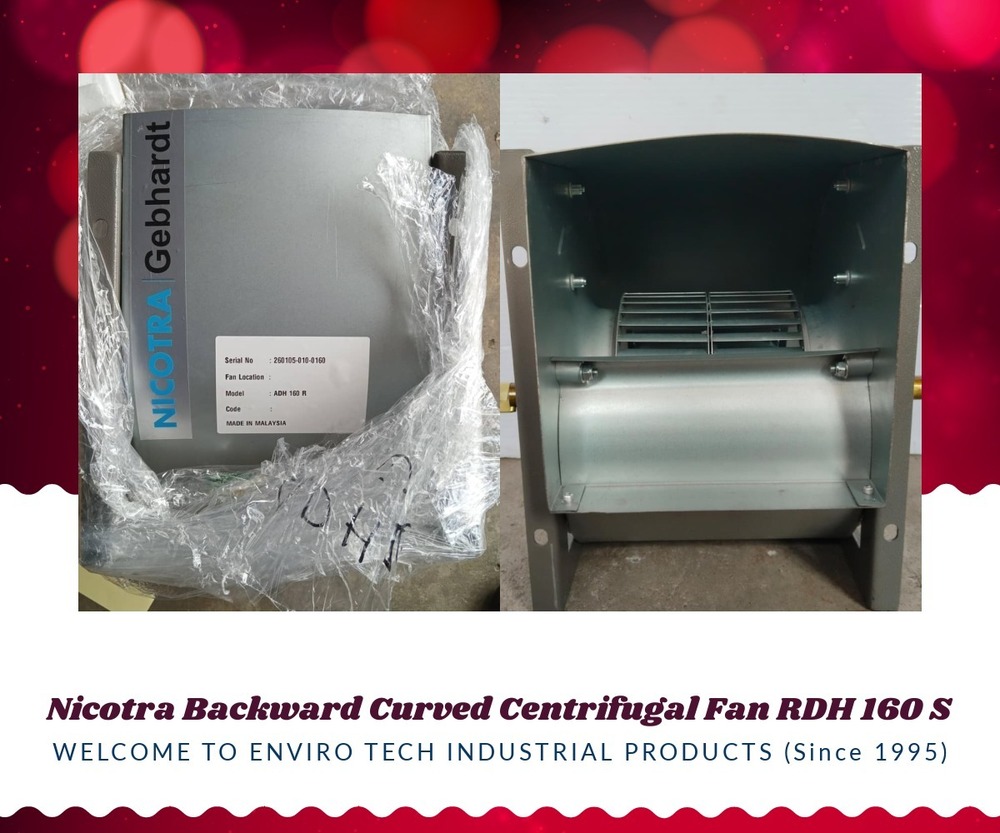

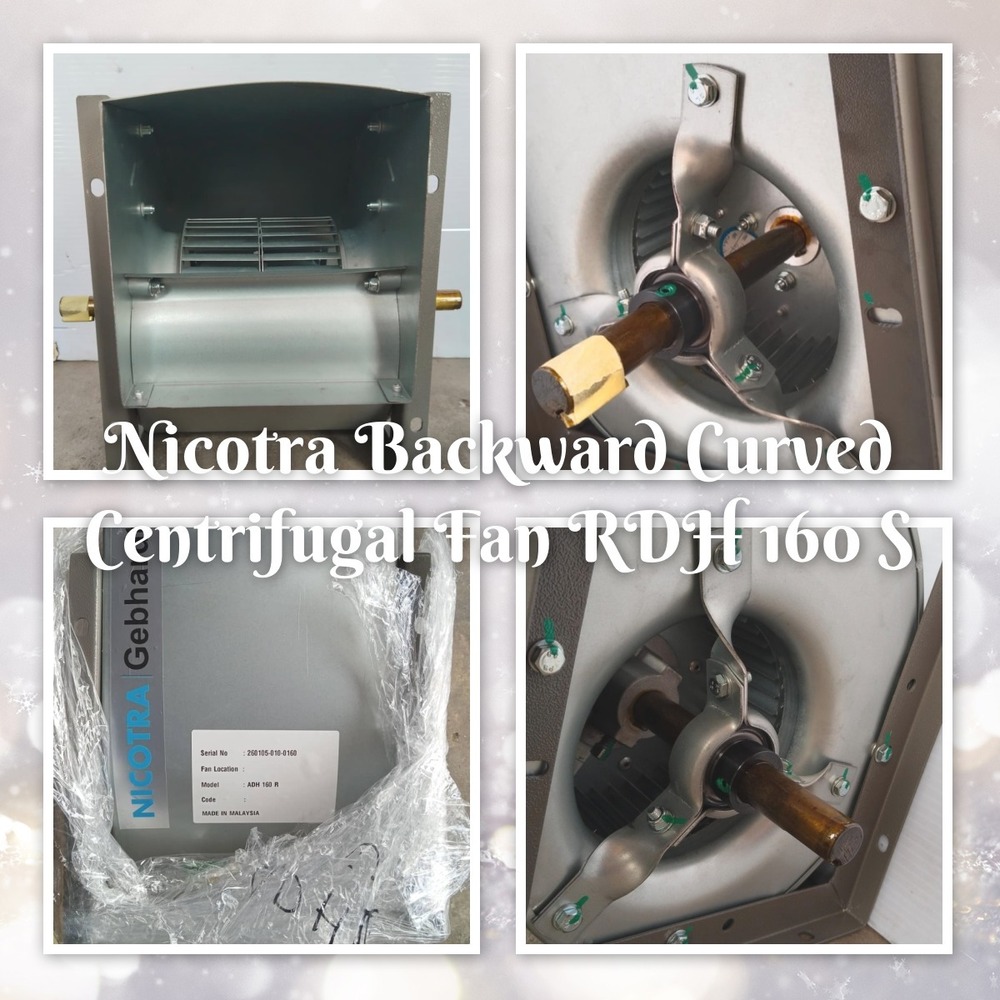

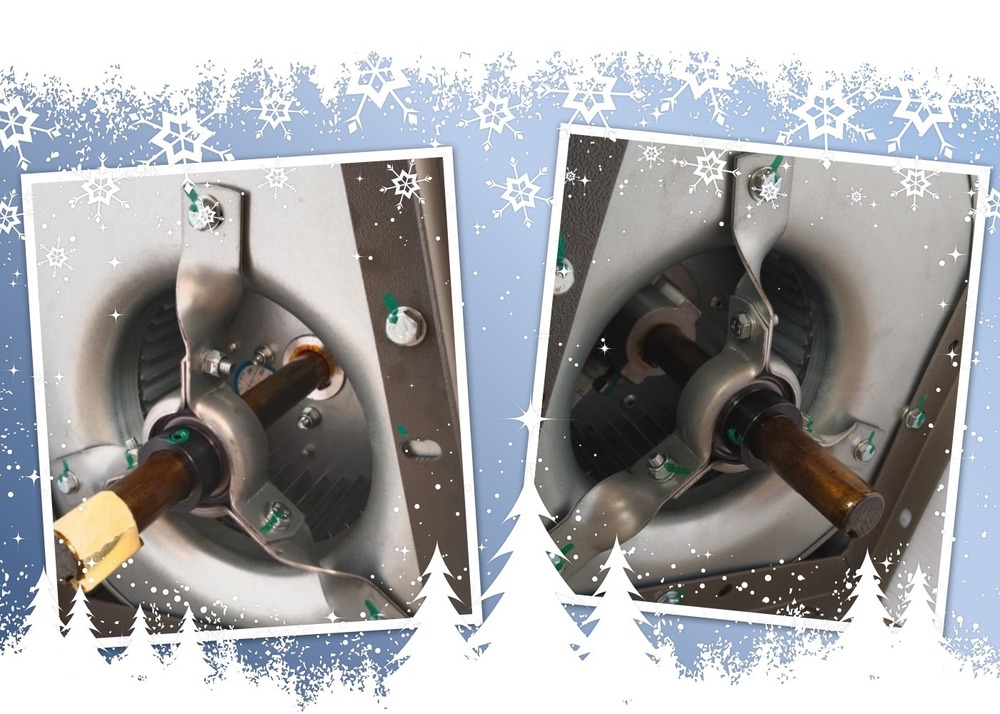

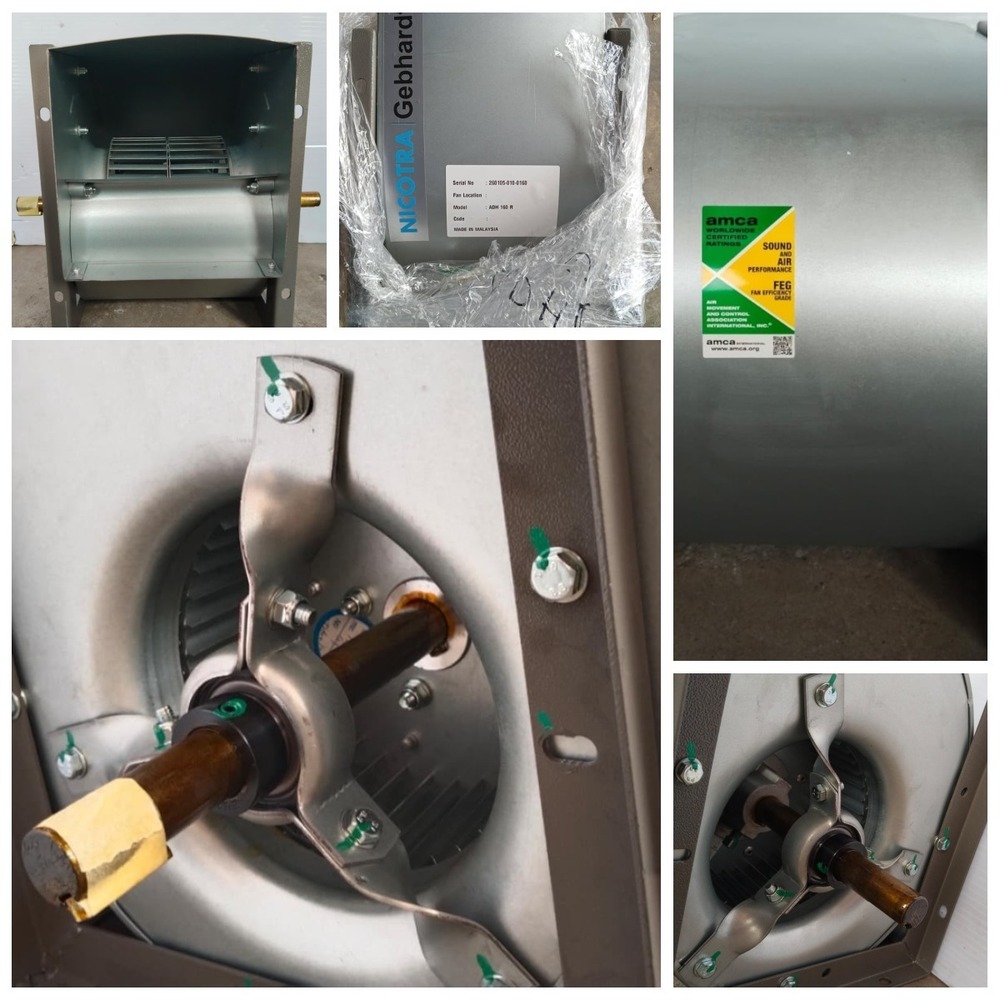

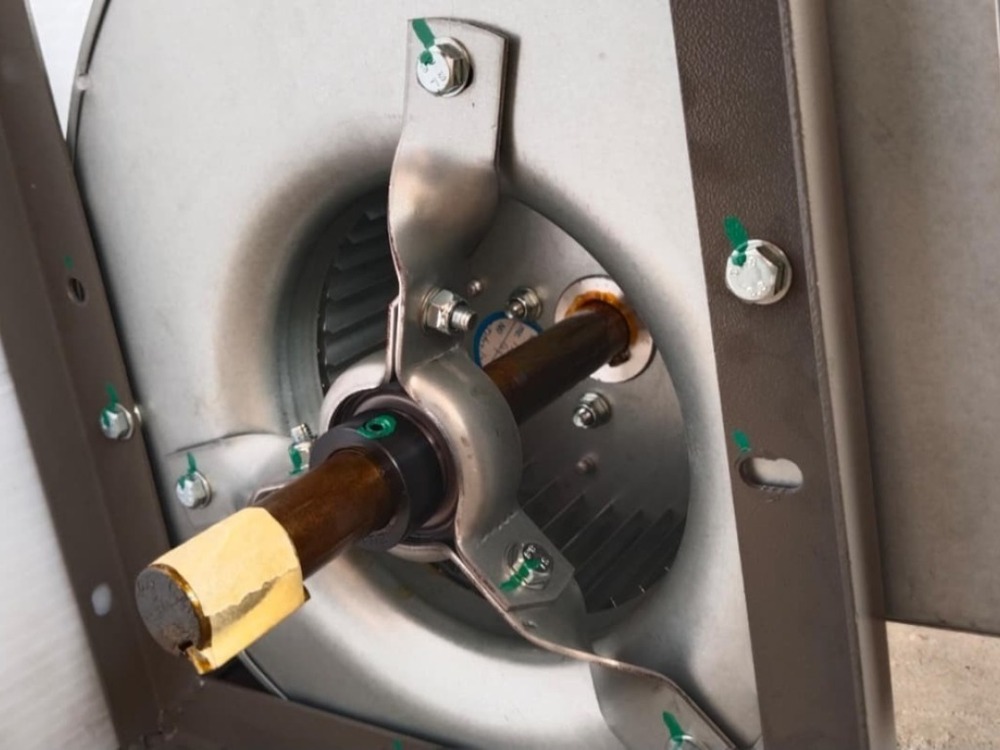

Nicotra Backward Curved Centrifugal Fan RDH 160 S

Send Inquiry

Request To Call Back

Nicotra Backward Curved Centrifugal Fan RDH 160 S

Get a Price/Quote

MOQ : 1 Piece

Nicotra Backward Curved Centrifugal Fan RDH 160 S Specification

Instruments Type
Fan

Temperature
Max. 60C

Air Flow
Max. 260 m/h

Automation Grade
Manual

Usage & Applications
HVAC, Air Handling Units, Ventilation Systems

Measurement
Air Flow

Efficiency
High Efficiency, up to 85%

Power Source
Electric

Orientation
Horizontal

Product Type
Backward Curved Centrifugal Fan

Material
Galvanized Steel

Cooling System
Air Cooled

Noise Level
58 dB(A)

Capacity
Up to 260 m/h

Voltage
230 V / 50 Hz

Weight
Approx. 5.2 kg

Dimension (L*W*H)
Approx. 240 x 220 x 185 mm

Surface
Powder Coated

Motor Type
Single-phase, External Rotor Motor

Speed
2700 rpm

Impeller Type
Backward Curved

Connection
Terminal Box

Fan Housing
Galvanized Sheet Steel

Ingress Protection
IP44

Mounting
Direct

Static Pressure
Up to 340 Pa

Model
RDH 160 S

Insulation Class
Class F

Bearing Type
Ball Bearing

Nicotra Backward Curved Centrifugal Fan RDH 160 S Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Nicotra Backward Curved Centrifugal Fan RDH 160 S

Nicotra Backward Curved Centrifugal Fan RDH 160 S

Product Benefits

Product	RDH 160 S
Brand	Nicotra
Description	Extractor Fan
Condition	New

Find Cheap Spare Parts For Machines Using The Products of Nicotra.Our Team of experts will find the best sales prices for products of Nicotra - RDH 160 S Extractor Fan in USA.Using the products of Nicotra will minimize your costs on spare parts.Our job is to save you time and minimize your expenses on spare parts and industrial components.Our company is not an official distributor of Nicotra, but we are selling their products at competitive prices.Purchase high quality spare parts of Nicotra - RDH 160 S Extractor fan in INDIA on cheap prices.With each day we gain more and more experience and thats why we are able to satisfy your needs for spare parts.You may fill out our Request Form or Send Your Enquiry by E-Mail envirotech76@yahoo.co.in

Engineered for High Performance

With its backward curved impeller and direct drive, the RDH 160 S ensures optimal air movement and energy efficiency. The external rotor motor operates at 230 V/50 Hz and supports a maximum speed of 2700 rpm, making it well-suited for demanding HVAC and ventilation setups.

Durable and Safe Construction

The fan boasts a galvanized sheet steel housing, powder-coated surface for added protection, and IP44 ingress protection rating. Ball bearings and Class F insulation maximize operational reliability, even at ambient temperatures up to 60C.

Versatile Applications

Ideal for HVAC systems, air handling units, and general ventilation, this fan serves manufacturers, suppliers, and wholesalers across India. Its compact dimensions and horizontal orientation allow for easy integration into existing airflow systems.

FAQs of Nicotra Backward Curved Centrifugal Fan RDH 160 S:

Q: How do I install the Nicotra RDH 160 S centrifugal fan?

A: The RDH 160 S fan is meant for direct mounting. Ensure the fan is fixed on a stable surface with adequate support, connect the terminal box to a 230 V, 50 Hz power supply, and follow the manufacturers installation instructions for safe operation.

Q: What are the main benefits of using a backward curved centrifugal fan like the RDH 160 S?

A: Backward curved centrifugal fans offer higher efficiency (up to 85%), lower noise, and better handling of static pressure, making them excellent for HVAC and ventilation applications requiring consistent and reliable air movement.

Q: When should I consider using this fan in my HVAC or ventilation system?

A: Consider using the RDH 160 S when you need high airflow (up to 260 m/h), moderate static pressure (up to 340 Pa), compact design, and reliable performance in systems where noise and efficiency are important factors.

Q: Where can the Nicotra RDH 160 S be used effectively?

A: This fan is suitable for operations in HVAC installations, air handling units, ventilation ducts, and other industrial or commercial environments where efficient air circulation and pressure control are needed.

Q: What is the expected maintenance process for this centrifugal fan?

A: Routine maintenance involves periodic inspection of the ball bearings, checking for secure electrical connections within the terminal box, cleaning the fan blades, and ensuring that the fan housing remains free of dust and debris for optimal operation.

Q: How does the IP44 rating benefit the operation of the RDH 160 S?

A: IP44 ingress protection ensures the fan is safe from solid particles over 1 mm in diameter and splashing water, making it dependable for indoor environments where moisture is present.

Q: What advantage does the external rotor motor provide in this model?

A: The external rotor motor design results in a compact, efficient build that improves cooling and reduces noise, contributing to the overall high efficiency and extended lifespan of the RDH 160 S fan.
