Industry Leaders Supplier Magnehelic Differential Pressure Gauge Colour Overlay

Send Inquiry

Request To Call Back

Industry Leaders Supplier Magnehelic Differential Pressure Gauge Colour Overlay

Price 13500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Industry Leaders Supplier Magnehelic Differential Pressure Gauge Colour Overlay Specification

Display
Analog

Thread
NPT 1/8 inch

Material
Metal Alloy

Usage
POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Dial Material
Plastic

Size
4" (101.6 MM) Diameter Dial Face.

Pointer Material
Plastic

Processing Type
Standard

Product Type
Industry Leaders Supplier Magnehelic Differential Pressure Gauge Colour Overlay

Diameter
4 inch / 100 mm

Weight
550 Grams (g)

Mount Type
Back

Color
WHITE/Black

Scale Range
MM WC/ CM / PAC / KPA / INCH

Accuracy
2% (-HA model 1) of FS (3% (-HA 1.5%) on -0, -100PA, -125PA, -10MM and 4% (-HA 2%) on -00, -60PA, -6MM Ranges), Throughout Range at 70F (21.1C).

Industry Leaders Supplier Magnehelic Differential Pressure Gauge Colour Overlay Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
YAS

About Industry Leaders Supplier Magnehelic Differential Pressure Gauge Colour Overlay

Magnehelic Gauge Colour Overlay, 4 inch / 100 mm

Industry Leaders Supplier Magnehelic Differential Pressure Gauge Colour Overlay

Magnehelic Gauge not included SOLD SEPARATELY

Colour overlay includes 10 Arcs which can be applied to the gauge

Wrench is used to take off the front plate to allow colour overlay to be applied

Official Dwyer Colour Overlay

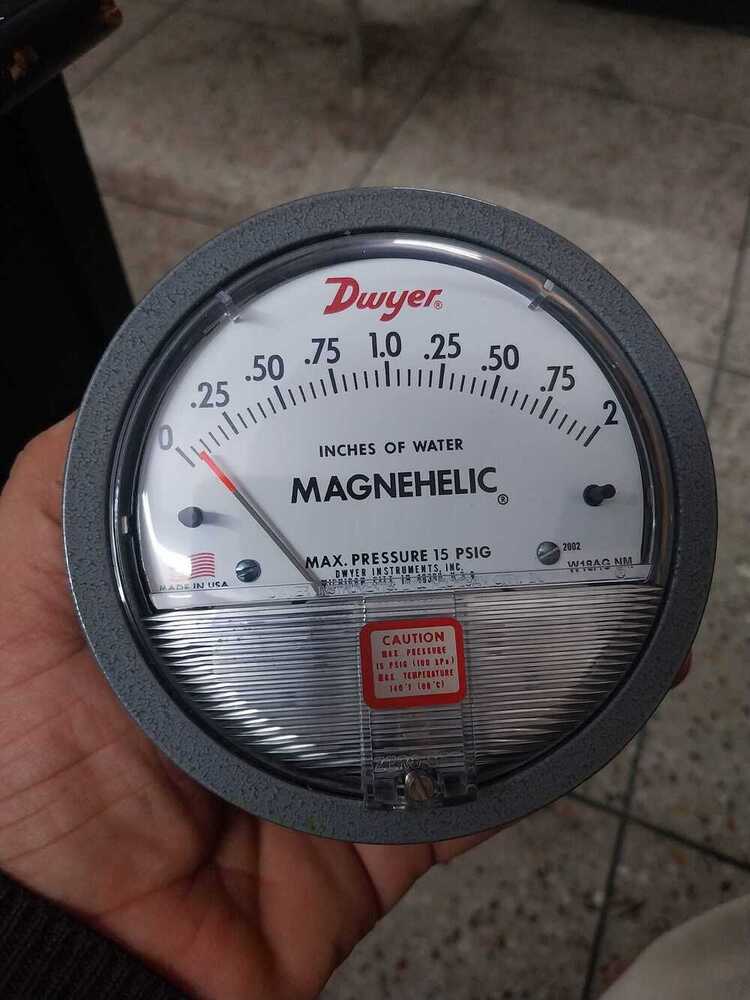

Dwyer Magnehelic Low Differential Pressure is an Industry Standard Gauge For Low Differential Pressure Monitoring.

Model: 2000-60PA (Range 0-60Pa) is a very common supply for Clean Room Pressure Monitoring and Also Common in LEV (e.g. Fume Cupboard)
Applications. In Addition, New in 2020, Dwyer Have added a new 0-30Pa Model for Increased Accuracy and Resolution at Very Low Pressures.

Higher Magnehelic Ranges Such as 2000-250PA and 2000-500PA are common place in HEPA Filter monitoring.
Accompanied with our in-house green/red (go/no-go) zoning, these are ideal for monitoring of filter puncture and blocking. With an exterior Finish tested against a 168hr salt spray test, Dwyer Magnehelic DP Gauges are also often found in offshore Applications.

The Dwyer Magnehelic Low Differential Pressure Gauge offers a non contact solution of measurement. A Magnet Drives a helix, in turn Rotating the Dial Pointer to show an accurate indication of Differential Pressure measurement. With this non contact technology, the Dwyer Magnehelic offers a stable and repeatable measurement of Differential Pressure. For an instrument with a 4-20mA transmitter output consider the Dwyer Series DH3 Digihelic Differential Pressure Controller or with 2x relay contacts consider the Dwyer Photohelic A3000 Switch Gauge (230V mains powered) or Dwyer Photohelic 3000MR Switch Gauge (24V).

Dwyer Magnehelic Ranges Available Include (Custom Ranges Also Available)

030Pa, 060Pa, 0125Pa, 0250Pa, 0500Pa, 01000Pa (1KPA)
02KPA, 03KPA, 05KPA, 010KPA, 030KPA

Fluidic Hold Several Pa (Pascal) Ranges ex/stock.
Also available in "WG, mm WG, Mbar and Other Customer Ranges (Including Air Flow) via Fluidics in House Rescaling Service.

Fluidic offer Multiple 'Magnehelic Solution services, including green/red (go/no-go) overlay zoning, calibration and instrumentation assemblies. Our 'Magbo Enclosure mounts offer the Magnehelic Gauge in stainless steel or polycarbonate instrument enclosures, supplied with Professionally Finished Traffolyte Tagging. DP Terminations can be back, Bottom or Top Mounted to Suit. Doors can be Hinged as Required. Our instrumentation panels also offer the Magnehelic DP Gauge mounted to a 5 valve, stainless steel back plate. This is ideal for calibration and maintenance checking, which can be carried out without having to Physically Remove the Magnehelic Gauge From Service.

magnehelic-gauge-colour-overlay

Engineered for Accurate Differential Pressure Monitoring

Built to deliver reliable and highly precise measurements, this Magnehelic Differential Pressure Gauge ensures optimal performance in various heavy-duty settings. Its advanced design accommodates multi-range scales and withstands demanding industrial conditions, making it indispensable for safe process management. The clear analog display and durable construction contribute to its consistent performance.

Versatile Applications Across Industries

Designed for integration into power, cement, steel, fertilizer, and textile plants, this gauge provides efficient and precise pressure monitoring wherever required. Its comprehensive scale range and mounting versatility make it suitable for new installations or replacement in existing setups, supporting a variety of pressure measurement needs.

Easy Installation and Operation

With its standard back mount and NPT 1/8-inch threading, the Magnehelic Differential Pressure Gauge offers straightforward installation. The analog display and color overlay facilitate clear readings, allowing users to monitor and adjust pressure effortlessly. Maintenance is minimal, supporting prolonged and reliable use in demanding environments.

FAQ's of Industry Leaders Supplier Magnehelic Differential Pressure Gauge Colour Overlay:

Q: How is the Magnehelic Differential Pressure Gauge installed?

A: This gauge is equipped with a back mount and NPT 1/8-inch threads, allowing easy and secure installation onto your process line. Simply position the gauge onto the designated mounting area and connect according to manufacturer guidelines for the most accurate readings.

Q: What types of environments is this gauge suitable for?

A: The Magnehelic Differential Pressure Gauge is ideal for power plants, cement factories, steel plants, fertilizer units, and textile industries. Its robust metal alloy construction and durable plastic dial enable it to withstand harsh industrial conditions.

Q: When should I use a differential pressure gauge like this one?

A: Use this gauge when you need to monitor and maintain safe pressure differentials across filters, clean rooms, ducts, or other equipment in an industrial setting. Regular monitoring helps prevent equipment failure and ensures system efficiency.

Q: Where can I benefit from deploying this pressure gauge?

A: You will find benefits wherever precise pressure measurement is critical to your operation-especially in process plants and facilities where safety, efficiency, and environmental compliance depend on accurate differential pressure monitoring.

Q: What scale ranges are available for measurement?

A: The gauge accommodates a wide range of pressure measurements, including MM WC, CM, PAC, KPA, and INCH, offering flexibility based on your system's requirements.

Q: How accurate is the gauge in different ranges?

A: The standard model offers 2% full scale accuracy (FS), with the -HA model being even more precise at 1% FS. Some low-range models have slightly wider accuracy bands, which are specified in the product details.

Q: What are the benefits of using this differential pressure gauge in industrial processes?

A: Using this gauge improves operational safety, helps optimize filtration systems, ensures process efficiency, and supports preventive maintenance by alerting you to pressure discrepancies before they escalate into costly issues.
