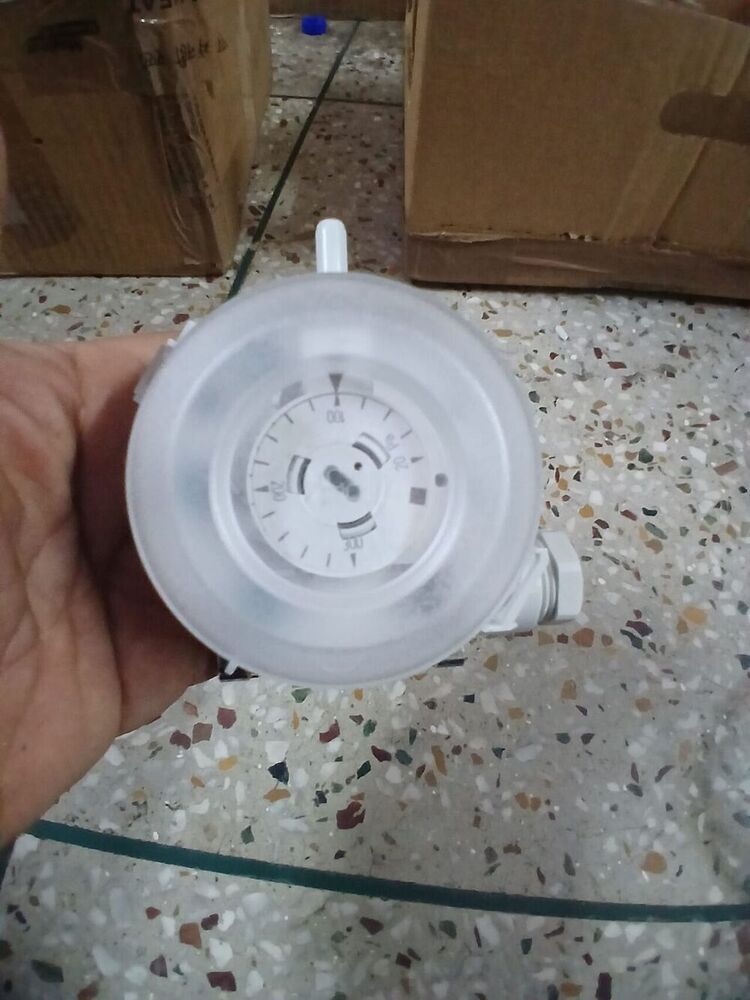

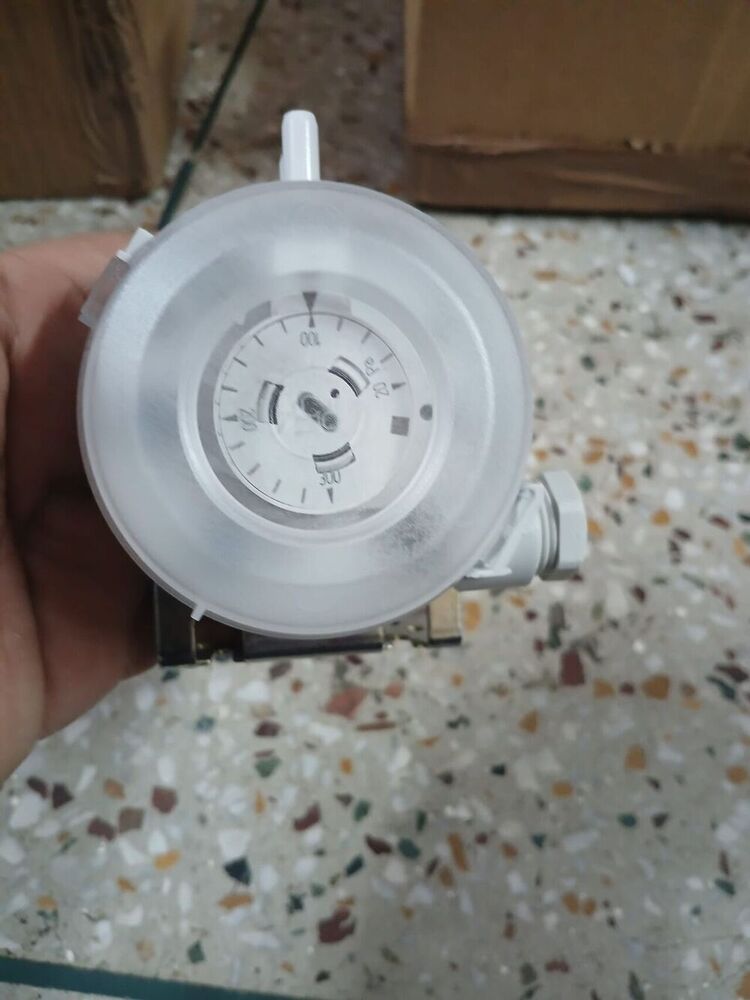

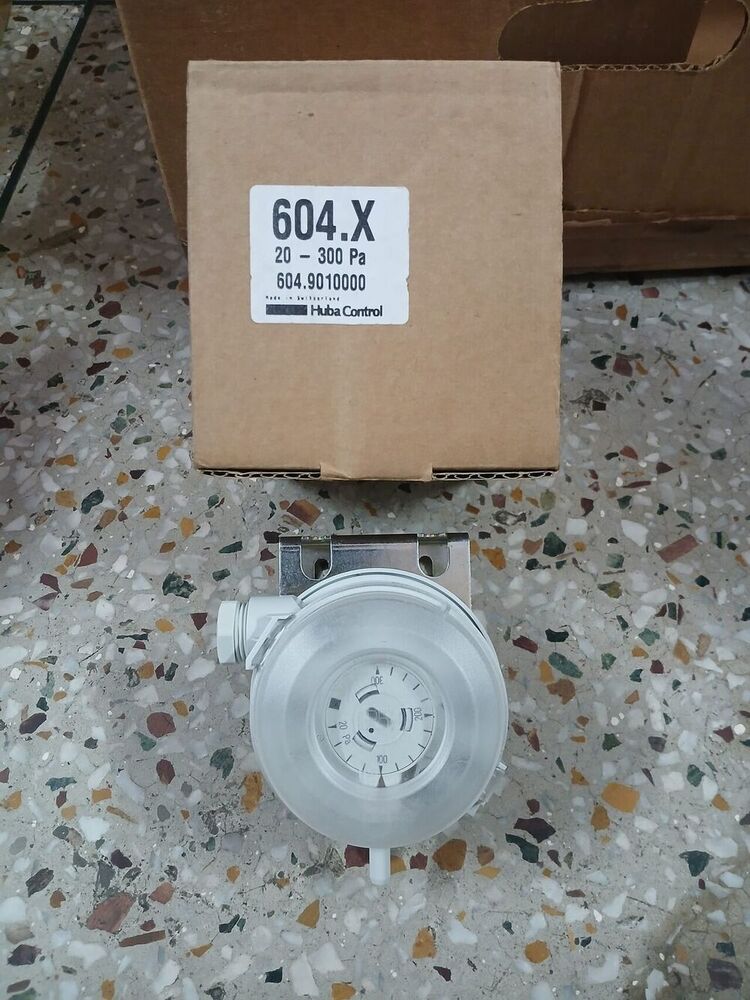

Huba Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar

Price 4800 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Huba Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar Specification

Product Type
Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar

Power Rating
Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar

Pressure Range
Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar

Application
AHU, CRAC, MOBILE HYDRAULIC

Usage & Applications
AHU,CRAC,MOBILE HYDRAULIC

Weight
250 Grams (g)

Warranty
1 YERS

Huba Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar Trade Information

Minimum Order Quantity
1 Piece

FOB Port
GANDHI NAGER

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
EXTRA

About Huba Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar

No alternative text description for this image

Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar

Model : 604.99957

Range : 0.2....3 Mbar

Max : 50 Mbar ( -30T85 )

Max : 50 Mbar ( -30T75 )

Made In Switzerland

Product information
The Pressure Switches of Type 604 Monitor Filters and Fans in Ventilation Ducts As Well As Air Dampers In Primary/Secondary Controls in Ip Function The Series Divided Into Five Pressure Range Gradations Impresses With Extreme Ease Of Installation Combination Brackets,Snap-On Covers,And Screw Terminals.Unique Is The High Adjustment Accuracy Through Individual Scale Engraving

Easy To Install

User-Friendly Snap Closure For The Cover

Cable Entry Aid

Cable Strain Relief Integrated Into PG11

Combination Bracket For Vertical Or Horizontal Mounting

High Adjustment Accuracy Through Individual Scale Engraving Per Switch

Long-Term Stable Switching Points Through Trapezoidal Bead Membrane

Multilayer Contact With Gold Plating

Product Feature

Technical Data

Pressure Measuring Range:0...50 Mbar Relative & Difference

Sensor Weight:143g With Type C combination bracket

Field Of Application

Media:Air Neutral Gas

Medium Temperature:-30...85C

Permissible Overload On One Side:75 Mbar-30...75C 50 Mbar-30...85C

Ambient Condition

Ambient Temperature:-30... 85C

Storage Temperature:-40...85C

Material

Housing With Media Contact:PC 10% GF

Measuring Element With Media Contact:Silicone LSR Tempered At 200C,Outgassing-Free

Cover With Media Contact:PC

Electrical Data

Switching Load:5 A at 250 VAC

Resistive Switching Load:4 A at 30 VDC

Inductive Switching Load:0.8 A at 250 VAC 0.7 A at 30 VDC

Switching Load GAR Application:1 A at 250 VAC 0.2 A at 30 VDC

Contact System:Changeover Switch

Lifespan:>10000000 Schaltspiele Mechanical

Installation Guide

Installation Orientationany:Any Recommendation Vertical Pressure Connections Downwards Factory Adjustment Any Recommendation Horizontal Cover Down Switching Points Are Approx 11 Pa Lower Than The Set Scale Value Any Recommendation Horizontal Cover Upward Switching Points Are Approx 11 Pa Higher Than The Set Scale Value

Approval

UL:MFHX2/8 Or XAAK2/8

DVGW:According to DIN EN 1854

Low Voltage Directive:2014/35/EU

Gas Appliances Directive:2016/426/EU

Applications
AHU

CRAC

MOBILE HYDRAULIC

Accessories

Connection Set Straight:For Ventilation Duct Including 2 M Hose Plastic

Angle Type B

Combination Bracket Type C

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 1.8...2.1 MM

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 0.8...1.1 MM

Angle Type A

Fastening Screw:For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws Required

Connection Set 90 Angled:For Ventilation Duct Including 2 M Hose Metal

Calibration Certificate

Mounting Ring

Closed Fastening Ring

Additional Information:

Item Code: Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar

WhatsApp No.9871034100,9868958924,9650264867,9716640145,8368866030,8368801023

www.envirotechindustrialproducts.in

www.envirotechindustrialproduct.com

www.envirotechindustrialproducts.com

Precise Low-Pressure Monitoring

The Huba Model 604.99957 differential pressure switch excels in applications where accurate low-pressure detection is critical. Its sensitivity within the 0.2 to 3 mbar range makes it ideal for protecting sensitive equipment and monitoring air or fluid pressure in HVAC and hydraulic systems. The device's compact design and consistent performance simplify integration into a variety of installations.

Extensive Application Versatility

Engineered for flexibility, this pressure switch is commonly used in Air Handling Units (AHU), Computer Room Air Conditioning (CRAC), and mobile hydraulic machinery. Its practical design allows seamless adaptation for manufacturers, distributors, exporters, and suppliers seeking reliable components in the Indian industrial market.

FAQ's of Huba Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar:

Q: How do I install the Huba Differential Pressure Switch Model 604.99957?
A: Installation involves connecting the switch to your system's pressure lines within the specified 0.2-3 mbar range. Secure the unit using appropriate mounting accessories, ensure proper electrical connections, and verify setup according to the manufacturer's guidelines for optimal performance.

Q: What are the main benefits of using the Huba Model 604.99957?
A: This switch offers precise low-pressure detection, enhancing protection and efficiency in HVAC systems like AHU and CRAC, as well as mobile hydraulic applications. Its reliable operation, compact size, and one-year warranty ensure low maintenance and long-term value.

Q: Where can I use this pressure switch effectively?
A: It is especially suited for Air Handling Units, CRAC systems, and mobile hydraulic equipment, making it an excellent choice for industrial and commercial settings where accurate pressure monitoring is essential.

Q: What is the process for obtaining after-sales support or warranty claims?
A: For after-sales support or warranty claims (1 year), contact the authorized distributor, exporter, or supplier from whom the switch was purchased. Have your purchase details and product information ready for efficient service.

Q: When should the differential pressure switch be checked or maintained?
A: Regular inspection every six months is advisable to ensure it maintains optimal performance. Check electrical connections and clean the device to avoid dust accumulation, which could affect sensitivity.

Q: How does the Huba Model 604.99957 improve system safety?
A: By accurately monitoring very low differential pressures, it helps detect abnormalities or leaks early, preventing potential system failures and ensuring safe, uninterrupted operation of your equipment.
