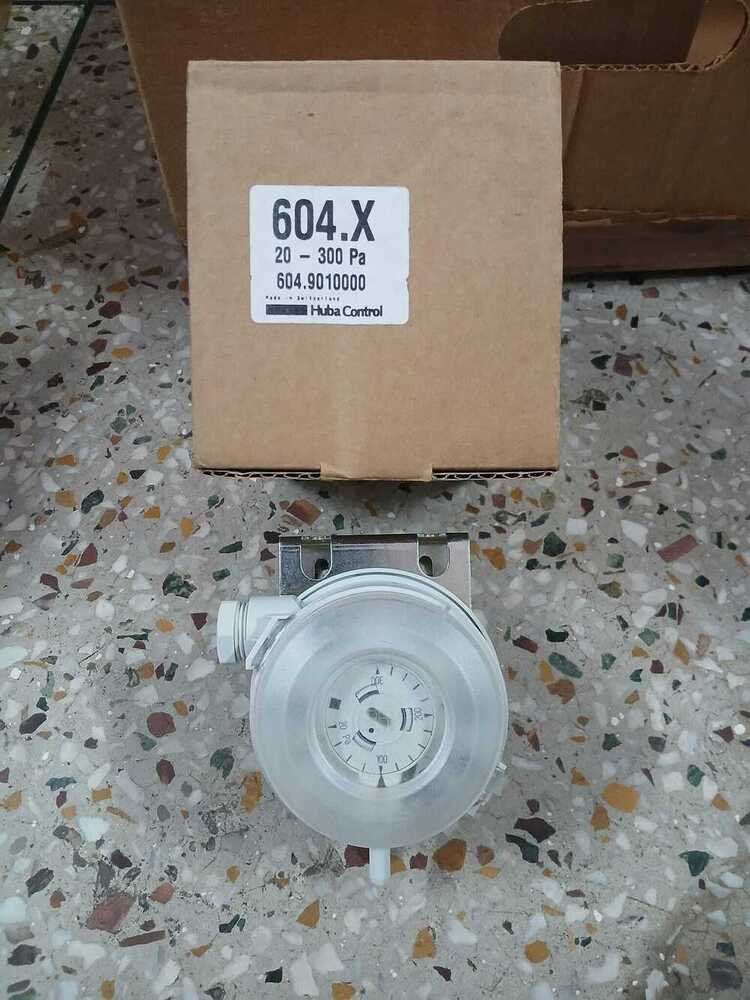

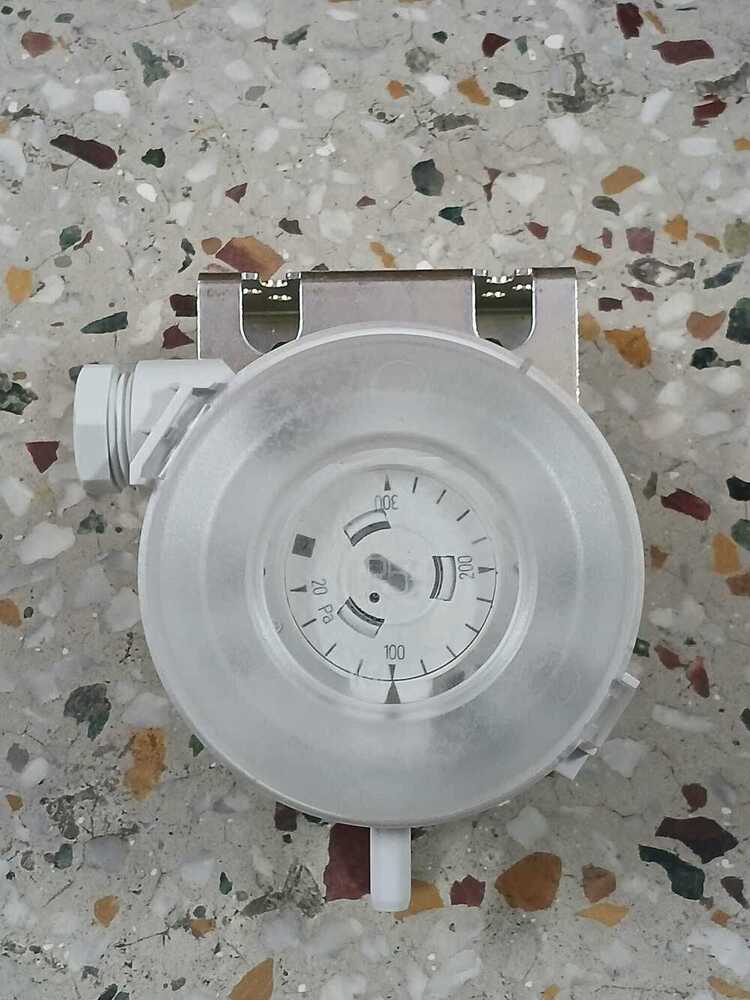

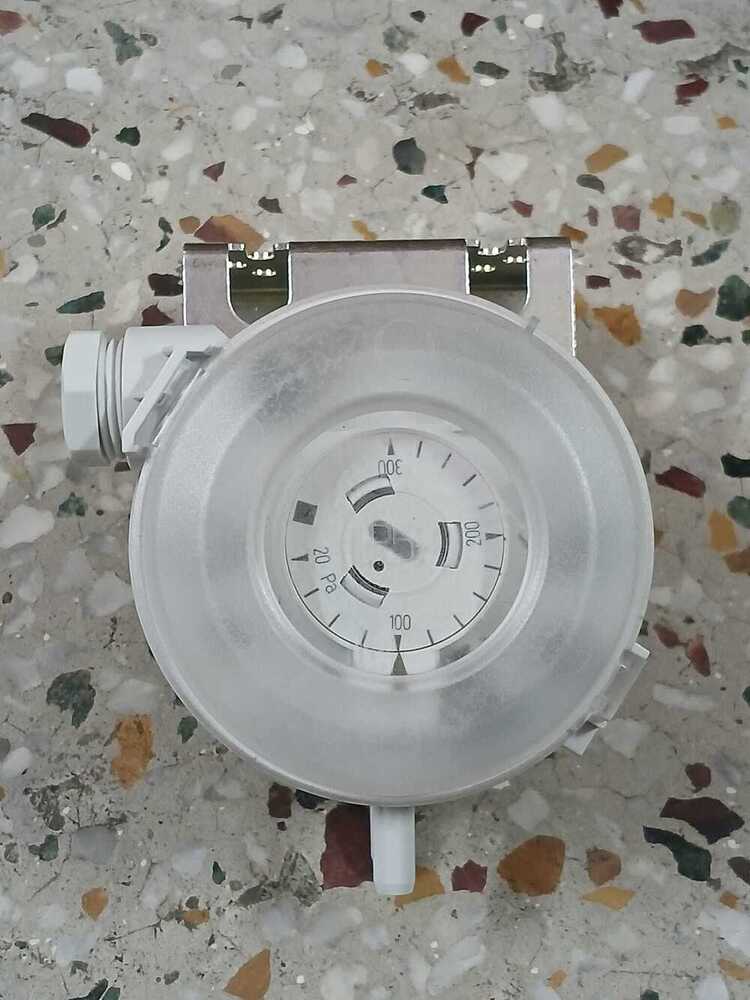

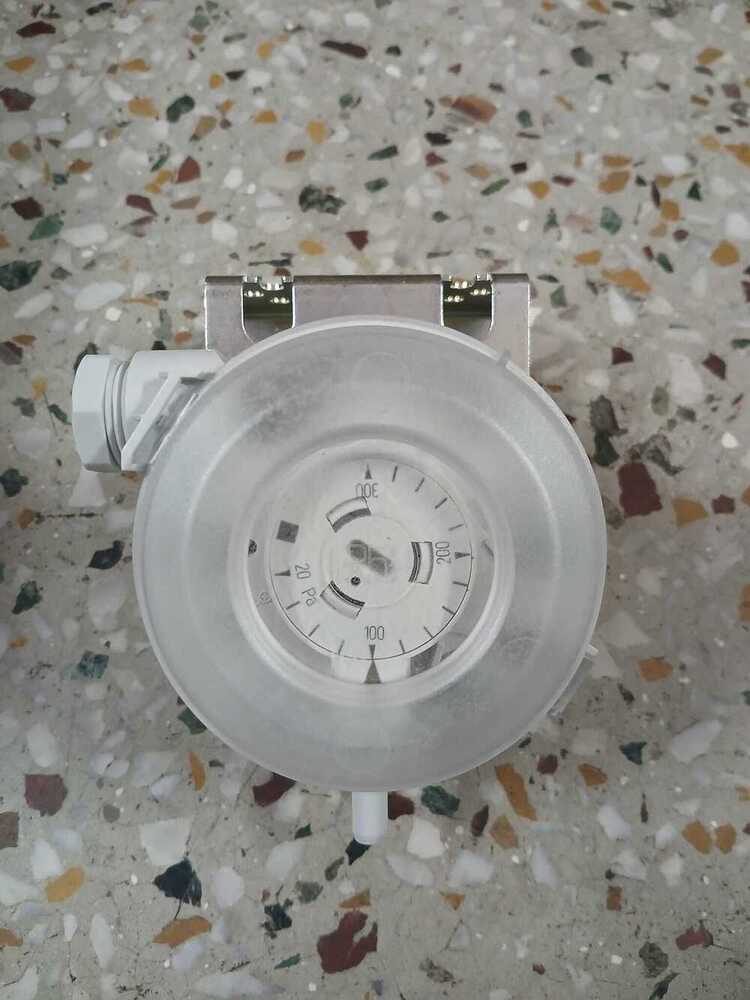

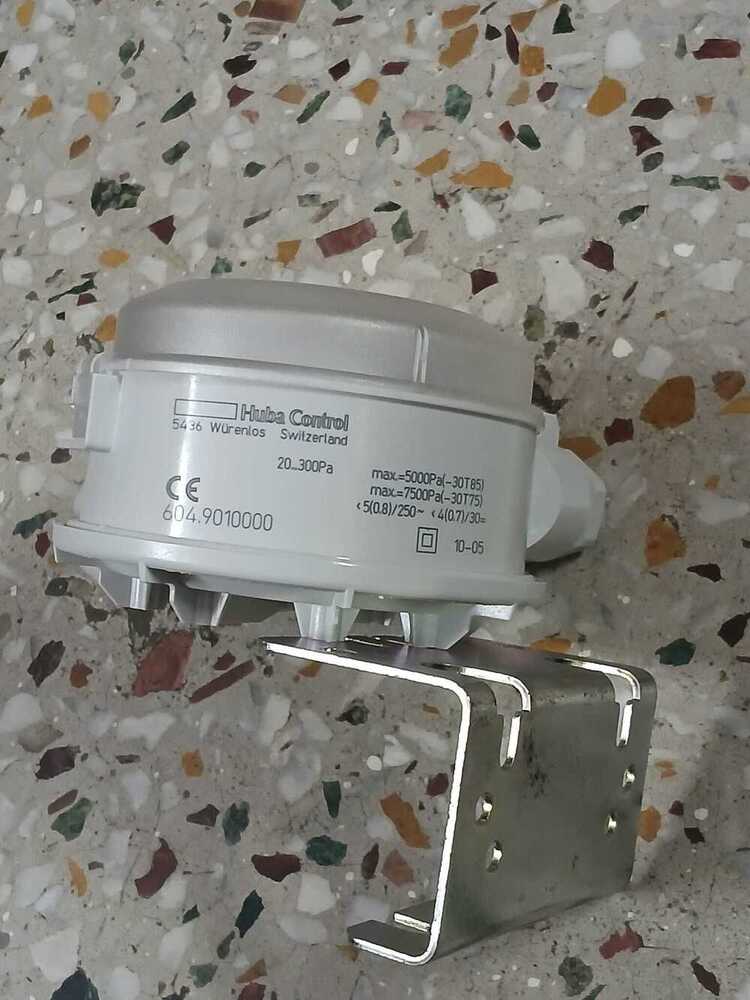

Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar

Send Inquiry

Request To Call Back

Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar

Name: Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar
Brand: ENVIRO TECH INDUSTRIAL PRODUCTS
Price: 4800 INR
Availability: InStock

Price 4800 INR/ Piece

Get a Price/Quote

MOQ : 30 Pieces

Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar Specification

Working Temperature
-20C to +85C

Max Pressure
50 mbar

Function
Monitoring and controlling low differential pressure

Thread size
6 mm tube connection

Mechanical Life
>10 million switching cycles

Product Type
Differential Pressure Switch

Max. Current
6 (2.5) A at 250 V AC, 1 A at 24 V DC

Max. Power
150 VA (AC); 25 W (DC)

Max. Voltage
250 V AC

Protection Class
IP54

Pressure Range
0.2...3 mbar

Application
Industrial gas, air, and neutral media monitoring

Output Signal
Switch contact (SPDT)

Size
Approx. 75 x 60 x 33 mm

Color
Grey

Weight
Approx. 150 g

Contact Material
Silver alloy (AgNi)

Mounting Position
Any

Switching Hysteresis
Fixed

Electrical Connection
Screw terminals

Housing Material
Plastic, flame retardant

Switch Point Adjustable
Yes

Medium
Air or neutral gaseous media

About Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar

www.envirotechdelhi.net

Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar

Model : 604.99957

Range : 0.2....3 Mbar

Max : 50 Mbar ( -30T85 )

Max : 50 Mbar ( -30T75 )

Made In Switzerland

Product information
The Pressure Switches of Type 604 Monitor Filters and Fans in Ventilation Ducts As Well As Air Dampers In Primary/Secondary Controls in p Function The Series Divided Into Five Pressure Range Gradations Impresses With Extreme Ease Of Installation Combination Brackets,Snap-On Covers,And Screw Terminals.Unique Is The High Adjustment Accuracy Through Individual Scale Engraving

Easy To Install

User-Friendly Snap Closure For The Cover

Cable Entry Aid

Cable Strain Relief Integrated Into PG11

Combination Bracket For Vertical Or Horizontal Mounting

High Adjustment Accuracy Through Individual Scale Engraving Per Switch

Long-Term Stable Switching Points Through Trapezoidal Bead Membrane

Multilayer Contact With Gold Plating

Product Feature

Technical Data

Pressure Measuring Range:0...50 Mbar Relative & Difference

Sensor Weight:143g With Type C combination bracket

Field Of Application

Media:Air Neutral Gas

Medium Temperature:-30...85C

Permissible Overload On One Side:75 Mbar-30...75C 50 Mbar-30...85C

Ambient Condition

Ambient Temperature:-30... 85C

Storage Temperature:-40...85C

Material

Housing With Media Contact:PC 10% GF

Measuring Element With Media Contact:Silicone LSR Tempered At 200C,Outgassing-Free

Cover With Media Contact:PC

Electrical Data

Switching Load:5 A at 250 VAC

Resistive Switching Load:4 A at 30 VDC

Inductive Switching Load:0.8 A at 250 VAC 0.7 A at 30 VDC

Switching Load GAR Application:1 A at 250 VAC 0.2 A at 30 VDC

Contact System:Changeover Switch

Lifespan:>10000000 Schaltspiele Mechanical

Installation Guide

Installation Orientationany:Any Recommendation Vertical Pressure Connections Downwards Factory Adjustment Any Recommendation Horizontal Cover Down Switching Points Are Approx 11 Pa Lower Than The Set Scale Value Any Recommendation Horizontal Cover Upward Switching Points Are Approx 11 Pa Higher Than The Set Scale Value

Approval

UL:MFHX2/8 Or XAAK2/8

DVGW:According to DIN EN 1854

Low Voltage Directive:2014/35/EU

Gas Appliances Directive:2016/426/EU

Applications
AHU

CRAC

MOBILE HYDRAULIC

Accessories

Connection Set Straight:For Ventilation Duct Including 2 M Hose Plastic

Angle Type B

Combination Bracket Type C

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 1.8...2.1 MM

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 0.8...1.1 MM

Angle Type A

Fastening Screw:For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws Required

Connection Set 90 Angled:For Ventilation Duct Including 2 M Hose Metal

Calibration Certificate

Mounting Ring

Closed Fastening Ring

Additional Information:

Item Code: Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar
WhatsApp No.9871034100,9868958924,9650264867,9716640145,8368866030,8368801023
www.envirotechdelhi.info
www.envirotechdelhi.net
www.envirotechindia.info

www.envirotechdelhi.net

Reliable Low Pressure Monitoring

The Huba Control Model 604.99957 provides highly sensitive and accurate detection of low differential pressures, making it the perfect choice for applications requiring dependable monitoring of air or neutral gases. Its adjustable switch point ensures versatility for diverse industrial requirements.

Durable and Versatile Construction

Built with a flame-retardant plastic housing and IP54 protection, this pressure switch is designed to withstand challenging environments. Compatible with any mounting orientation, it offers installation flexibility for system designers and maintenance engineers alike.

Efficient and Safe Electrical Performance

Equipped with silver alloy (AgNi) contacts, this switch handles up to 6A at 250V AC or 1A at 24V DC, providing reliable switching for a range of control systems. Screw terminal connections make wiring secure and straightforward, ensuring lasting performance.

FAQ's of Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar:

Q: How do I adjust the switch point on the Huba Control Differential Pressure Switch Model 604.99957?

A: The switch point can be manually set within the range of 0.2 to 3 mbar, allowing you to tailor the device for your specific pressure monitoring needs. Detailed adjustment instructions are provided in the user manual.

Q: What types of media can this pressure switch safely monitor?

A: This model is designed for use with air or neutral gaseous media only, making it suitable for industrial gas or ventilation system applications.

Q: When is it beneficial to use the Huba 604.99957 differential pressure switch?

A: It is especially advantageous for supervising and controlling low-pressure conditions in HVAC systems, cleanrooms, or filter monitoring, where precise differentiation and quick response are crucial.

Q: Where can I install this pressure switch for optimal performance?

A: Thanks to its versatile design, the device can be mounted in any position. This flexibility saves installation time and suits various equipment layouts in industrial and commercial environments.

Q: What is the process for connecting the Huba 604.99957 electrically?

A: Electrical connections are made via secure screw terminals, which accommodate common wiring practices and ensure a robust electrical interface. Refer to the supplied wiring diagram for correct installation.

Q: How does this product enhance system reliability and maintenance?

A: With a mechanical life exceeding 10 million switching cycles, IP54 protection, and flame-retardant construction, this pressure switch promotes operational safety, reliability, and minimizes maintenance requirements.
