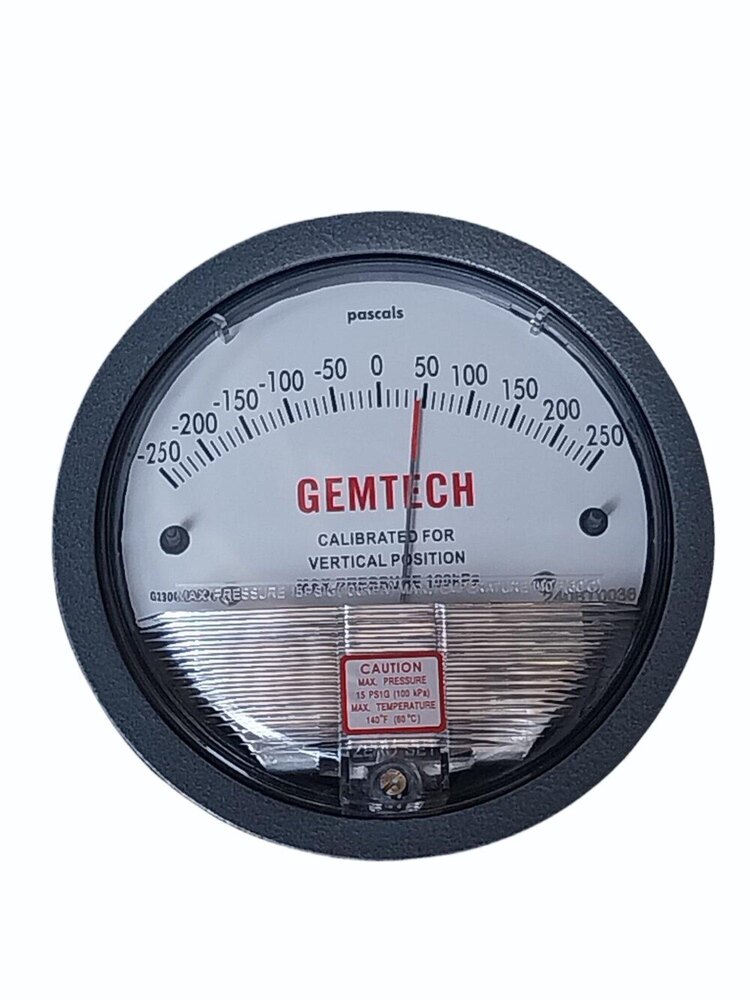

GEMTECH Instruments Differential Pressure Gauge Range 250-0-250 PA

About GEMTECH Instruments Differential Pressure Gauge Range 250-0-250 PA

GEMTECH Instruments Differential Pressure Gauge Range 250-0-250 PA

Series G2000 GEMTECH Differential Pressure Gauges are Widely Utilized For Measuring Pressure of Fan And Blowing Machine, resistance of Filter,Wind Speed, Furnace Pressure,Differential Pressure Of Pore Plate,The Pressure of drum water level,Liquid Amplifier And Hydraulic Pressure System. Meantime,They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment.There Are More Than 81 Models To Suit Your Needs Precisely.The Key Components Adopt Import Materi

SPECIFICATION

• Ambient Temperature- -21 140 -6 60
• Rated Pressure-20 inHg30 inHg (-68103KPa)
• Overpressure-Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa)
• Process Connections-1/8" female NPT duplicate high and low pressure taps-one pair side and one pair back
• Housing-Die cast aluminum case and bezel,with acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test
• Accuracy-2% of full span at 70 (21 (3% on -0,and 4% on -00)
• Range-20 inHg38 inHg (-68KPa130KPa)(Special Specification also can be ordered

FEATURES

• OEM/ODM
• There Is No Need To Fill Liquid To Gauge
• The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure
• It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure
• To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed
• Exact And Stable Fixed Position Of Needle
• The Gauge Has Great Antiknock Characteristics
• There Are 81 Types Of Ranges.Minimum is 0-60 Pa And Maximum is 0-21-KPa

PRODUCT APPLICATIONS

• Filter Monitoring
• Air Velocity With Pitot Tube
• Blower Vacuum Monitoring
• Fan Pressure Indication
• Duct,Room or Building Pressures
• Clean Room Positive Pressure Indication

MODELS & ORDERING

GEMTECH By  Model Number Popularity

• FILTER BY
• Range - PASCAL Of Water



Model	Description
G2000-100PA	Differential Pressure Gauges Range 0-100 Pa,minor divisions 2 Calibrated Vertical scale position
G2000-125PA	Differential Pressure Gauges Range 0-125 Pa,minor divisions 5 Calibrated Vertical scale position
G2000-250PA	Differential Pressure Gauges Range 0-250 Pa minor divisions 5
G2000-300PA	Differential Pressure Gauges Range 0-300 Pa minor divisions 10
G2000-30PA	Differential Pressure Gauges Range 0-30 Pa minor divisions 1 Calibrated Vertical scale position
G2000-500PA	Differential Pressure Gauges Range 0-500 Pa minor divisions 10
G2000-60PA	Differential Pressure Gauges Range 0-60 Pa,minor divisions 1 Calibrated Vertical scale position
G2000-750PA	Differential Pressure Gauges Range 0-750 Pa,minor divisions 25
G2300-100PA	Differential Pressure Gauges Range 50-0-50 Pa,minor divisions 2 Calibrated Vertical scale position
G2300-120PA	Differential Pressure Gauges Range 60-0-60 Pa,minor divisions 2
G2300-250PA	Differential Pressure Gauges Range 125-0-125 Pa, minor divisions 5

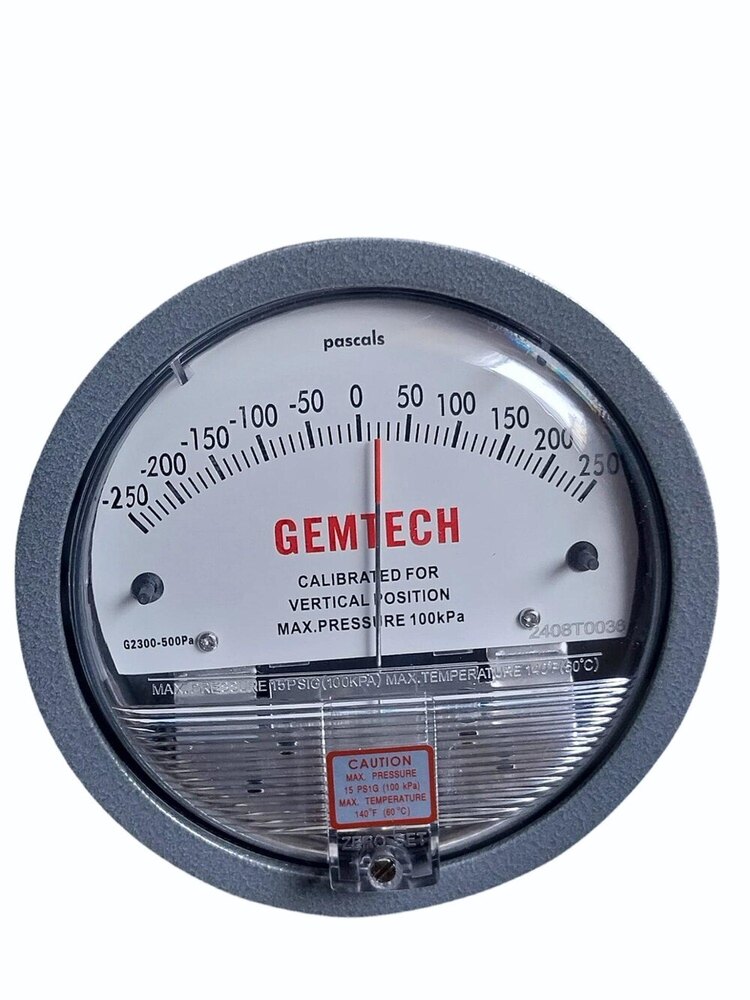

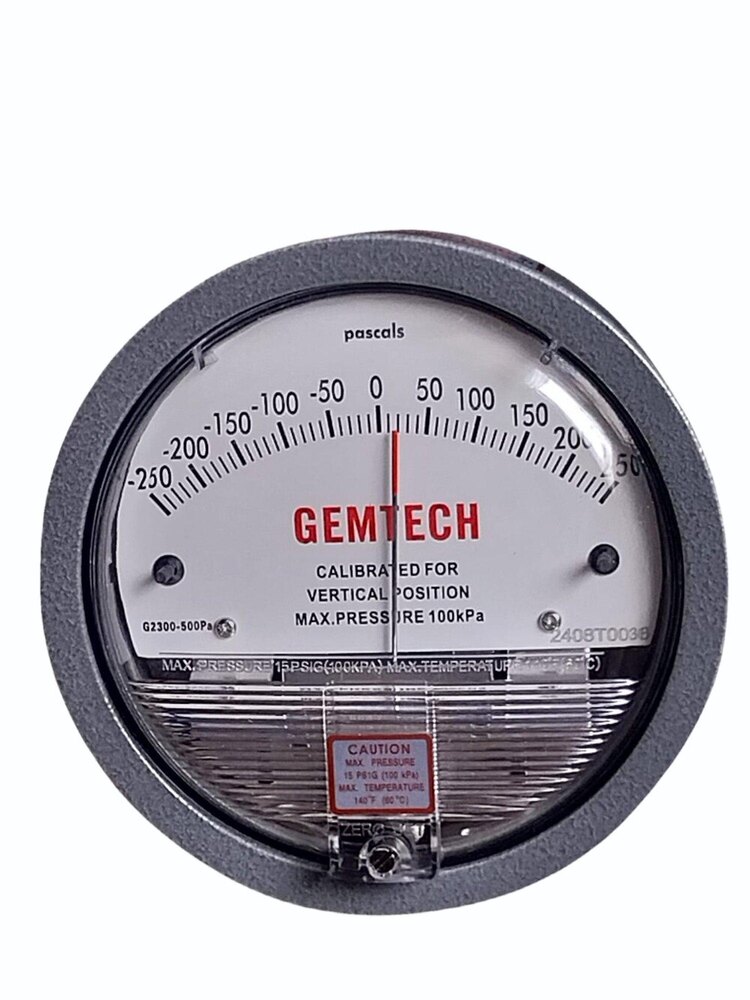

G2300-500PA	Differential Pressure Gauges Range 250-0-250 Pa, minor divisions 10
G2300-60PA	Differential Pressure Gauges Range 30-0-30 Pa,minor divisions 1 calibrated Vertical scale position

Additional Information:

• Item Code: GEMTECH Instruments Differential Pressure Gauge Range 250-0-250 PA
• www.envirotechindia.co.in
• www.envirotechdelhi.net
• www.envirotechdelhi.in

Versatile Pressure Monitoring

The GEMTECH Differential Pressure Gauge is engineered to monitor gas pressure differences with accuracy, offering a solution suitable for process control in diverse industries such as manufacturing, pharmaceuticals, and power generation. Its multiple scale range options provide flexibility for global standards and applications. The analog display ensures that readings are visible even in challenging lighting conditions.


Robust and Reliable Build

With a construction featuring a metal alloy case, durable plastic dial, and precision alloy pointer, this gauge is built to withstand industrial environments. At just 550 grams, it is lightweight but sturdy. The device features a 4-inch (101.6 mm) face for easy readability and back mount installation, ensuring seamless integration into existing systems.


Flexible Installation and Usage

Designed with 1/8" female NPT threaded connections, this gauge can be easily interfaced onto various setups. It is suitable for high and low pressure taps on the side or back, providing installation flexibility. The multi-format scale makes it ideal for laboratories, plants, and other critical environments requiring accurate gas measurement.
