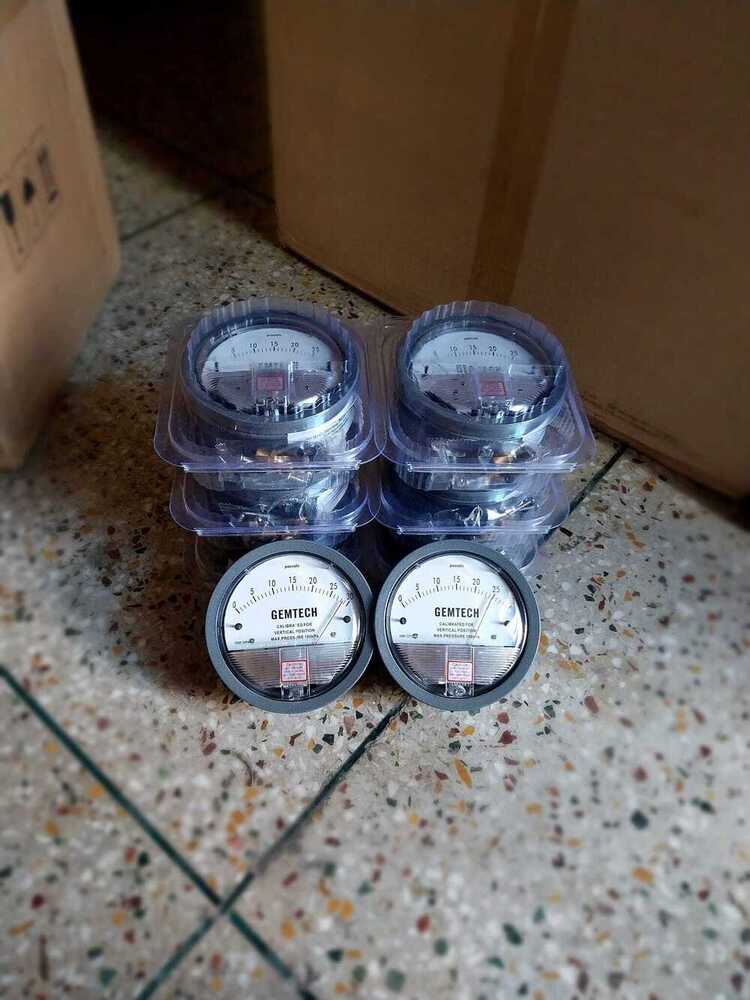

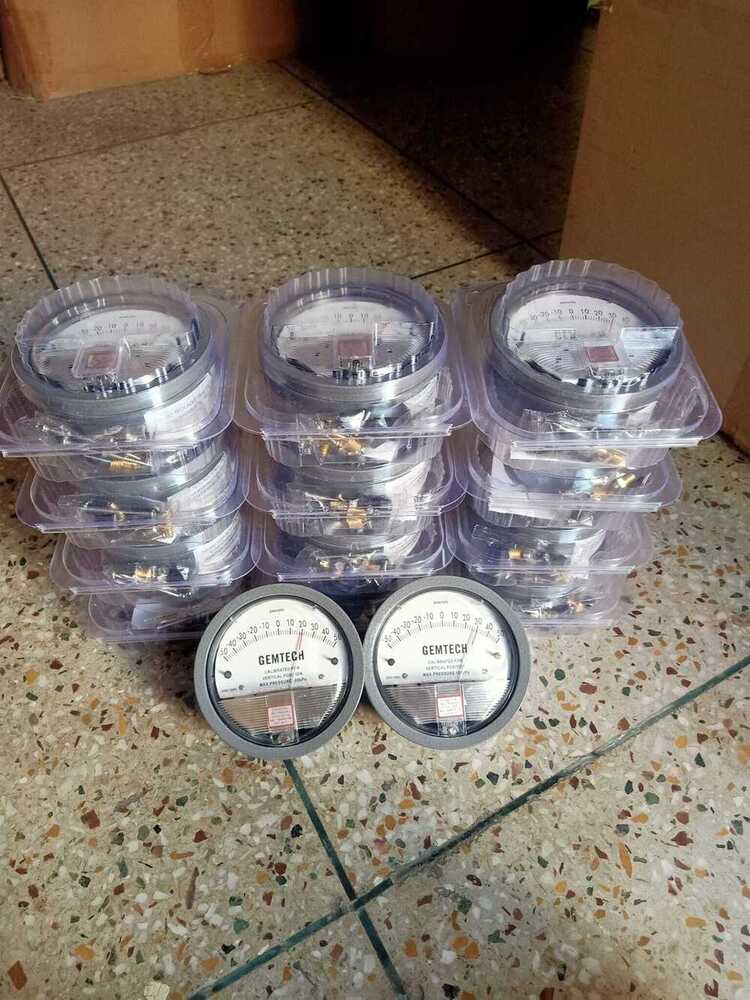

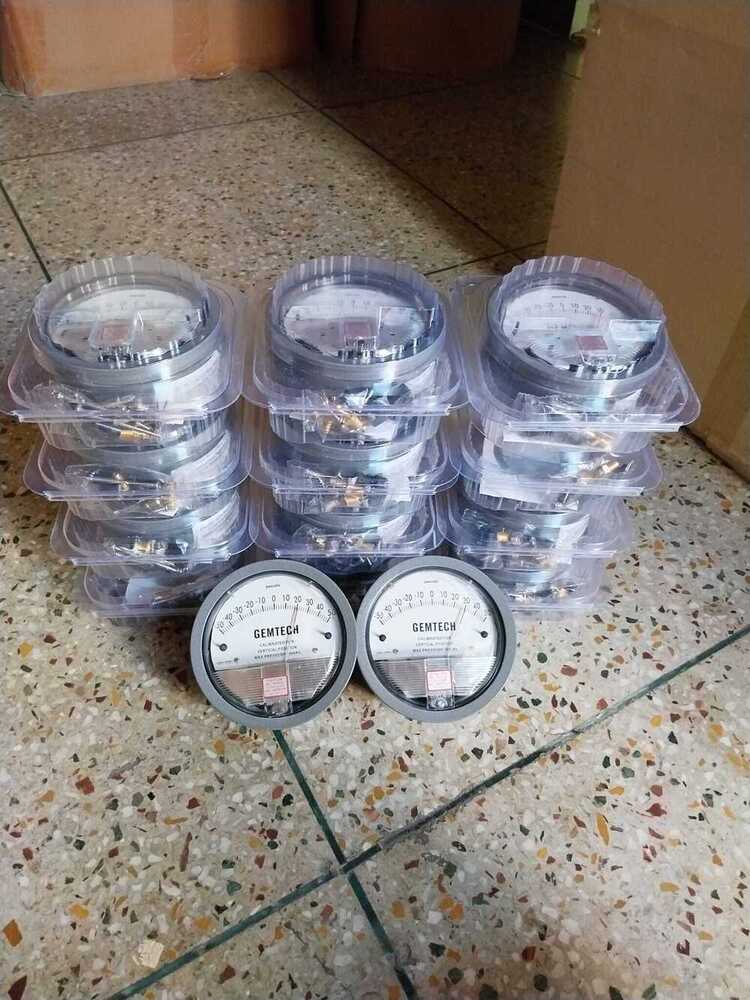

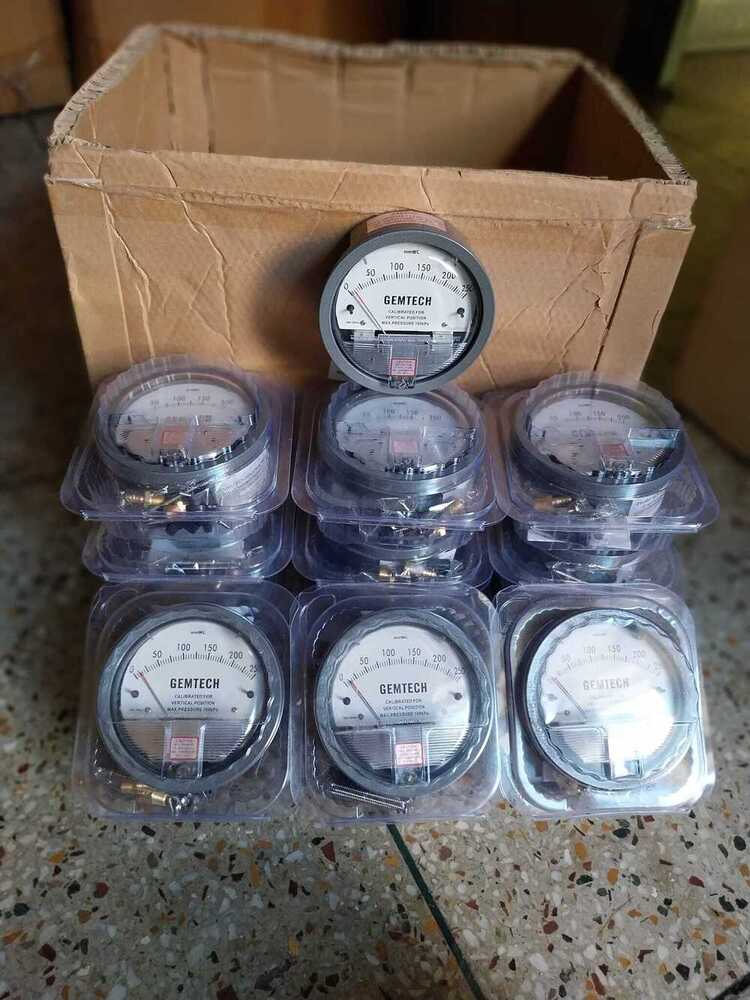

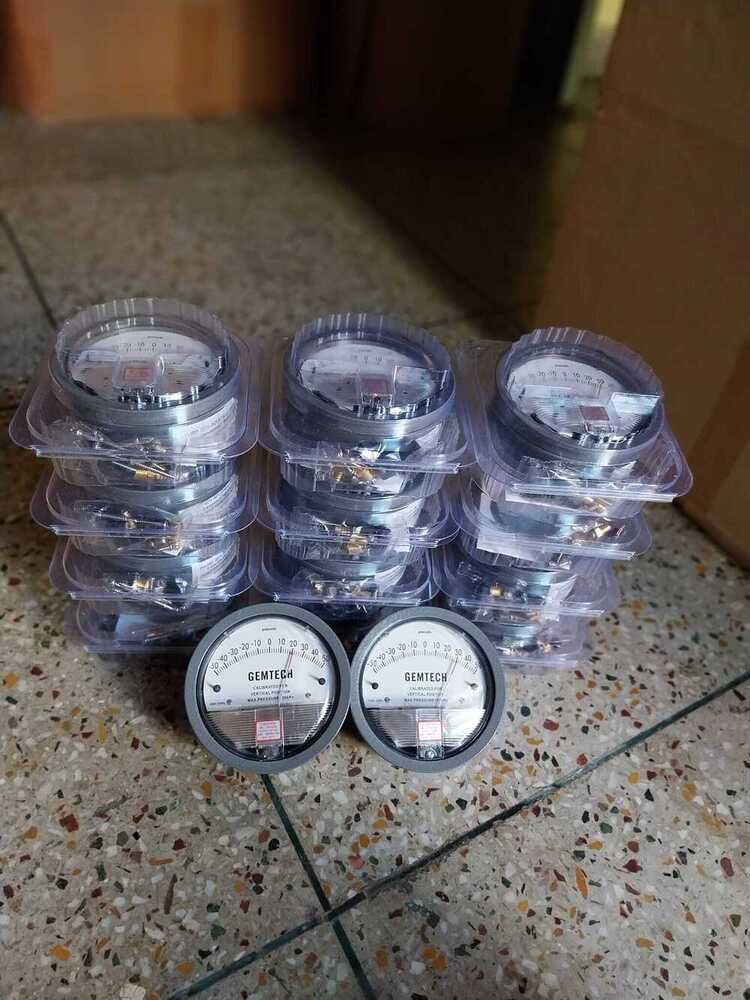

GEMTECH DIFFERENTIAL PRESSURE GAUGE Wholesalers In WBIDC Industrial Parks West Bengal

Series G2000 GEMTECH Differential Pressure GaugesThere Are More Than 81 Models To Suit Your Needs Precisely.

• Ambient Temperature - -21 140 -6 60

• Rated Pressure -20 inHg30 inHg (-68103KPa)

• Overpressure - Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa)

• Process Connections - 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

• Housing - Die cast aluminum case and bezel,With acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

• Accuracy - ±2% of full span at 70 (21 (±3% on -0, and ±4% on -00)

• Range -20 inHg38 inHg (-68KPa130KPa)(Special Specification also can be ordered.)

• OEM/ODM
• There Is No Need To Fill Liquid To Gauge
• The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure
• It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure
• To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed
• Exact And Stable Fixed Position Of Needle
• The Gauge Has Great Antiknock Characteristics
• There Are 81 Types Of Ranges
• Minimum is 0-60 Pa And Maximum is 0-21-KPa

• Filter Monitoring
• Air Velocity With Pitot Tube
• Blower Vacuum Monitoring
• Fan Pressure Indication
• Duct,Room or Building Pressures
• Clean Room Positive Pressure Indication
