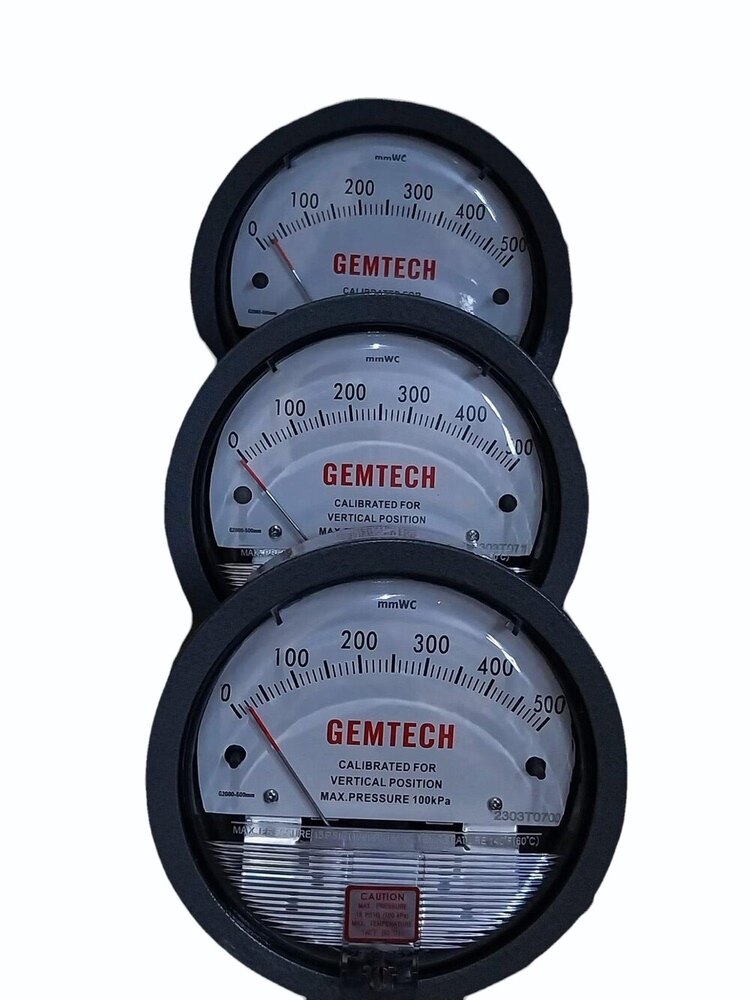

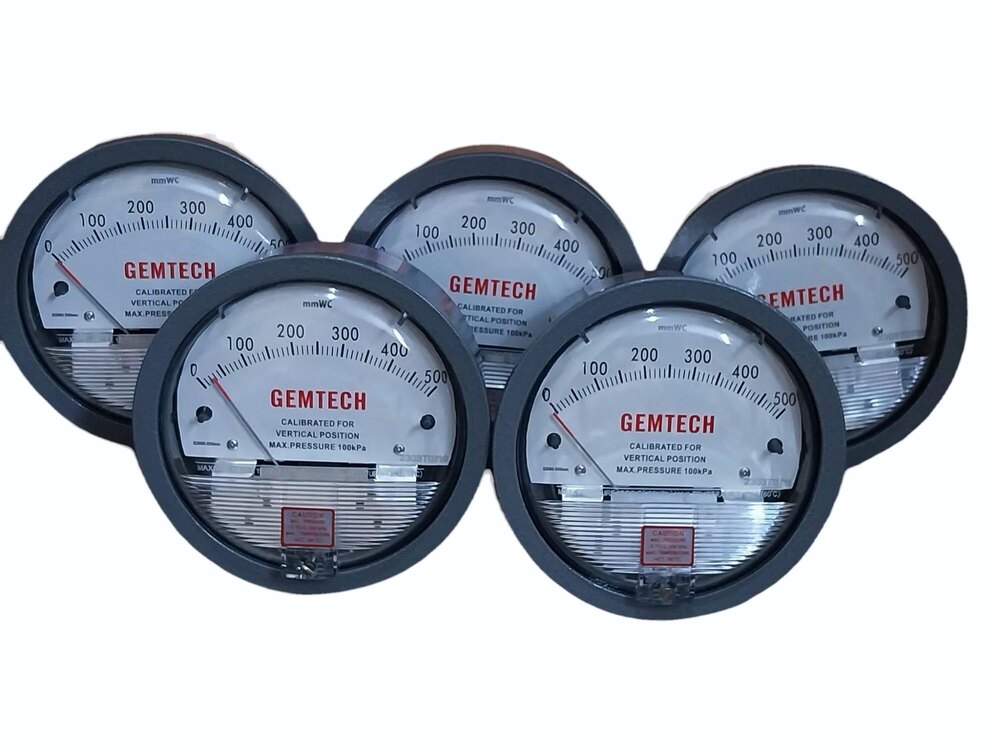

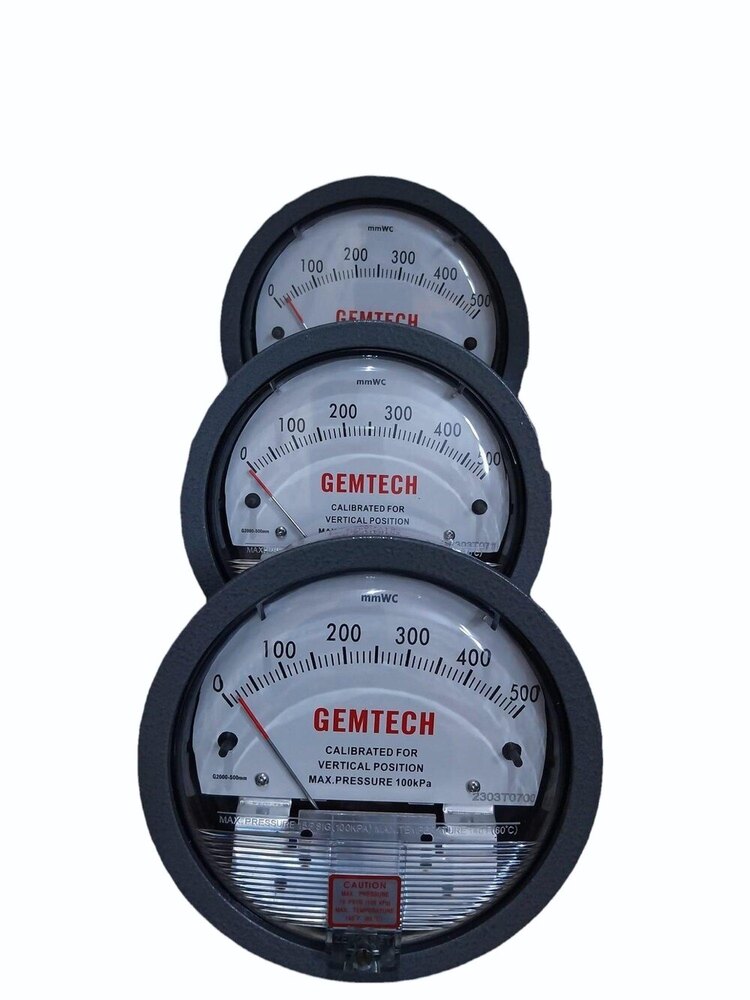

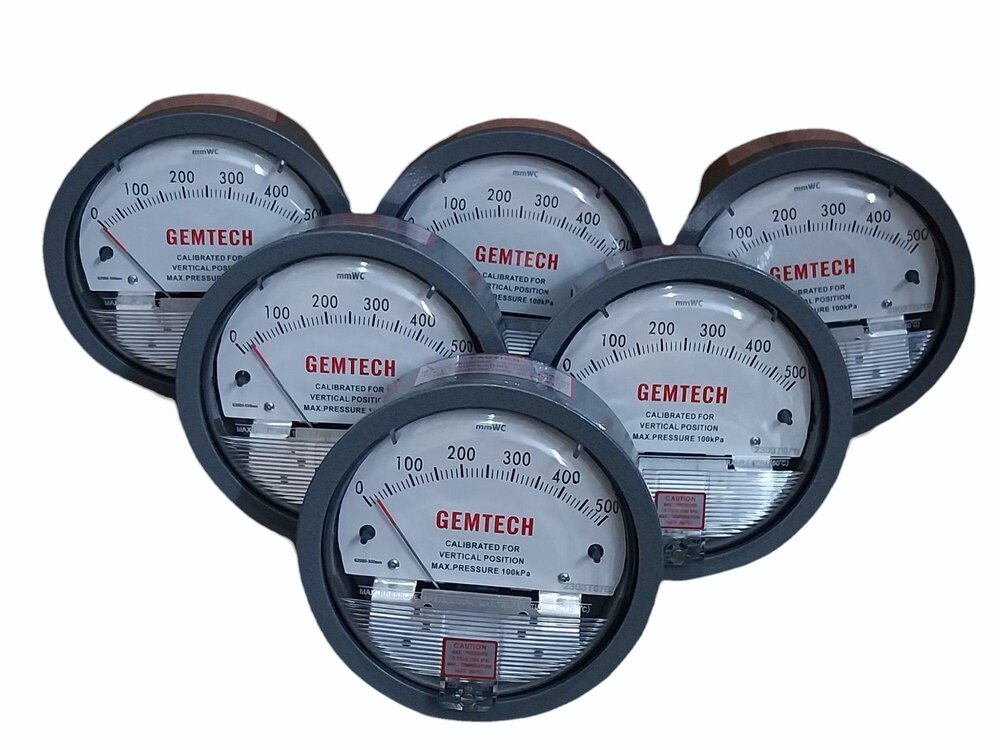

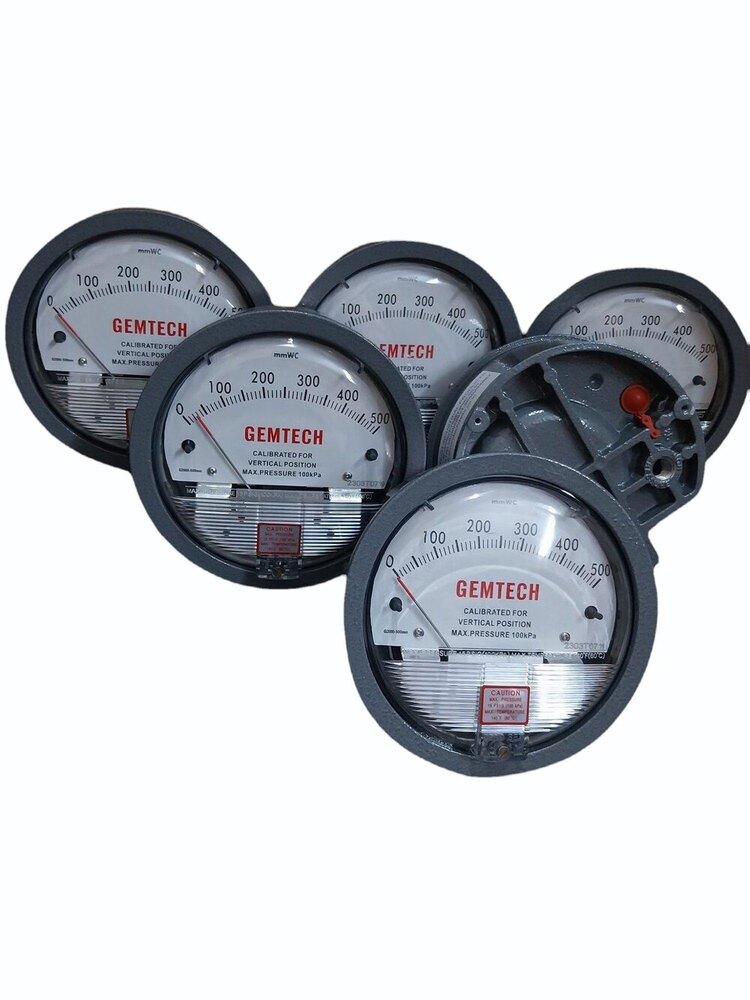

GEMTECH Differential Pressure Gauge Range 0-500 MM

About GEMTECH Differential Pressure Gauge Range 0-500 MM

GEMTECH Differential Pressure Gauge Range 0-500 MM

Series G2000 GEMTECH Differential Pressure Gauges are Widely Utilized For Measuring Pressure of Fan And Blowing Machine, resistance of Filter, Wind Speed, Furnace Pressure, Differential Pressure Of Pore Plate,The Pressure of drum water level, Liquid Amplifier And Hydraulic Pressure System. Meantime,They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment. There Are More Than 81 Models To Suit Your Needs Precisely.The Key Components Adopt Import Materi

SPECIFICATION

• Ambient Temperature - -21 140 -6 60

• Rated Pressure -20 inHg30 inHg (-68103KPa)

• Overpressure - Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa)

• Process Connections - 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

• Housing - Die cast aluminum case and bezel,with acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

• Accuracy - 2% of full span at 70 (21 (3% on -0,and 4% on -00)

• Range -20 inHg38 inHg (-68KPa130KPa)(Special Specification also can be ordered.)

FEATURES

• OEM/ODM
• There Is No Need To Fill Liquid To Gauge.
• The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure.
• It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure.
• To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed.
• Exact And Stable Fixed Position Of Needle.
• The Gauge Has Great Antiknock Characteristics.
• There Are 81 Types Of Ranges.Minimum is 0-60 Pa And Maximum is 0-21-KPa

PRODUCT APPLICATIONS

• Filter Monitoring
• Air Velocity With Pitot Tube
• Blower Vacuum Monitoring
• Fan Pressure Indication
• Duct,Room or Building Pressures
• Clean Room Positive Pressure Indication

MODELS & ORDERING

GEMTECH By  Model Number Popularity

• FILTER BY
• Range - MM Of Water



Model	Description

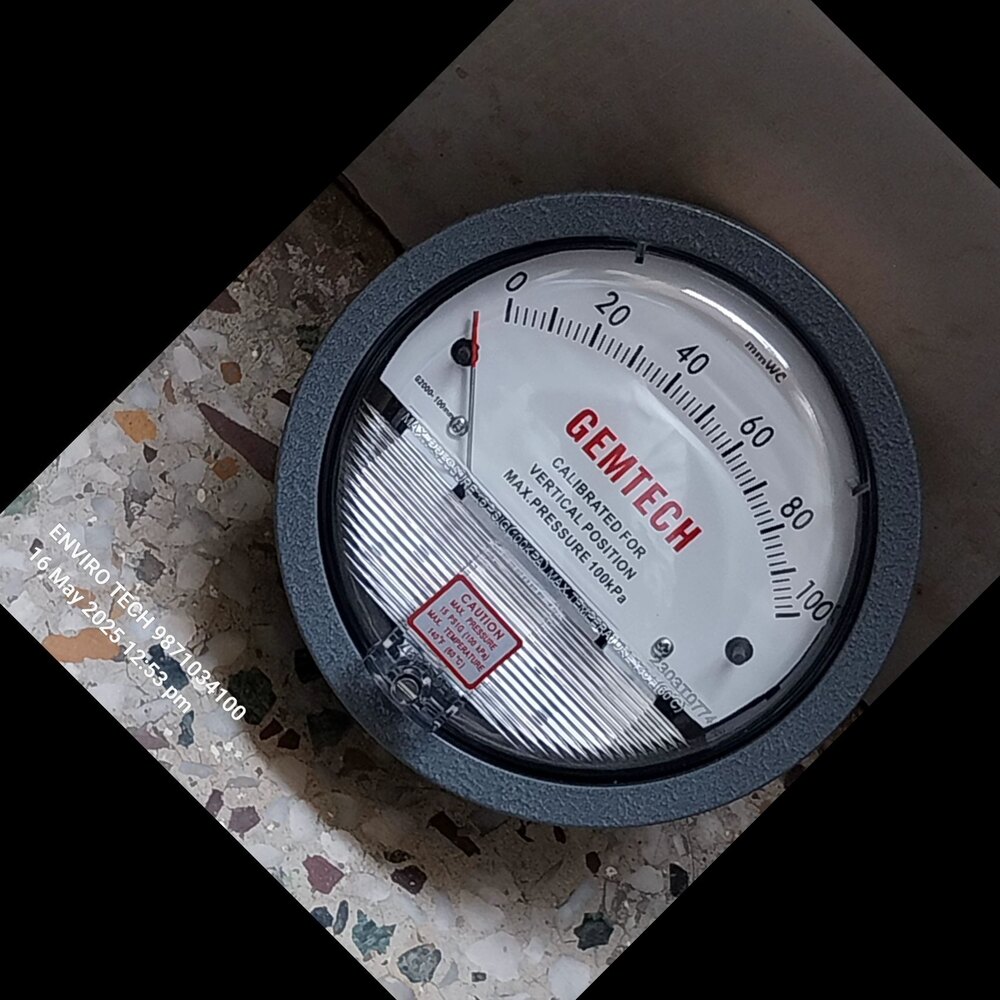

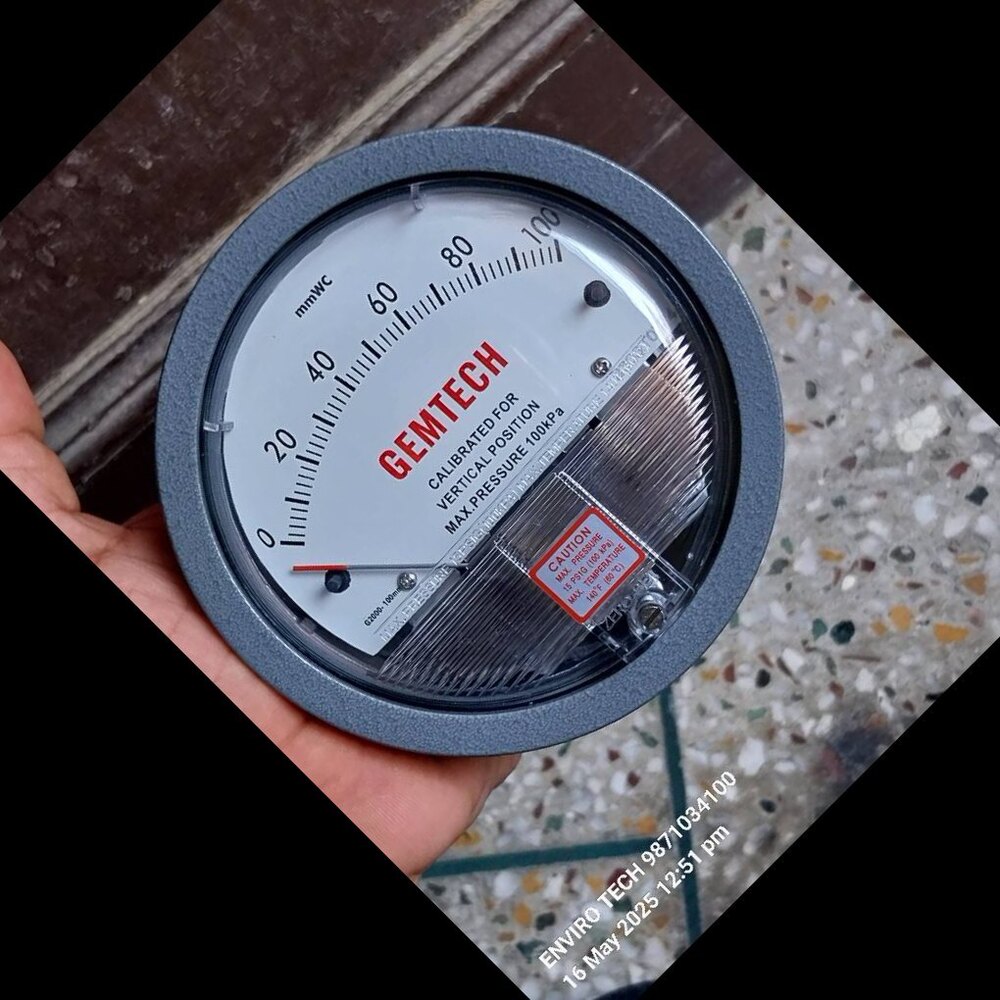

G2000-100MM	Differential Pressure Gauge,Range 0-100 MM W.C., Minor Divisions 2.0.
G2000-10MM	Differential Pressure Gauge,Range 0-10 MM W.C.,Minor Divisions .20,Calibrated For Vertical Scale Position.
G2000-150MM	Differential Pressure Gauge,Range 0-150 MM W.C.
G2000-15MM	Differential Pressure Gauge,Range 0-15 MM W.C.
G2000-200MM	Differential Pressure Gauge,Range 0-200 MM W.C.
G2000-250MM	Differential Pressure Gauge,Range 0-250 MM W.C.
G2000-25MM	Differential Pressure Gauge,Range 0-25 MM W.C. Minor Divisions .50.
G2000-300MM	Differential Pressure Gauge,Range 0-300 MM W.C.
G2000-50MM	Differential Pressure Gauge,Range 0-50 MM W.C., Minor Divisions 1.0.

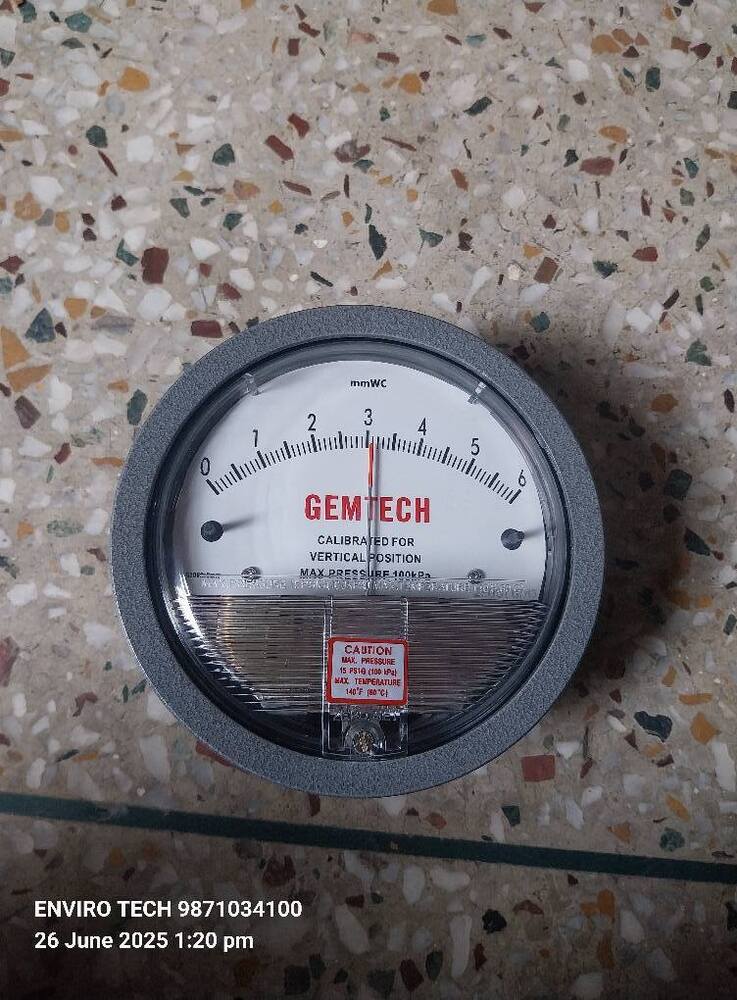

G2000-6MM	Differential Pressure Gauge,Range 0-6 MM W.C., Minor Divisions .20, Calibrated For Vertical Scale Position.
G2000-80MM	Differential Pressure Gauge,Range 0-80 MM W.C., Minor Divisions 2.0.

Additional Information:

• Item Code: GEMTECH Differential Pressure Gauge Range 0-500 MM
• www.envirotechindustrialproducts.co.in
• www.envirotechindustrialproduct.co.in
• www.envirotechindustrialproduct.in

Versatile Industrial Application

The GEMTECH Differential Pressure Gauge is designed to withstand harsh working conditions and is applicable to a wide range of industries, including pharmaceutical, power generation, cement, steel, fertilizer, and textile production. Its sturdy construction ensures consistent, accurate readings in critical measurement scenarios.


Precision and Reliability

Engineered for accuracy, the gauge offers up to 2% full-scale accuracy on most ranges, ensuring trustworthy performance at standard room temperature (21.1C). The back-mount design and 4" analog dial provide clear visibility and facilitate easy integration into system panels or control rooms.


Flexible Measurement and Display Options

With a scale range that includes MM WC, CM, PAC, KPA, INCH, and PSI, the GEMTECH gauge adapts to diverse pressure monitoring requirements. Its color options and durable materials support customized installations and enduring operation in demanding industrial settings.
