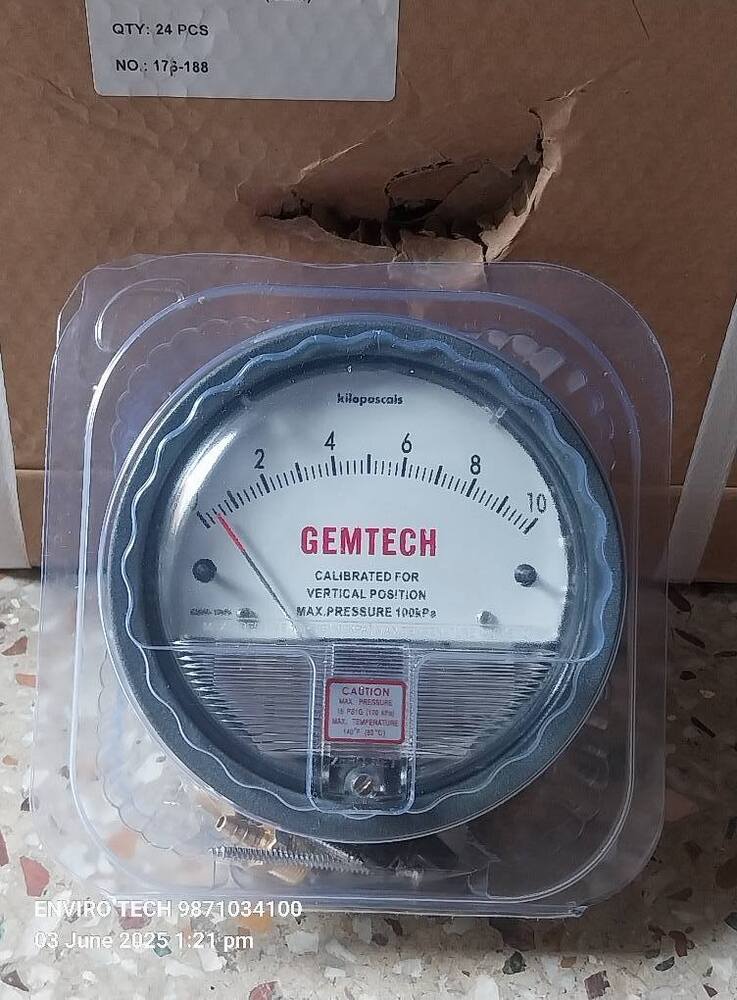

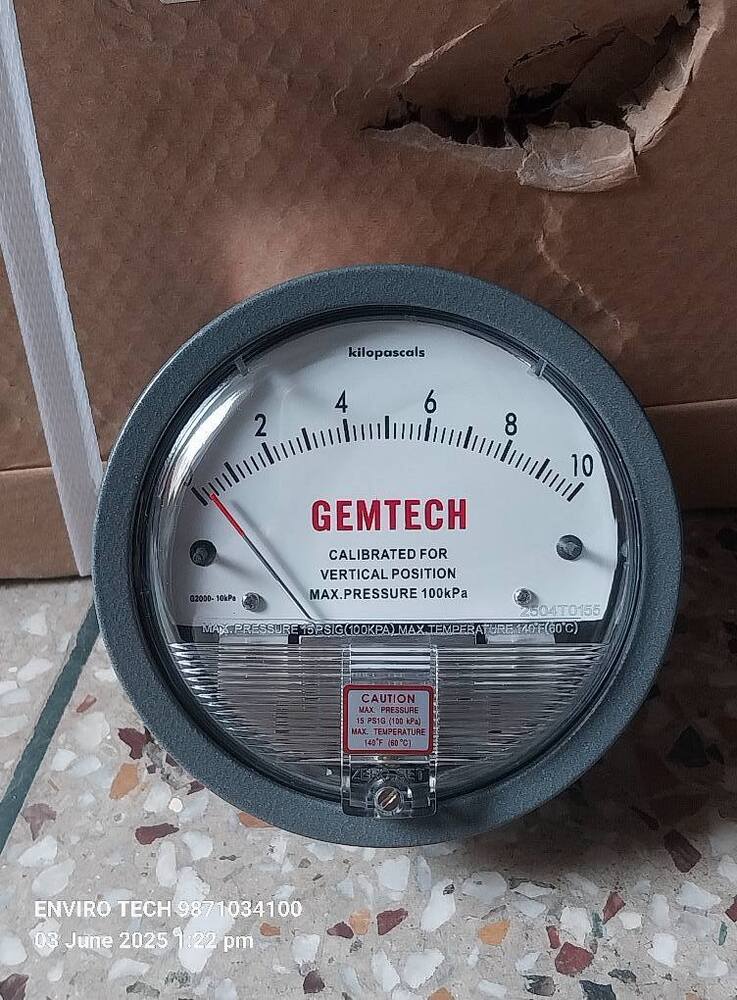

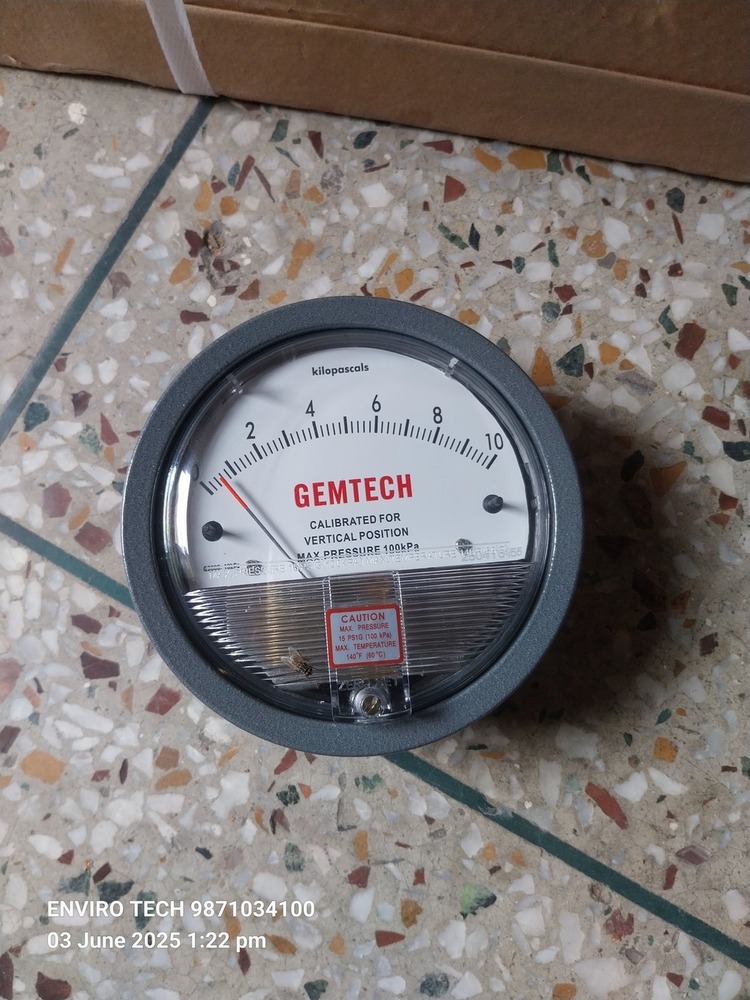

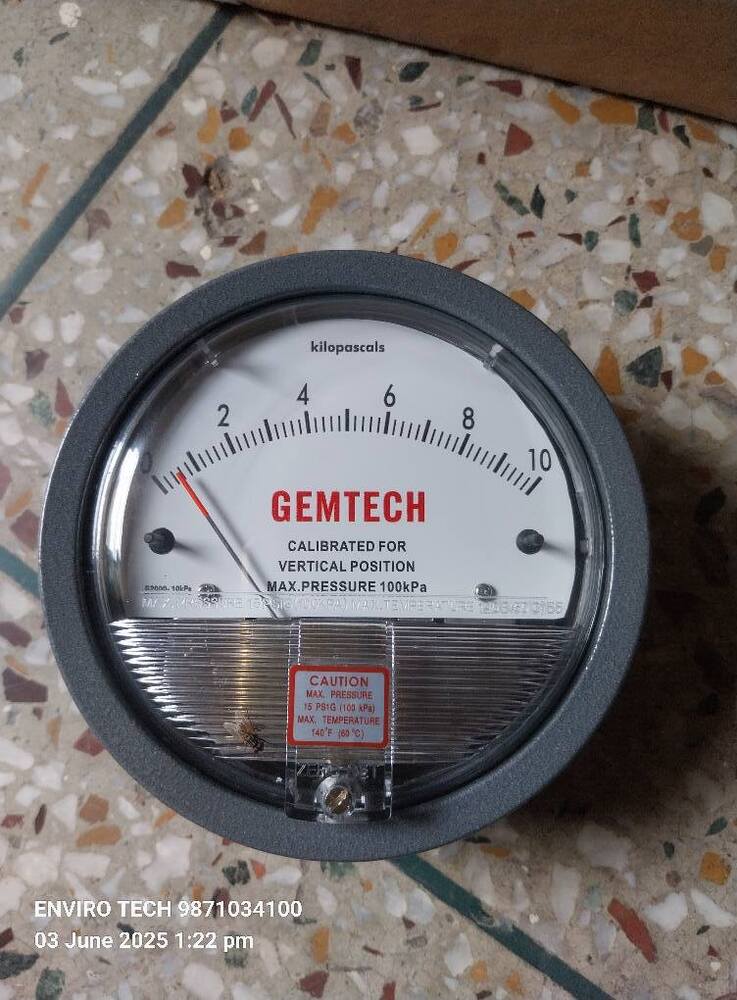

GEMTECH Differential Pressure Gauge Range 0-10 KPA

About GEMTECH Differential Pressure Gauge Range 0-10 KPA

GEMTECH Differential Pressure Gauge Range 0-10 KPA

Series G2000 GEMTECH Differential Pressure Gauges are Widely Utilized For Measuring Pressure of Fan And Blowing Machine,Resistance of Filter, Wind Speed,Furnace Pressure, Differential Pressure Of Pore Plate,The Pressure of drum water level,Liquid Amplifier And Hydraulic Pressure System.Meantime,They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment.There Are More Than 81 Models To Suit Your Needs Precisely.The Key Components Adopt Import Materi

SPECIFICATION

• Ambient Temperature- -21140-660

• Rated Pressure-20 inHg30 inHg (-68103KPa)

• Overpressure-Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa)

• Process Connections-1/8" Female NPT Duplicate high and low pressure taps-one pair side and one pair back

• Housing-Die cast aluminum case and bezel,With Acrylic Cover,Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

• Accuracy-2% of full span at 70(21(3% on -0,and 4% on-00)

• Range-20 inHg38 inHg (-68KPa130KPa)(Special Specification also can be ordered

FEATURES

• OEM/ODM
• There Is No Need To Fill Liquid To Gauge
• The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure
• It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure
• To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed
• Exact And Stable Fixed Position Of Needle
• The Gauge Has Great Antiknock Characteristics
• There Are 81 Types Of Ranges.Minimum is 0-60 Pa And Maximum is 0-21-KPa

PRODUCT APPLICATIONS

• Filter Monitoring
• Air Velocity With Pitot Tube
• Blower Vacuum Monitoring
• Fan Pressure Indication
• Duct,Room or Building Pressures
• Clean Room Positive Pressure Indication

GEMTECH By  Model Number Popularity

FILTER BY

Range-Kilopascals

Model	Description
G2000-1KPA	Differential Pressure Gauge,Range 0-1 kPa,Minor Divisions .02
G2000-1.5KPA	Differential Pressure Gauge,Range 0-1.5 kPa,Minor Divisions .05
G2000-2KPA	Differential Pressure Gauge,Range 0-2 kPa,Minor Divisions .05
G2000-3KPA	Differential Pressure Gauge, Range 0-3 kPa,Minor Divisions.10
G2000-4KPA	Differential Pressure Gauge,Range 0-4 kPa,Minor Divisions.10
G2000-5KPA	Differential Pressure Gauge,Range 0-5 kPa,Minor Divisions.10
G2000-8KPA	Differential Pressure Gauge,Range 0-8 kPa,Minor Divisions.20
G2000-10KPA	Differential Pressure Gauge,Range 0-10 kPa,Minor Divisions.20
G2000-15KPA	Differential Pressure Gauge,Range 0-15 kPa,Minor Divisions.50
G2000-20KPA	Differential Pressure Gauge,Range 0-20 kPa,Minor Divisions.50
G2000-25KPA	Differential Pressure Gauge,Range 0-25 kPa,Minor Divisions.50
G2000-30KPA	Differential Pressure Gauge,Range 0-30 kPa,Minor Divisions1.0

Additional Information:

• Item Code: GEMTECH Differential Pressure Gauge Range 0-10 KPA

• www.envirotechindustrialproducts.net
• www.envirotechindustrialproduct.net
• www.envirotechindustrialproductsindia.in

Versatility in Pressure Measurement

The GEMTECH Differential Pressure Gauge is designed to provide reliable readings across various scale ranges, including KPA, MM WC, PSI, and mbar, making it suitable for a wide range of gas measurement applications. Its compatibility with multiple connection types and mounting orientations adds to its adaptability in industrial settings.


Quality Construction & Accuracy

Manufactured with a strong metal alloy body and premium plastic dial, this gauge ensures durability and reliable performance. The alloy pointer provides responsive measurements, while the instrument maintains an accuracy of 2% of full span at standard temperature, ensuring dependable results in critical applications.


User-Friendly Design

With an easy-to-read analog display and clearly marked scales, this 4-inch pressure gauge minimizes operator error. The dual back and side pressure taps allow flexible installation, and its lightweight build aids convenient placement on panels or equipment in distribution, export, or manufacturing operations.
