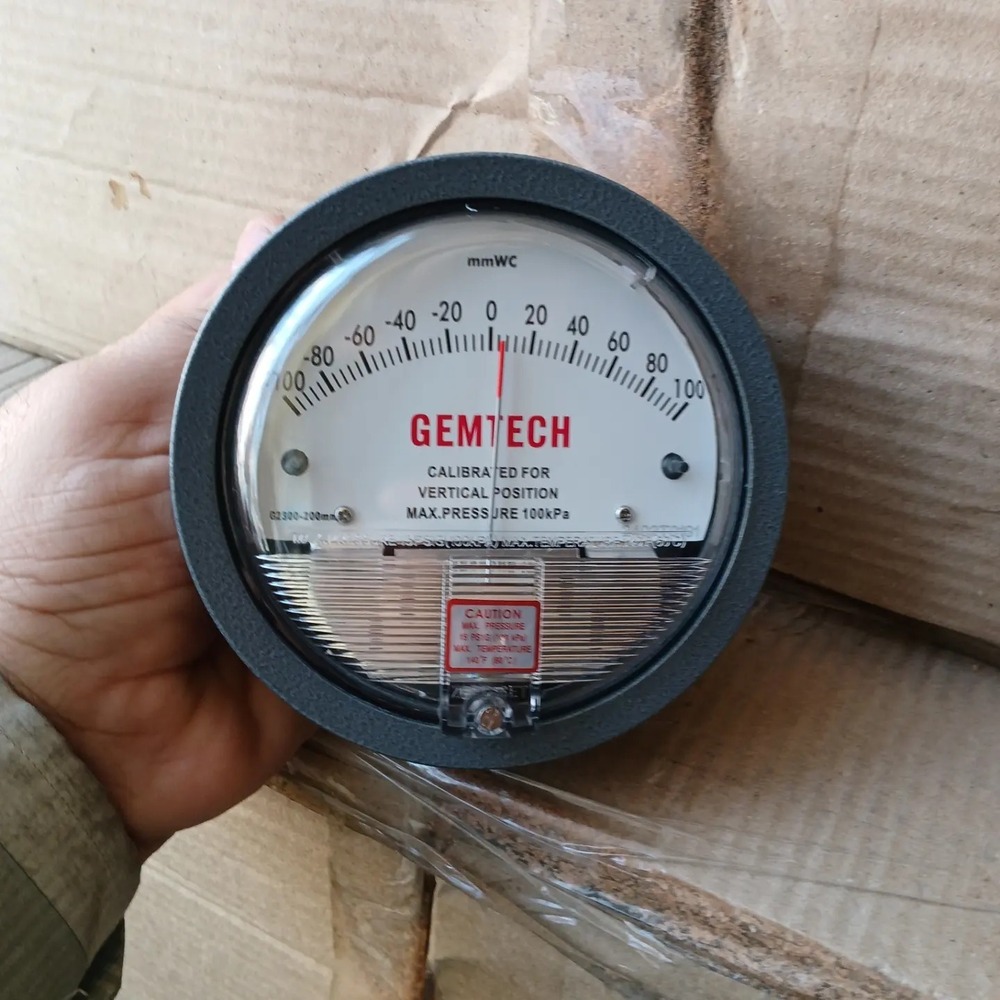

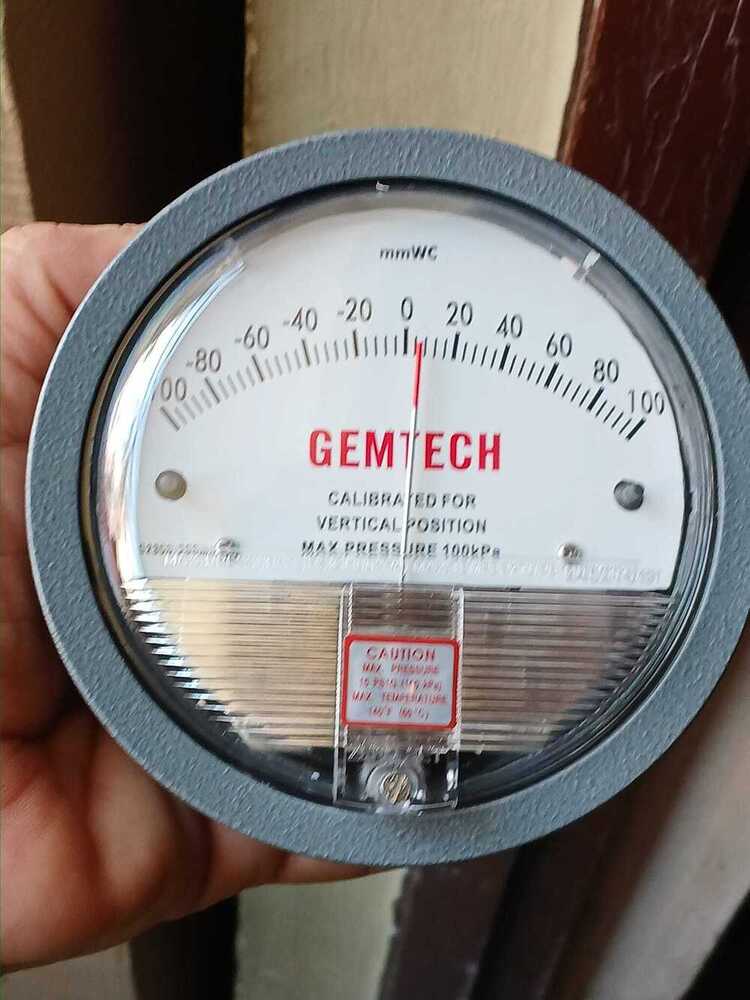

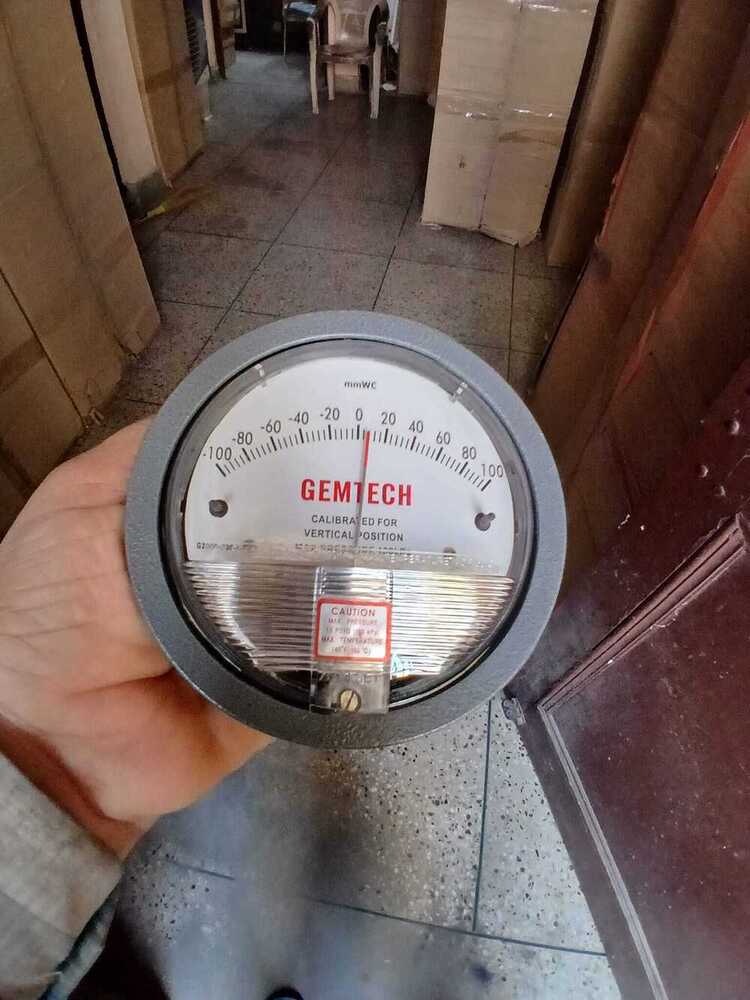

GEMTECH Differential Pressure Gauge Distributor From Anakapalle Andhra Pradesh

Price 4500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GEMTECH Differential Pressure Gauge Distributor From Anakapalle Andhra Pradesh Specification

Seal Material
Silicone Rubber

Sensor Type
Differential Pressure Sensor

Bourdon Tube
Stainless Steel

Grade
Industrial Grade

Outer Size
110 mm

Thread
1/4 inch BSP (Standard)

Display
Analog

Material
Stainless Steel & Engineering Plastics

Dial Material
Aluminum with anti-glare finish

Pointer Material
Aluminum, Black Painted

Processing Type
Machined/Assembled

Diameter
100 mm

Glass Size
100 mm

Mount Type
Panel / Surface Mount

Scale Range
0-2500 Pa (other ranges available on request)

Accuracy
1.6% FS

Finishing
Powder Coated / Polished

Measure Pressure Of
Air, non-corrosive gases

Accessories
Mounting Bracket, Process Connection Adapters

Overpressure Limit
130% of Full Scale

Window Material
Acrylic / Toughened Glass

Connection Orientation
Back or Bottom Entry (as specified)

Case Material
Stainless Steel 304

Zero Adjustment
External Knob

Operating Temperature Range
-20C to +60C

Ingress Protection
IP54

Application
HVAC, Clean Rooms, Filter Monitoring, Process Industry

About GEMTECH Differential Pressure Gauge Distributor From Anakapalle Andhra Pradesh

GEMTECH DIFFERENTIAL PRESSURE GAUGE IN Vishwakarma Industrial Area Rajasthan India

GEMTECH Differential Pressure Gauge Distributor From Anakapalle Andhra Pradesh
Series G2000 GEMTECH Differential Pressure Gauges are Widely Utilized For Measuring Pressure of Fan And Blowing Machine, resistance of Filter, Wind Speed, Furnace Pressure,Differential Pressure Of Pore Plate,The Pressure of Drum Water Level,Liquid Amplifier And Hydraulic Pressure System. Meantime,They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment. There Are More Than 81 Models To Suit Your Needs Precisely.The Key Components Adopt Import Materi

SPECIFICATION

Ambient Temperature - -21 140 -6 60

Rated Pressure -20 inHg30 inHg (-68103KPa)

Overpressure - Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa)

Process Connections - 1/8" Female NPT Duplicate High And Low Pressure Taps - one pair side and one pair back

Housing - Die cast aluminum case and bezel,With acrylic cover,Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

Accuracy - 2% of full span at 70 (21 (3% on -0, and 4% on -00)

Range -20 inHg38 inHg (-68KPa130KPa)(Special Specification also can be ordered.)

FEATURES

OEM/ODM

There Is No Need To Fill Liquid To Gauge.

The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure.

It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure.

To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed.

Exact And Stable Fixed Position Of Needle.

The Gauge Has Great Antiknock Characteristics.

There Are 81 Types Of Ranges.

Minimum is 0-60 Pa And Maximum is 0-21-KPa

PRODUCT APPLICATIONS

Filter Monitoring

Air Velocity With Pitot Tube

Blower Vacuum Monitoring

Fan Pressure Indication

Duct,Room or Building Pressures

Clean Room Positive Pressure Indication

MODELS & ORDERING

GEMTECH By Model Number Popularity

FILTER BY
Range - Pascals

Model Description

G2000-100PA Differential Pressure Gage, Range 0-100 Pa,Minor Divisions 2.0,Calibrated For Vertical Scale Position.

G2000-125PA Differential Pressure Gage, Range 0-125 Pa,Minor Divisions 5.0,Calibrated For Vertical Scale Position.

G2000-250PA Differential Pressure Gage, Range 0-250 Pa,Minor Divisions 5.0.

G2000-300PA Differential Pressure Gage, Range 0-300 Pa,Minor Divisions 10.0.

G2000-30PA Differential Pressure Gage, Range 0-30 Pa,Minor Divisions 1.0,Calibrated For Vertical Scale Position.

G2000-500PA Differential Pressure Gage, Range 0-500 Pa,Minor Divisions 10.0.

G2000-60PA Differential Pressure Gage, Range 0-60 Pa,Minor Divisions 1.0,Calibrated For Vertical Scale Position.

G2000-750PA Differential Pressure Gage, Range 0-750 Pa,Minor Divisions 25.0.

Additional Information:

Item Code: GEMTECH Differential Pressure Gauge Distributor From Anakapalle Andhra Pradesh

www.envirotechdelhi.info

www.envirotechindia.net

www.envirotechdelhi.co.in

Rugged Construction for Demanding Applications

Crafted with stainless steel and engineering plastics, the GEMTECH Differential Pressure Gauge combines toughness and precision. Its industrial-grade build ensures longevity even in challenging conditions, while the acrylic or toughened glass window provides clear visibility. Suitable for continuous use in HVAC, clean rooms, and filtering systems, it withstands both everyday and extreme demands.

Versatile Installation and Configuration

With options for panel or surface mounting, back or bottom entry connections, and external zero adjustment, this gauge suits a variety of operational requirements. Accessories such as mounting brackets and process connection adapters make integration effortless. Designed for ease of use and reliability, it is an excellent choice for industrial operators needing flexibility.

Assured Precision and Wide Measuring Range

The analog display, anti-glare dial, and clear 0-2500 Pa scale (with customizable options) mean readings are both accurate and easy to interpret. Built with a stainless steel bourdon tube and silicone rubber seals, it consistently measures pressure with 1.6% full-scale accuracy, ensuring critical monitoring in sensitive processes.

FAQ's of GEMTECH Differential Pressure Gauge Distributor From Anakapalle Andhra Pradesh:

Q: How does the GEMTECH Differential Pressure Gauge ensure accurate pressure readings?
A: The gauge uses a high-quality differential pressure sensor and a stainless steel bourdon tube, delivering 1.6% full-scale accuracy. The anti-glare aluminum dial and black pointer are designed for precise analog interpretation, helping users monitor pressure changes effectively.

Q: What are the recommended applications for this pressure gauge?
A: This gauge is ideal for HVAC systems, clean rooms, filter monitoring, and general process industry applications. It is engineered to measure air and non-corrosive gases in environments where reliability and accuracy are essential.

Q: When should I choose a back entry versus a bottom entry connection orientation?
A: The choice between back and bottom entry depends on your installation preferences and panel design. Both options are available to facilitate panel or surface mounting and to ensure compatibility with existing system layouts.

Q: Where is the GEMTECH Differential Pressure Gauge distributed from in India?
A: This pressure gauge is distributed from Anakapalle, Andhra Pradesh, and is available for supply across India. GEMTECH also functions as an exporter, importer, manufacturer, supplier, trader, and wholesaler.

Q: What is the process to install and calibrate the gauge?
A: Installation is straightforward using the supplied mounting bracket and process connection adapters. The external zero adjustment knob allows for easy on-site calibration to ensure the accuracy of measurements.

Q: How does the ingress protection (IP54) rating benefit my application?
A: The IP54 rating ensures the gauge is protected against limited dust ingress and water splashes, making it suitable for industrial environments where exposure to such elements is possible.

Q: What additional benefits come with using a stainless steel case and powder-coated or polished finishing?
A: The stainless steel case offers excellent corrosion resistance, while the powder-coated or polished finish adds further durability and enhances the appearance, making the gauge suited for harsh industrial settings.

Model	Description
G2000-100PA	Differential Pressure Gage, Range 0-100 Pa,Minor Divisions 2.0,Calibrated For Vertical Scale Position.
G2000-125PA	Differential Pressure Gage, Range 0-125 Pa,Minor Divisions 5.0,Calibrated For Vertical Scale Position.
G2000-250PA	Differential Pressure Gage, Range 0-250 Pa,Minor Divisions 5.0.
G2000-300PA	Differential Pressure Gage, Range 0-300 Pa,Minor Divisions 10.0.
G2000-30PA	Differential Pressure Gage, Range 0-30 Pa,Minor Divisions 1.0,Calibrated For Vertical Scale Position.
G2000-500PA	Differential Pressure Gage, Range 0-500 Pa,Minor Divisions 10.0.
G2000-60PA	Differential Pressure Gage, Range 0-60 Pa,Minor Divisions 1.0,Calibrated For Vertical Scale Position.
G2000-750PA	Differential Pressure Gage, Range 0-750 Pa,Minor Divisions 25.0.
