G2000-1KPA GEMTECH Differential Pressure Gauge Range 0-1 KPA Range 0-1 KPA

About G2000-1KPA GEMTECH Differential Pressure Gauge Range 0-1 KPA Range 0-1 KPA

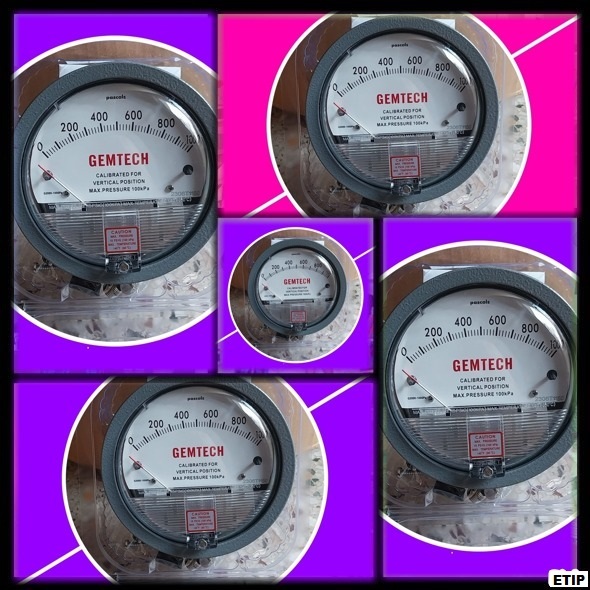

G2000-1KPA GEMTECH Differential Pressure Gauge Range 0-1 KPA

Series G2000,GEMTECHDifferential Pressure Gaugesare Widely Utilized For Measuring Pressure of Fan And Blowing Machine, resistance of filter, wind speed, furnace pressure, differential pressure of pore plate, the pressure of drum water level, Liquid Amplifier And Hydraulic Pressure System. Meantime, They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment. There Are More Than 81 Models To Suit Your Needs Precisely. The Key Components Adopt Import Materi

SPECIFICATION

• Ambient Temperature- -21 140 6 60

• Rated Pressure-20 inHg30 inHg (-68103KPa)

• Overpressure -Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa).

• Process Connections -1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

• Housing- Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand168 Hour Salt Spray Corrosion Test

• Accuracy- i2% of full span at 70 21 3% on -0, and i4% on -00)

• Range-20 inHg38 inHg (-68KPa130KPa)(Special Specification also can be ordered.)

FEATURES

• OEM/ODM
• There Is No Need To Fill Liquid To Gauge.
• The Gauge Can Measure Positive Pressure, Negative Pressure And Differential Pressure.
• It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive AndNegative Pressure.
• To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed.
• Exact And Stable Fixed Position Of Needle.
• The Gauge Has Great Antiknock Characteristics.
• There Are 81 Types Of Ranges. Minimum is 0-60 Pa And Maximum is 0-21-KPa.

PRODUCT APPLICATIONS

• Filter Monitoring
• Air Velocity With Pitot Tube
• Blower Vacuum Monitoring
• Fan Pressure Indication
• Duct,Room or Building Pressures
• Clean Room Positive Pressure Indication

MODELS & ORDERING

GEMTECH ByModel NumberPopularity

• FILTER BY
• Range -MM Of Water

Model	Description
G2000-100MM	DPG,Range 0-100 MM W.C., Minor Divisions 2.0.
G2000-10MM	DPG,Range0-10 MM W.C.,Minor Divisions.20,Calibrated For Vertical Scale Position.
G2000-150MM	DPG,Range0-150 MM W.C.
G2000-15MM	DPG,Range 0-15 MM W.C.
G2000-200MM	DPG,Range 0-200 MM W.C.
G2000-250MM	DPG,Range 0-250 MM W.C.
G2000-25MM	DPG,Range0-25 MM W.C. Minor Divisions .50.
G2000-300MM	DPG,Range0-300 MM W.C.
G2000-50MM	DPG,Range0-50 MM W.C., Minor Divisions 1.0.
G2000-6MM	DPG,Range0-6 MM W.C., Minor Divisions .20, Calibrated For Vertical Scale Position.
G2000-80MM	DPG,Range0-80 MM W.C., Minor Divisions 2.0.

Additional Information:

• Item Code:G2000-1KPA GEMTECH Differential Pressure Gauge Range 0-1 KPA
• www.envirotechindia.info
• www.envirotechdelhi.net
• www.envirotechdelhi.in

Precision in Industrial Pressure Monitoring

Designed for environments such as power, cement, steel, fertilizer, and textile plants, the G2000-1KPA GEMTECH Differential Pressure Gauge is engineered to deliver trustworthy pressure differential readings. Its metal alloy body and analog display guarantee longevity and ease of interpretation. The finely calibrated scale, offering readings in MM WC, CM, PAC, KPA, and INCH, accommodates a variety of monitoring needs across industrial sectors.


Versatile Mounting and Connectivity Options

Equipped with duplicate high and low pressure taps placed both on the side and the back, this gauge offers flexible installation. The 1/8" female NPT thread supports standard piping connections, simplifying integration into both new and existing systems. Its back mount type and compact, 4-inch dial make it suitable for numerous panel or process setups without consuming excess space.

FAQ's of G2000-1KPA GEMTECH Differential Pressure Gauge Range 0-1 KPA Range 0-1 KPA:

Q: How do I install the G2000-1KPA GEMTECH Differential Pressure Gauge in my process setup?

A: Installation is straightforward, thanks to back mounting capability, a 4-inch dial for clear visibility, and universally compatible 1/8" female NPT threads. Its duplicate taps allow connections from the side or back, enabling flexible integration in various process configurations.

Q: What makes the GEMTECH Differential Pressure Gauge suitable for heavy industrial applications?

A: With a durable metal alloy construction, high accuracy (2% to 4% FS), and a wide scale range, this gauge reliably withstands demanding conditions found in power, cement, steel, fertilizer, and textile plants. The robust build and versatile mounting ensure longevity and performance.

Q: When should I choose this gauge over digital alternatives?

A: This analog gauge is ideal when you require a straightforward, maintenance-friendly device that delivers real-time readings without reliance on electronic systems, offering resilience in environments prone to electrical interference or requiring quick manual assessments.

Q: Where can this differential pressure gauge be utilized most effectively?

A: It is tailored for critical industrial sites such as power plants, cement production, steel manufacturing, fertilizer processing, and textile factories, fitting seamlessly into processes where monitoring pressure differentials is vital for operational efficiency.

Q: What is the accuracy of the gauge across different pressure ranges?

A: The standard model offers 2% of full scale accuracy (HA variant 1%), while for lower ranges like -100PA or -10MM, the accuracy can range from 3% to 4% of FS, ensuring dependable measurement throughout its range at 70F (21.1C).

Q: How does the dual mounting tap design benefit users?

A: Having a pair of side and back taps for both high and low pressure offers exceptional flexibility, simplifying installation in both horizontal and vertical setups, and allows the gauge to be easily adapted for space-constrained or retrofitted systems.

Q: What is the maintenance process for this pressure gauge?

A: Maintenance typically involves periodic inspection for calibration integrity and physical damage. Since the pointer and dial are made from durable materials, and the display is analog, the gauge requires minimal upkeep, further enhancing reliability in industrial environments.
