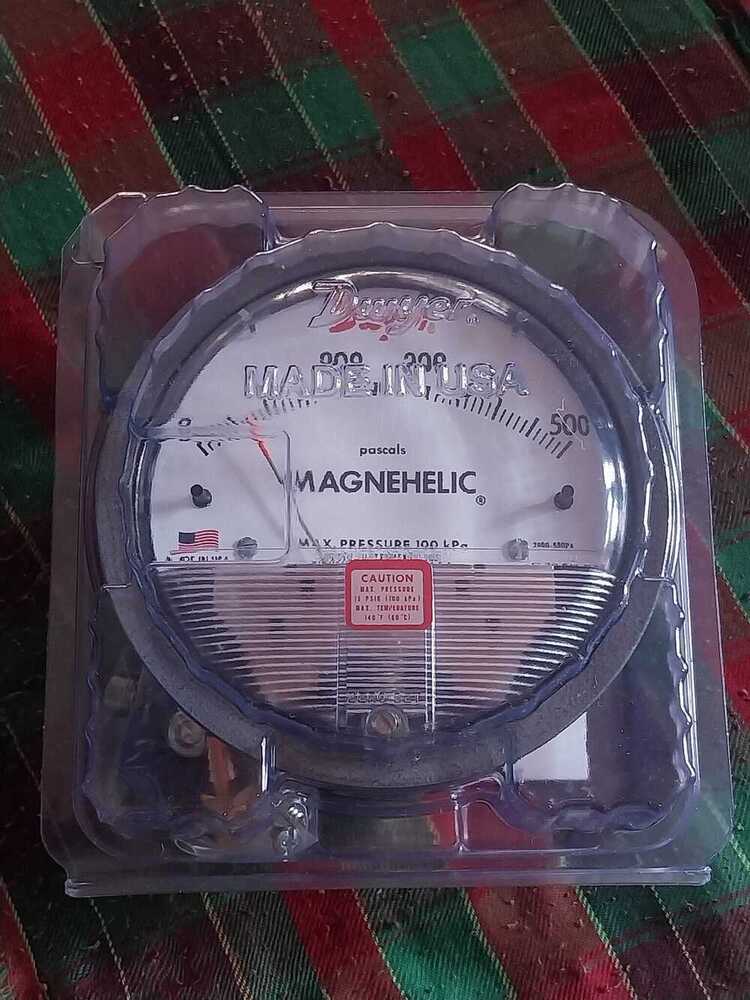

DWYER Magnehelic Air Gauge - Manometer

Price 7500.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DWYER Magnehelic Air Gauge - Manometer Specification

Thread
1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

Display
Analog

Usage
POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE

Material
Metal Alloy

Dial Material
Plastic

Pointer Material
Alloy

Size
4" (101.6 MM) Diameter Dial Face.

Processing Type
Standard

Product Type
SERIES 2000 MAGNEHELIC DIFFERENTIAL PRESSURE GAGES

Diameter
4 inch / 100 mm Millimeter (mm)

Weight
550 Grams (g)

Color
WHITE/Black

Mount Type
Back

Scale Range
MM WC/ CM / PAC / KPA / INCH

Accuracy
2% (-HA model 1) of FS (3% (-HA 1.5%) on -0, -100PA, -125PA, -10MM and 4% (-HA 2%) on -00, -60PA, -6MM Ranges), Throughout Range at 70F (21.1C).

Measure Pressure Of
Gas

DWYER Magnehelic Air Gauge - Manometer Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
EXTRA

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
YAS

About DWYER Magnehelic Air Gauge - Manometer

No photo description available.

DWYER Magnehelic Air Gauge - Manometer

SERIES 2000 MAGNEHELIC DIFFERENTIAL PRESSURE GAGES Indicate Positive, Negative or Differential, Accurate within 1%

No Power Required
Low Cost
Used in Isolation/ Hospital Environments and Temporary Units (no power required)

Select the Series 2000 Magnehelic Gage for a versatile low differential pressure gage with a wide choice of 81 models and 27 options to choose from. Using Dwyers simple, frictionless Magnehelic gage movement, it quickly indicates air or noncorrosive gas pressures--either positive, negative (vacuum) or differential. The design resists shock, vibration, over-pressures and is weatherproof to IP67. Select the -HA High Accuracy Magnehelic Gage option for an accuracy within 1% of full scale, located below in the Product Configurator. Also included with the HA option at no extra cost are a mirrored scale overlay and a 6 point calibration certificate.

NIST CALIBRATION available in Product Configurator.

Note: May be used with Hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.

Please see Series AT-2000 for ATEX approved.

California Residents: Click Here for Proposition 65 WARNING.

PRODUCT APPLICATIONS

Filter Monitoring
Air Velocity with Dwyer Pitot Tube
Blower Vacuum Monitoring
Fan Pressure Indication
Duct, Room or Building Pressures
Clean Room Positive Pressure Indication

Model	Description
2000-1.5KPA	Differential Pressure Gage, Range 0-1.5 kPa, minor divisions .05.
2000-10KPA	Differential Pressure Gage, Range 0-10 kPa, minor divisions .20.
2000-15KPA	Differential Pressure Gage, Range 0-15 kPa, minor divisions .50.
2000-1KPA	Differential Pressure Gage, Range 0-1 kPa, minor divisions .02.
2000-20KPA	Differential Pressure Gage, Range 0-20 kPa, minor divisions .50.
2000-25KPA	Differential Pressure Gage, Range 0-25 kPa, minor divisions .50.
2000-2KPA	Differential Pressure Gage, Range 0-2 kPa, minor divisions .05.
2000-30KPA	Differential Pressure Gage, Range 0-30 kPa, minor divisions 1.0.
2000-3KPA	Differential Pressure Gage, Range 0-3 kPa, minor divisions .10.
2000-4KPA	Differential Pressure Gage, Range 0-4 kPa, minor divisions .10.
2000-5KPA	Differential Pressure Gage, Range 0-5 kPa, minor divisions .10.
2000-8KPA	Differential Pressure Gage, Range 0-8 kPa, minor divisions .20.
2300-1KPA	Differential Pressure Gage, Range 0.5-0-0.5 kPa, minor divisions .02.
2300-3KPA	Differential Pressure Gage, Range 1.5-0-1.5 kPa, minor divisions .10.

Additional Information:

Item Code: DWYER Magnehelic Air Gauge - Manometer
www.envirotechindustrialproduct.co.in
www.envirotechindustrialproduct.in
www.envirotechindustrialproduct.in

No photo description available.

Enhanced Monitoring for Industry

The DWYER Magnehelic Air Gauge is tailored for demanding industrial applications. It monitors differential pressure in gas systems, making it ideal for sectors where accurate airflow or gas pressure is vital. Its solid build, compatibility with international threading, and easy-to-read analog display all contribute to seamless integration with existing infrastructure.

Simple Installation & Reliable Operation

Designed with a back mount and dual pairs of pressure taps, this manometer ensures flexible setup on various control panels or equipment. Its lightweight build and universal scale make ongoing measurements straightforward for engineers and technicians, minimizing downtime and maximizing operational efficiency.

FAQ's of DWYER Magnehelic Air Gauge - Manometer:

Q: How does the DWYER Magnehelic Air Gauge function in measuring pressure?

A: The DWYER Magnehelic Air Gauge works by measuring the differential pressure between its high and low ports, providing a direct analog readout on its dial face. It is specifically designed for monitoring air or gas pressure in industrial environments.

Q: What type of environments is this manometer best suited for?

A: This manometer is commonly used in power plants, cement plants, fertilizer factories, textile industries, and steel production facilities, making it ideal for any application requiring accurate air or gas pressure readings.

Q: When should I use a Magnehelic Air Gauge instead of a digital pressure gauge?

A: Choose the Magnehelic Air Gauge when you need quick, reliable analog pressure readings, especially where power sources are limited or in environments where electronic components may be susceptible to interference or damage.

Q: Where can the DWYER Magnehelic Gauge be mounted?

A: The gauge features a back mount, allowing it to be installed directly onto panels or equipment. It includes dual pairs of 1/8" female NPT pressure taps on the side and back for flexible connection options.

Q: What is the installation process for this gauge?

A: Installation involves connecting the appropriate high and low pressure lines to the desired pair of NPT ports, mounting the gauge securely on a panel or wall, and ensuring the dial is clearly visible for accurate monitoring.

Q: How is the pressure scale represented and what ranges are available?

A: The gauge supports multiple pressure scale units including mm WC, cm, Pa, KPa, and inch, accommodating various measurement standards across industries and ensuring compatibility with global applications.

Q: What benefits does this gauge offer over traditional manometers?

A: This Magnehelic gauge provides enhanced durability, simple analog operation, and a clear display for instant readings. It is highly reliable, requires minimal maintenance, and is well-suited for harsh industrial settings.
