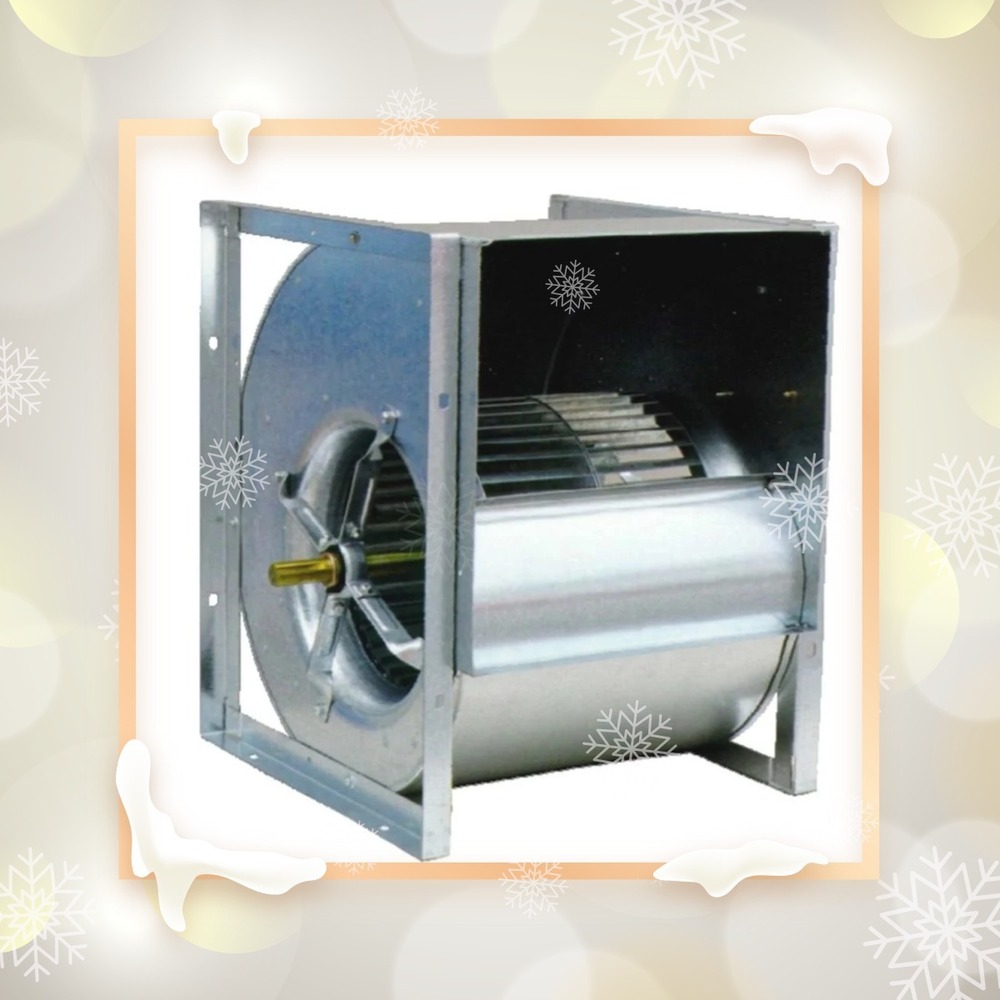

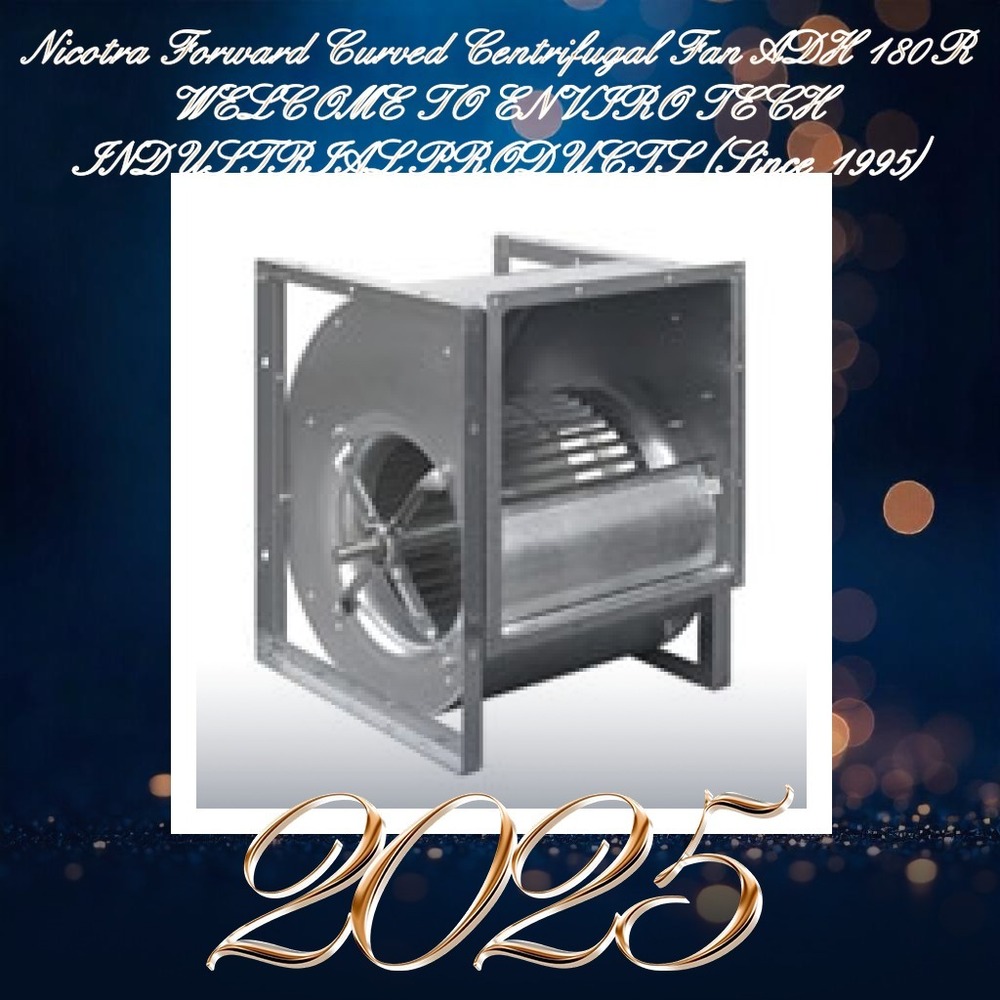

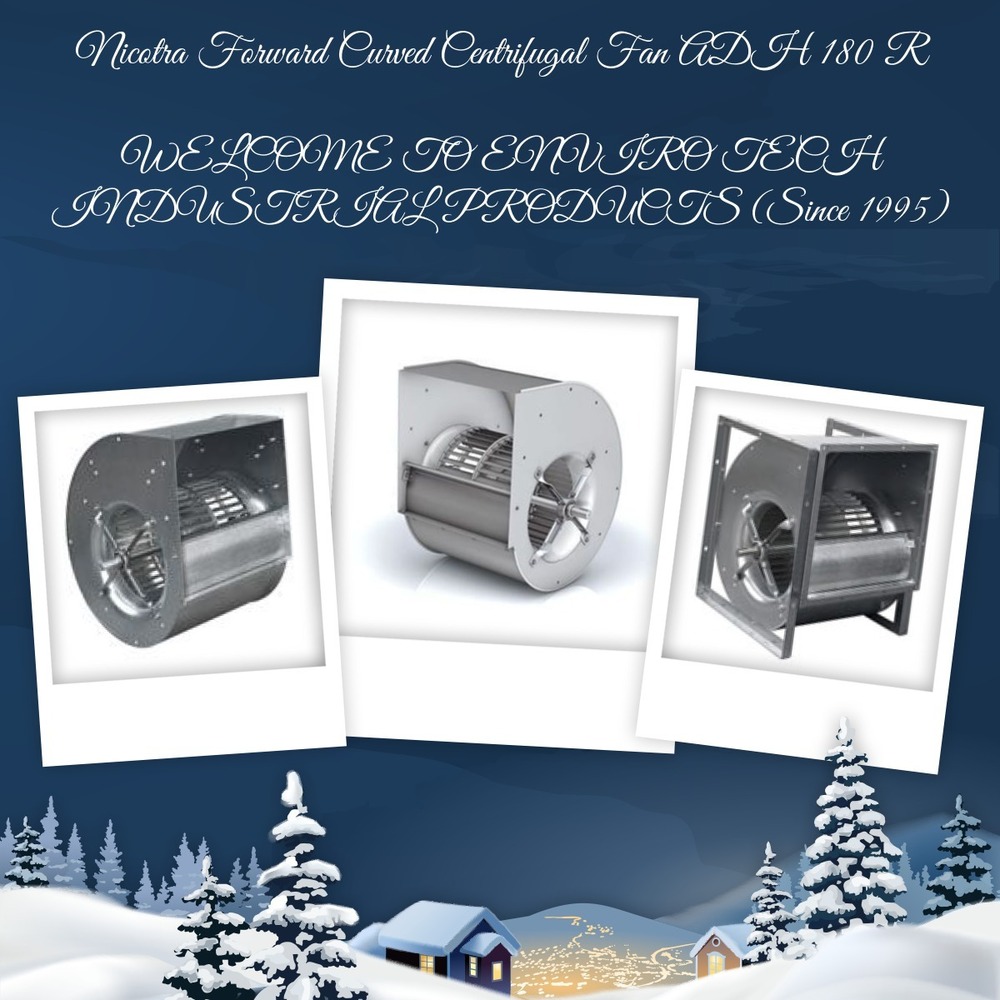

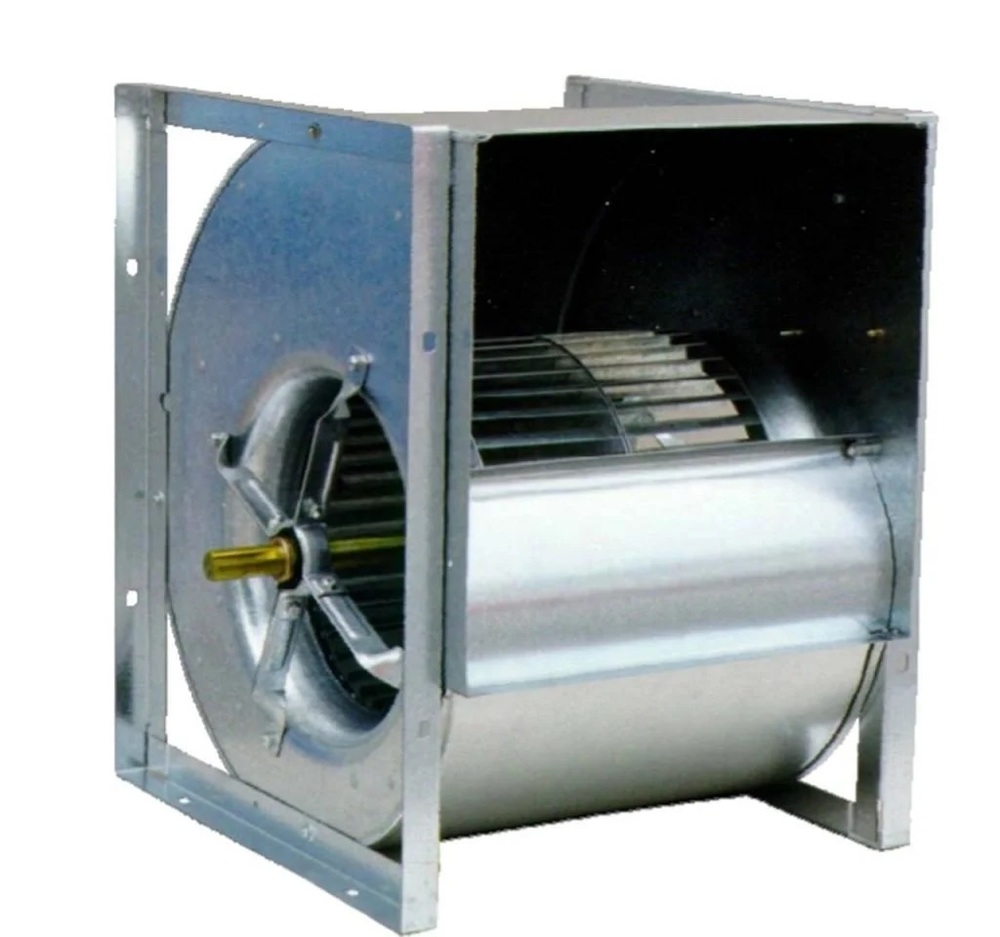

Nicotra Forward Curved Centrifugal Fan ADH 180 R

Get a Price/Quote

MOQ : 1 Piece

Nicotra Forward Curved Centrifugal Fan ADH 180 R Specification

Air Flow
Max 1200 m/h

Efficiency
High Efficiency

Orientation
Direct Drive

Usage & Applications
Air Handling Units, HVAC, Ventilation, Industrial Applications

Power Source
Electric

Automation Grade
Manual

Temperature
Max 60C

Product Type
Forward Curved Centrifugal Fan

Material
Galvanized Steel

Cooling System
Air Cooled

Noise Level
Low Noise

Capacity
Up to 1200 m/h

Voltage
230 V / 415 V

Weight
Approx. 13 kg

Dimension (L*W*H)
440 331 359 mm

Surface
Powder Coated / Galvanized

Nicotra Forward Curved Centrifugal Fan ADH 180 R Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Telegraphic Transfer (T/T), Paypal, Cash in Advance (CID), Cheque, Cash Advance (CA)

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Australia, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Central America, North America

Main Domestic Market
All India

About Nicotra Forward Curved Centrifugal Fan ADH 180 R

Nicotra Forward Curved Centrifugal Fan ADH 180 R

Product Benefits

Performance certified is for installation type B - free inlet, ducted outlet. Power rating (kW) does not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories)

Nicotra Gebhardt S.p.A certifies that the fan shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program. The AMCA Certified Ratings Seal applies to air performance ratings only

ADH E and ADH G2E series

Sizes 0160 up to 0560
Scroll of galvanesed sheet steel with standing seam
Straight cut off
New cylindrical impeller with forward-curved blade geometry
Galvanised shaft
Pressure up to 2.200 Pa

ADH and ADH G2 Series

Sizes 0630 up to 1000
Lap jointed scroll of galvanized sheet steel with Pittsburgh-Seam and V-cut off
Pressure up to 1.800 Pa

Versatile and Robust Design

The ADH 180 R incorporates a forward curved impeller and external rotor motor, offering superior efficiency and durability for a range of air movement tasks. Its powder-coated or galvanized finish provides excellent corrosion resistance, making it suitable for challenging industrial and commercial environments.

Quiet, Efficient Operation

Engineered for low noise levels without sacrificing performance, the ADH 180 R delivers silent ventilation while maintaining high airflow rates. The direct drive system and air-cooled motor ensure energy-efficient, reliable operation, supporting smooth functioning in HVAC and ventilation systems.

Easy Installation and Integration

With its base/foot mounting design and compact footprint, the ADH 180 R is easy to install within new or existing air handling units, ventilation shafts, and industrial setups. Manual automation and wide voltage compatibility streamline integration into various operational frameworks.

FAQs of Nicotra Forward Curved Centrifugal Fan ADH 180 R:

Q: How do I install the Nicotra Forward Curved Centrifugal Fan ADH 180 R?

A: Installation is straightforward thanks to the base/foot mounted design. Ensure the fan is securely anchored, properly aligned, and connected to the suitable power source (230 V/415 V). Adhere to the manufacturers guidelines for electrical wiring and ventilation layout.

Q: What are the main applications of this centrifugal fan model?

A: The ADH 180 R is ideal for air handling units, HVAC systems, general ventilation, and industrial applications where reliable, efficient airflow is essential. Its versatility allows use in commercial buildings, factories, and process facilities.

Q: When should I choose this forward curved fan over other options?

A: Select the ADH 180 R when your project requires high efficiency, low noise, compact dimensions, and dependable performance within a maximum airflow of 1200 m/h and static pressures up to 430 Pa, particularly in temperature conditions up to 60C.

Q: Where can this fan be installed within an HVAC or ventilation system?

A: This fan is suitable for integration into supply or exhaust sections of air handling units, ventilation ducts, and other air movement modules. Its flexible mounting and moderate size facilitate installation in both confined and open spaces.

Q: What process should I follow for maintenance and cleaning?

A: Regularly disconnect the power and inspect for dust or debris. Clean the impeller, housing, and ensure the motor vents are unobstructed. Scheduled maintenance helps maintain efficiency and prolongs the fans service life.

Q: What are the benefits of using an external rotor motor and direct drive system?

A: The external rotor motor delivers improved airflow control, reduced space requirements, and enhanced heat dissipation, while the direct drive configuration minimizes energy loss, reduces maintenance needs, and promotes operational stability.
