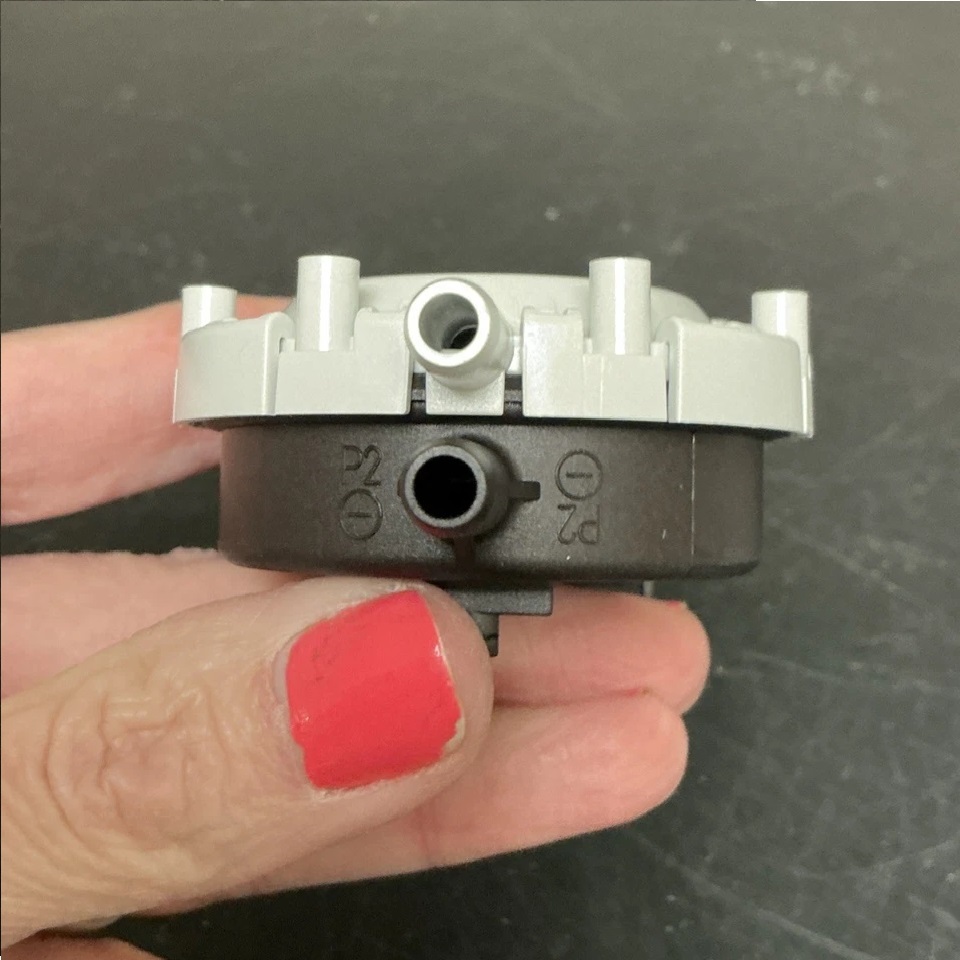

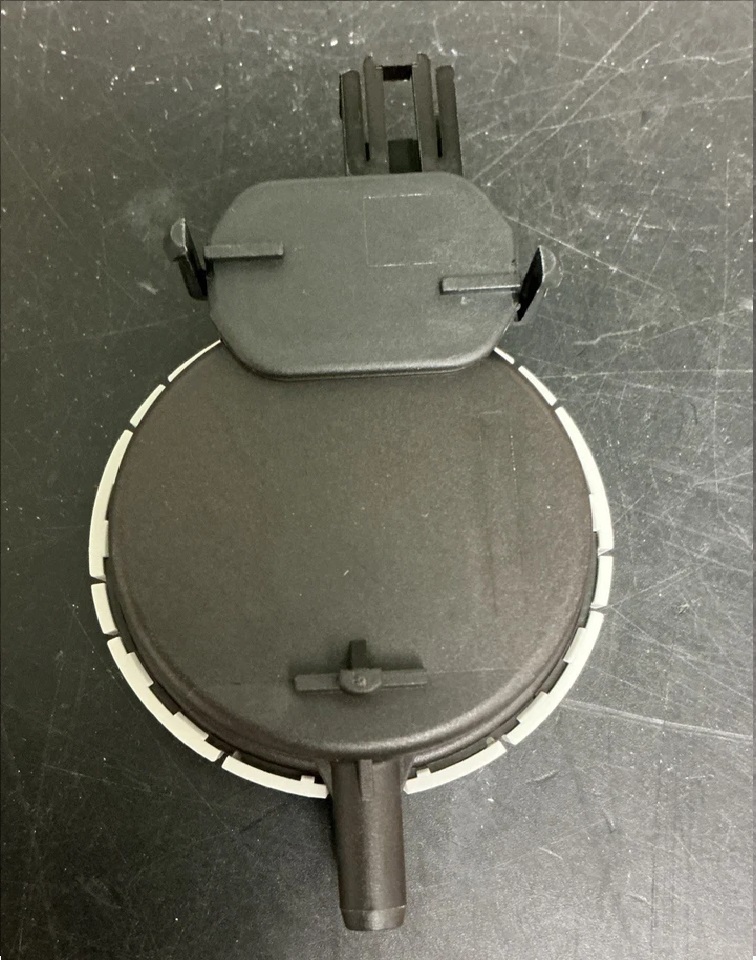

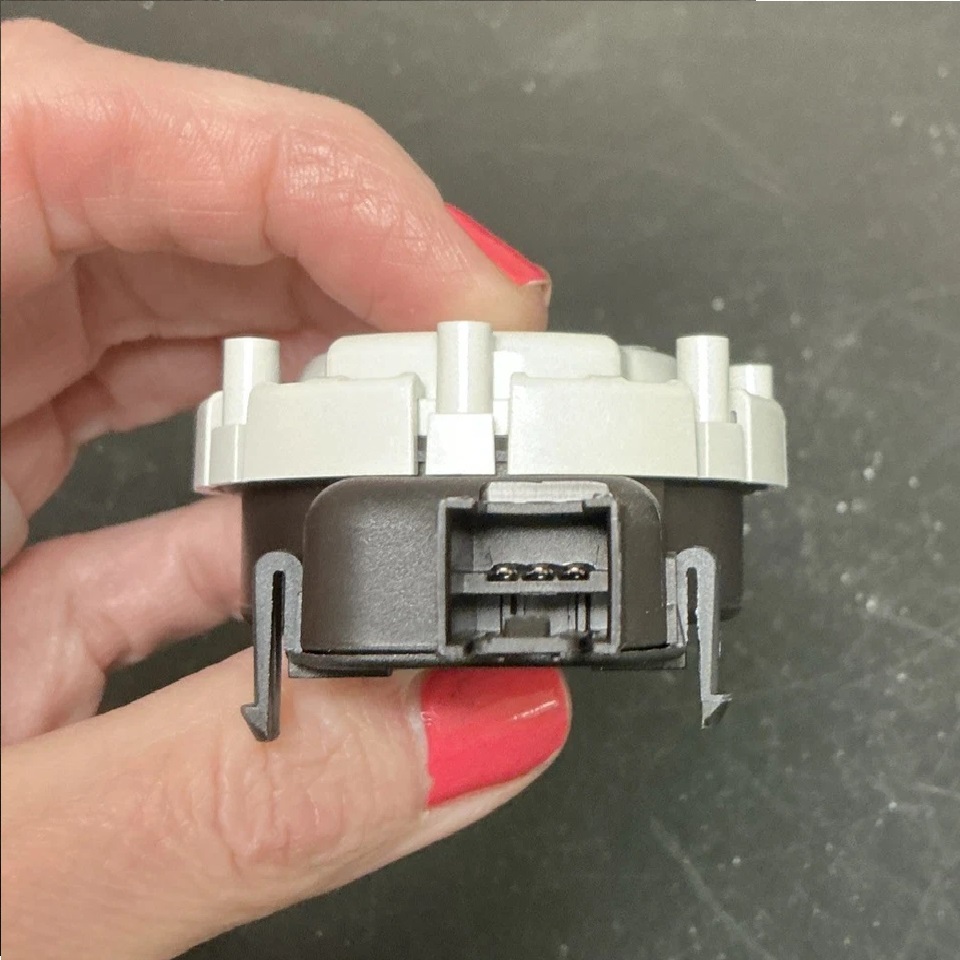

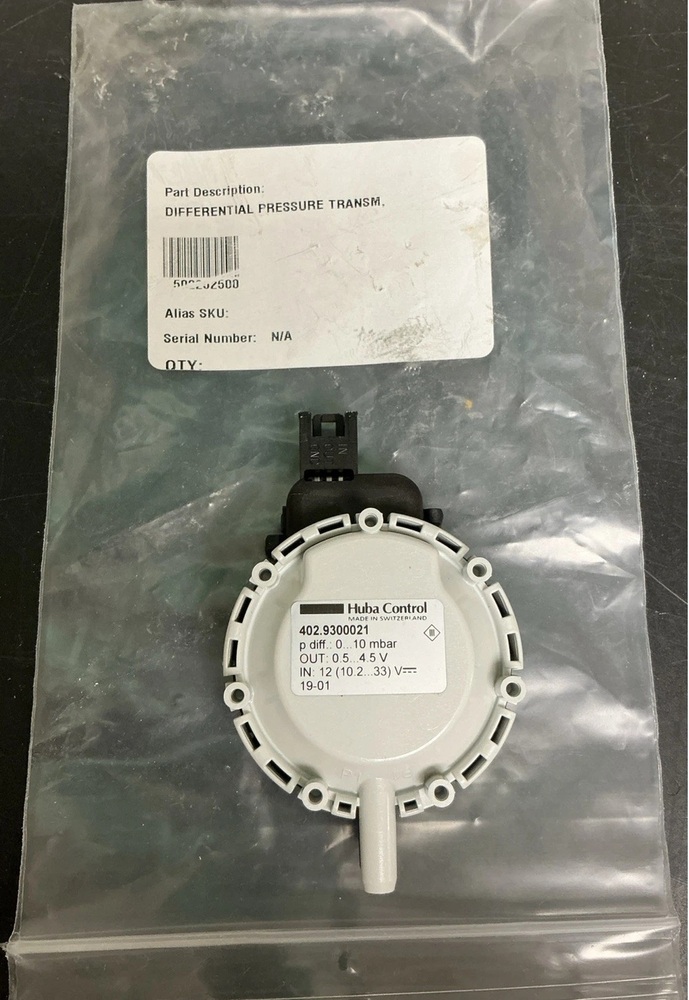

Huba Control 402.9300021 Differential Pressure Transmitter

Price 15000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Huba Control 402.9300021 Differential Pressure Transmitter Specification

Product Type
Huba Control 402.9300021 Differential Pressure Transmitter

Application
VAB SYSTEMS,ERV,MOBILE HYDRAULIC,INDUSTRIAL AUTOMATION

Output Signal
0.5....4.5 V

Warranty
1 yers

Usage & Applications
VAB SYSTEMS,ERV,MOBILE HYDRAULIC,INDUSTRIAL AUTOMATION

Weight
250 Grams (g)

Material
Polycarbonate (PC); Polyamide (PA)

Huba Control 402.9300021 Differential Pressure Transmitter Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
extra

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Certifications
by order

About Huba Control 402.9300021 Differential Pressure Transmitter

Huba Control 402.9300021 Differential Pressure Transmitter

Huba Control 402.9300021 Differential Pressure Transmitter

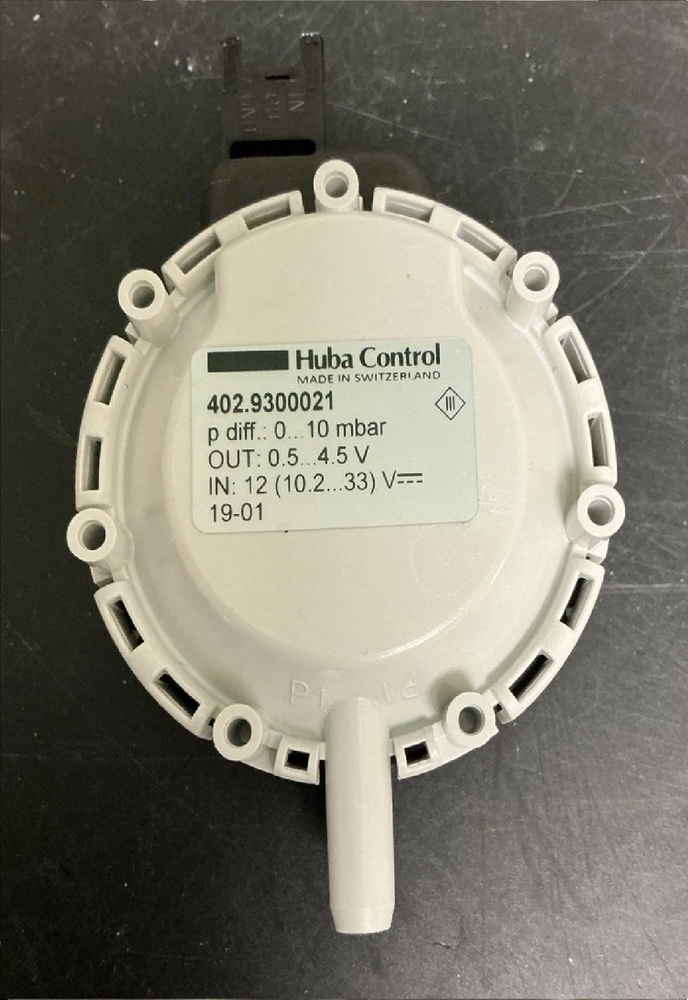

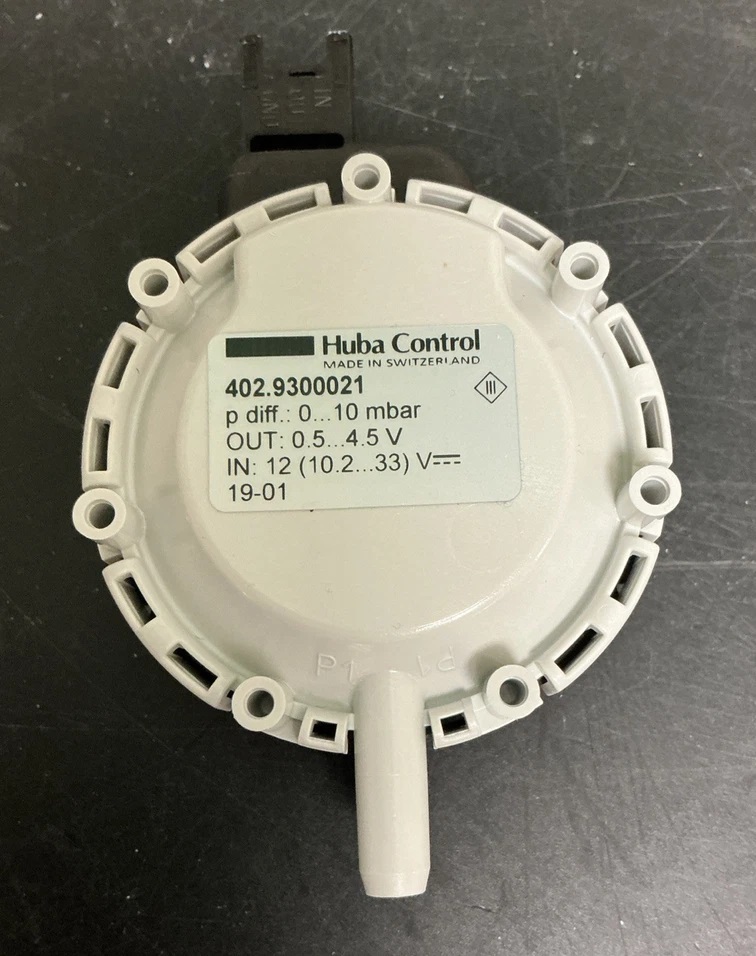

Differential Pressure Transmitter

Type - 402

Manufacturer - HUBA CONTROL

Model - 402.9300021

RANGE - 0-10 MBAR

OUT - 0.5....4.5 V

IN - 12 ( 10.2.... 33 ) V

Product information
The Differential Pressure Transmitters of Type 402 Are Ideal For Detecting Small Air Flows in HVAC Systems And For Measuring Low Pressures In The Environmental And Medical Sectors. Sensors Specifically Developed For Each Pressure Range Enable Physically Accurate And Long-Term Stable Measurements. They Allow For Simple And Quick Installation, Either Directly Onto a Mounting Plate Or Onto a PCB

Attractive Price-Performance Ratio

Excellent Synergy Of Membrane Technology And Ceramic Elements

Special Adapter For DIN Rail Mounting

Direct PCB Mounting With Simple Snap System

Technical Data
Product Feature

Pressure Measuring Range : 0 ... 50 mbar (Relative and Difference)

Response Time : <10 ms

Load Change : <10 Hz

Sensor Weight : 28 g

Field Of Application

Media : Air; Neutral Gases

Medium Temperature : 0 ... 70 C (Non-Freezing Media)

Permissible Overload On One Side : 100 Mbar

Bursting Pressure At Room Temperature : 200 Mbar

Bursting pressure at 70C : 150 Mbar

Ambient Condition

Ambient Temperature : 0 ... 70 C

Storage Temperature : -30 ... 70 C

Material

Housing With Media Contact : Polycarbonate (PC); Polyamide (PA)

Membrane With Media Contact : Silicone

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Electrical Data

Output Pressure : 0,5 ... 4,5 V

Supply Voltage : 10,2 ... 33 VDC

Permissible Load : >15 kOhm (Against GND)

Current Consumption : <8 mA

Inverse-Polarity Protection : Mechanically guaranteed

IP Protection Class : IP 00

Electrical Connection : Printed Circuit Board Assembly (Solderable Pins On The Print Side); Printed circuit board assembly (Mounted And Soldered On Adapter); RAST 2.5 Connector

Approval

EMC Compatibility : The Product Is Intended Exclusively For Installation In Appliances That Fulfil The Requirements Of The EC Directives. CE Certification Is The Responsibility Of The Customer.

Installation guide

Installation Orientation : Pressure Connections Downwards; Pressure Connection P1 Top

Assembly : Snap-On Mounting On Printed Circuit Board (Max. 1.6 MM Thickness); Adapter; Screw Mounting With Bracket.

Applications

VAB SYSTEMS

ERV

MOBILE HYDRAULIC

INDUSTRIAL AUTOMATION

Accessories

RAST 2.5 Connector : With Cable; 110 CM; 3-Pole

Fastening Screw : For Wall Thickness 1 - 2 MM; Screw Length 6 MM (Min. 2 Screws Required)

Calibration Certificate

Mounting Bracket

Mounting Plate Complete For Mounting Rail TS 35

Fastening Screw : For Wall Thickness 4.1 - 6 MM; Screw Length 10 MM (Min. 2 Screws Required)
